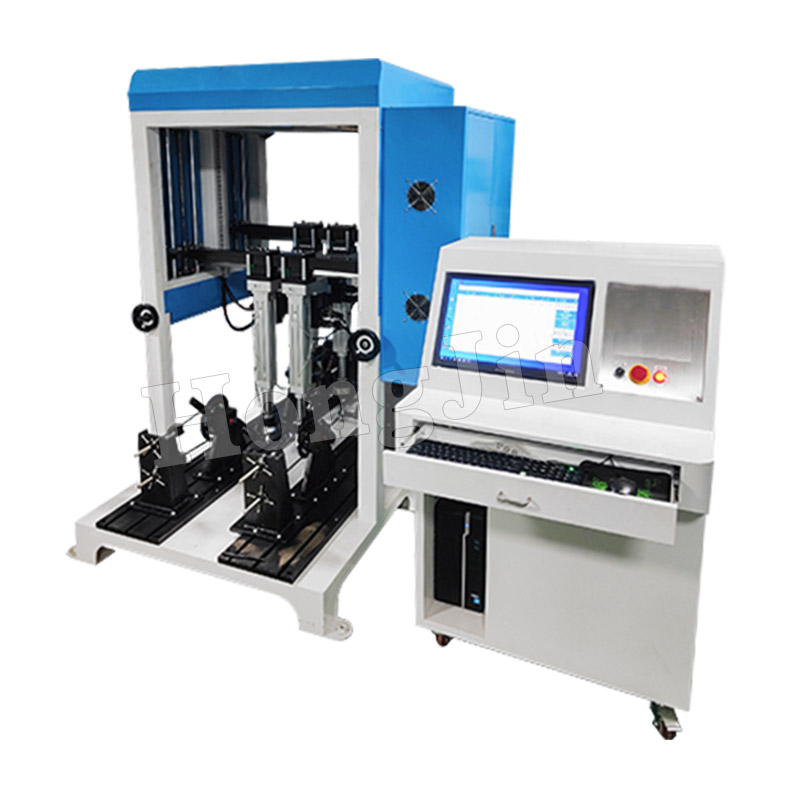

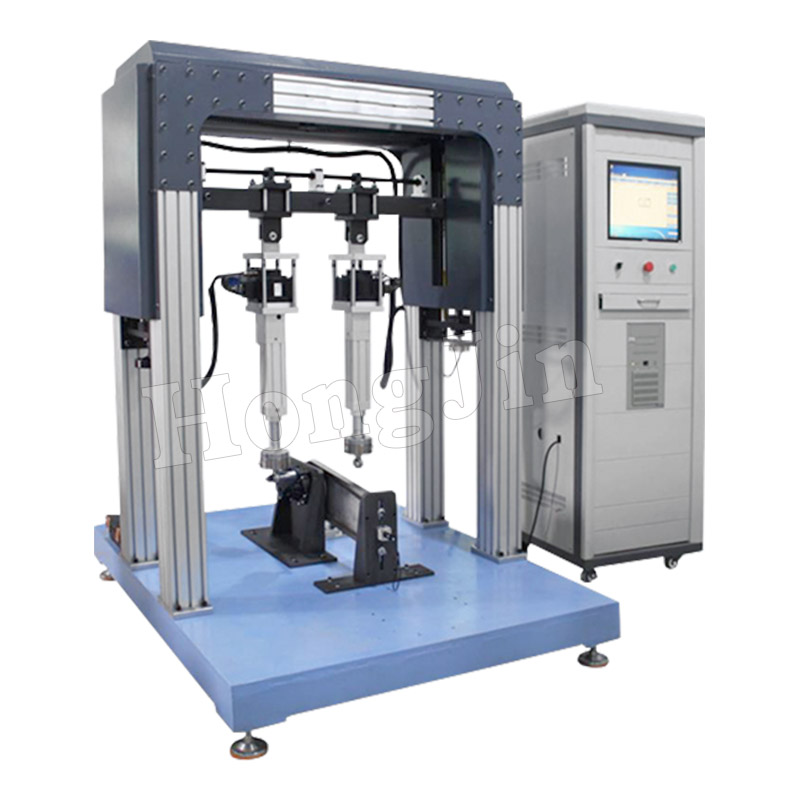

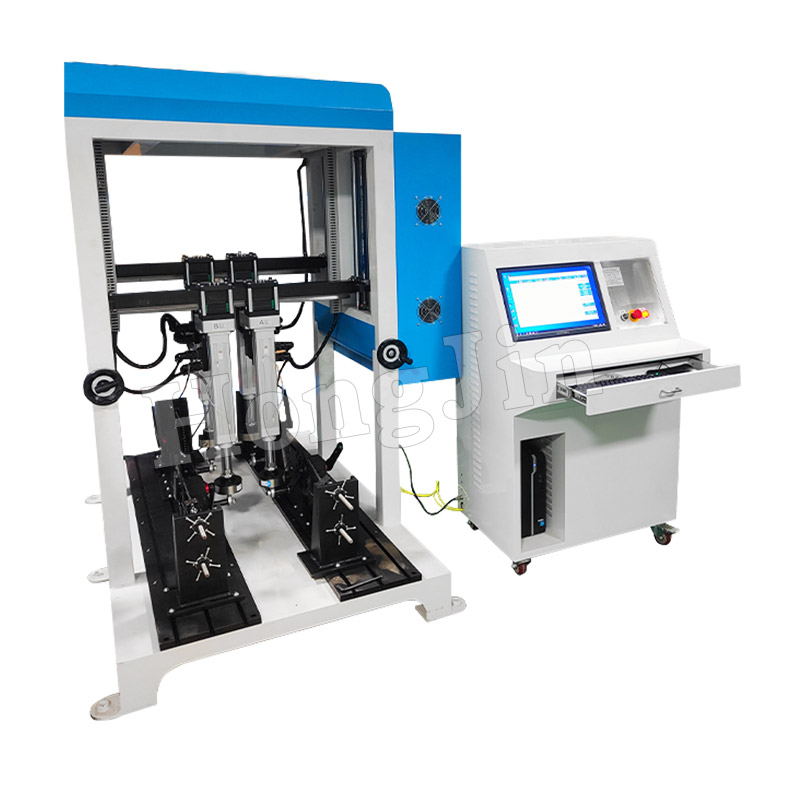

Mid-mounted Motor Shaft Fatigue Testing Machine

The crank pedaling test bench is a test bench that simulates manual pedaling of the crank according to the characteristics of the mid-mounted motor, applies force to the pedal shaft installed on the mid-mounted motor main shaft, and tests the mechanical strength of the mid-mounted motor shaft. It is a mechatronic device that integrates control, sampling and data processing by a standard industrial computer. It meets the mechanical strength test requirements of crank shaft components in relevant regulations such as EN15194.EN14764.EN14766.

Availability:

Quantity:



Inquire Add to Basket

Brand:
hj

Product Description

Product introduction:

This test machine is designed for the fatigue test standard of bicycle axles. It is used to test the life of bicycle cranks and toothed discs. It uses a servo cylinder to apply force. After the bicycle axle is installed on the fixture of this test machine, the test standard load and test speed are set. Force is applied repeatedly. It automatically stops after reaching the set number of times. After the test is completed, the degree of damage of the sample is judged.

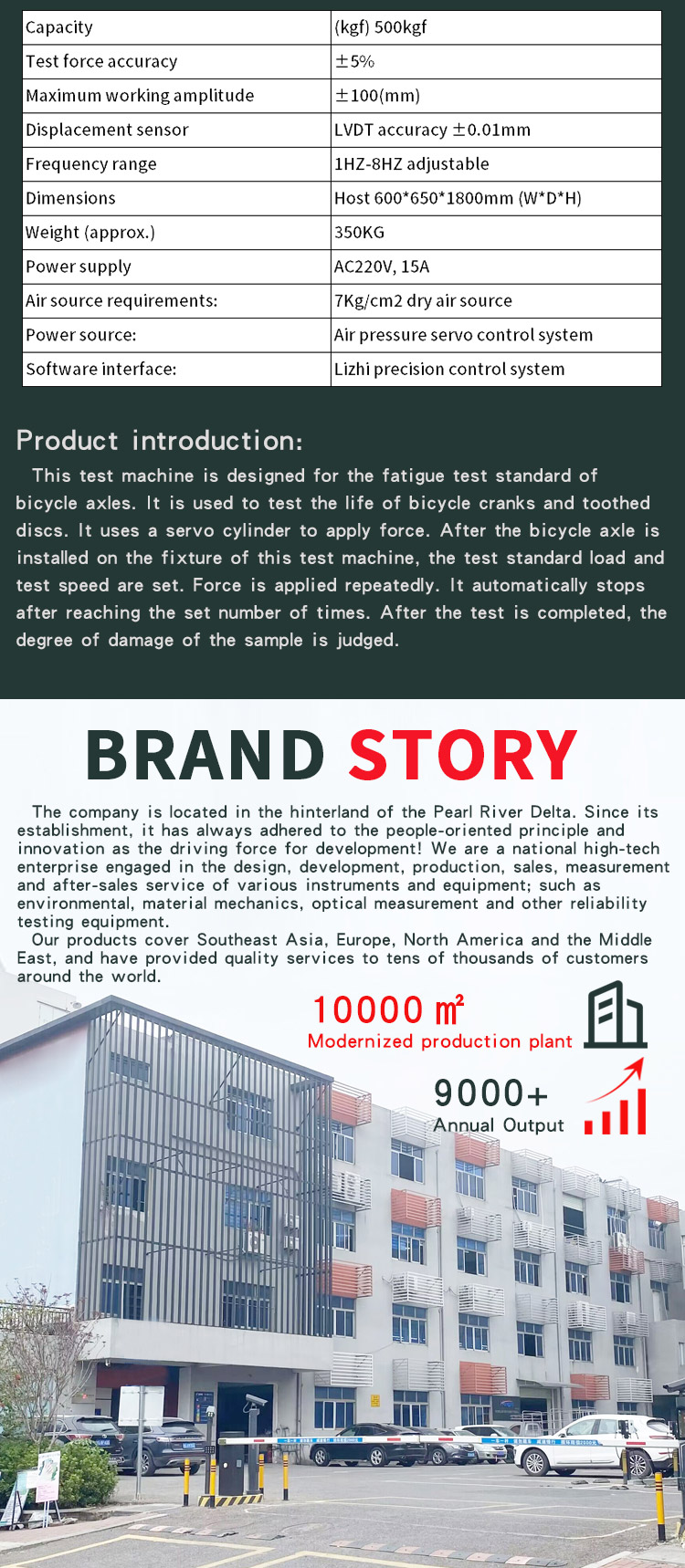

Capacity	(kgf) 500kgf
Test force accuracy	±5%
Maximum working amplitude	±100(mm)
Displacement sensor	LVDT accuracy ±0.01mm
Frequency range	1HZ-8HZ adjustable
Dimensions	Host 6006501800mm (WDH)
Weight (approx.)	350KG
Power supply	AC220V, 15A
Air source requirements:	7Kg/cm2 dry air source
Power source:	Air pressure servo control system
Software interface:	Lizhi precision control system
