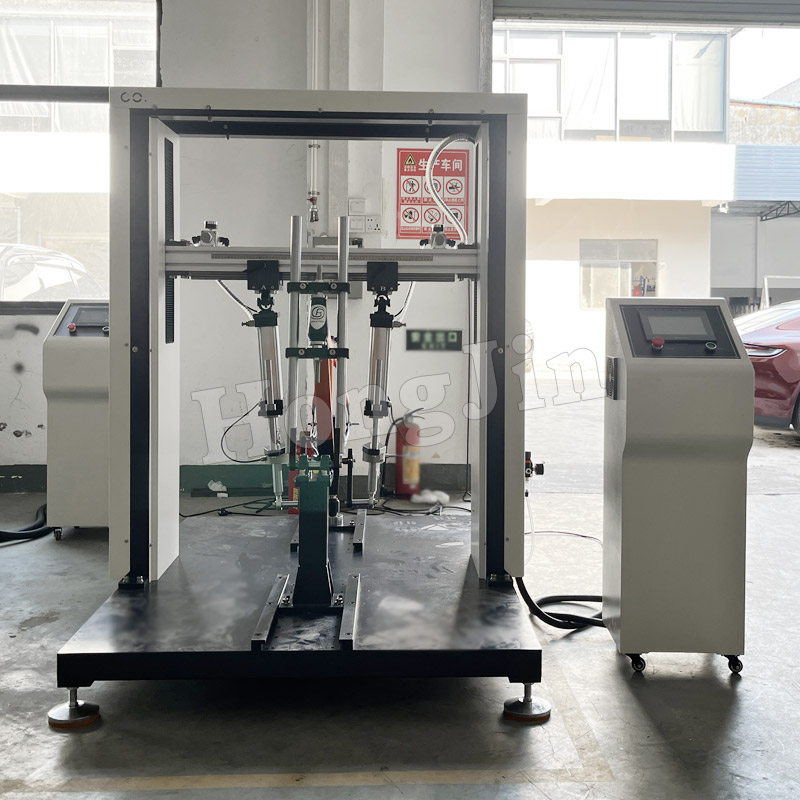

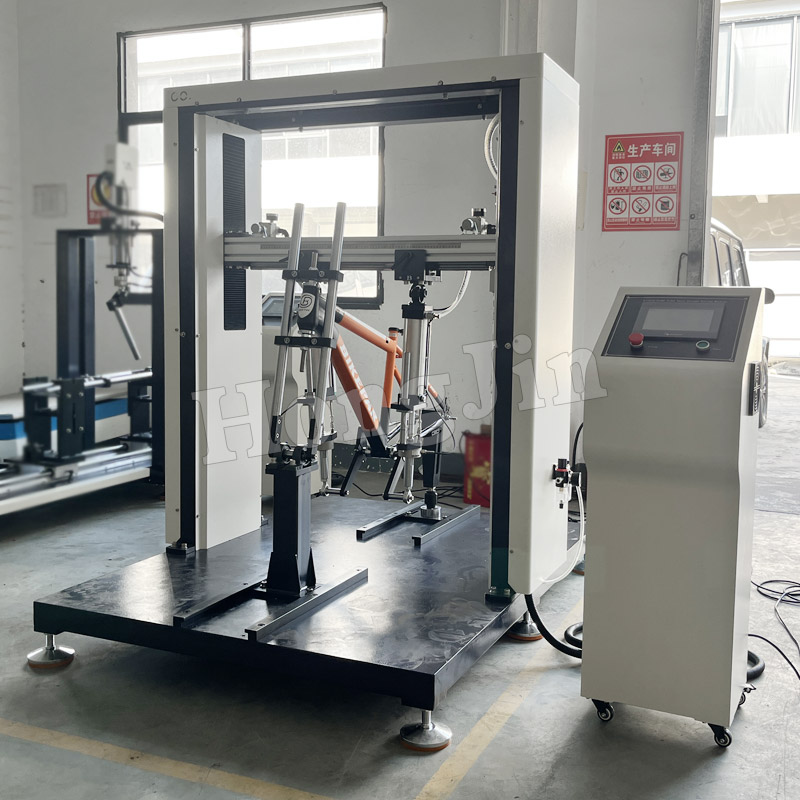

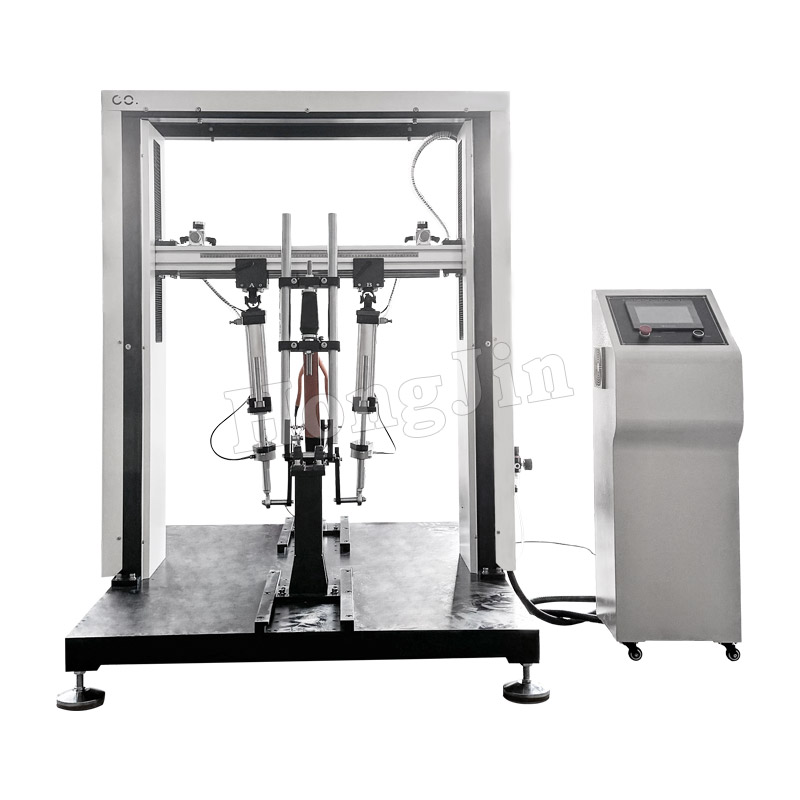

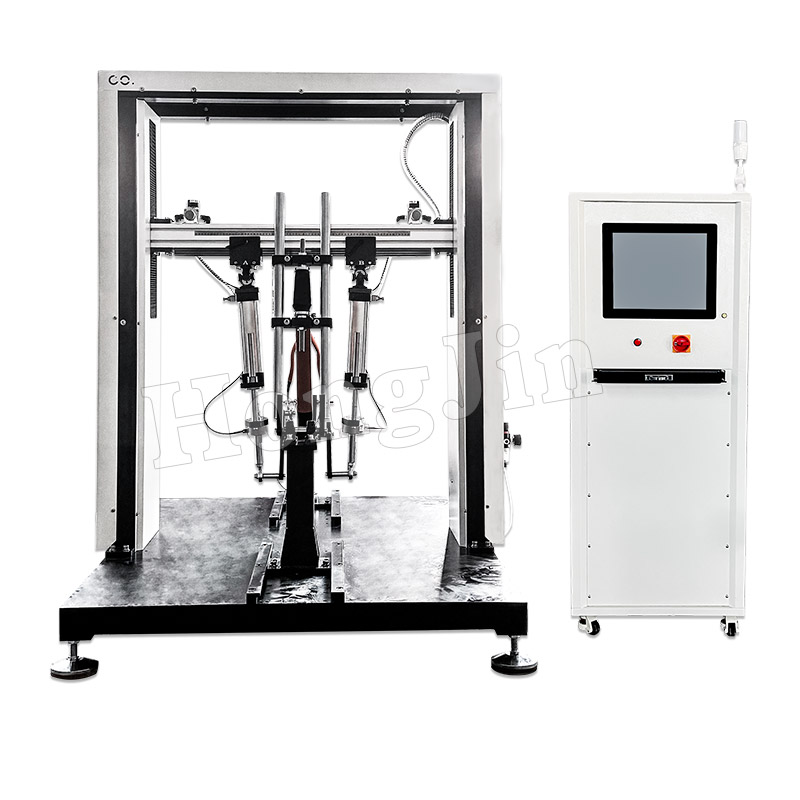

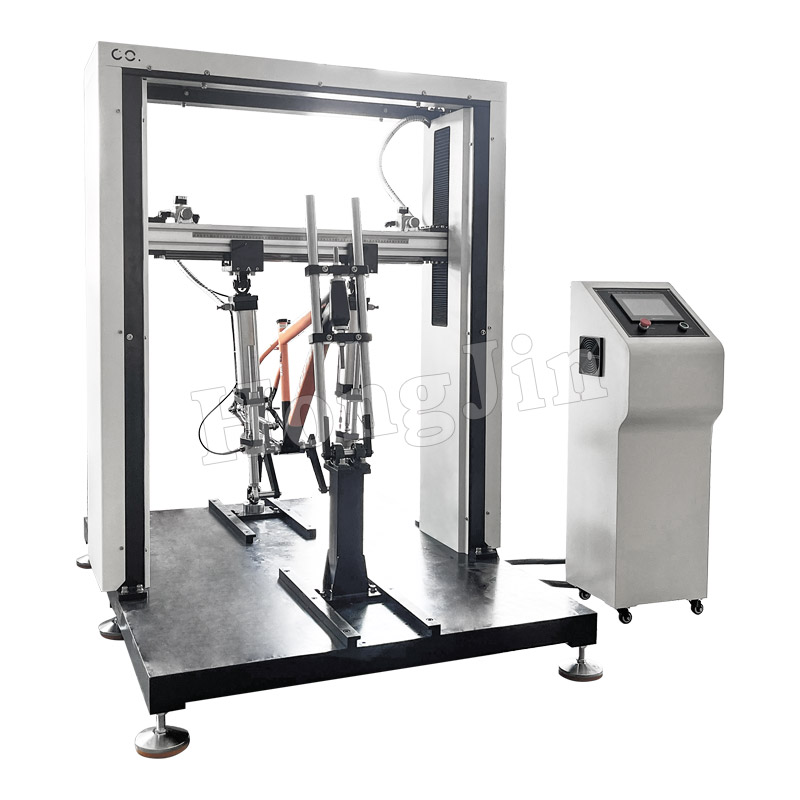

Frame Dynamic Pedal Fatigue Testing Machine

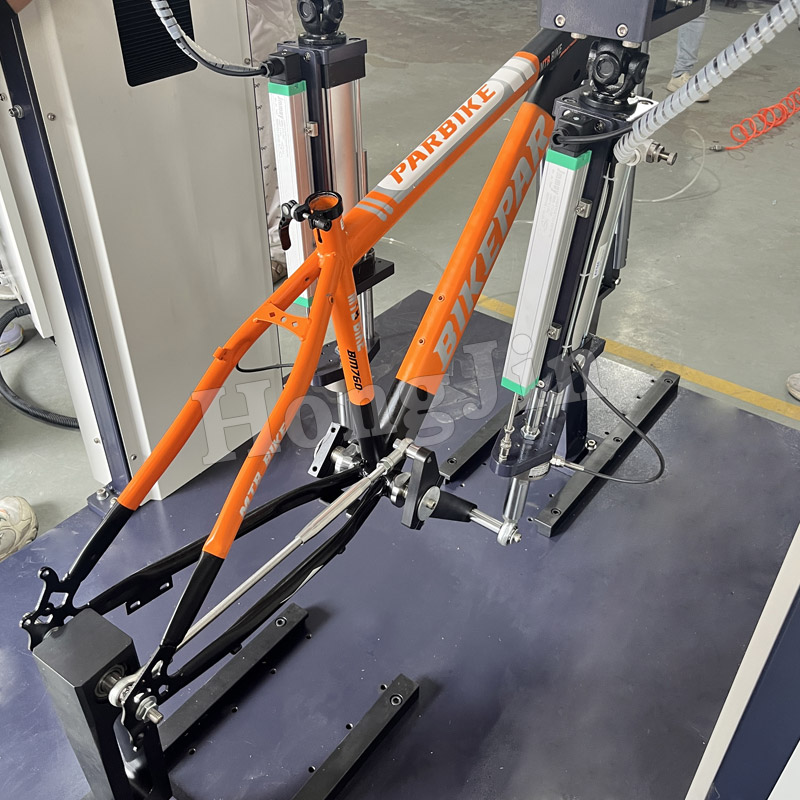

Frame dynamic pedaling fatigue tester. This tester is designed for bicycle frame pedaling fatigue test standards. It uses dual servo hydraulic cylinders to apply force. The bicycle frame and front fork are fixed on the fixture of this tester and then subjected to fatigue force of a certain frequency, load and number of tests. After the test, the degree of damage of the sample is checked to determine. This machine is easy to operate and maintain.
Availability:
Quantity:
  • hj

Equipment features:

1. After the sample breaks, once the micro switch is touched, the tester will stop the test immediately.

2. When the test air pressure exceeds the set standard range, the test will stop automatically.


Control method: PLC touch screen control
Power supply: AC220V,15A
Power consumption: AC 220V 50HZ
Life test frequency: 1-5HZ
Air pressure setting: 4-6KG/cm2
Number of tests: 0-999999 arbitrary setting
Sensor capacity: Disc sensor 5000N*2
Electric cylinder: Electric cylinder servo control
Applicable specifications: Test size 20-29 frame (or as required by customers)
Approximate dimensions: 1100*1500*1625mm (L*W*H)

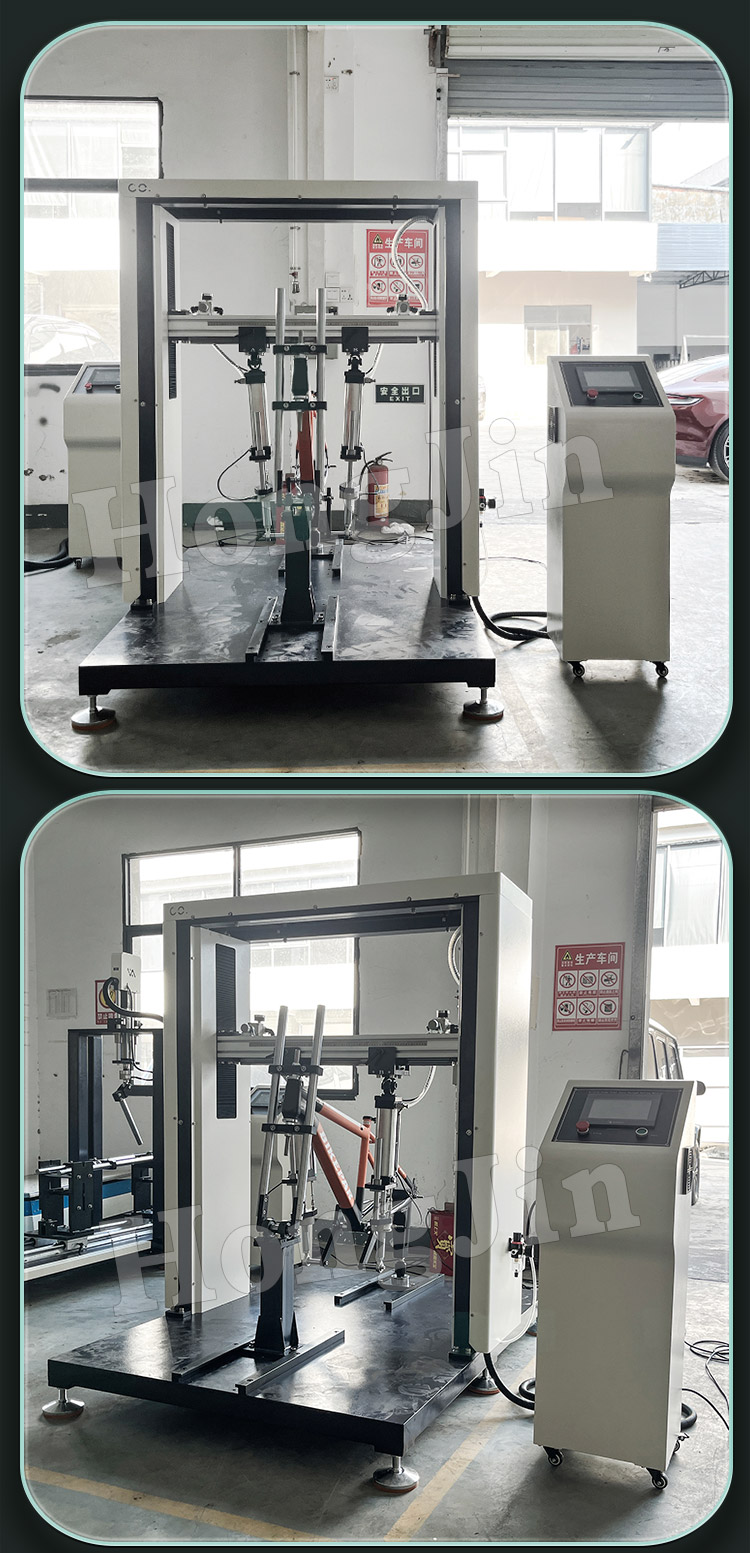

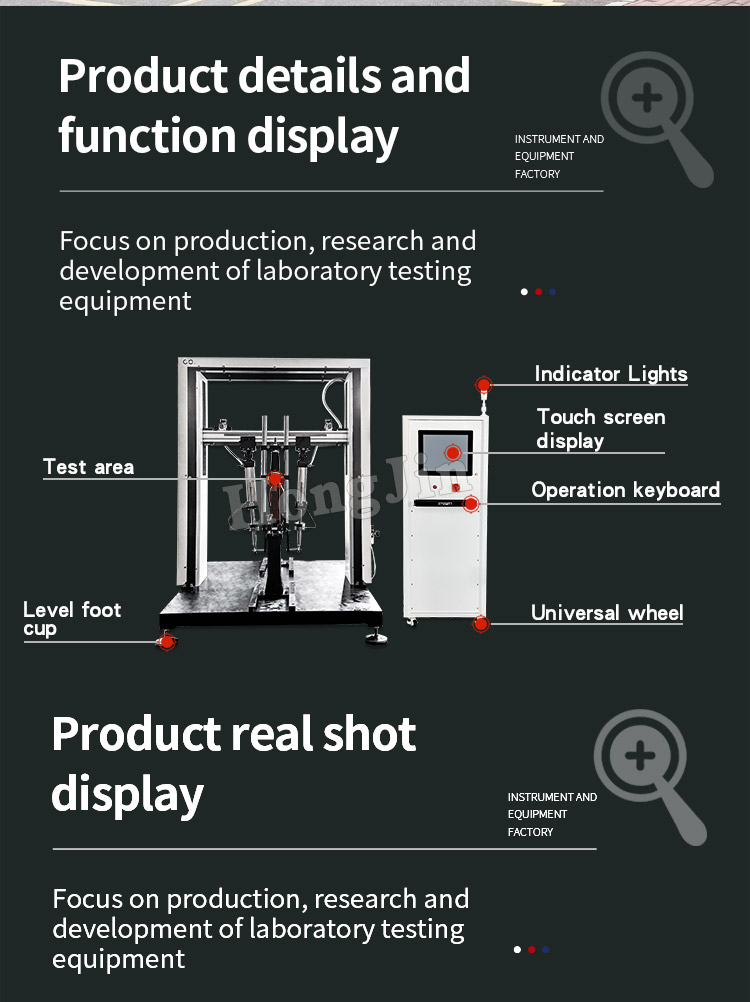

车架动态踏力疲劳试验机_01车架动态踏力疲劳试验机_02车架动态踏力疲劳试验机_03车架动态踏力疲劳试验机_05车架动态踏力疲劳试验机_06新模板_01新模板_02123
