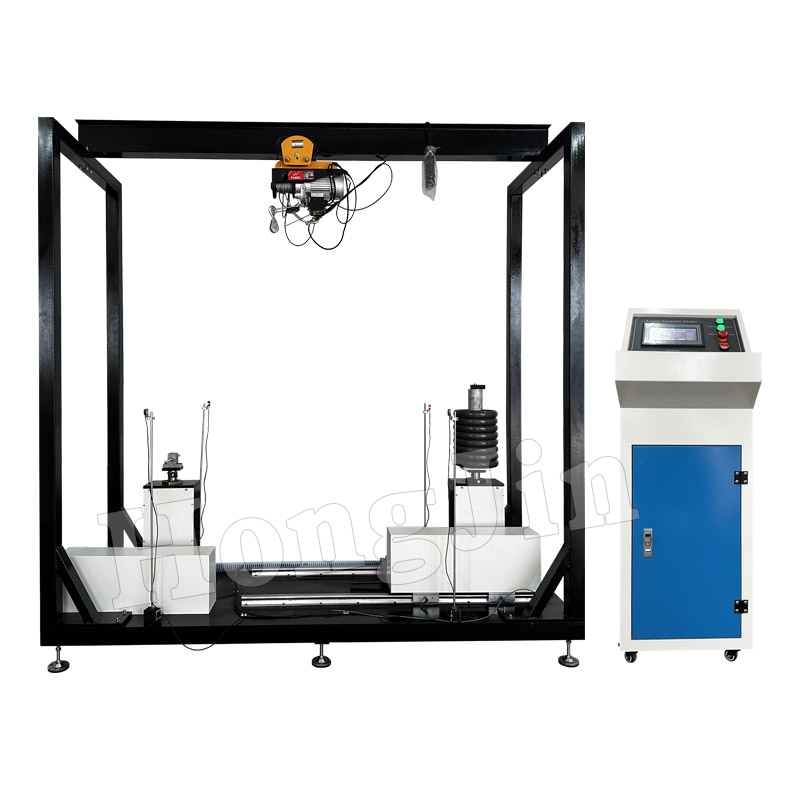

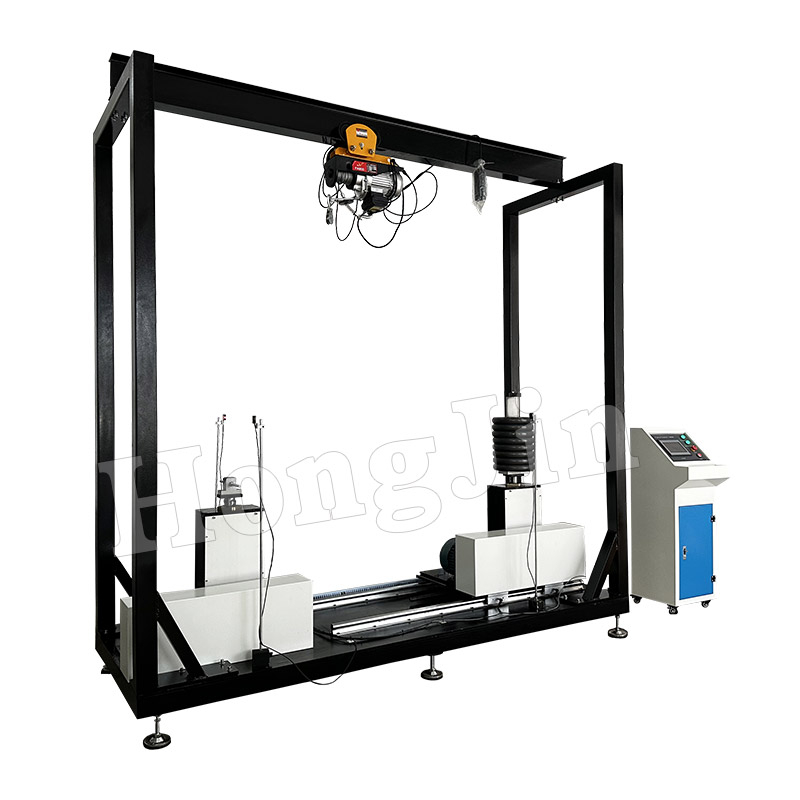

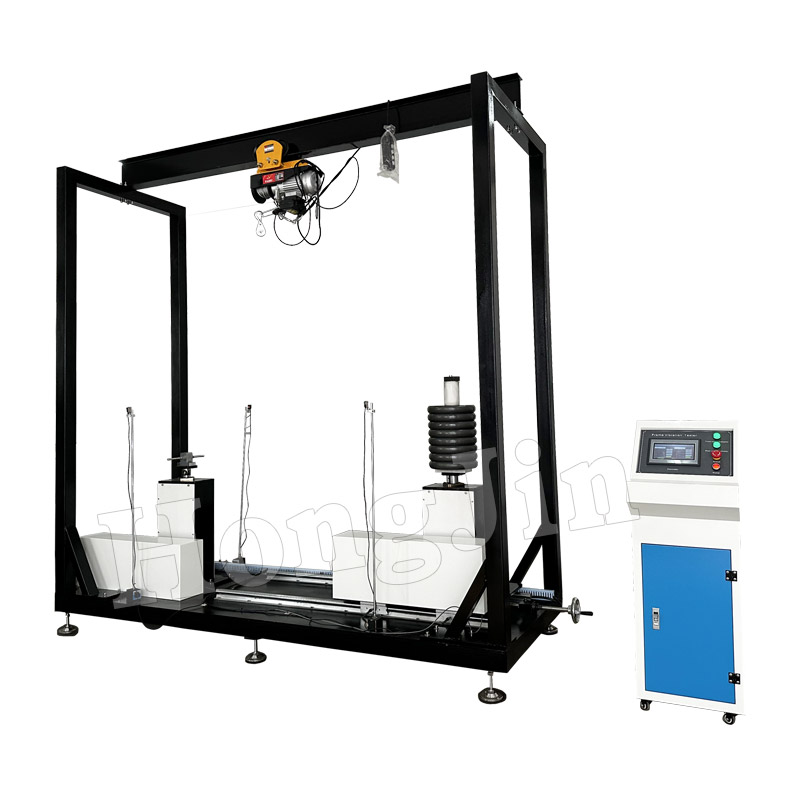

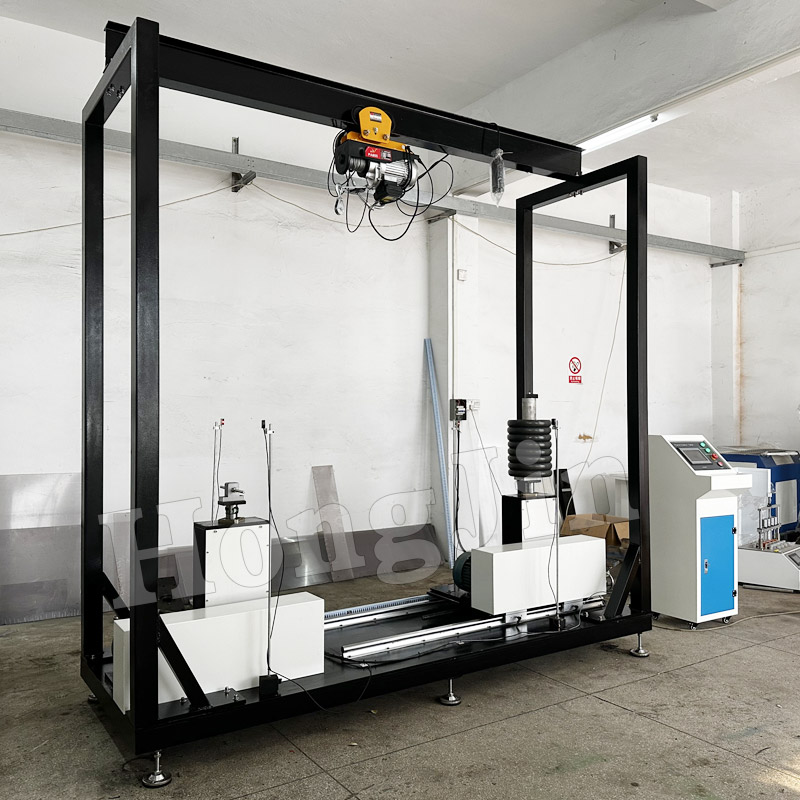

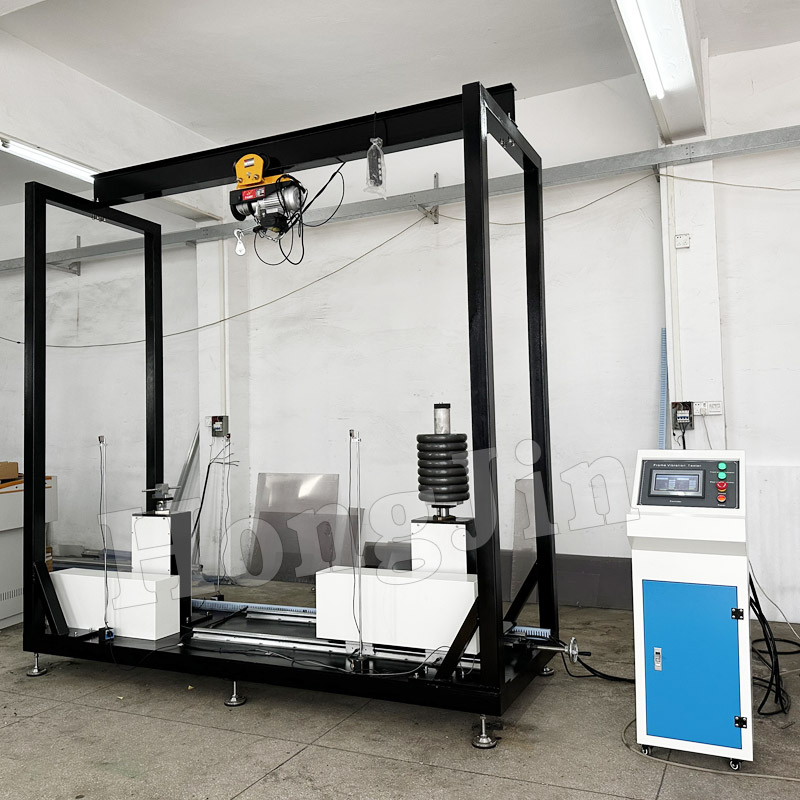

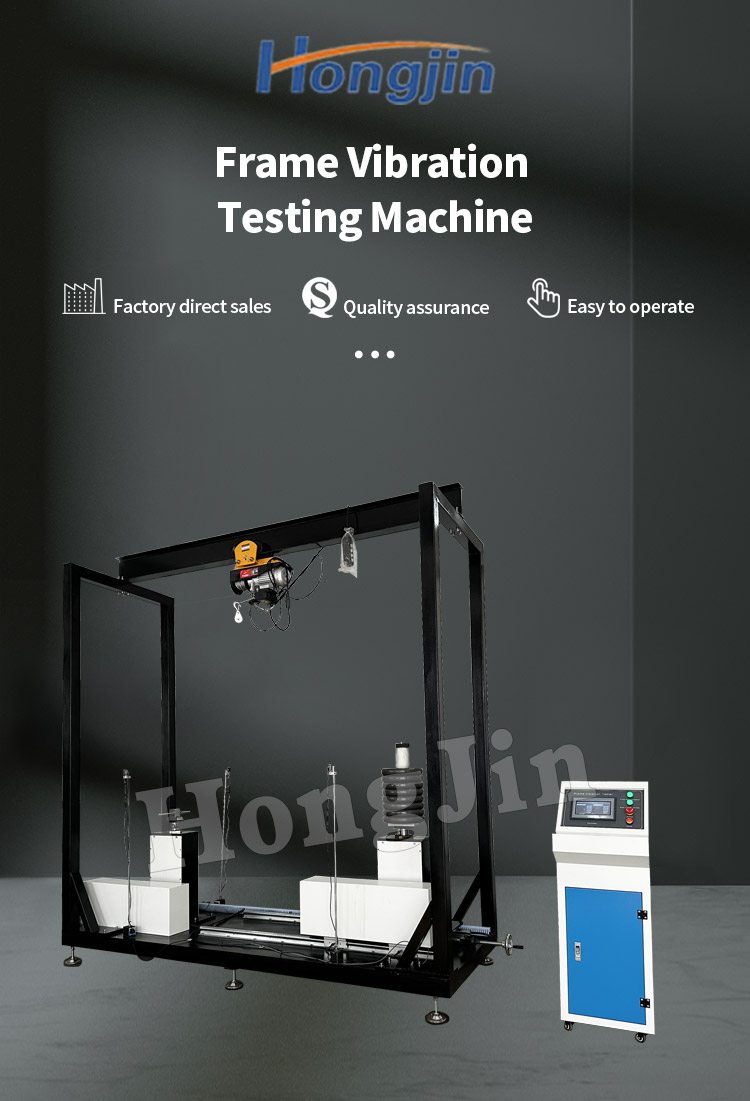

Bicycle Front Fork Frame Handlebar Vibration Impact Testing Machine

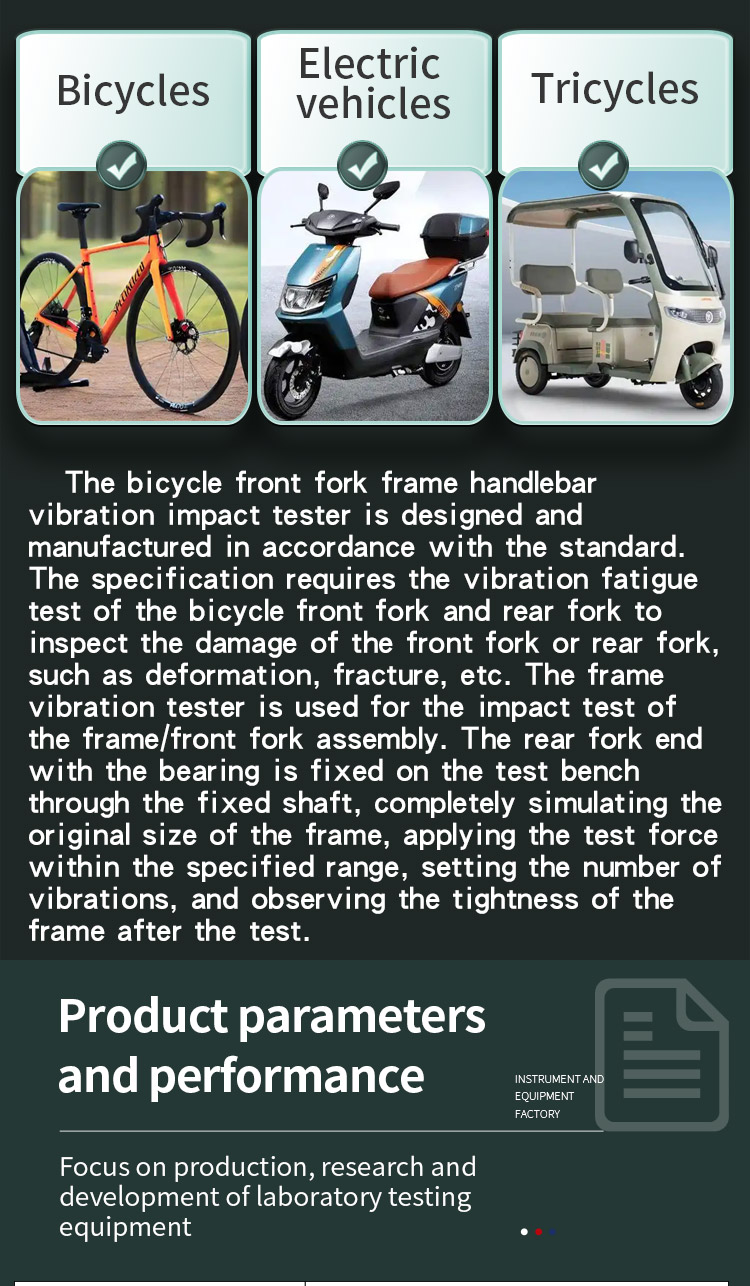

The bicycle front fork frame handlebar vibration impact tester is designed and manufactured in accordance with the standard. The specification requires the vibration fatigue test of the bicycle front fork and rear fork to inspect the damage of the front fork or rear fork, such as deformation, fracture, etc. The frame vibration tester is used for the impact test of the frame/front fork assembly. The rear fork end with the bearing is fixed on the test bench through the fixed shaft, completely simulating the original size of the frame, applying the test force within the specified range, setting the number of vibrations, and observing the tightness of the frame after the test.

Availability:

Quantity:



Inquire Add to Basket

Brand:
hongjin

Product Description

Product Overview:

This machine simulates a bicycle or electric vehicle frame. After the frame vibrates repeatedly in the vertical direction for a certain number of times at a certain frequency under a certain load, it checks whether the frame is deformed, broken, or otherwise damaged. The machine can set the frequency and number of times, and will automatically stop when the set number of times is reached. It is easy to operate and use, and the front and rear center distances can be adjusted. It is safe, stable, accurate, and durable.

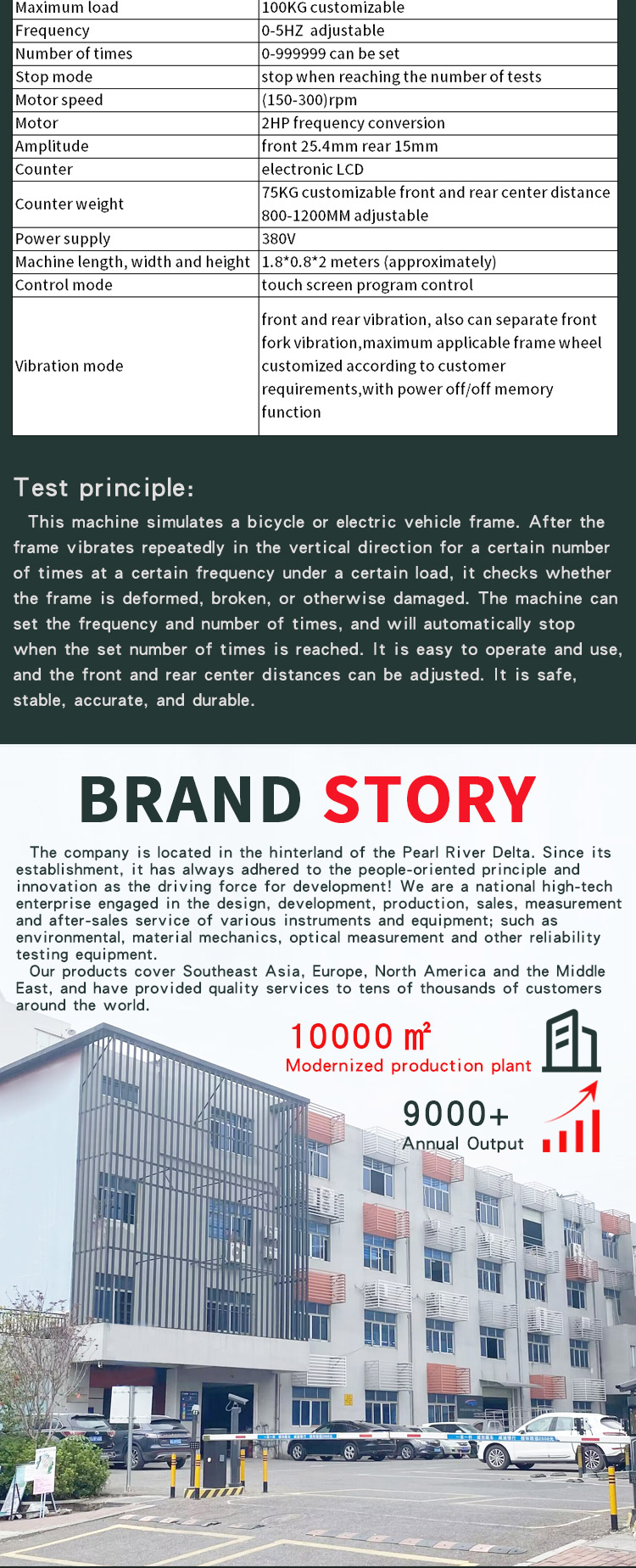

Maximum load	100KG customizable
Frequency	0-5HZ adjustable
Number of times	0-999999 can be set
Stop mode	stop when reaching the number of tests
Motor speed	(150-300)rpm
Motor	2HP frequency conversion
Amplitude	front 25.4mm rear 15mm
Counter	electronic LCD
Counter weight	75KG customizable front and rear center distance 800-1200MM adjustable
Power supply	380V
Machine length, width and height	1.80.82 meters (approximately)

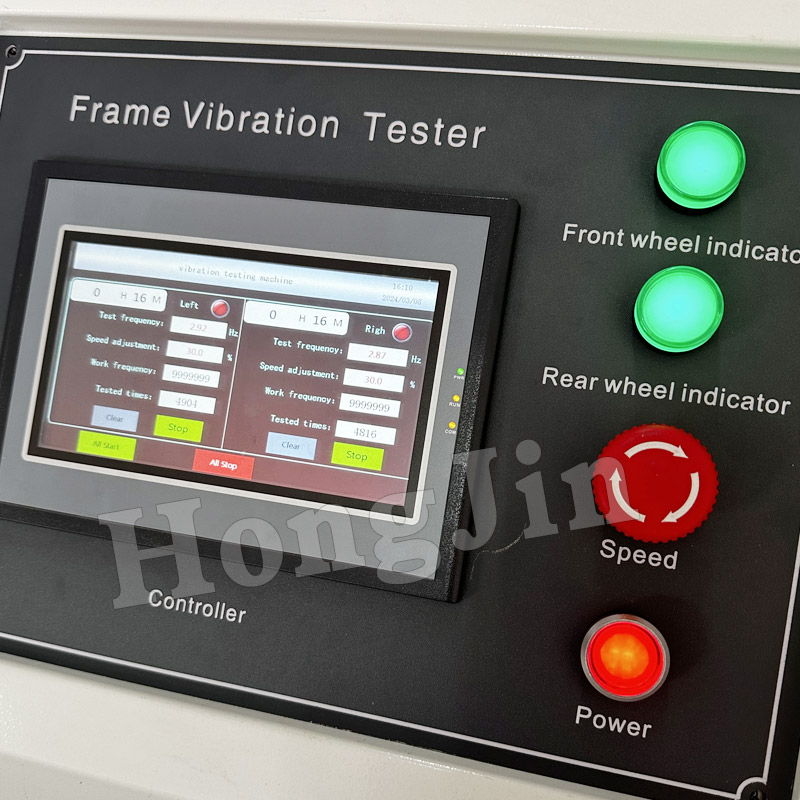

Control mode	touch screen program control
Vibration mode	front and rear vibration, also can separate front fork vibration,maximum applicable frame wheel customized according to customer requirements,with power off/off memory function
