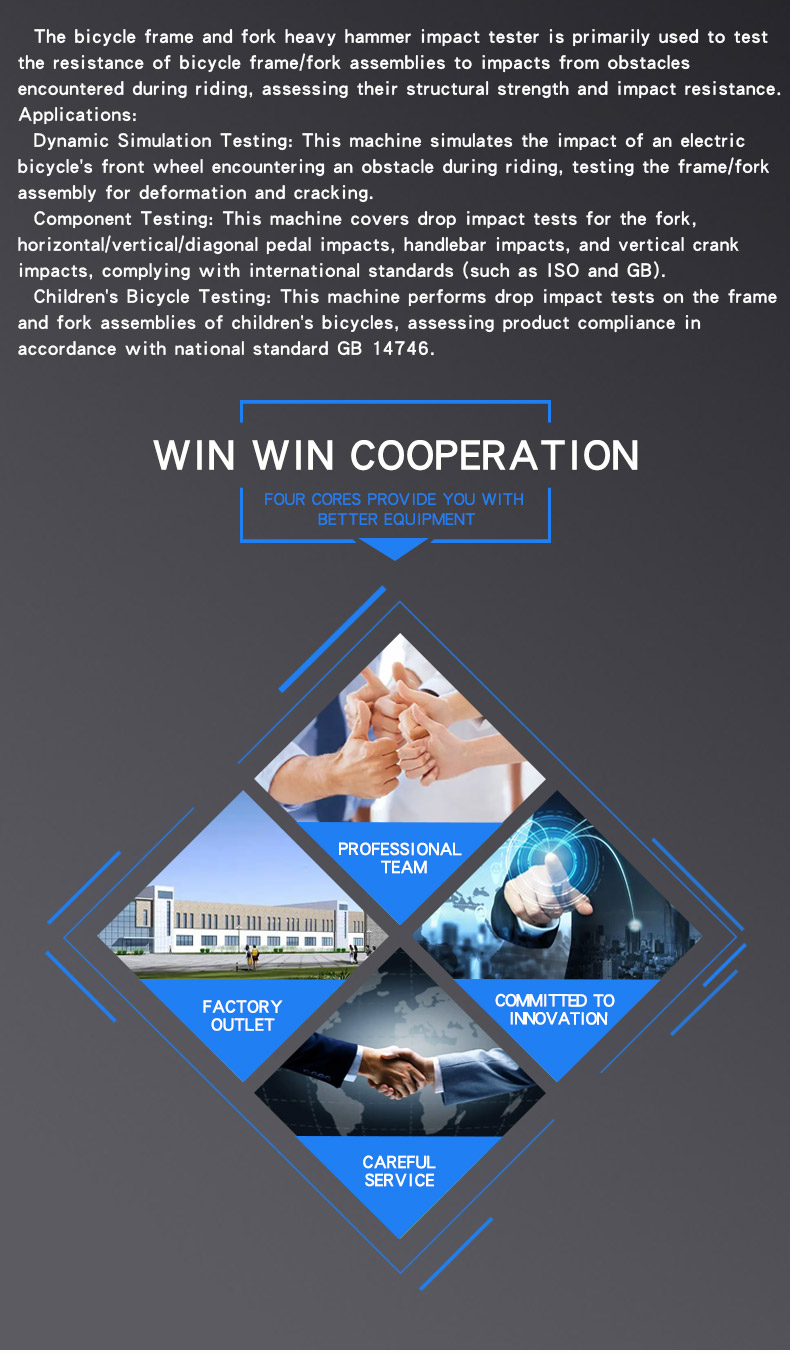

Applications:
Dynamic Simulation Testing: This machine simulates the impact of an electric bicycle's front wheel encountering an obstacle during riding, testing the frame/fork assembly for deformation and cracking.
Component Testing: This machine covers drop impact tests for the fork, horizontal/vertical/diagonal pedal impacts, handlebar impacts, and vertical crank impacts, complying with international standards (such as ISO and GB).
Children's Bicycle Testing: This machine performs drop impact tests on the frame and fork assemblies of children's bicycles, assessing product compliance in accordance with national standard GB 14746.
Product Overview:

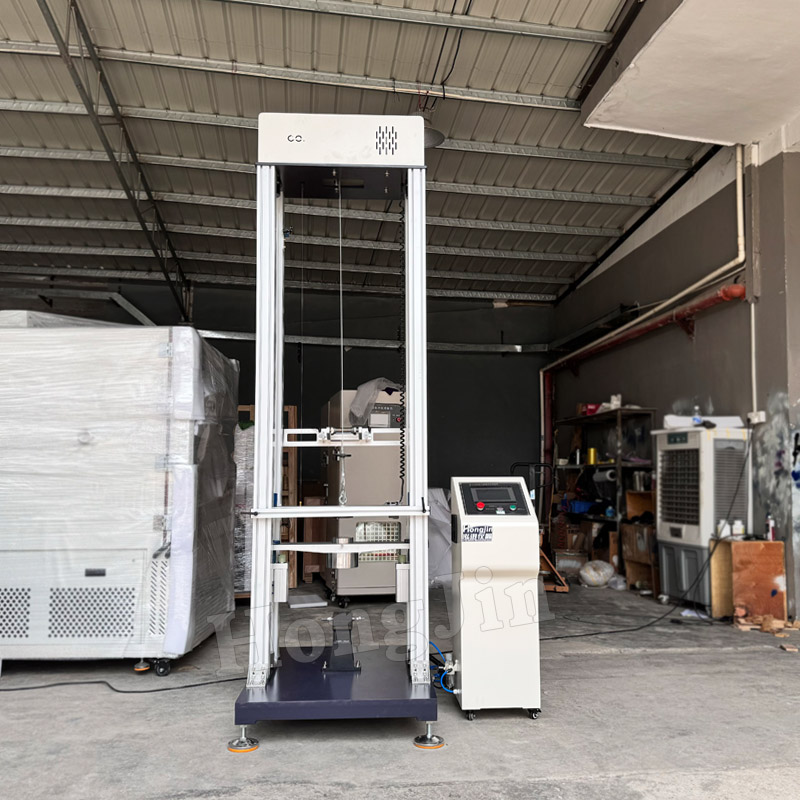

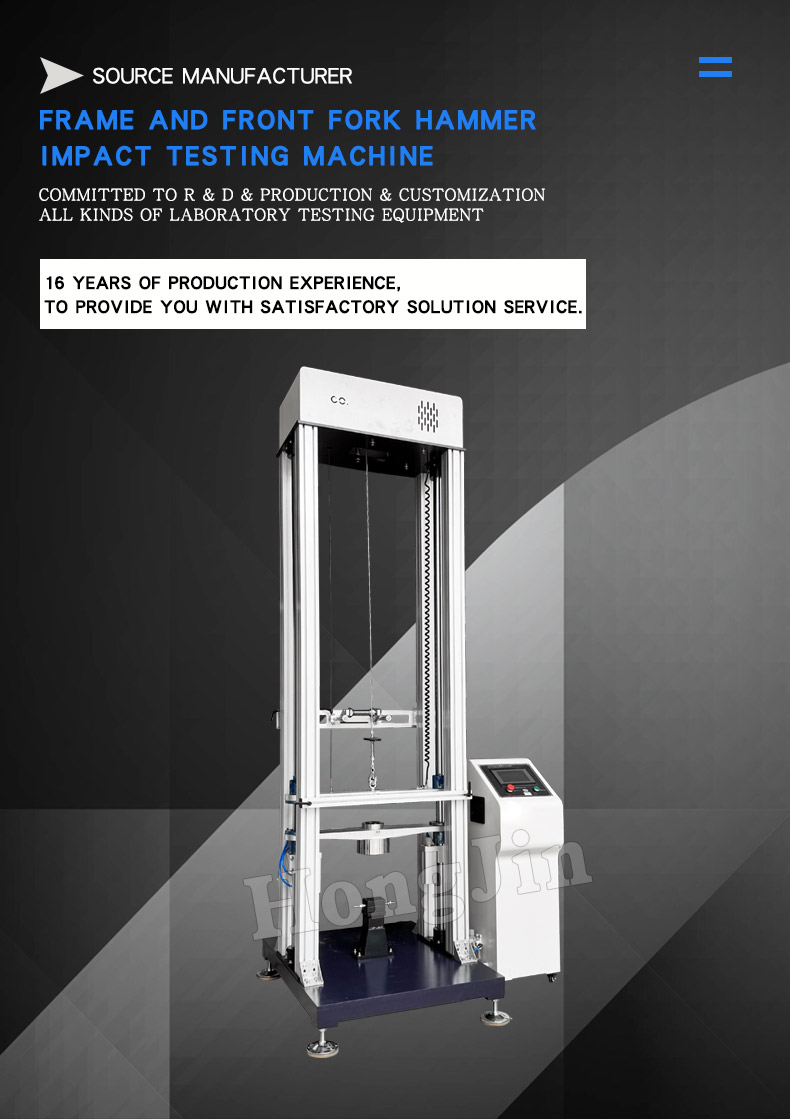

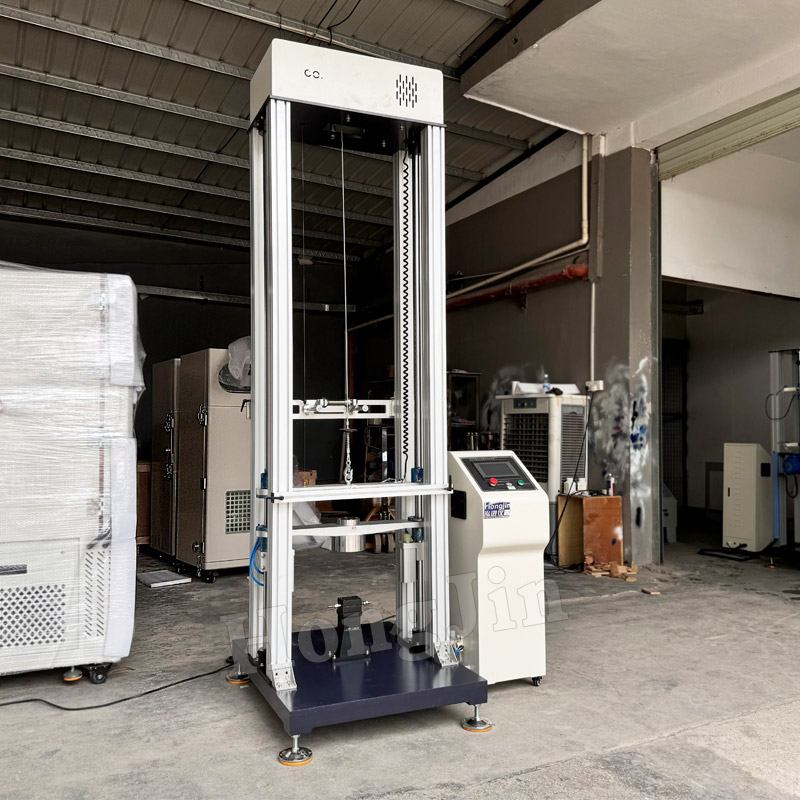

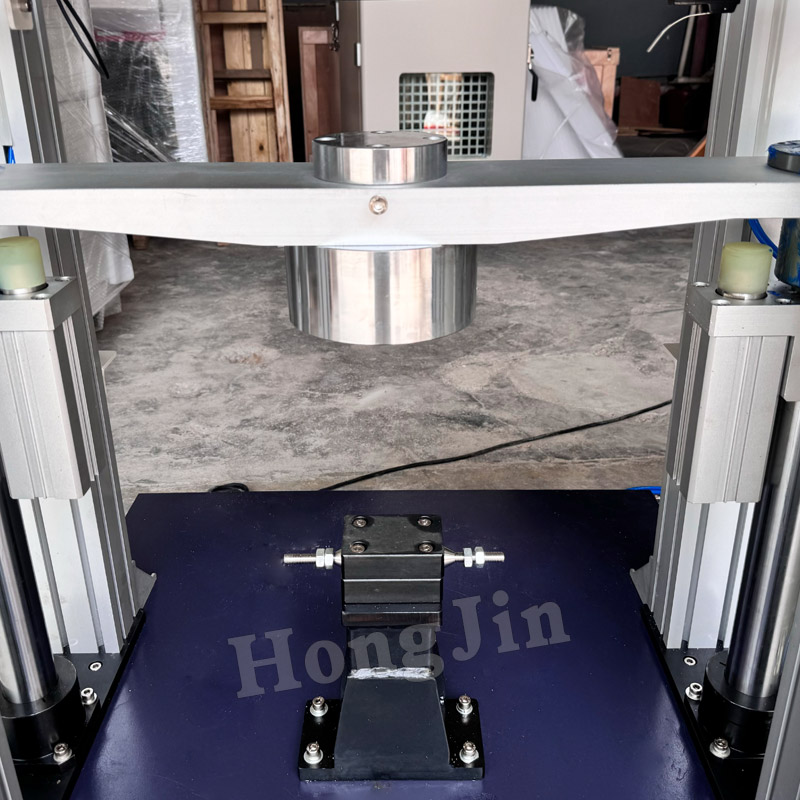

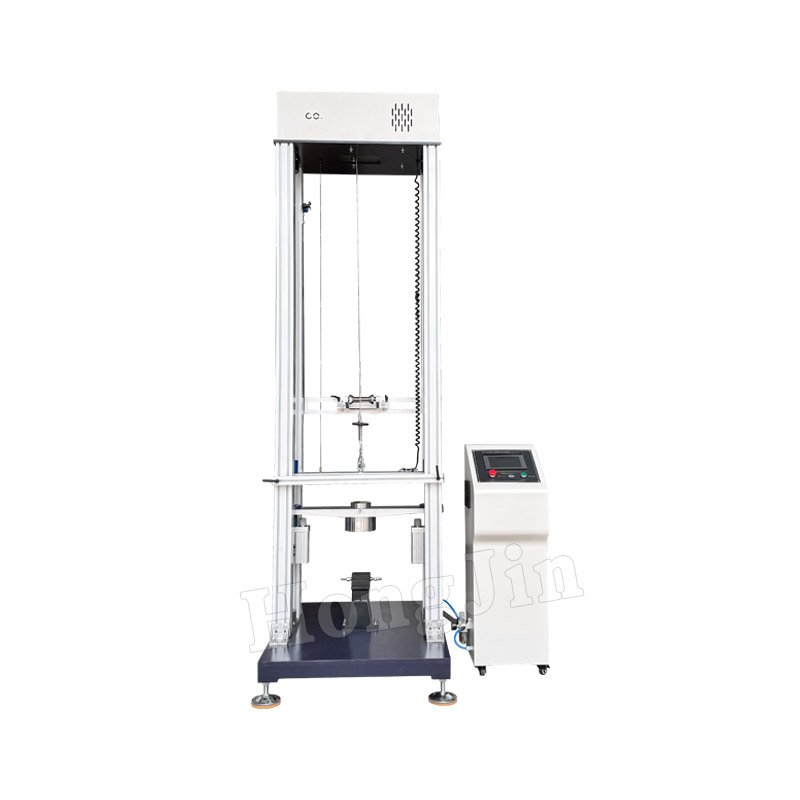

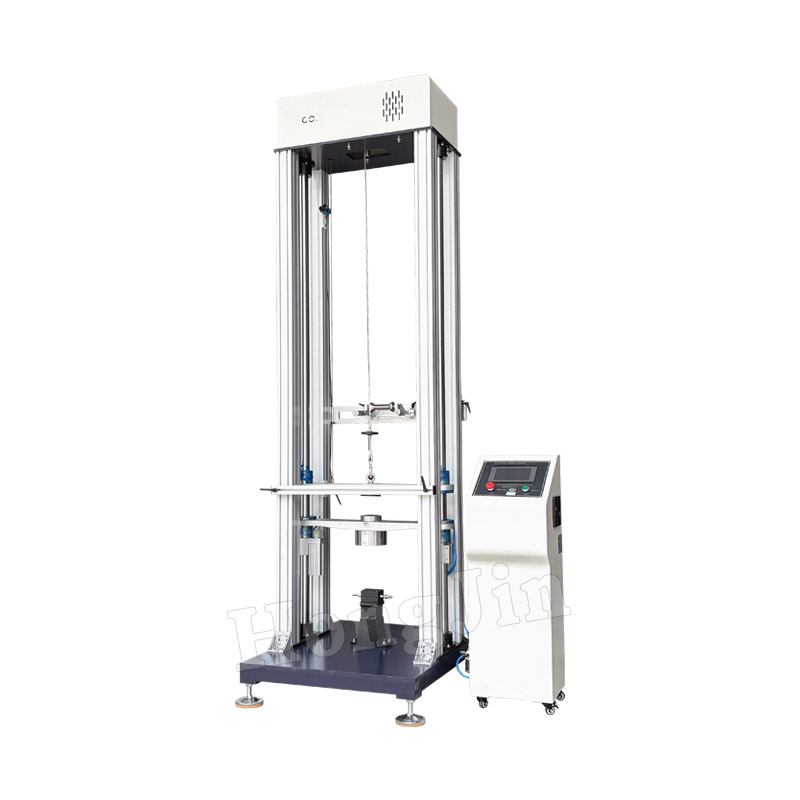

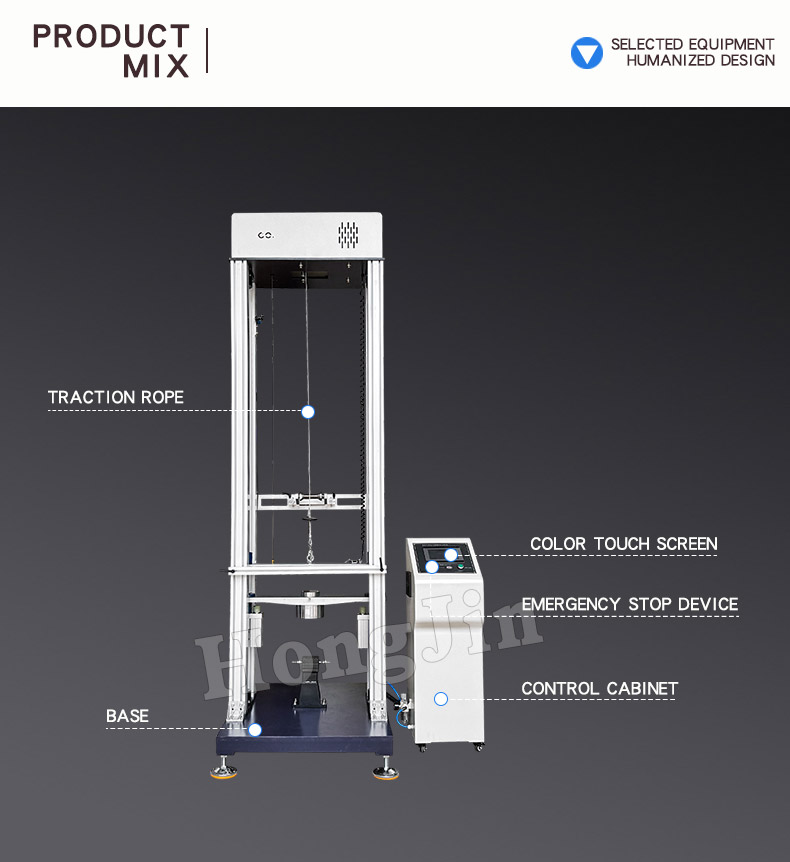

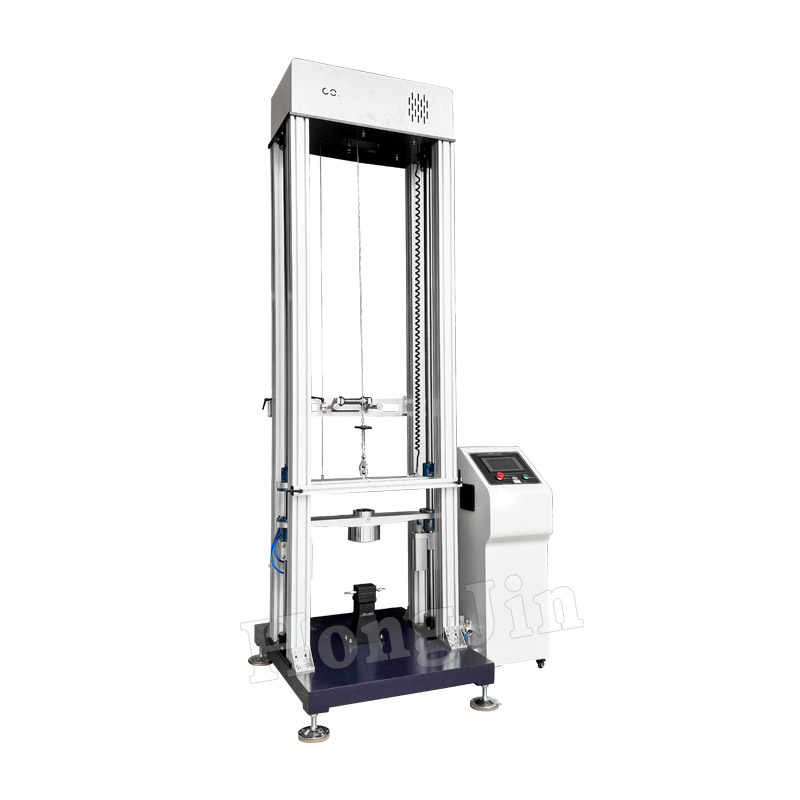

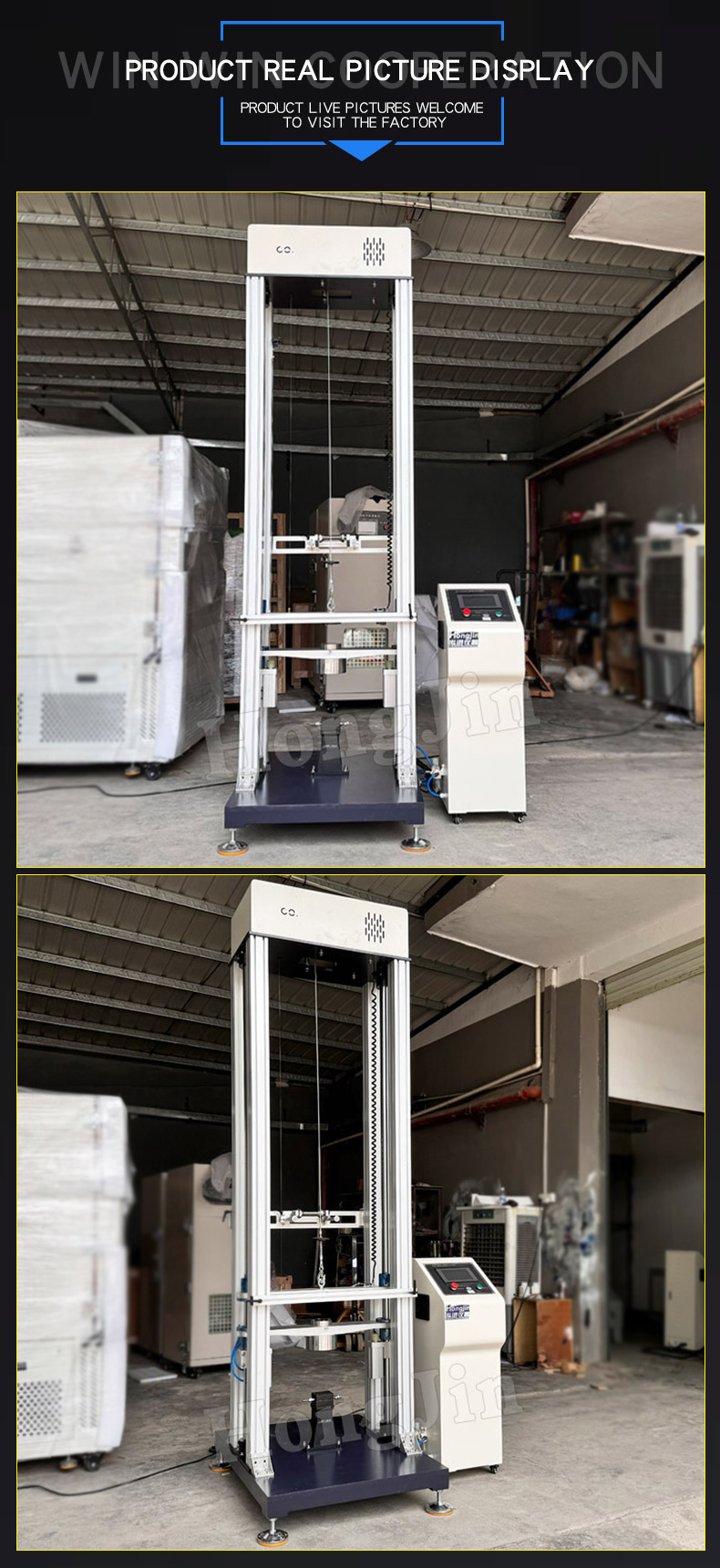

This device is used for impact testing frame/fork assemblies measuring 70-140 cm. The assembly is supported on the rear axle in its normal operating position. A standard load square is fastened to the seat tube. The assembly is lifted so that the center of gravity of the load square is perpendicular to the rear axle and then free-falls onto the steel step.

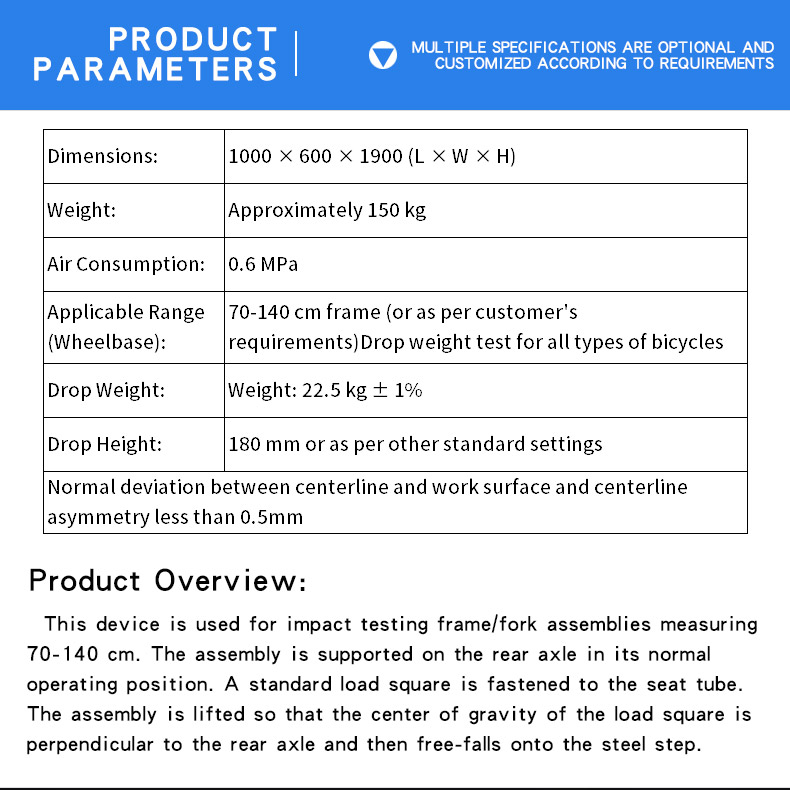

| Dimensions: | 1000 × 600 × 1900 (L × W × H) |
| Weight: | Approximately 150 kg |
| Air Consumption: | 0.6 MPa |
| Applicable Range (Wheelbase): | 70-140 cm frame (or as per customer's requirements)Drop weight test for all types of bicycles |
| Drop Weight: | Weight: 22.5 kg ± 1% |
| Drop Height: | 180 mm or as per other standard settings |
| Normal deviation between centerline and work surface and centerline asymmetry less than 0.5mm | |
