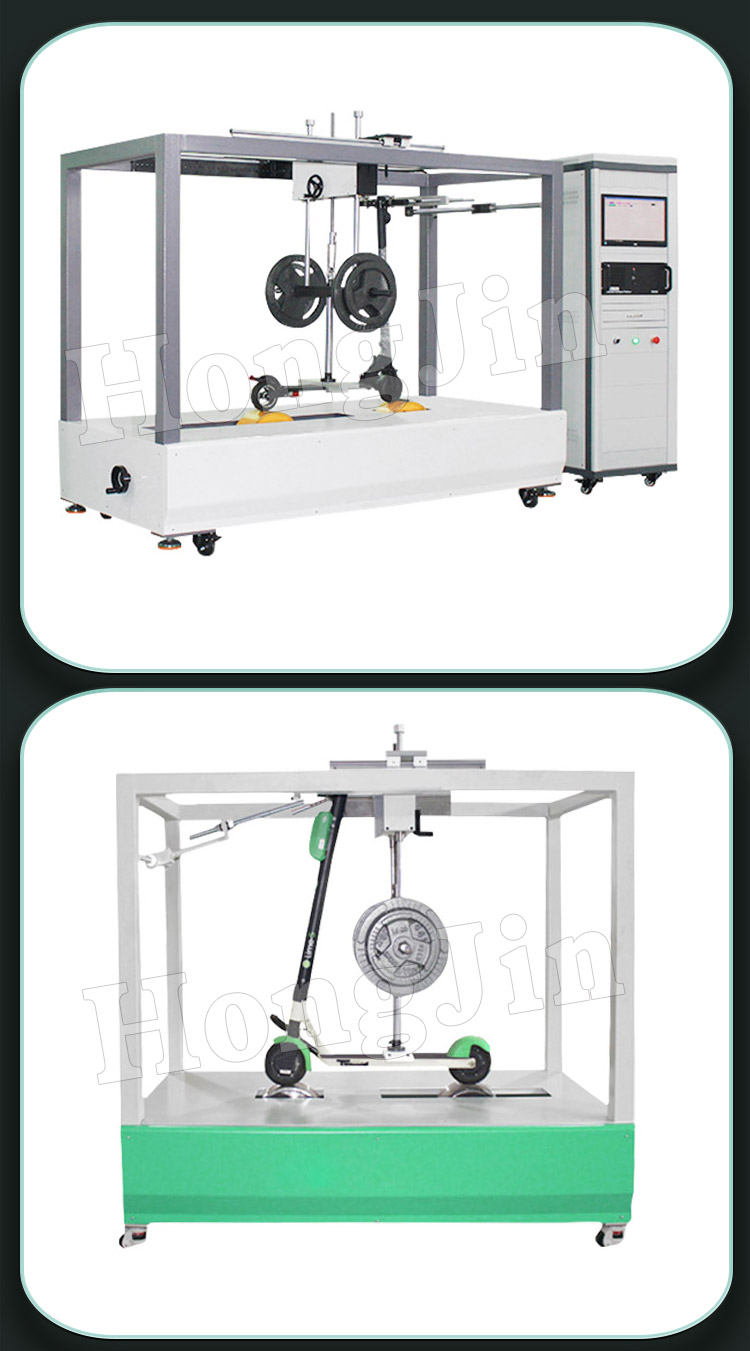

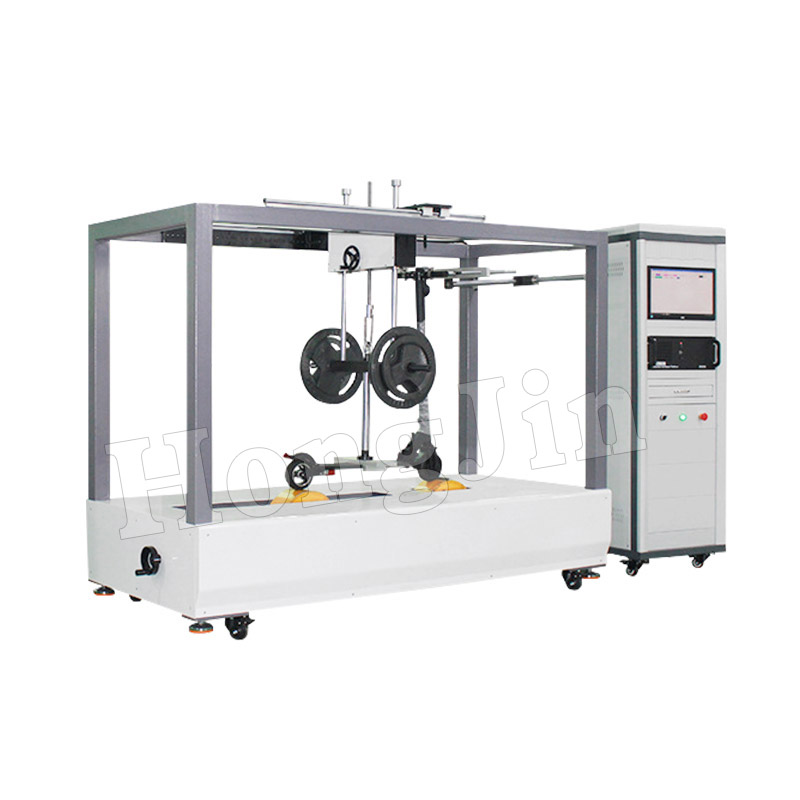

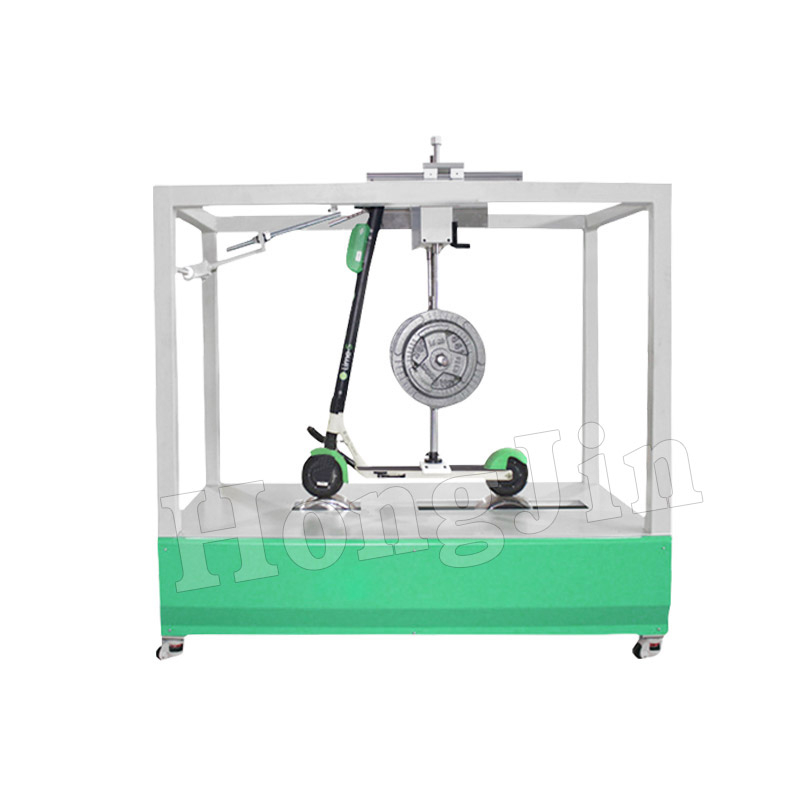

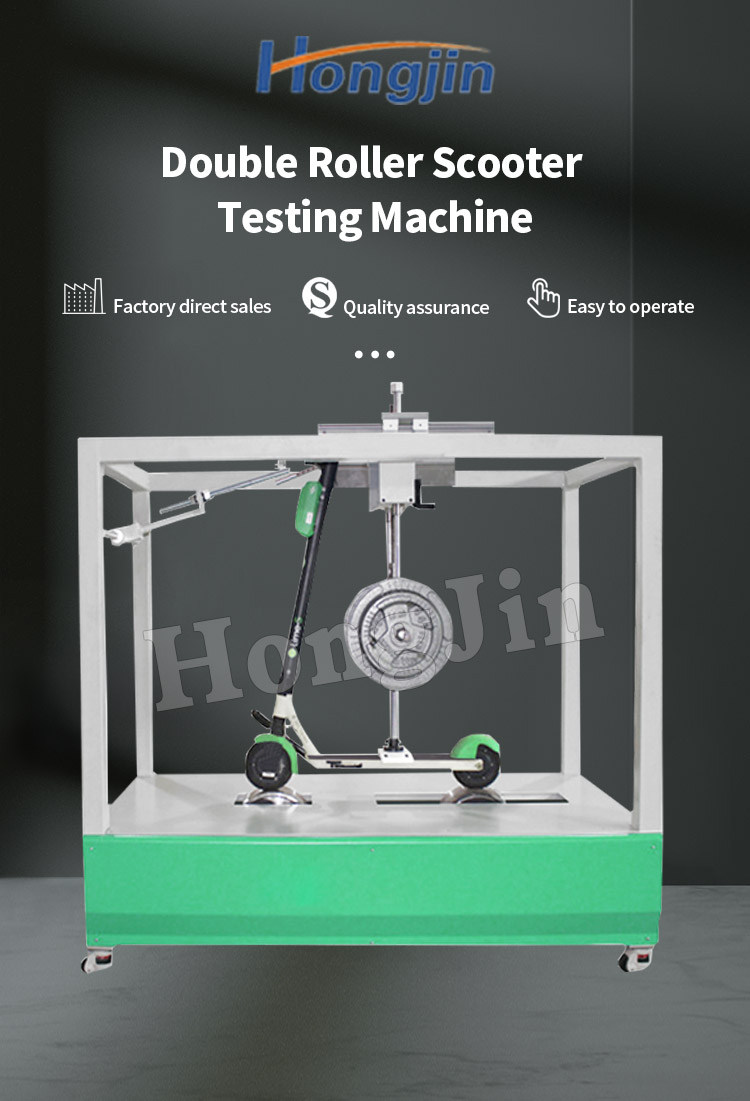

Double Roller Scooter Testing Machine

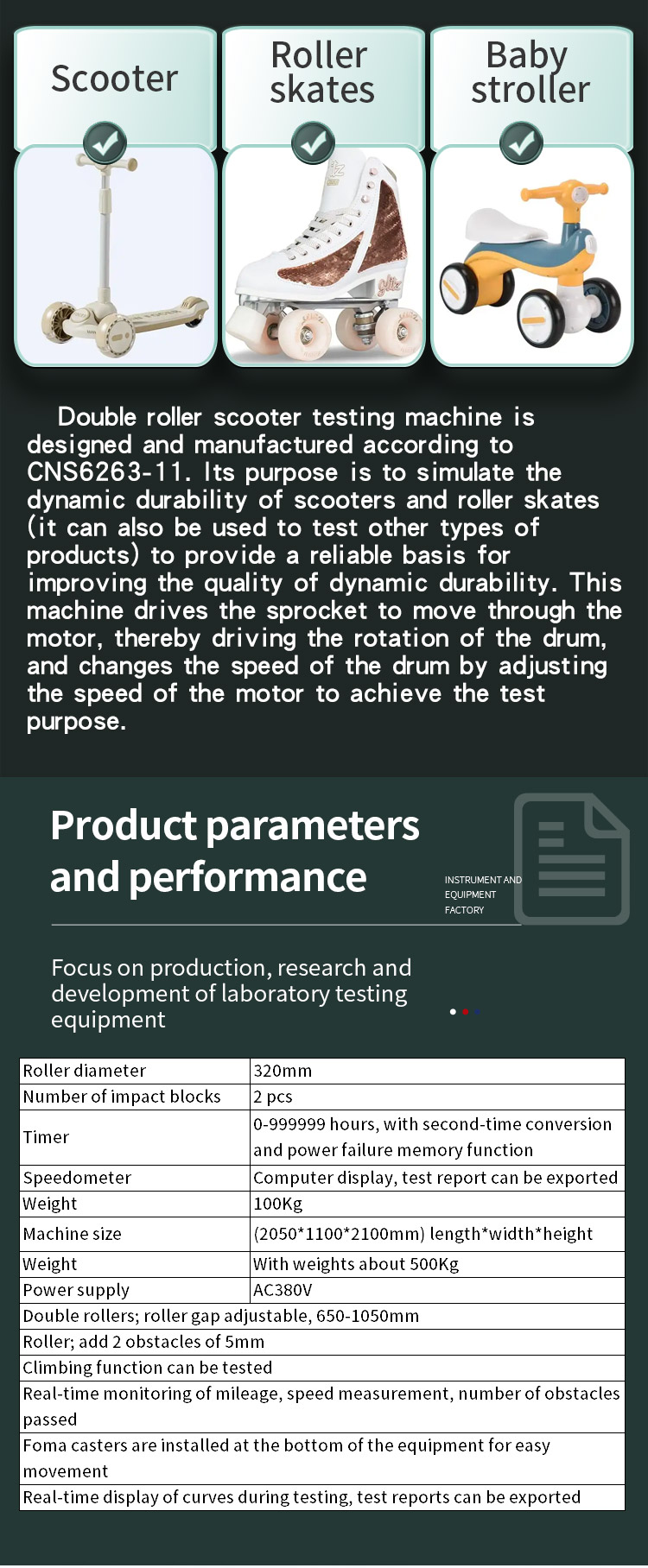

Double roller scooter testing machine is designed and manufactured according to CNS6263-11. Its purpose is to simulate the dynamic durability of scooters and roller skates (it can also be used to test other types of products) to provide a reliable basis for improving the quality of dynamic durability. This machine drives the sprocket to move through the motor, thereby driving the rotation of the drum, and changes the speed of the drum by adjusting the speed of the motor to achieve the test purpose.
Availability:
Quantity:
  • hj

Roller diameter 320mm
Number of impact blocks 2 pcs
Timer 0-999999 hours, with second-time conversion and power failure memory function
Speedometer Computer display, test report can be exported
Weight 100Kg
Machine size (2050*1100*2100mm) length*width*height
Weight With weights about 500Kg
Power supply AC380V
Double rollers; roller gap adjustable, 650-1050mm
Roller; add 2 obstacles of 5mm
Climbing function can be tested
Real-time monitoring of mileage, speed measurement, number of obstacles passed
Foma casters are installed at the bottom of the equipment for easy movement
Real-time display of curves during testing, test reports can be exported
