Product Features:
Automatic shutdown:
1. After the sample breaks, the tester will stop the test immediately.
2. Automatically shut down when the set number of times is reached.

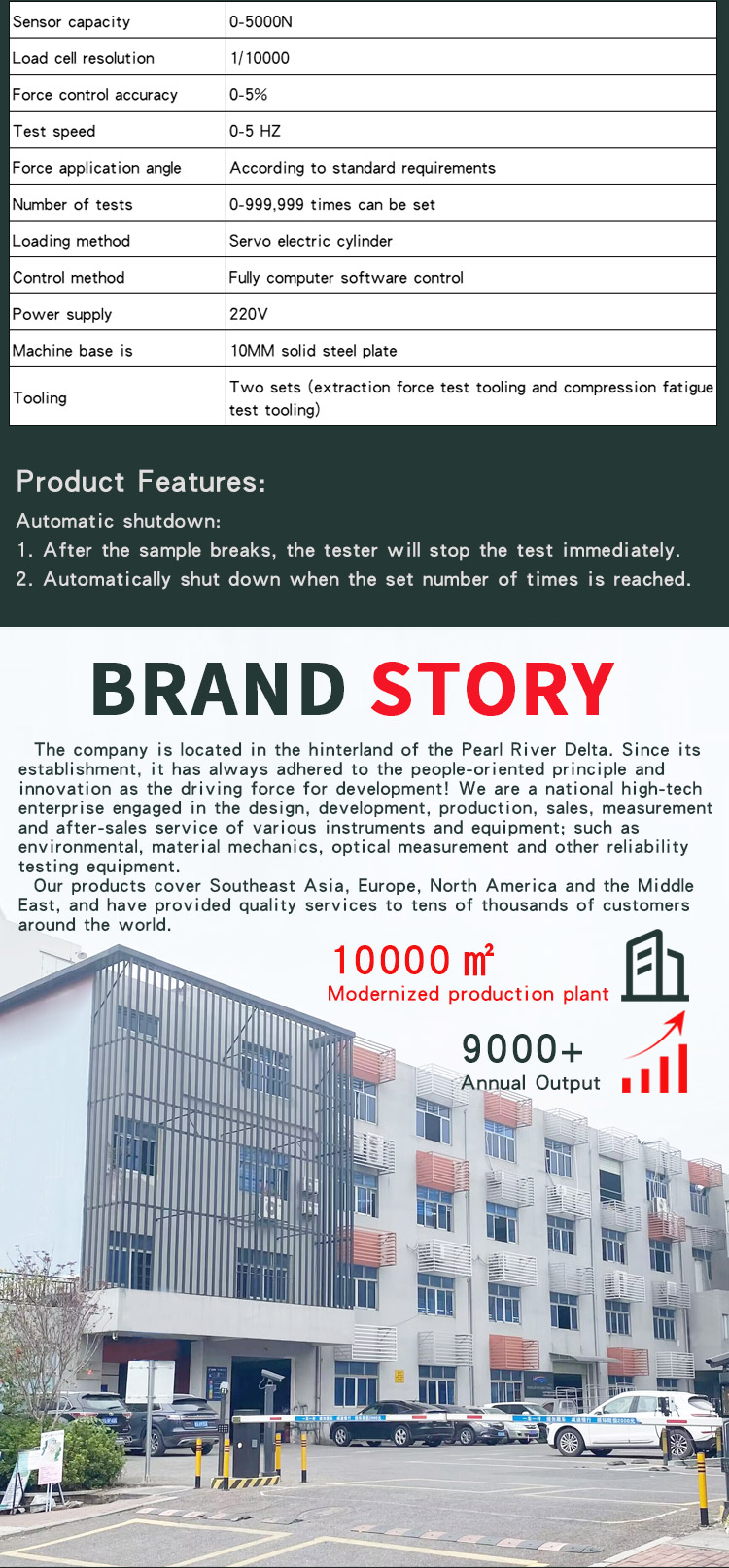

| Sensor capacity | 0-5000N |
| Load cell resolution | 1/10000 |
| Force control accuracy | 0-5% |
| Test speed | 0-5 HZ |
| Force application angle | According to standard requirements |
| Number of tests | 0-999,999 times can be set |
| Loading method | Servo electric cylinder |
| Control method | Fully computer software control |
| Power supply | 220V |
| Machine base is | 10MM solid steel plate |
| Tooling | Two sets (extraction force test tooling and compression fatigue test tooling) |
Product Features:
Automatic shutdown:
1. After the sample breaks, the tester will stop the test immediately.
2. Automatically shut down when the set number of times is reached.
| Sensor capacity | 0-5000N |
| Load cell resolution | 1/10000 |
| Force control accuracy | 0-5% |
| Test speed | 0-5 HZ |
| Force application angle | According to standard requirements |
| Number of tests | 0-999,999 times can be set |
| Loading method | Servo electric cylinder |
| Control method | Fully computer software control |
| Power supply | 220V |
| Machine base is | 10MM solid steel plate |
| Tooling | Two sets (extraction force test tooling and compression fatigue test tooling) |
