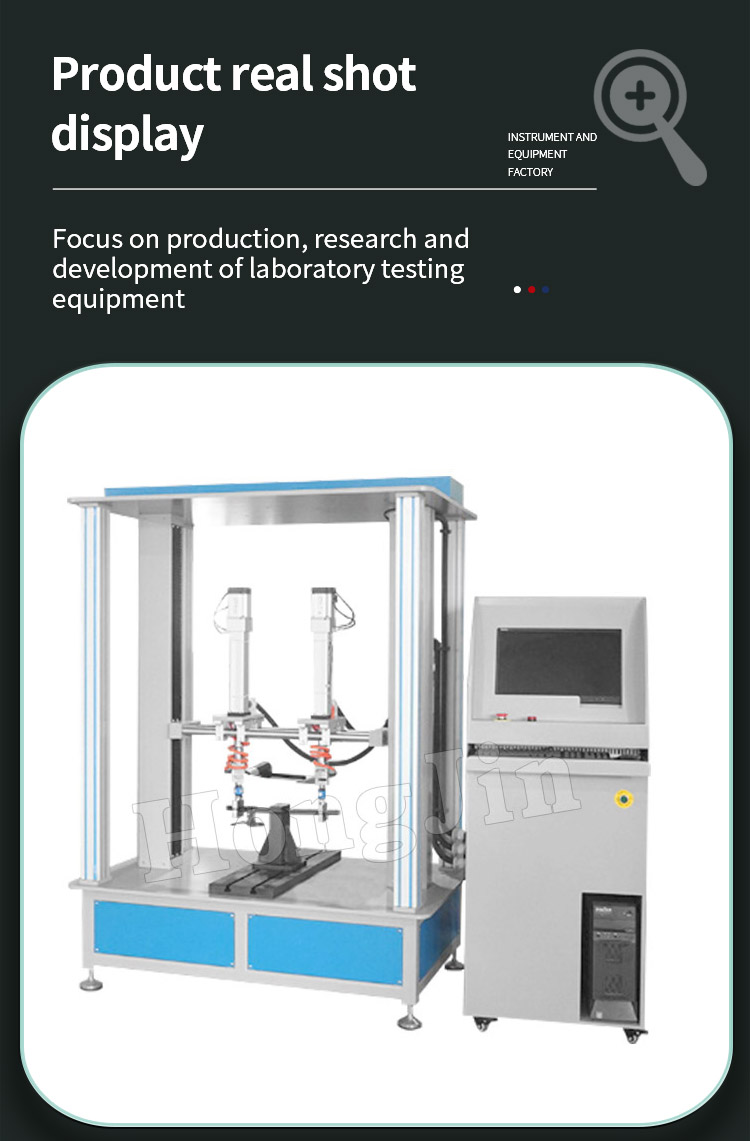

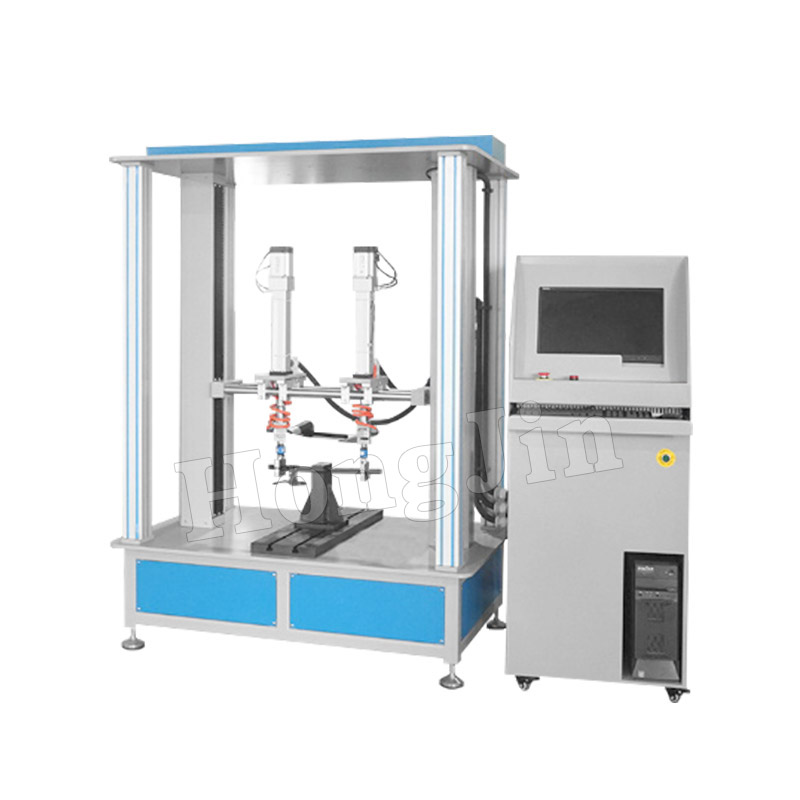

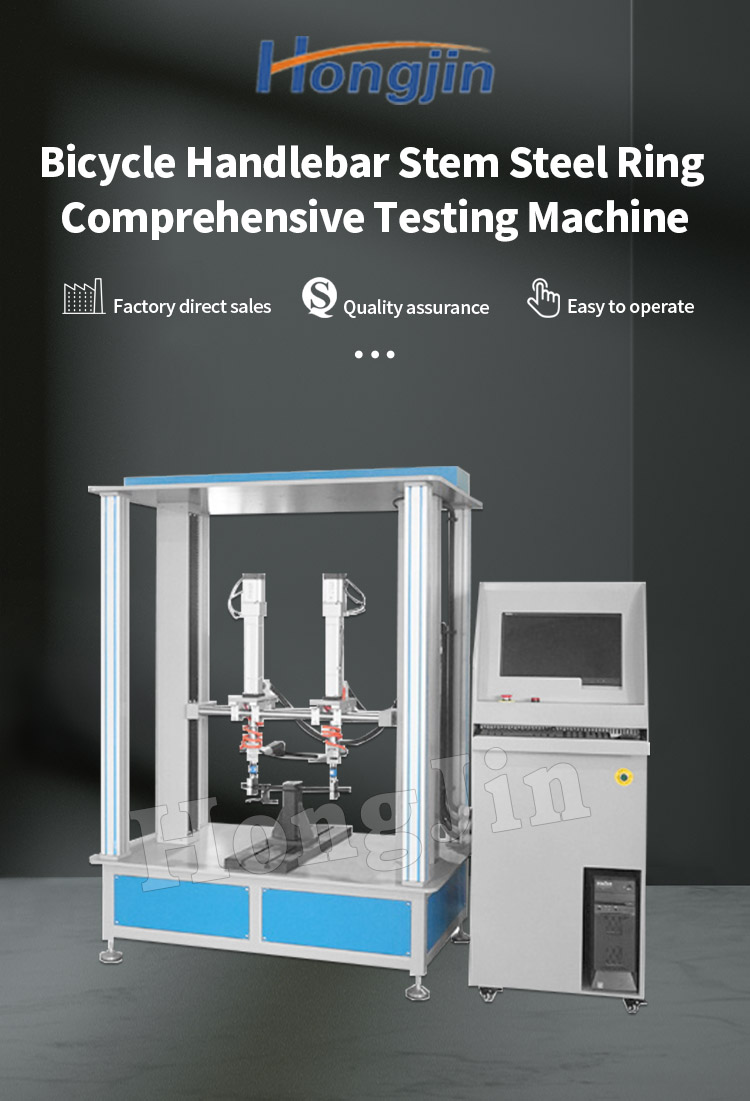

Bicycle Handlebar Stem Steel Ring Comprehensive Testing Machine

Bicycle handlebar stem steel ring comprehensive testing machine, this testing machine is designed according to the fatigue test standards of bicycle handlebars, stems, saddles, and seatposts. It uses dual electric cylinders to apply force. After the sample is fixed, it is subjected to fatigue force of a certain frequency, load, and test number. After the test, the degree of damage to the sample is judged by checking it.

Availability:

Quantity:



Inquire Add to Basket

Brand:
hongjin

Product Description

Product Features:

Automatic shutdown:

1. After the sample breaks, the tester will stop the test immediately.

2. Automatically shut down when the set number of times is reached.

Reference standards:

ISO 4210-5, ISO 4210-9

Sensor capacity	0-2000N
Load cell resolution	1/10000
Force control accuracy	0-5%
Test speed	0-5 HZ
Force application angle	According to standard requirements
Number of tests	0-999,999 times can be set
Loading method	Servo electric cylinder
Control method	Fully computer software control
Power supply	220V
Machine base is	10MM solid steel plate
Tooling	According to different test samples (pedal, front fork vertical force, front fork disc brake, front fork horizontal force, handlebar, saddle, seat post, crank sprocket assembly, shock absorber front fork, steel ring axial force)
