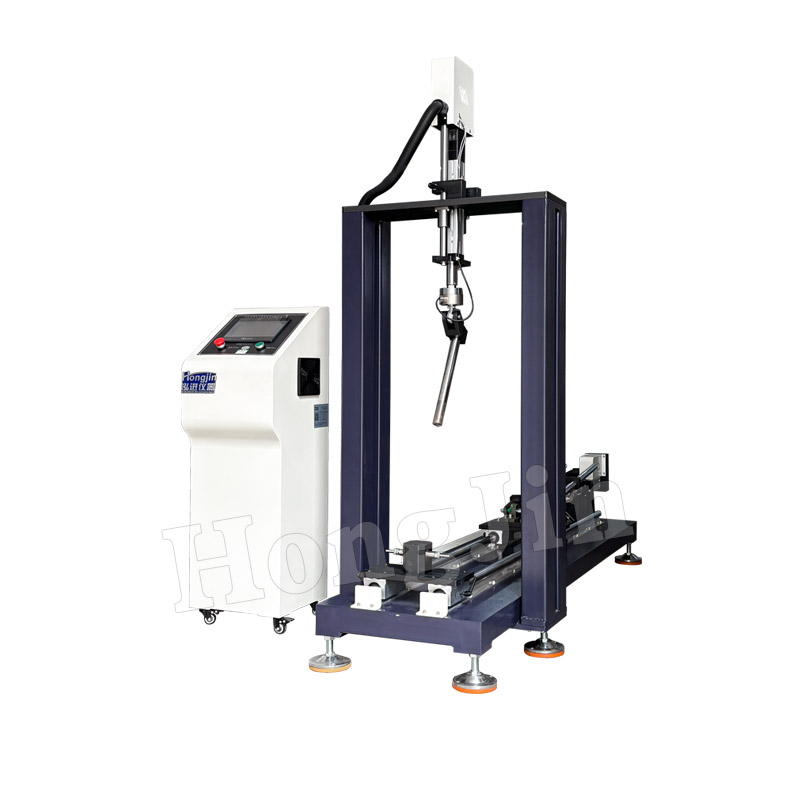

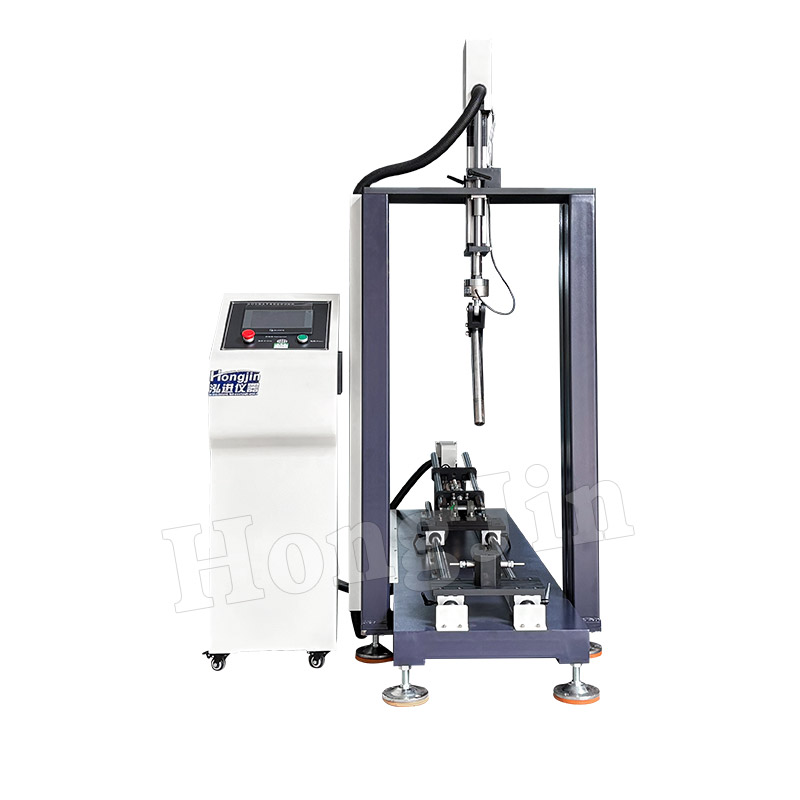

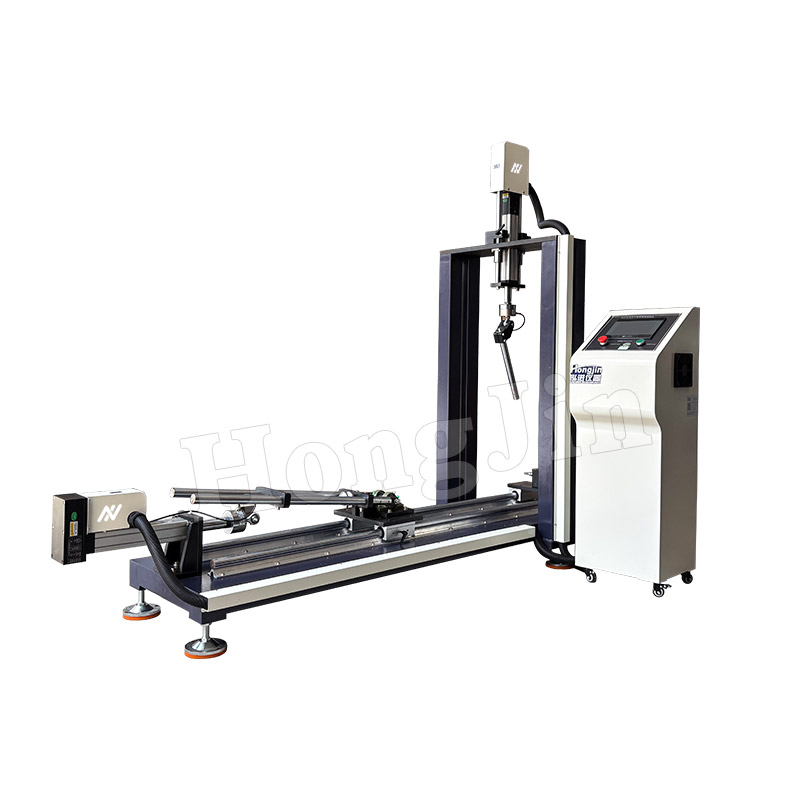

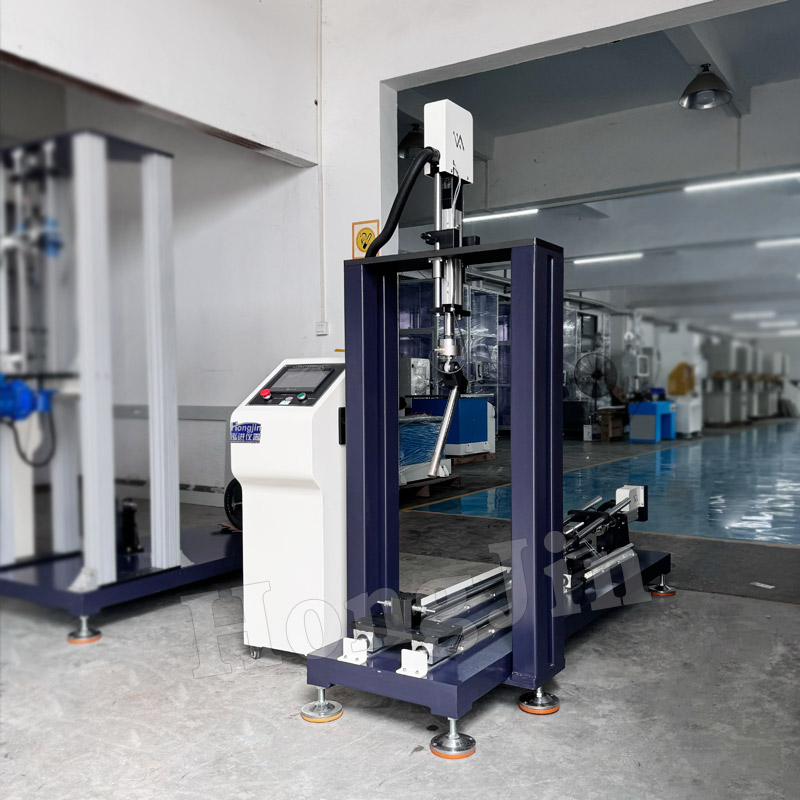

Test principle:
Simulate the actual riding process of a bicycle, conduct fatigue endurance tests, and detect the strength of the frame structure. This test machine is designed according to relevant standards. The force application system is controlled by a force sensor. When the test force applied to the frame reaches the set force, it automatically returns to reverse. The number of tests can be set, and it will automatically stop when the set number is reached.
Principle of test function:

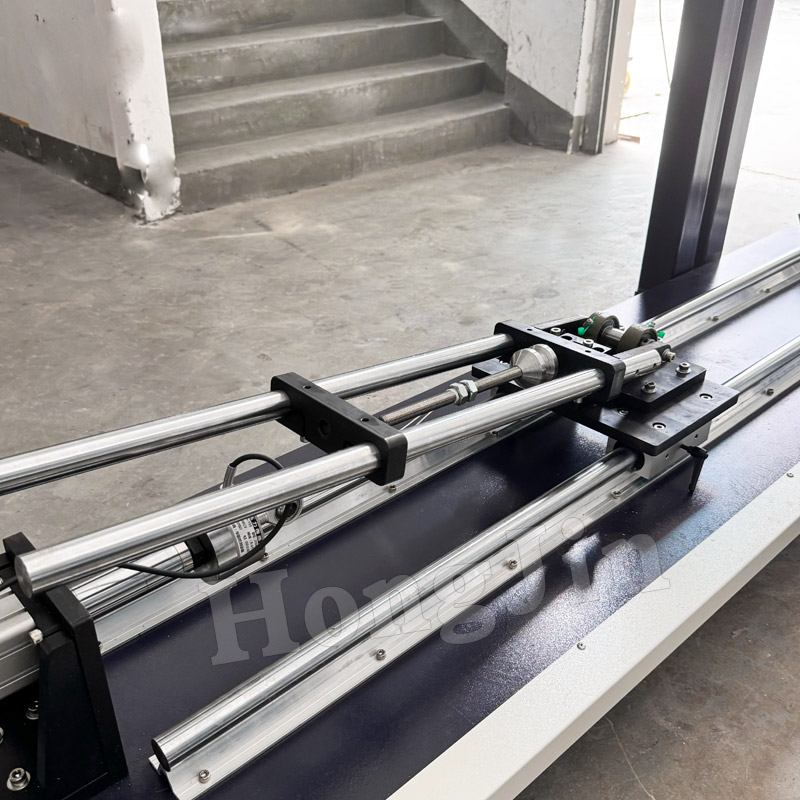

The equipment applies periodic horizontal reciprocating load and periodic unidirectional vertical downward reciprocating load to the relevant parts of the frame.
a: The frame is reciprocated horizontally, and the horizontal reciprocating continuous loading force is equal amplitude force, and the total number of loading times is 15 x 10* times.
b: The seat surface occupant sitting part is loaded vertically downward, the loading force is Fs, and the total number of loading times is 15 x 10* times.

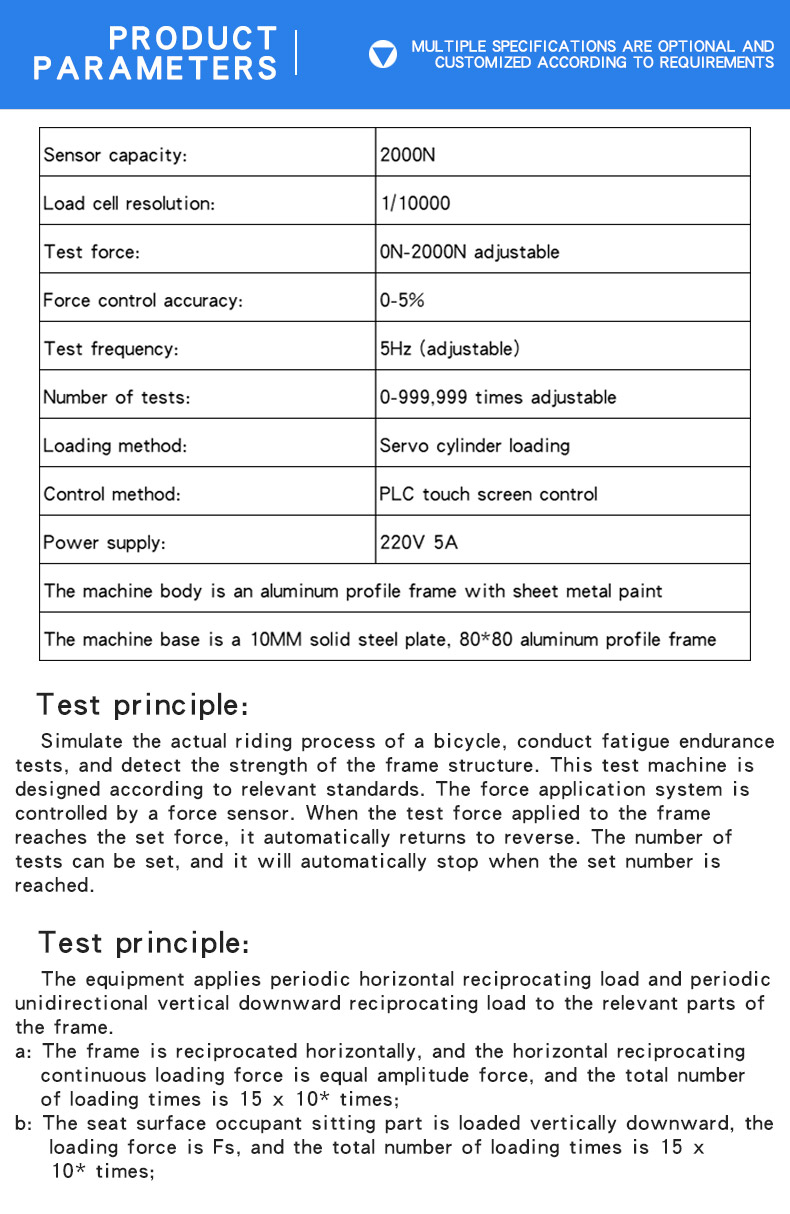

| Sensor capacity: | 2000N |
| Load cell resolution: | 1/10000 |
| Test force: | 0N-2000N adjustable |
| Force control accuracy: | 0-5% |
| Test frequency: | 5Hz (adjustable) |
| Number of tests: | 0-999,999 times adjustable |
| Loading method: | Servo cylinder loading |
| Control method: | PLC touch screen control |
| Power supply: | 220V 5A |
| The machine body is an aluminum profile frame with sheet metal paint | |
| The machine base is a 10MM solid steel plate, 80*80 aluminum profile frame | |
