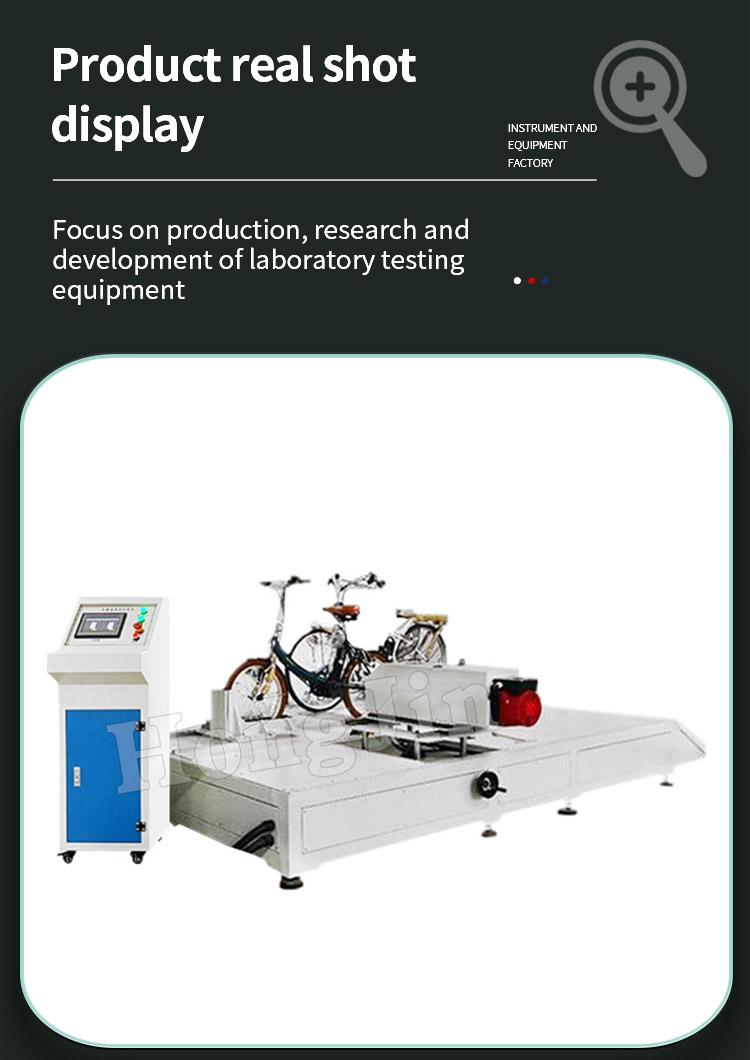

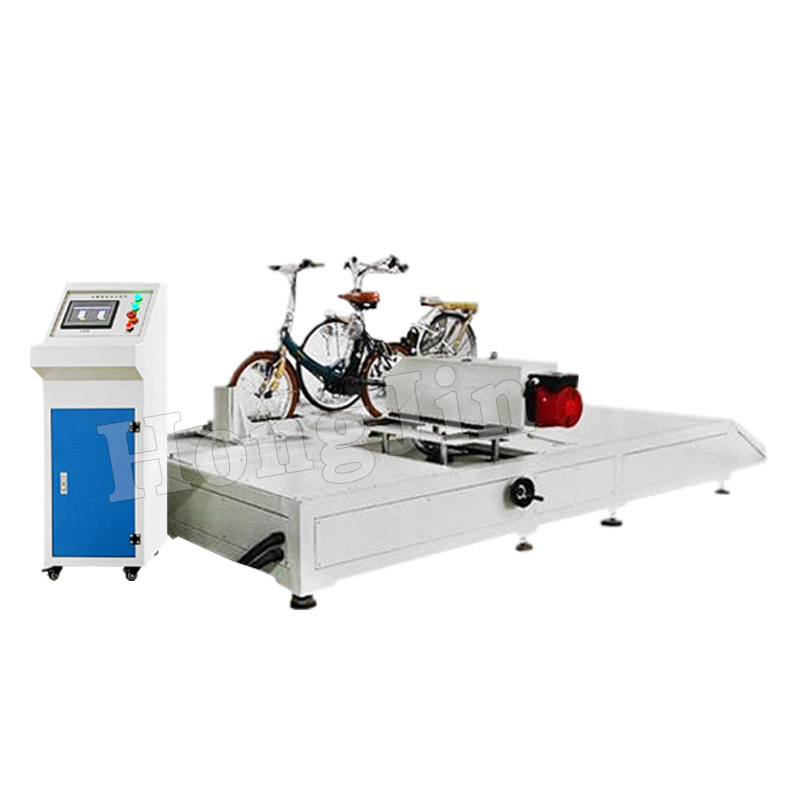

Product Introduction:
1. Test the crank power and electric motor power at different speeds.
2. Test the total power of the electric vehicle at different slopes by loading damping on the rear wheel. The total power includes the crank power and motor workmanship.
3. The rear wheel uses a servo motor to load damping, which has a fast response.
4. The crank is rotated by a servo motor, and the speed setting is flexible.、

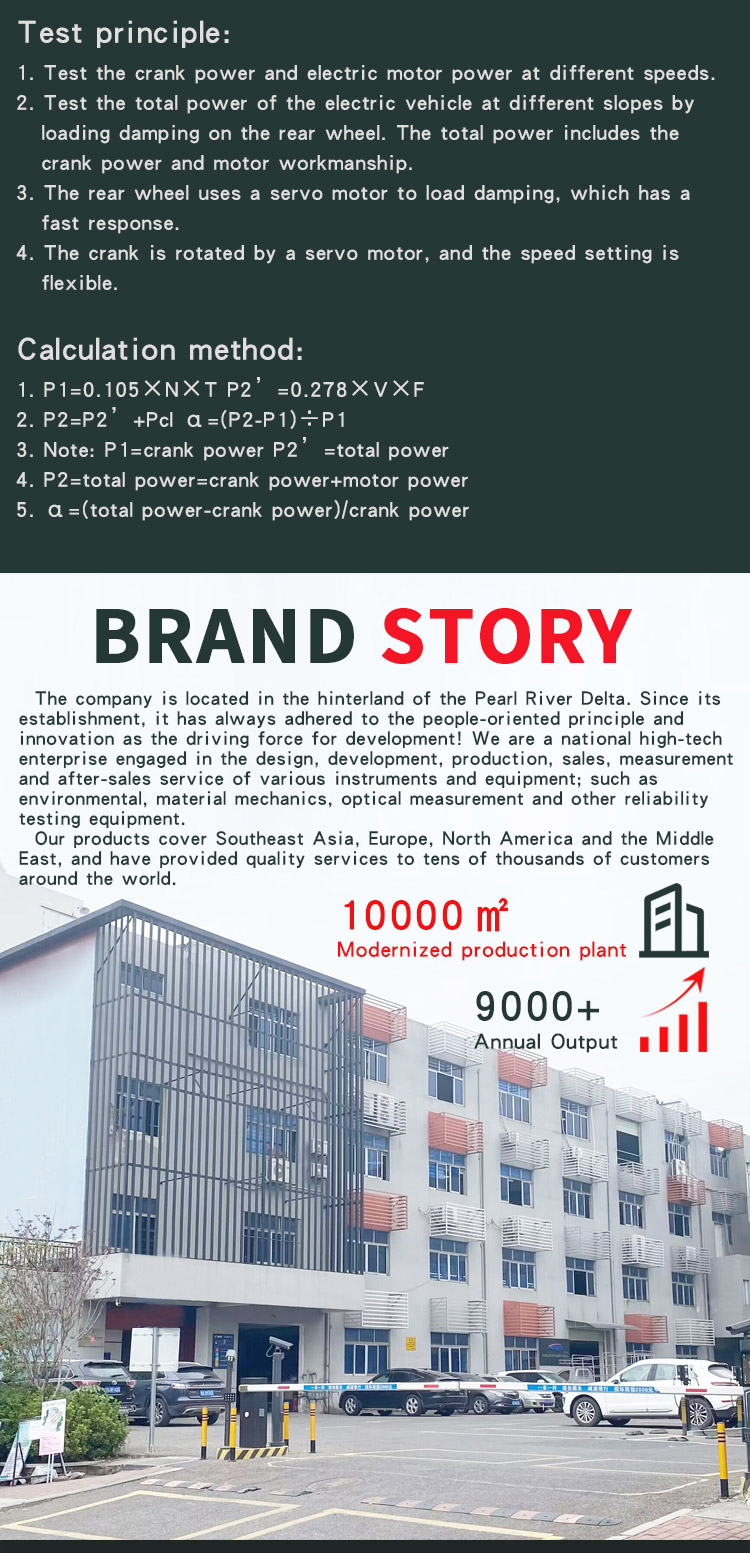

Calculation method:
1. P1=0.105×N×T P2’=0.278×V×F
2. P2=P2’+Pcl α=(P2-P1)÷P1
3. Note: P1=crank power P2’=total power
4. P2=total power=crank power+motor power
5. α=(total power-crank power)/crank power

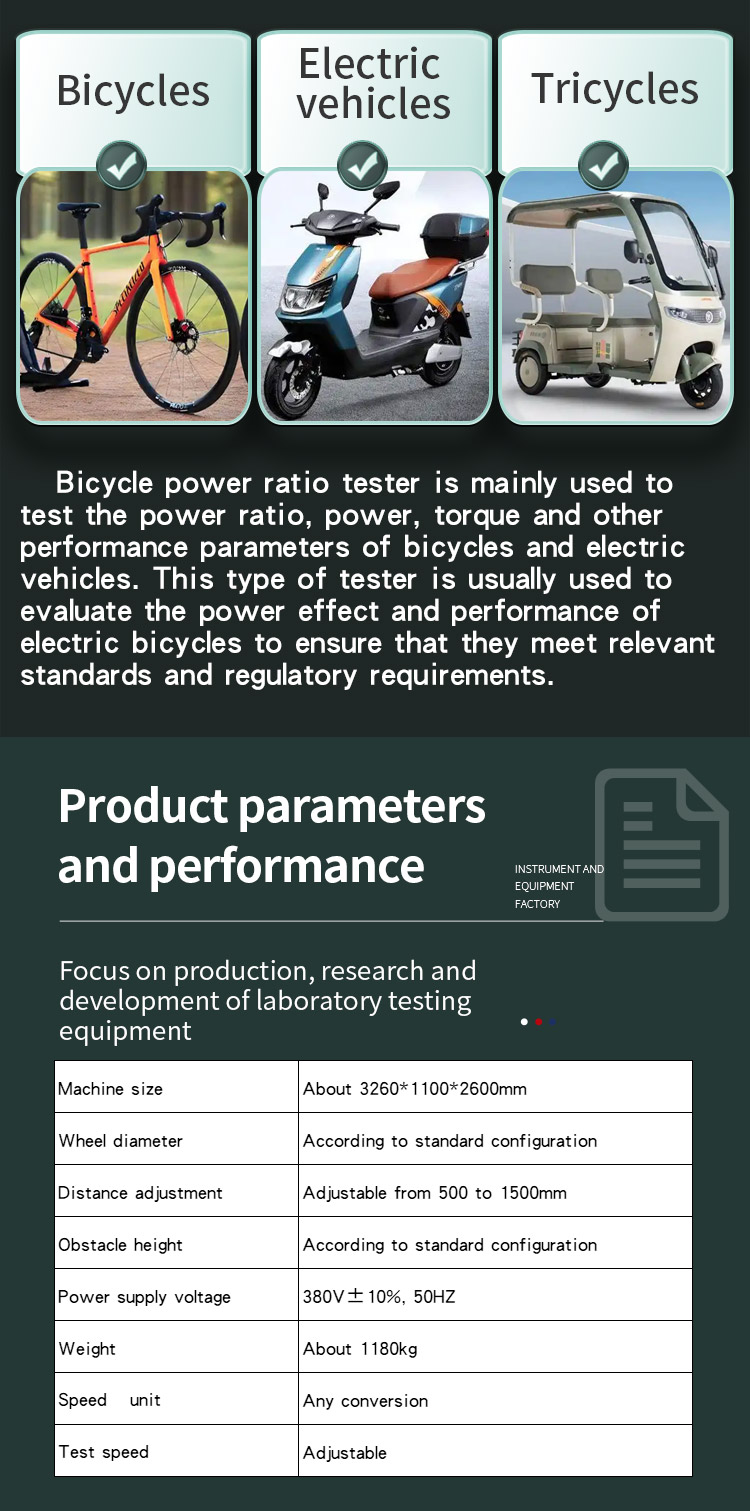

| Machine size | About 3260*1100*2600mm |
| Wheel diameter | According to standard configuration |
| Distance adjustment | Adjustable from 500 to 1500mm |
| Obstacle height | According to standard configuration |
| Power supply voltage | 380V±10%, 50HZ |
| Weight | About 1180kg |
| Speed unit | Any conversion |
| Test speed | Adjustable |
