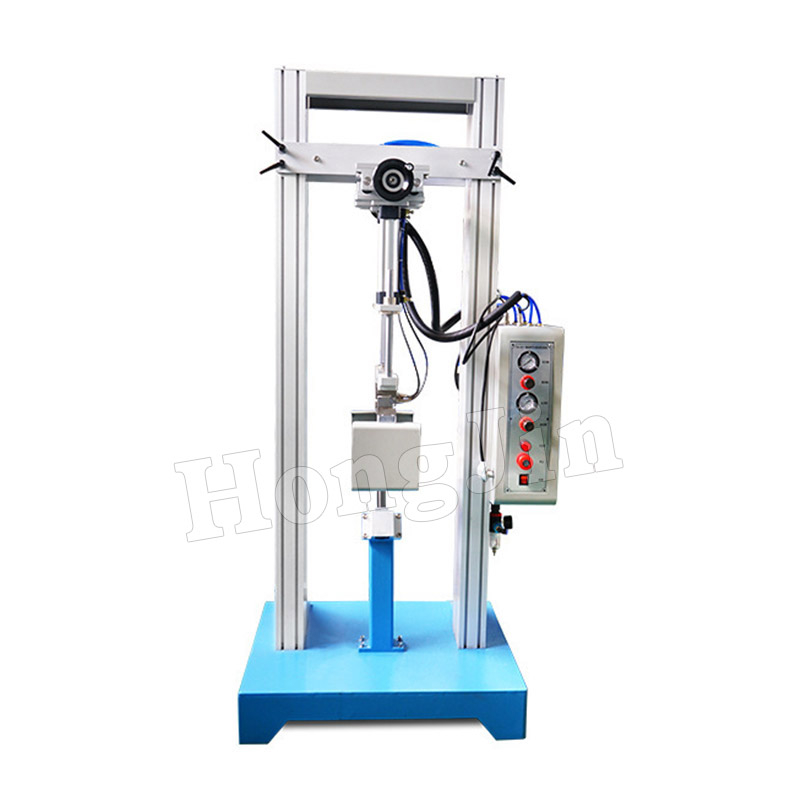

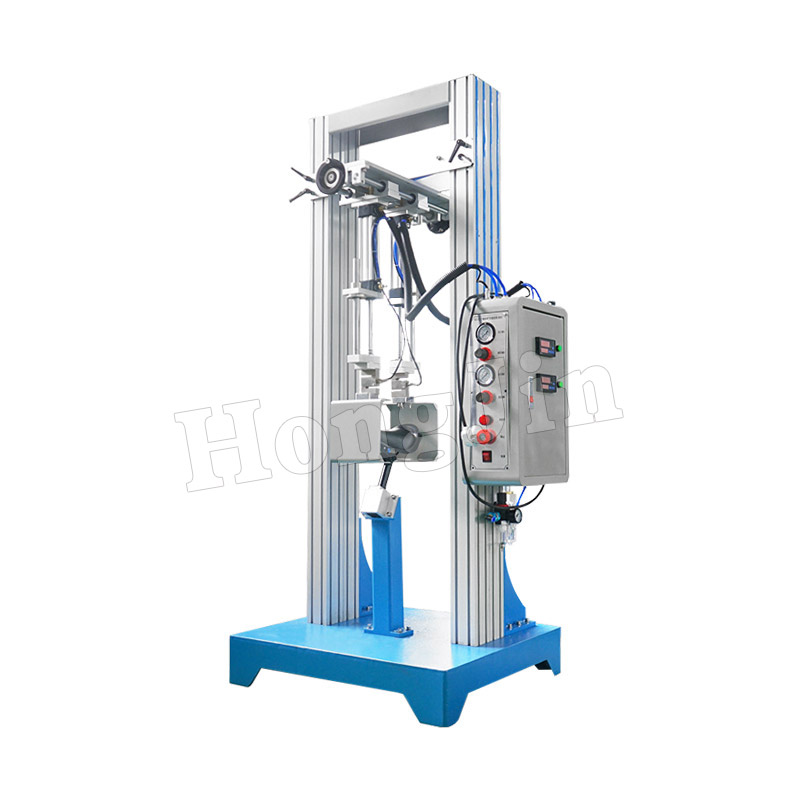

Bicycle Handlebar Dynamic Fatigue Testing Machine

Bicycle handlebar dynamic fatigue tester, this tester is used to simulate the dynamic loading of the handlebar stem of the bicycle, control the cylinder movement through computer output signals, collect force sensor signals, and realize the simulation test process of dynamic fatigue of the handlebar; it is mainly used for fatigue characteristics test of the handlebar.
Availability:
Quantity:
  • hongjin

Test principle:

In the actual riding process of a simulated bicycle, under different road conditions, the handlebar assembly will be subjected to forces in different directions given by human hands, especially when riding on bumpy roads, the forces received are relatively large and frequent, so the quality of the handlebar assembly is related to the safety and convenience of the entire vehicle. This test machine is designed according to the relevant fatigue test standards of EN14764. The entire test system is controlled by a PLC program, and the force application system adopts force closed-loop control. When the test force applied to the handlebar reaches the set force, it automatically returns to reverse.

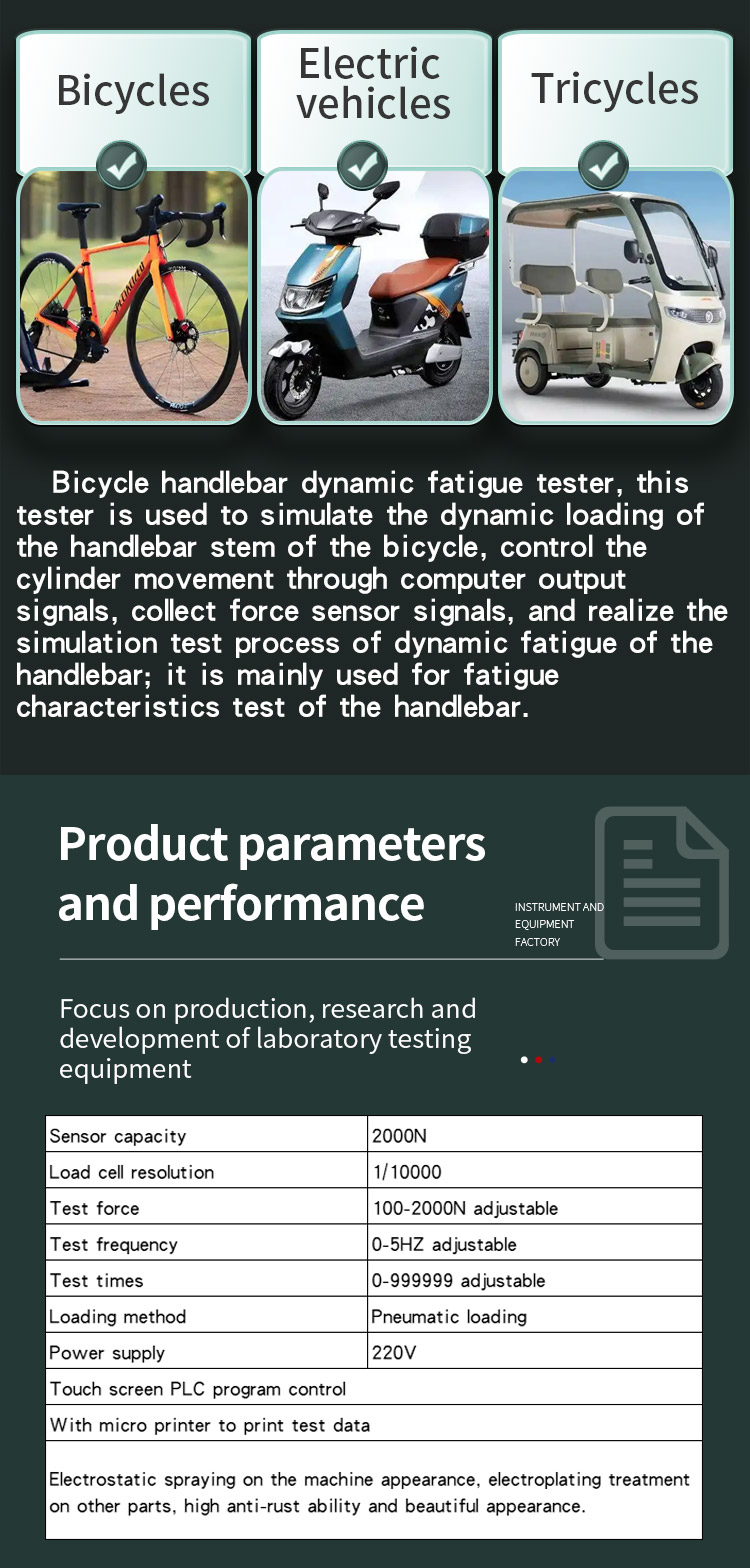

Sensor capacity 2000N
Load cell resolution 1/10000
Test force 100-2000N adjustable
Test frequency 0-5HZ adjustable
Test times 0-999999 adjustable
Loading method Pneumatic loading
Power supply 220V
Touch screen PLC program control
With micro printer to print test data
Electrostatic spraying on the machine appearance, electroplating treatment on other parts, high anti-rust ability and beautiful appearance.
