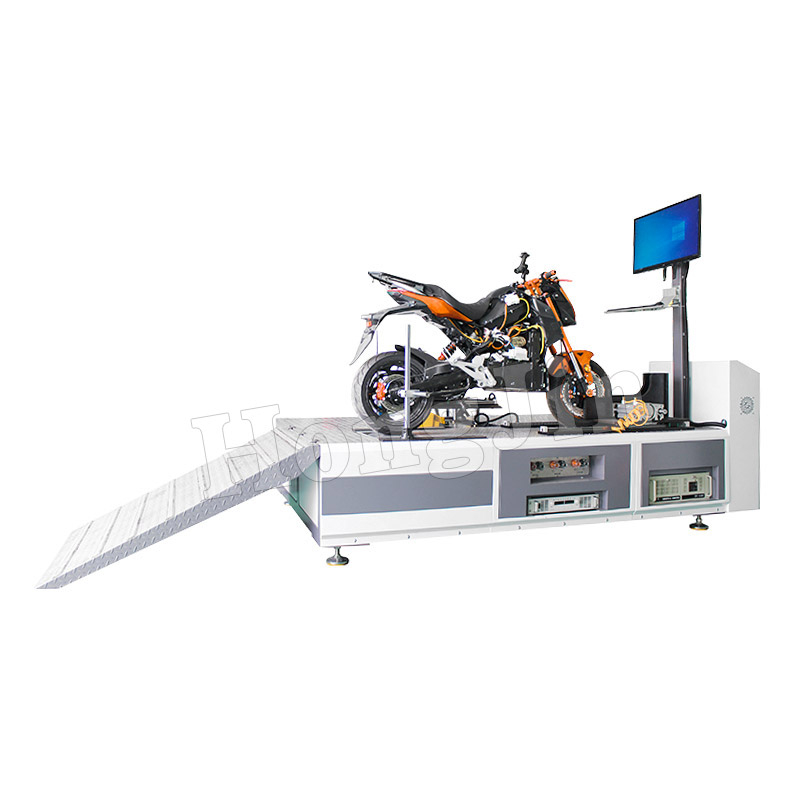

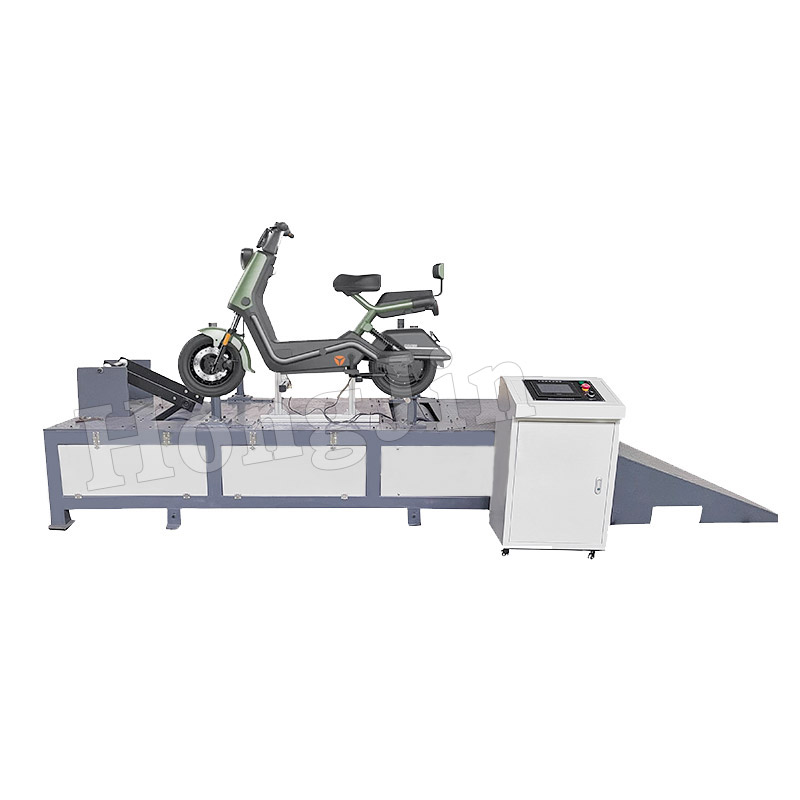

Electric Motorcycle Test Bench

Electric motorcycle test bench is mainly used for testing electric motorcycles, bicycles, power-assisted vehicles, and electric vehicles. The vehicle is fixed on the fixture, the equipment supplies power to the vehicle motor, the vehicle is set to start rotation, and the load motor provides programmable load torque to the wheel during operation. The load torque, speed, voltage, and current of the vehicle are detected during operation, and the load power and power input power are calculated and the curve is drawn.

Availability:

Quantity:



Inquire Add to Basket

Brand:
hj

Product Description

Product features:

1. Test the voltage, current and power of the vehicle supplied by the test equipment;

2. Test the torque provided by the servo motor of the test equipment to the vehicle;

3. Detect the output speed of the vehicle;

4. Calculate the output power of the vehicle;

5. Calculate the efficiency of the vehicle;

6. Set the header information and generate reports.

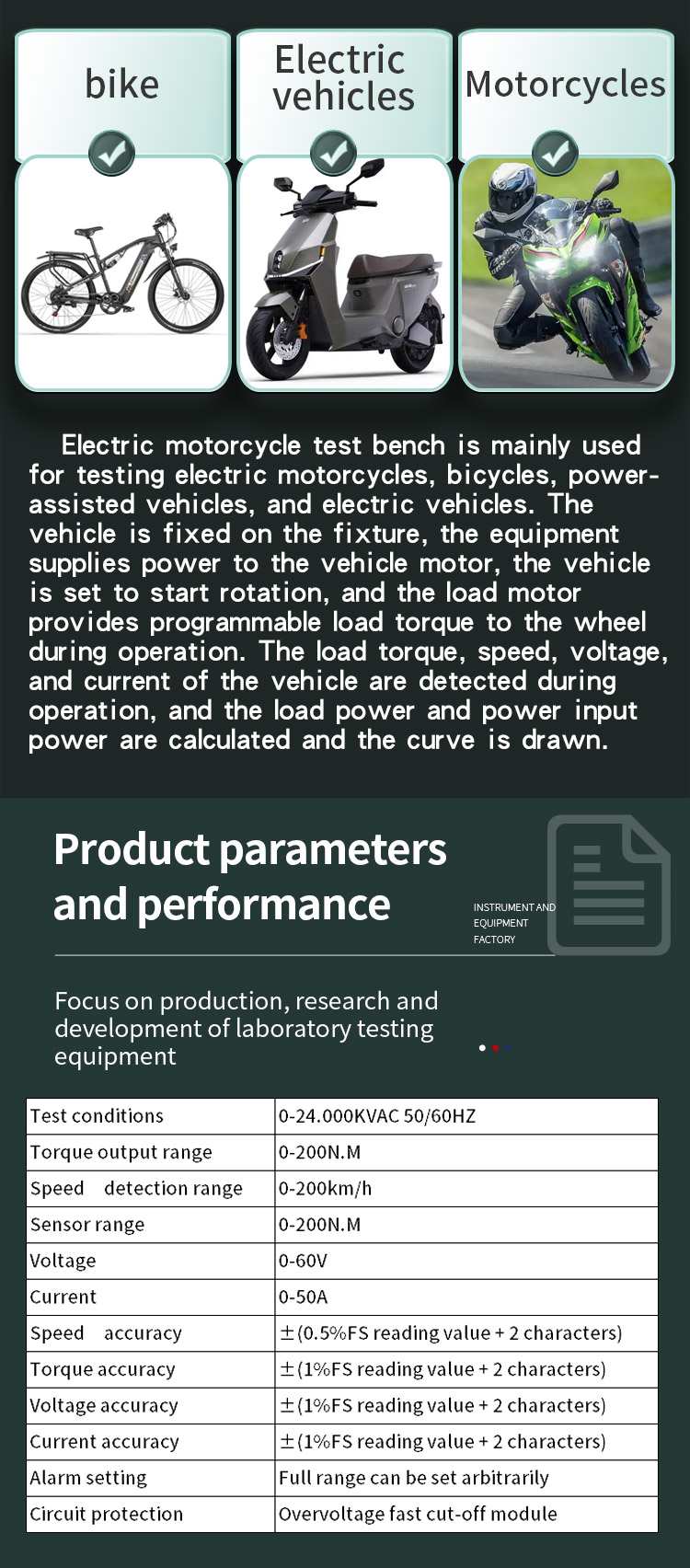

Test conditions	0-24.000KVAC 50/60HZ
Torque output range	0-200N.M
Speed detection range	0-200km/h
Sensor range	0-200N.M
Voltage	0-60V
Current	0-50A
Speed accuracy	±(0.5%FS reading value + 2 characters)
Torque accuracy	±(1%FS reading value + 2 characters)
Voltage accuracy	±(1%FS reading value + 2 characters)
Current accuracy	±(1%FS reading value + 2 characters)
Alarm setting	Full range can be set arbitrarily
Circuit protection	Overvoltage fast cut-off module
