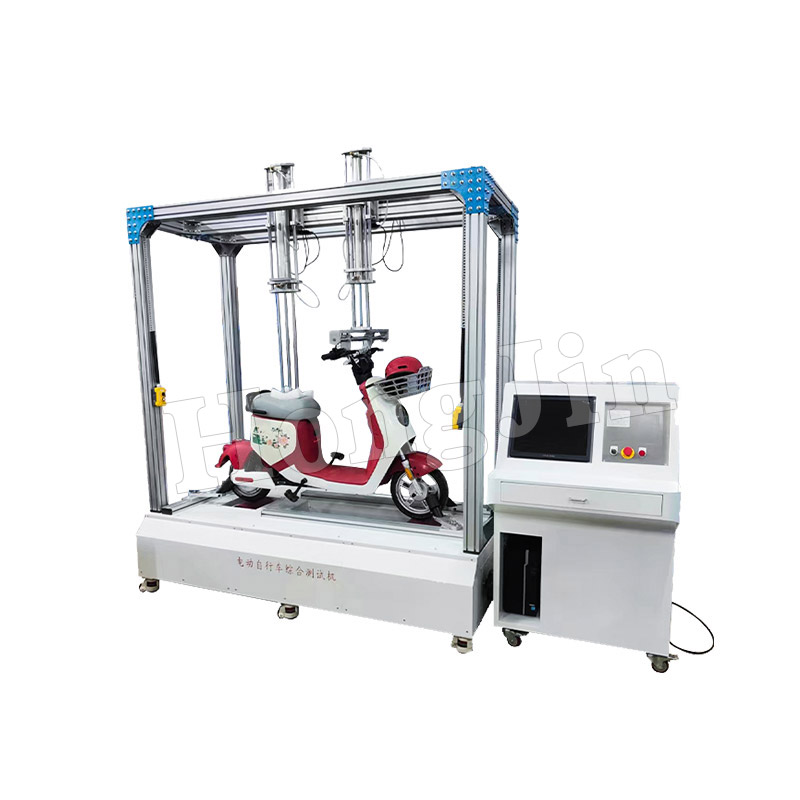

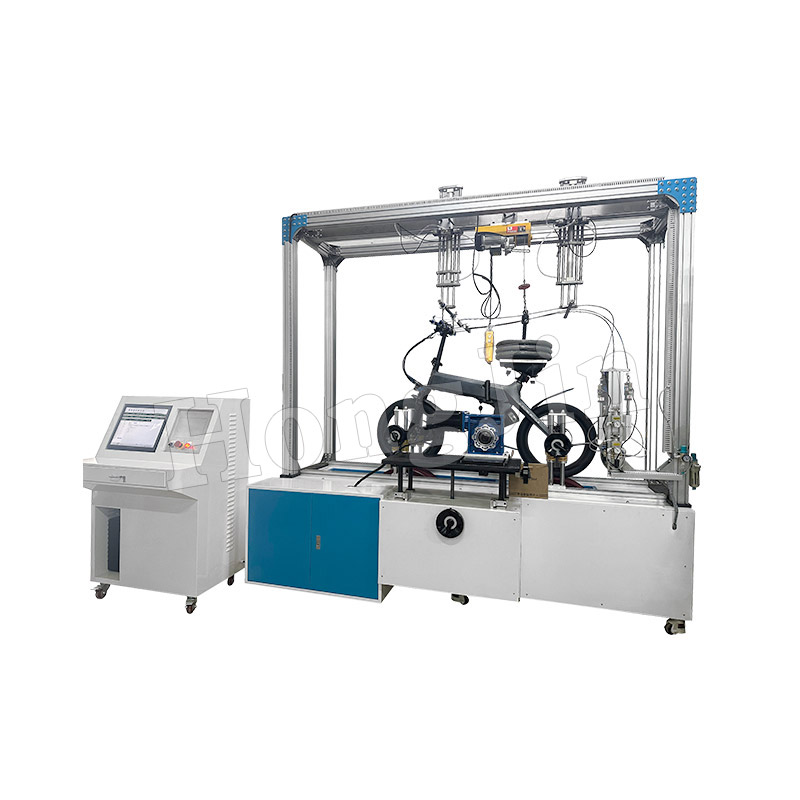

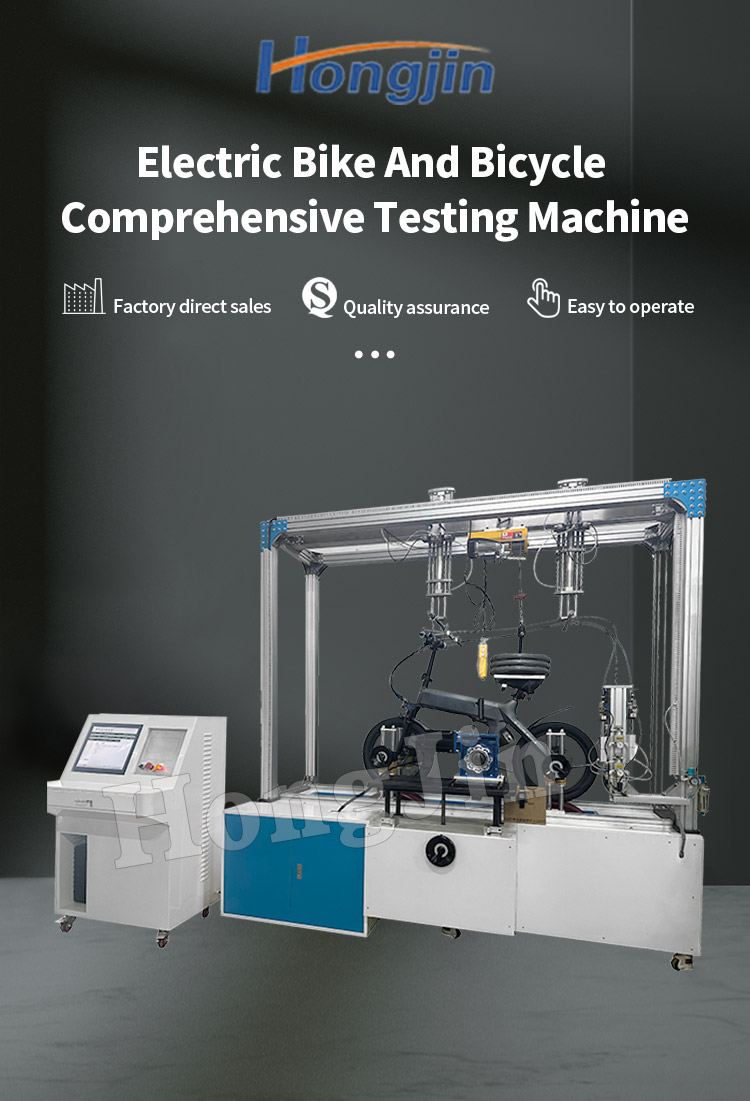

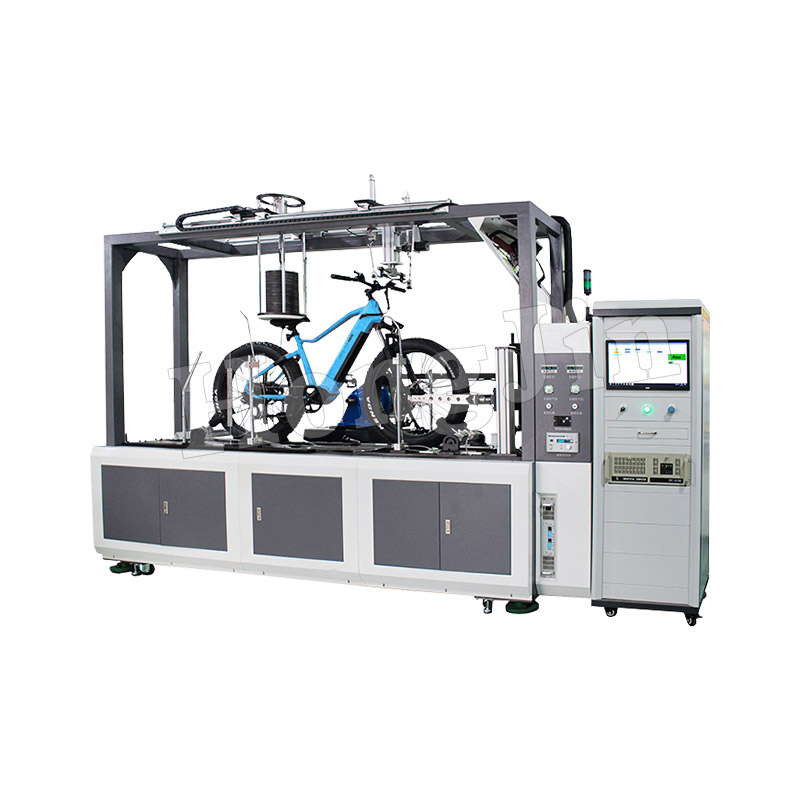

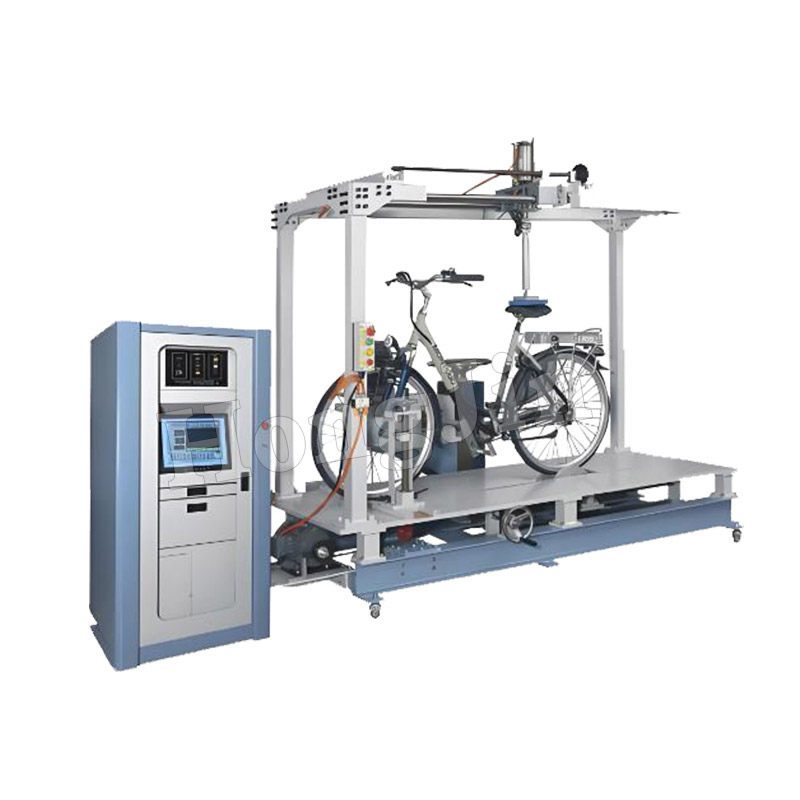

Electric Bike And Bicycle Comprehensive Testing Machine

The electric bicycle comprehensive test machine is used to simulate the riding environment test of electric bicycles. The assembled finished vehicle is placed on the machine, the weights are fixed according to the standard, the safety device is adjusted, and the relevant parameters are set on the computer, and the computer automatically performs the test.
Availability:
Quantity:
  • HJ

Product features:

1. Intelligent program control, simple operation and easy to use.

2. The main body of the machine is a steel component with high strength and not easy to deform.

3. The parts are electroplated, with high rust resistance and beautiful appearance.

4. The machine base is made of solid steel with good stability.

5. Software interface: control system.

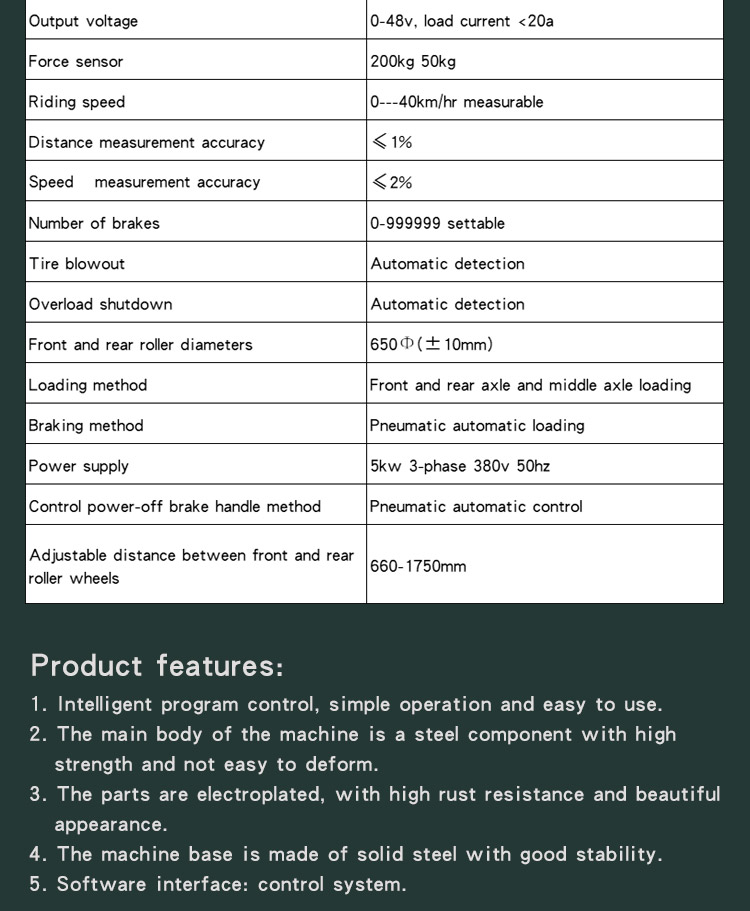

Output voltage 0-48v, load current <20a
Force sensor 200kg 50kg
Riding speed 0---40km/hr measurable
Distance measurement accuracy ≤1%
Speed measurement accuracy ≤2%
Number of brakes 0-999999 settable
Tire blowout Automatic detection
Overload shutdown Automatic detection
Front and rear roller diameters 650Φ(±10mm)
Loading method Front and rear axle and middle axle loading
Braking method Pneumatic automatic loading
Power supply 5kw 3-phase 380v 50hz
Control power-off brake handle method Pneumatic automatic control
Adjustable distance between front and rear roller wheels 660-1750mm


电动车自行车综合测试机_01电动车自行车综合测试机_02电动车自行车综合测试机_03电动车自行车综合测试机_04电动车自行车综合测试机_05电动车自行车综合测试机_06新模板_01新模板_02123
