| Quantity: | |
|---|---|
HJ

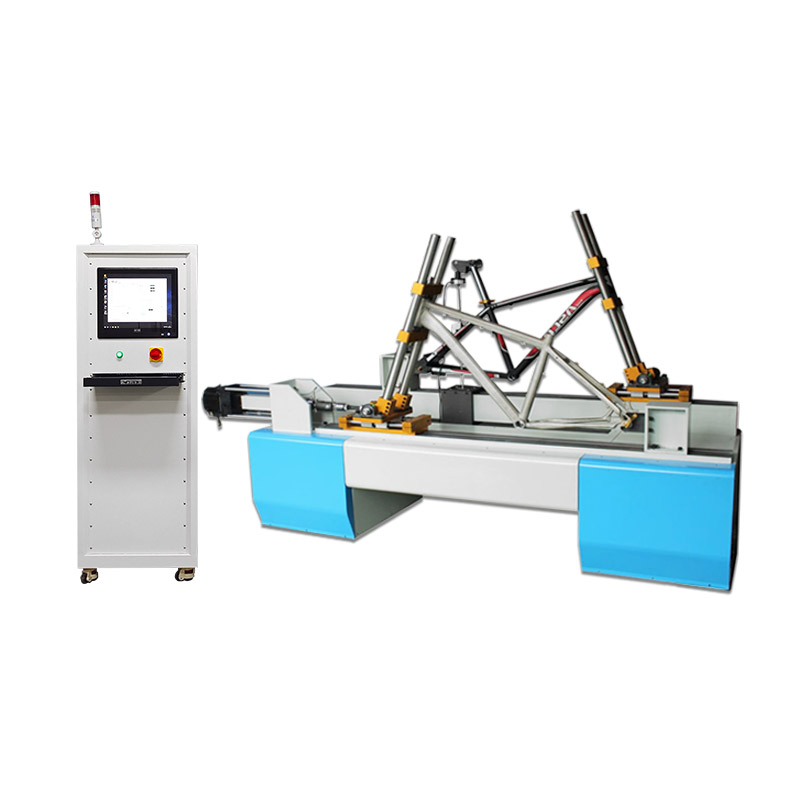

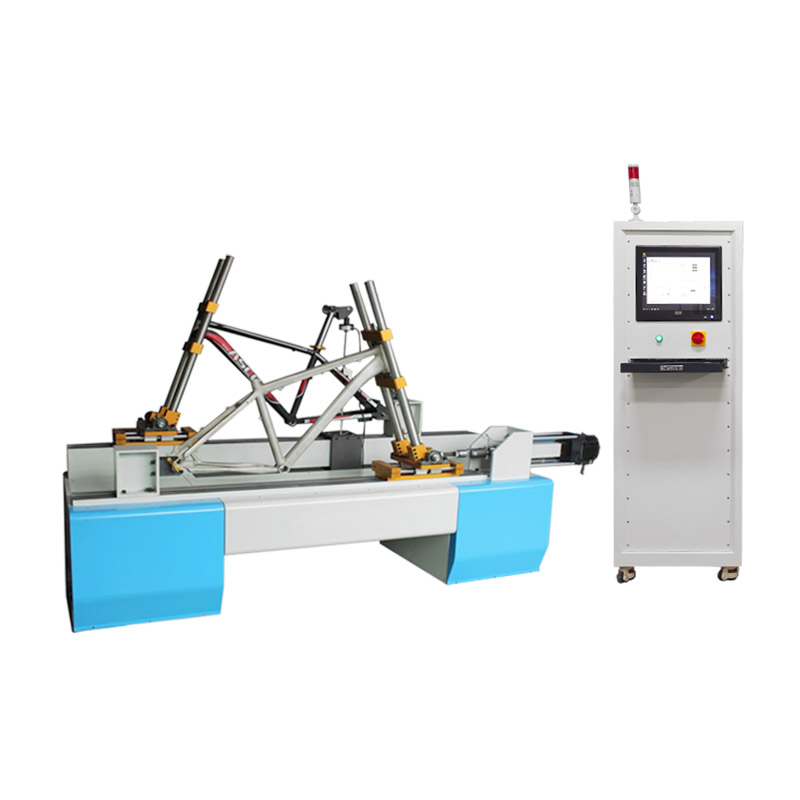

Functional principle of the equipment:
The equipment applies periodic horizontal reciprocating loads to the relevant parts of the frame; the frame is reciprocated horizontally, and the horizontal reciprocating continuous loading force is a constant amplitude force, and the total number of loading times is 15 x 10* times.

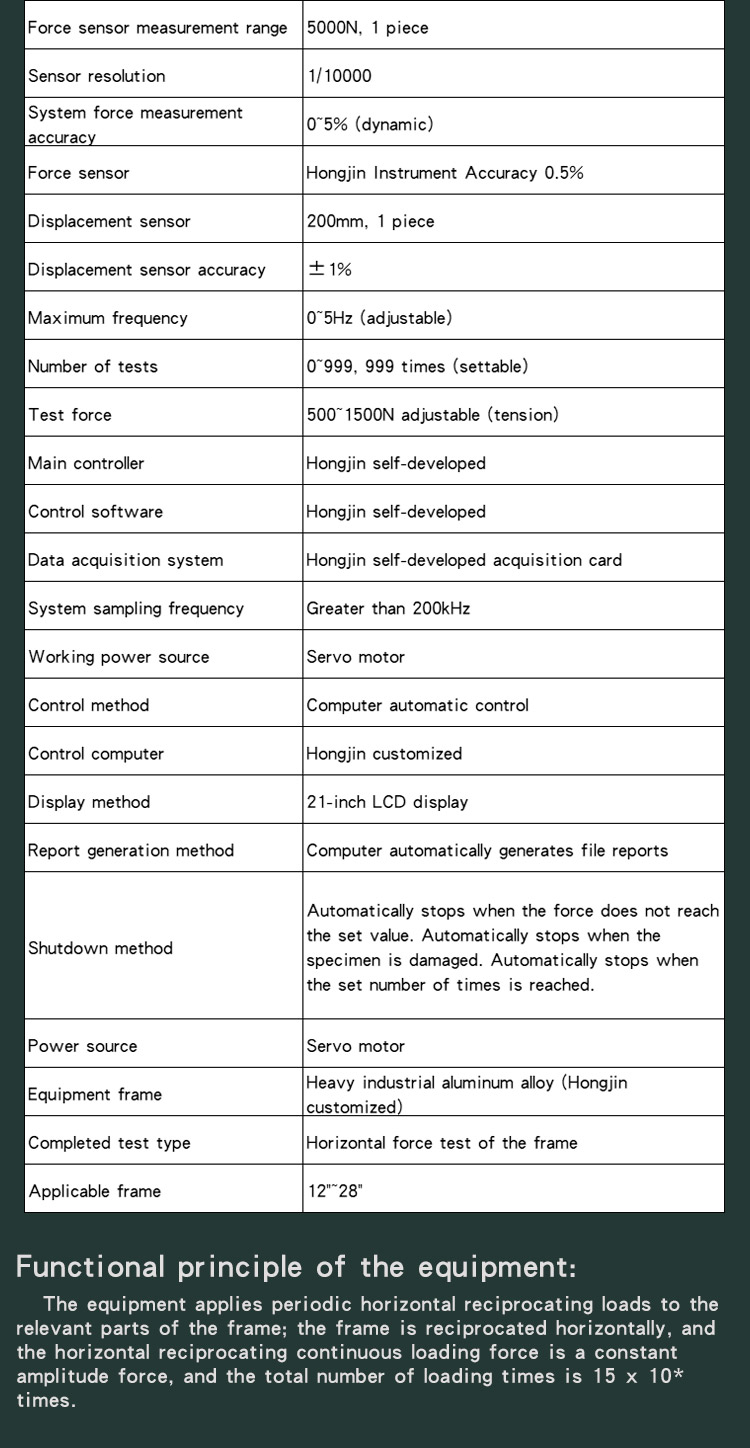

| Force sensor measurement range | 5000N, 1 piece |
| Sensor resolution | 1/10000 |
| System force measurement accuracy | 0~5% (dynamic) |
| Force sensor | Hongjin Instrument Accuracy 0.5% |
| Displacement sensor | 200mm, 1 piece |
| Displacement sensor accuracy | ±1% |
| Maximum frequency | 0~5Hz (adjustable) |
| Number of tests | 0~999, 999 times (settable) |
| Test force | 500~1500N adjustable (tension) |
| Main controller | Hongjin self-developed |
| Control software | Hongjin self-developed |
| Data acquisition system | Hongjin self-developed acquisition card |
| System sampling frequency | Greater than 200kHz |
| Working power source | Servo motor |
| Control method | Computer automatic control |
| Control computer | Hongjin customized |
| Display method | 21-inch LCD display |
| Report generation method | Computer automatically generates file reports |
| Shutdown method | Automatically stops when the force does not reach the set value. Automatically stops when the specimen is damaged. Automatically stops when the set number of times is reached. |
| Power source | Servo motor |
| Equipment frame | Heavy industrial aluminum alloy (Hongjin customized) |
| Completed test type | Horizontal force test of the frame |
| Applicable frame | 12"~28" |
Functional principle of the equipment:
The equipment applies periodic horizontal reciprocating loads to the relevant parts of the frame; the frame is reciprocated horizontally, and the horizontal reciprocating continuous loading force is a constant amplitude force, and the total number of loading times is 15 x 10* times.
| Force sensor measurement range | 5000N, 1 piece |
| Sensor resolution | 1/10000 |
| System force measurement accuracy | 0~5% (dynamic) |
| Force sensor | Hongjin Instrument Accuracy 0.5% |
| Displacement sensor | 200mm, 1 piece |
| Displacement sensor accuracy | ±1% |
| Maximum frequency | 0~5Hz (adjustable) |
| Number of tests | 0~999, 999 times (settable) |
| Test force | 500~1500N adjustable (tension) |
| Main controller | Hongjin self-developed |
| Control software | Hongjin self-developed |
| Data acquisition system | Hongjin self-developed acquisition card |
| System sampling frequency | Greater than 200kHz |
| Working power source | Servo motor |
| Control method | Computer automatic control |
| Control computer | Hongjin customized |
| Display method | 21-inch LCD display |
| Report generation method | Computer automatically generates file reports |
| Shutdown method | Automatically stops when the force does not reach the set value. Automatically stops when the specimen is damaged. Automatically stops when the set number of times is reached. |
| Power source | Servo motor |
| Equipment frame | Heavy industrial aluminum alloy (Hongjin customized) |
| Completed test type | Horizontal force test of the frame |
| Applicable frame | 12"~28" |
