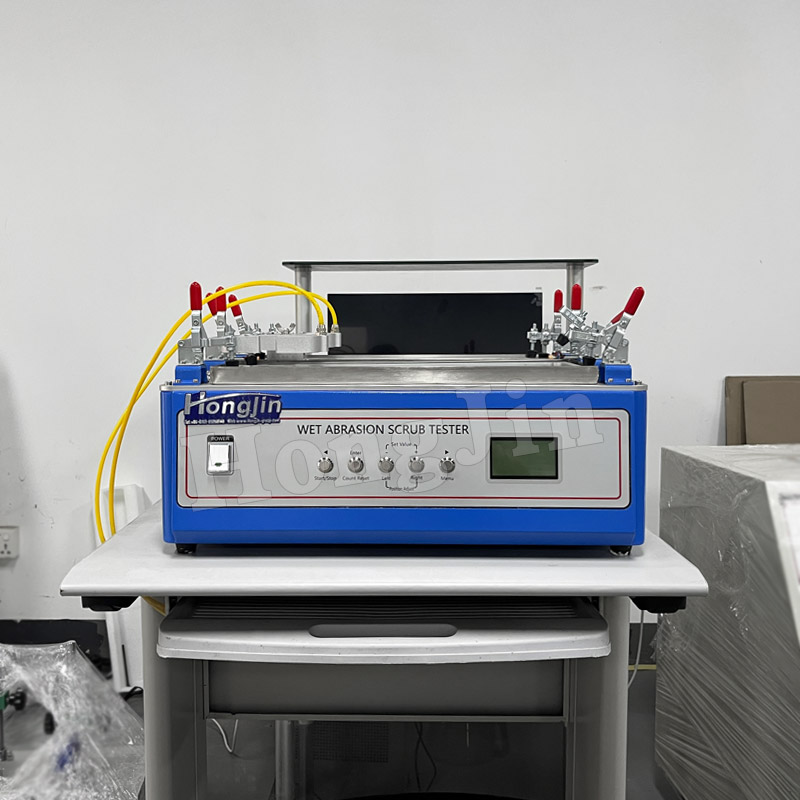

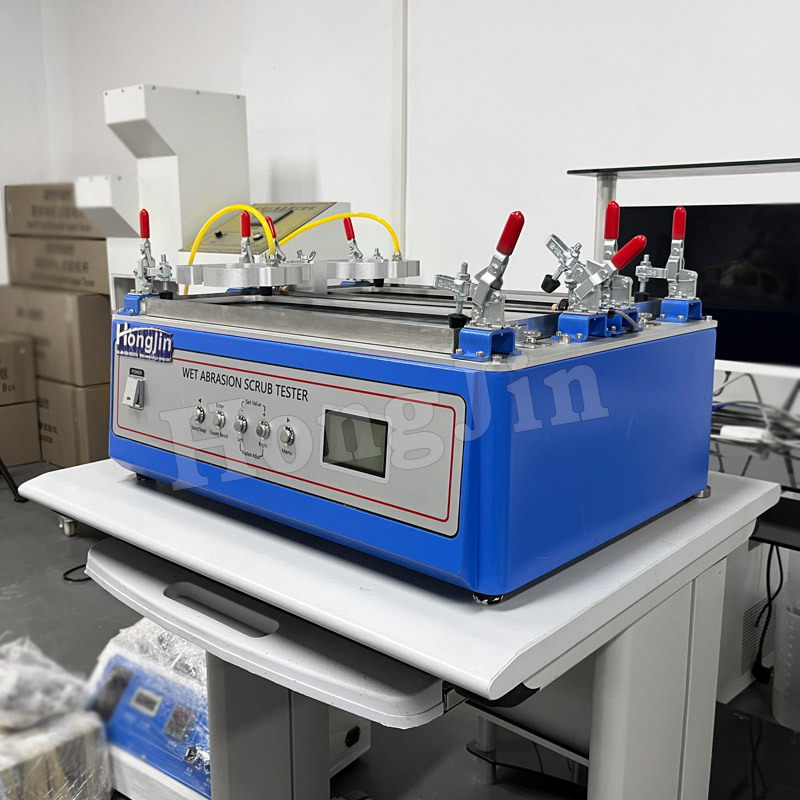

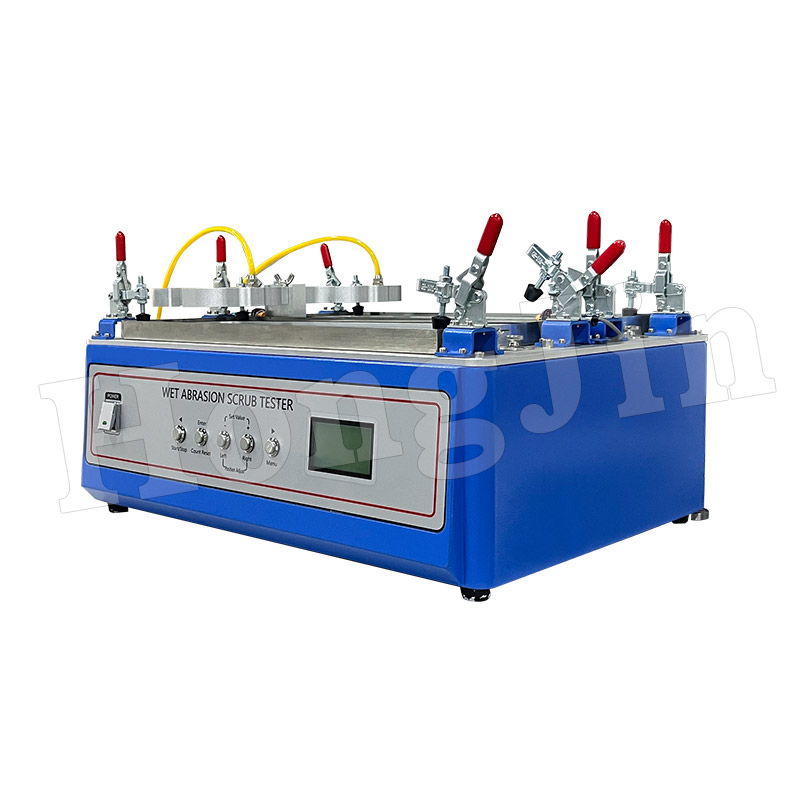

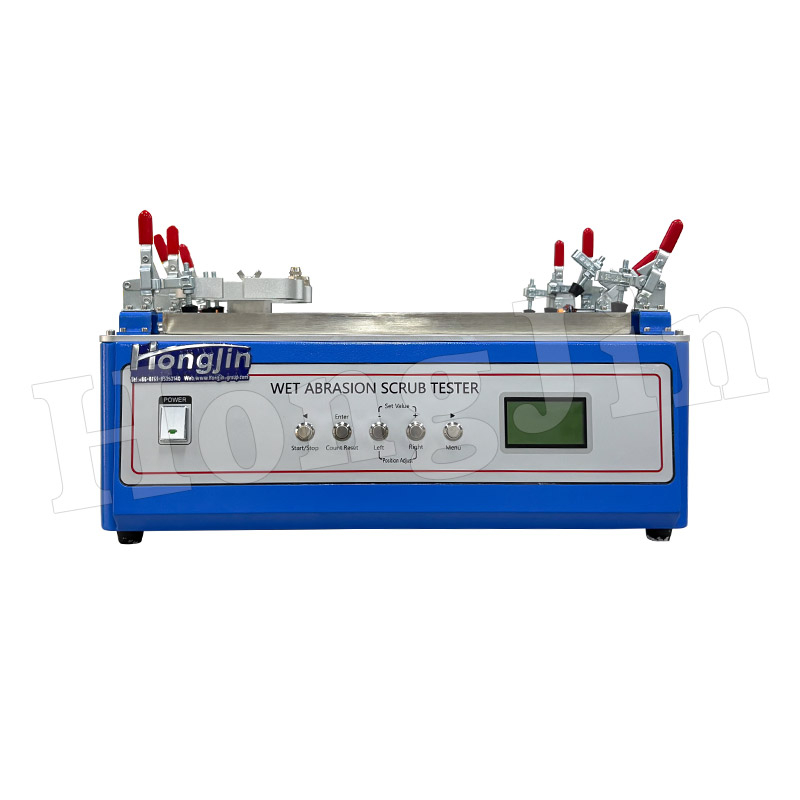

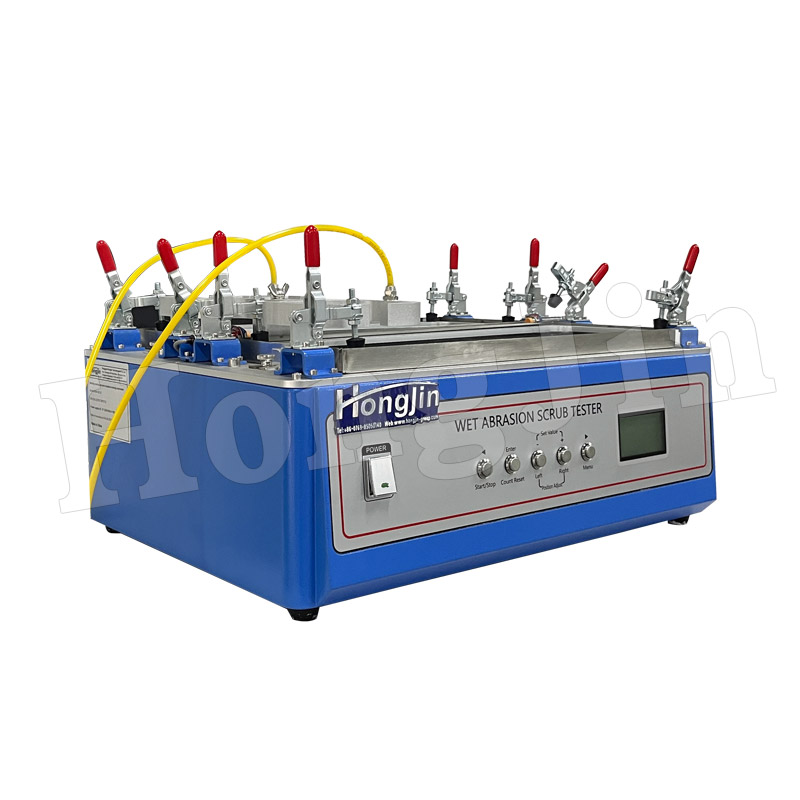

Building Scrub Resistance Tester Paint And Coating Scrub Resistance Tester Electroplating Coating Scrub Resistance Tester

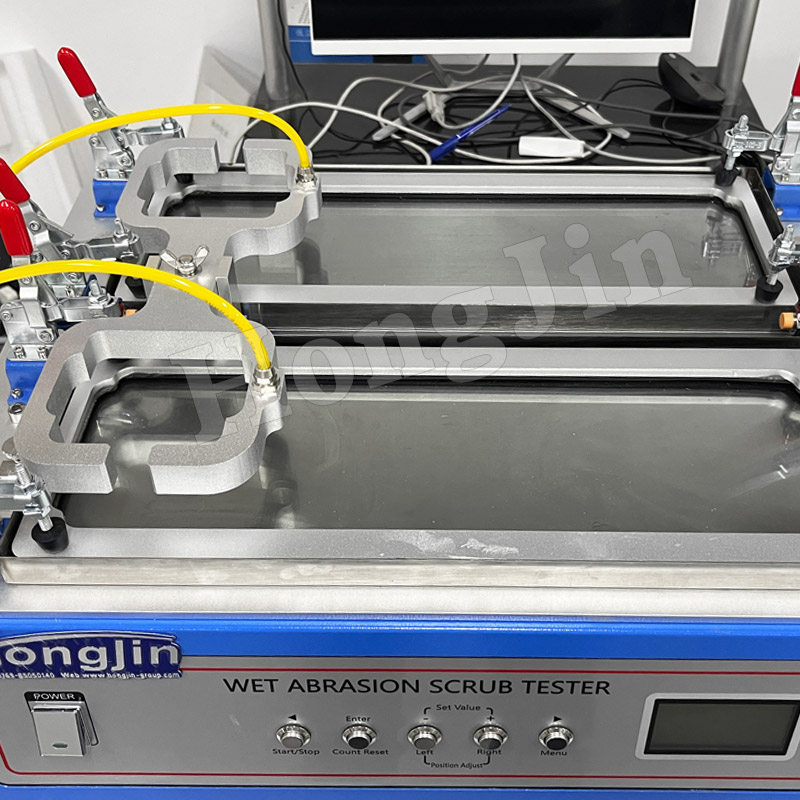

The Paint Scrub Resistance Tester is used to evaluate the scrub resistance of coatings. While meeting the standard requirements for interior and exterior wall coatings, it can also evaluate the performance of any surface treated with thin film composites, such as paint, electroplating, baseboards, overcoats, and wood density. The device scrubs the coating on both the painted surface and the standard test panel, with the number of scrubs directly read out by a counter. The number of scrubs used can be used to assess the importance and necessity of scrub resistance testing for coatings. This instrument, used in conjunction with national standards, is an essential testing instrument for coatings manufacturers and coatings research institutions.
Availability:
Quantity:
  • hongjin

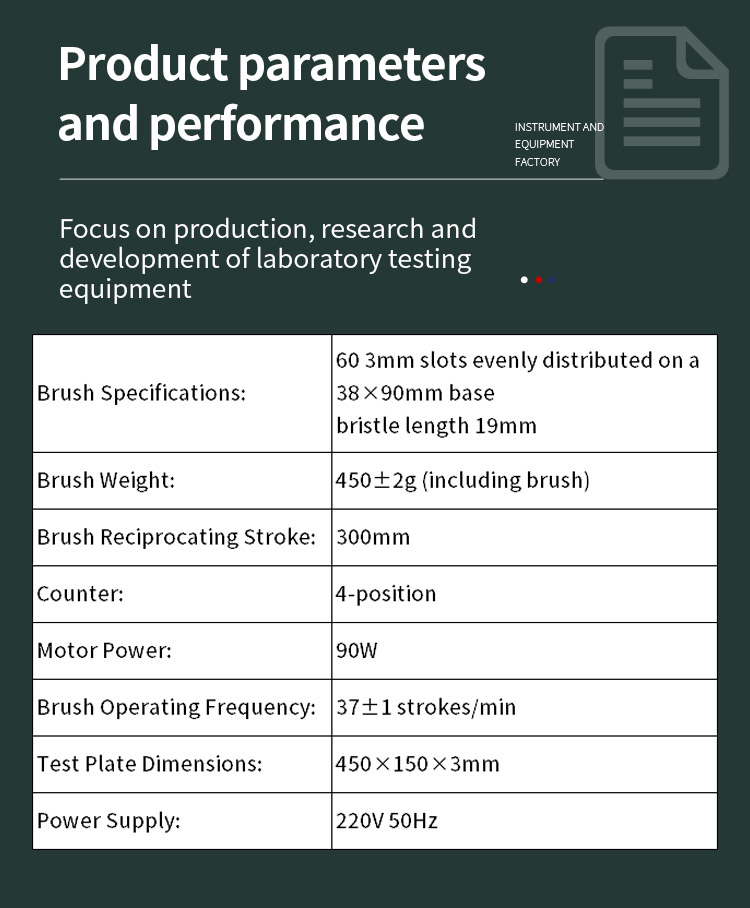

Brush Specifications: 60 3mm slots evenly distributed on a 38×90mm base
bristle length 19mm
Brush Weight: 450±2g (including brush)
Brush Reciprocating Stroke: 300mm
Counter: 4-position
Motor Power: 90W
Brush Operating Frequency: 37±1 strokes/min
Test Plate Dimensions: 450×150×3mm
Power Supply: 220V 50Hz

建筑物耐洗刷试验机--25_01建筑物耐洗刷试验机--25_02建筑物耐洗刷试验机--25_03建筑物耐洗刷试验机--25_04建筑物耐洗刷试验机--25_05建筑物耐洗刷试验机--25_06新模板_01新模板_02
