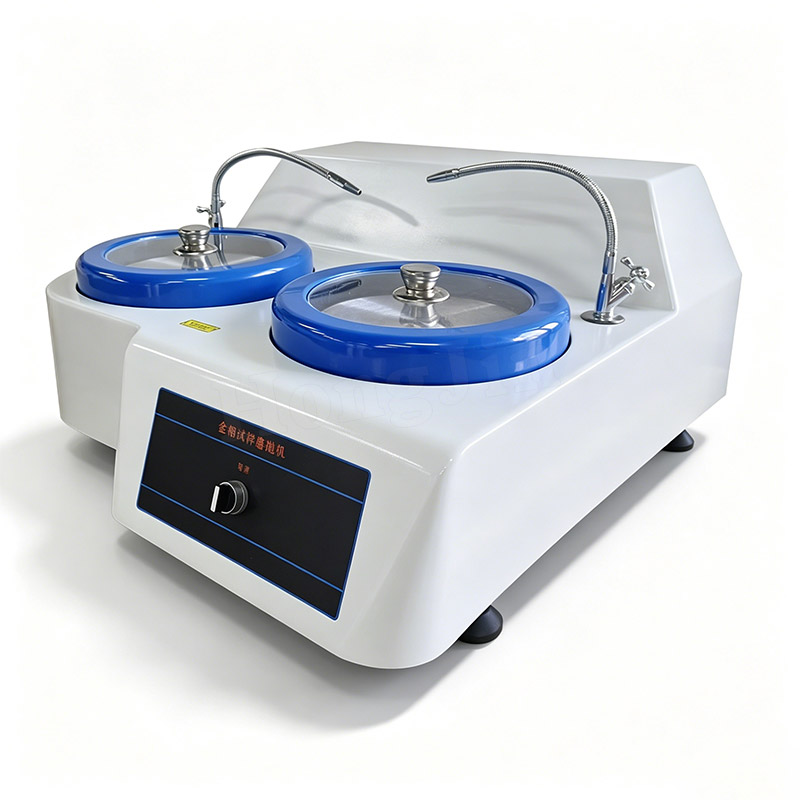

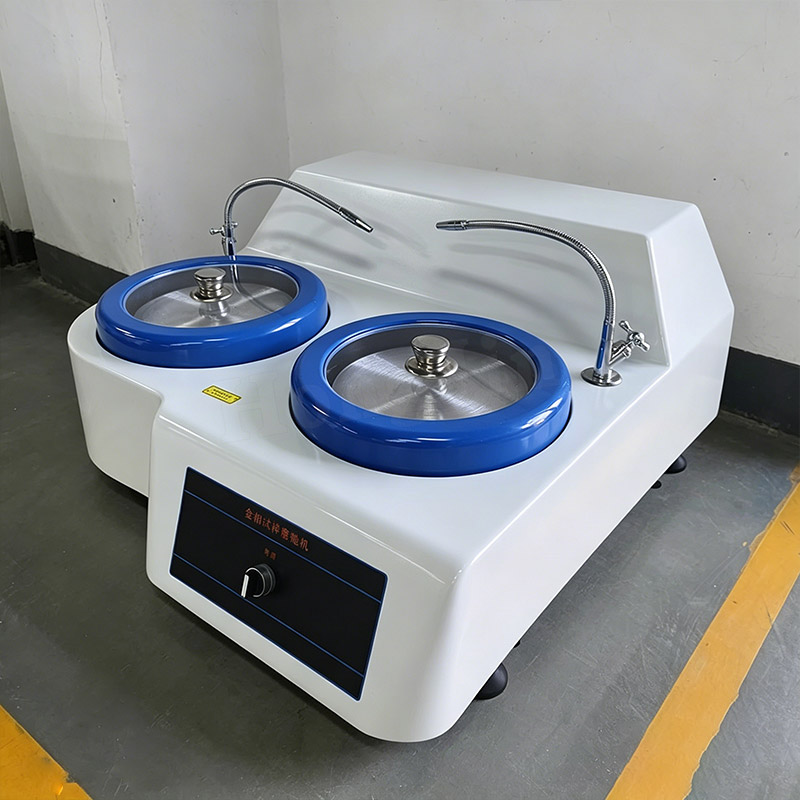

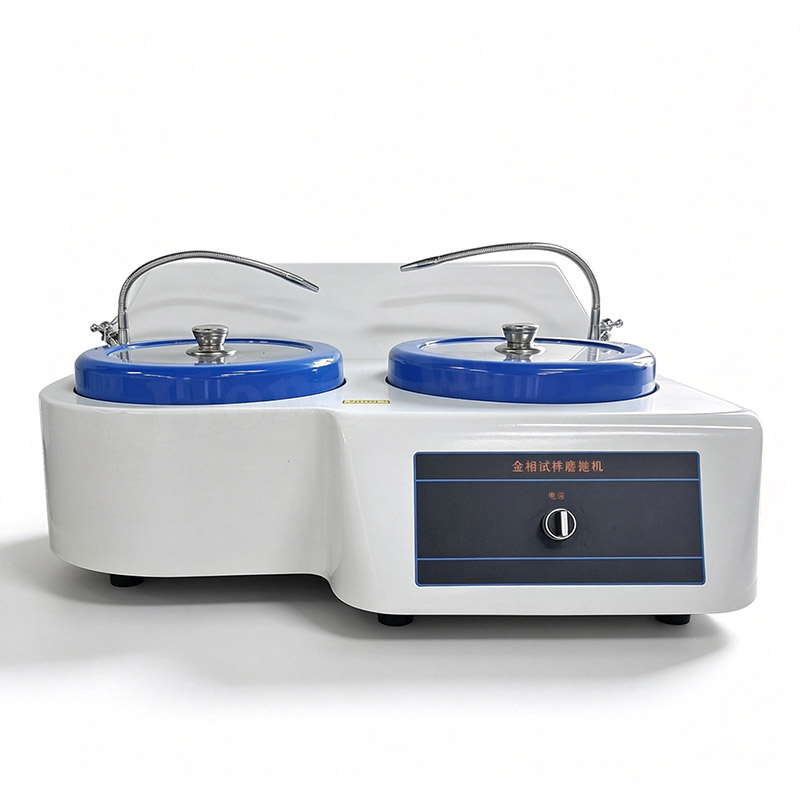

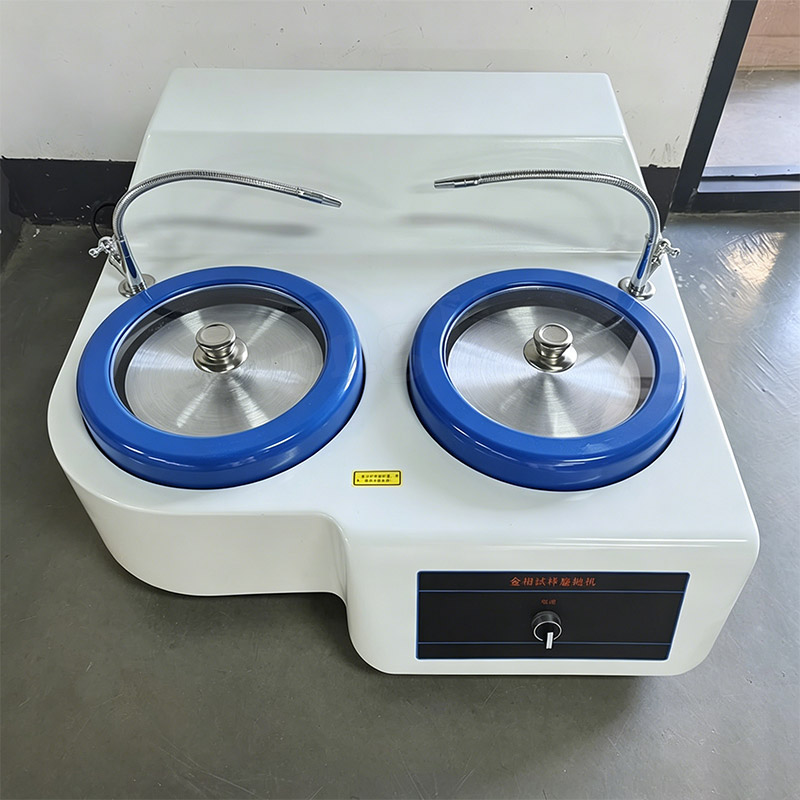

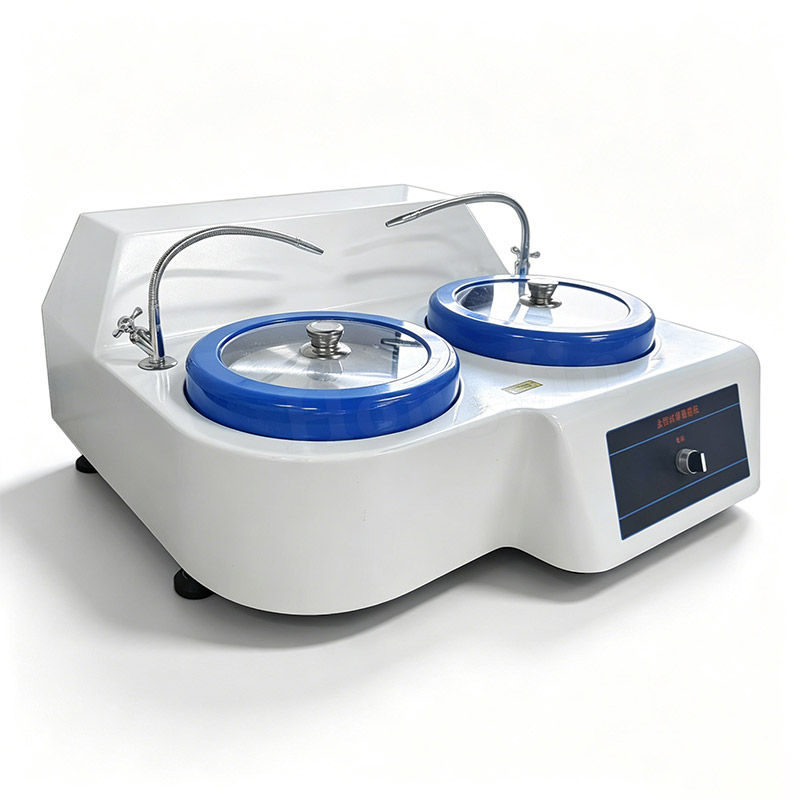

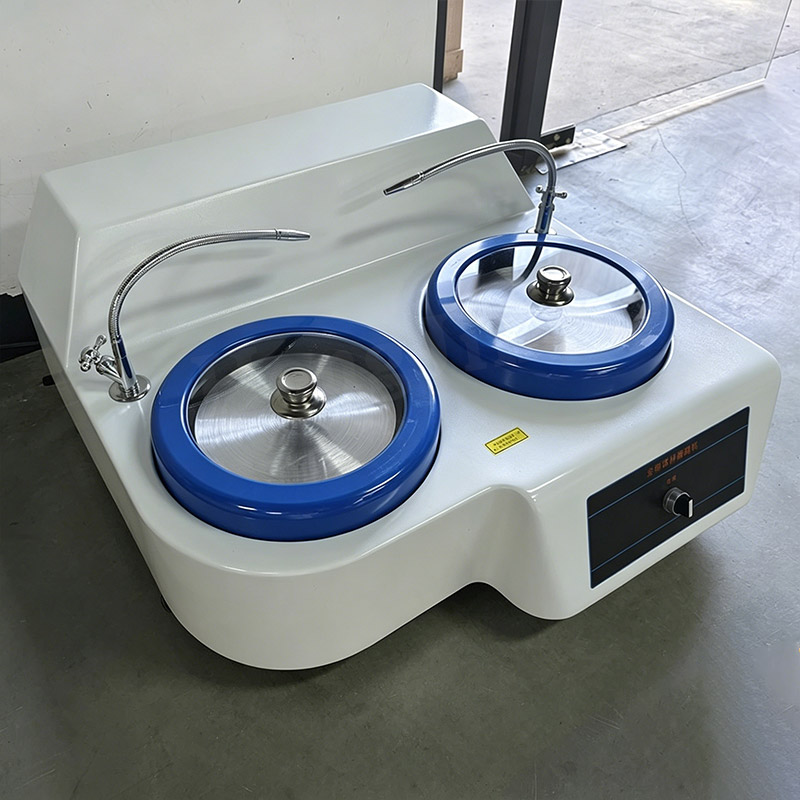

Metallographic Sample Grinding And Polishing Machine

Product Introduction:

This metallographic sample grinding and polishing machine is a double-disc benchtop machine suitable for pre-grinding, grinding, and polishing metallographic samples. It is an essential piece of equipment for users preparing metallographic samples. The machine is equipped with a cooling device to cool the sample during pre-grinding, preventing damage to the metallographic structure due to overheating. The left disc is the grinding disc, and the right disc is the polishing disc. It can be operated by two people simultaneously, is safe and reliable, and is an ideal sample preparation device for factories, research institutions, and university laboratories.
Availability:
Quantity:

Grinding & Polishing Disc Diameter

Φ230mm

Abrasive Paper Diameter

Φ230mm

Disc Rotation Speed

Right grinding disc: 600r/min
Left polishing disc: 450r/min

Motor Power

0.75/0.55KW

Power Input

AC380V 50Hz (AC220V customizable)

Working Mode

Dual-disc linkage

Cooling Mode

Water cooling

Overall Dimension

760*740*340mm

Net Weight

45kg

Product Features:

1. Fiberglass shell, sturdy and durable, corrosion resistant

2. Two fixed speeds, easy to use

3. Large working surface of the polishing disc
