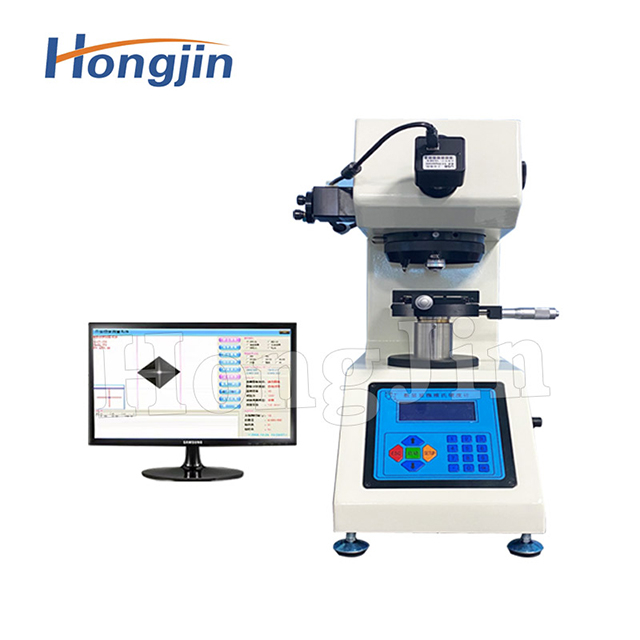

Digital Micro Vickers Hardness Tester

Digital Vickers hardness tester, using automatic turret, without manual rotation measurement, applied to :a. Ferrous metal, non-ferrous metal, Surface coating, laminated metal, IC sheet. b. Ceramics, glass, agate, precious stones, metal flakes, etc. C. Electroplating, heat treatment, carbonization layer. Hardness test of decarburized and quenched layers.
Model number: Manual digital Display Vickers Hardness Tester (1000A) (screw lift) Manual digital Display Vickers Hardness Tester (1000B) (Side roll up and down) Digital Display Automatic Rotary Vickers Hardness Tester (1000s)
Sample test height: 65mm 80mm 65mm
Vickers scale: HVO. 01, HVO. 025, HVO. 05, HVO. 1, HVO. 2, HVO. 3, HVO. 5, HV1.0
Test force: 10, 25, 50, 100, 200, 300, 500, 1000 (gf)
Unit optional: HRA, HRB, HRC, HR15N HR30N, HR45N (according to the automatic conversion rockwell hardness vickers hardness value)
Objective lens: 10X (observation) 40X (measurement)
Test force selection: Through the test force change hand wheel selection, the instrument itself automatic recognition
Measurement mode: HV Resolution: 0.25um
Measuring range: 5-3000HV
Measurement accuracy: Below 100HV ±5%, 200HV±3%, 400HV + 2%
Loading control: Automatic (loading, load preserving, unloading) Charge retention time: 5-60S
Hardness value: Manual measurement, system automatic calculation, display results
X/Y platform: 100X100mm, travel :25X25mm Light source: DC6V/50HZ
Overall dimensions: Length X width X Height: 430X210X540 (mm) Weight: ≈30KG
