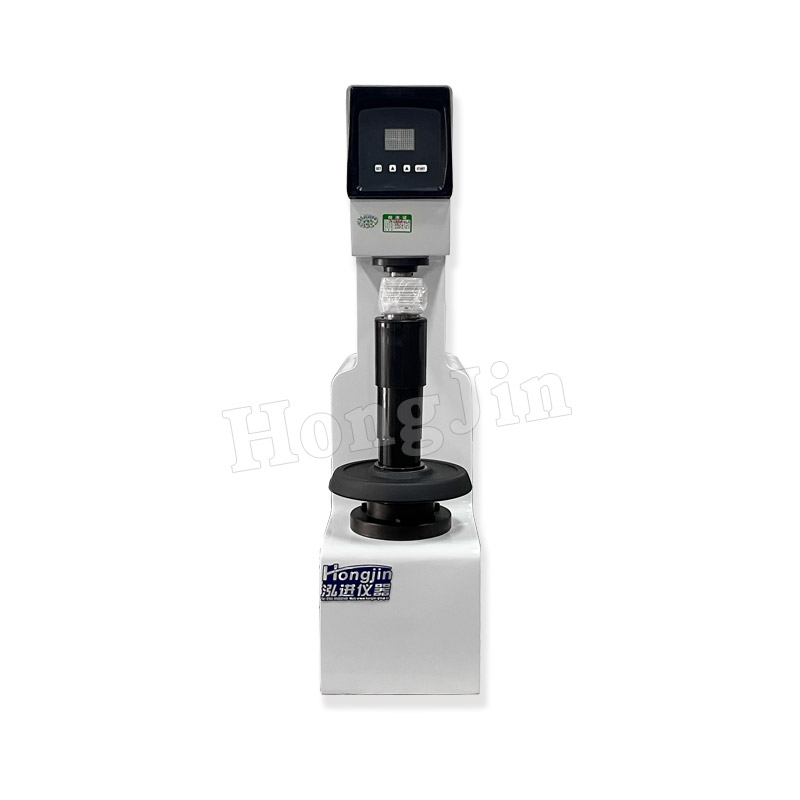

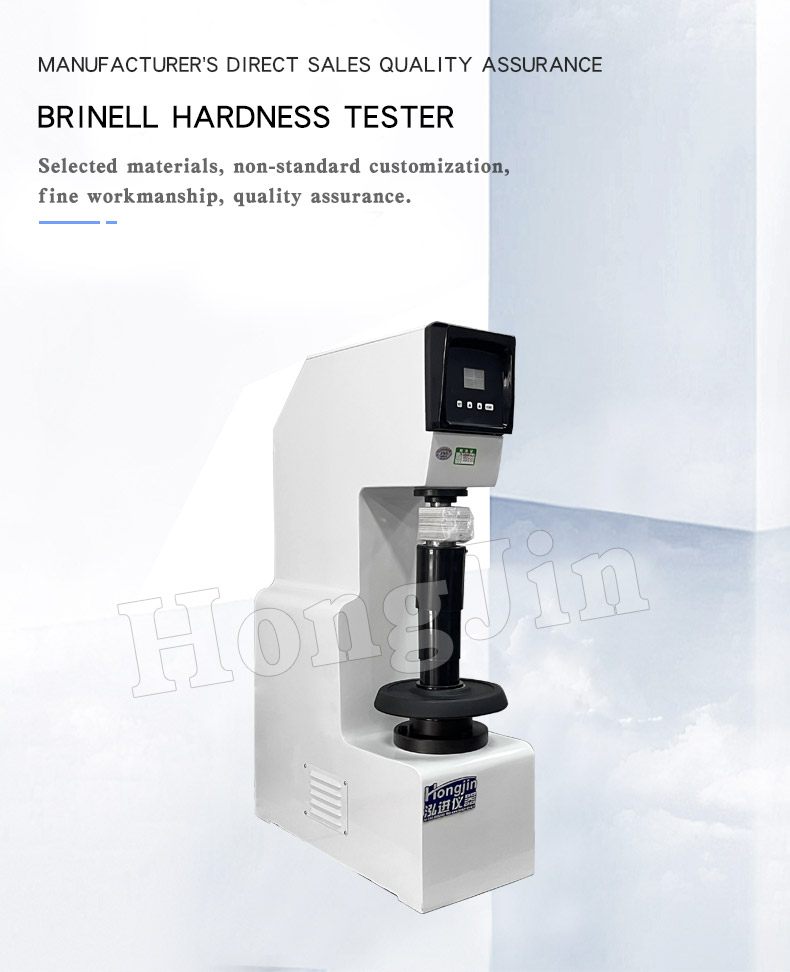

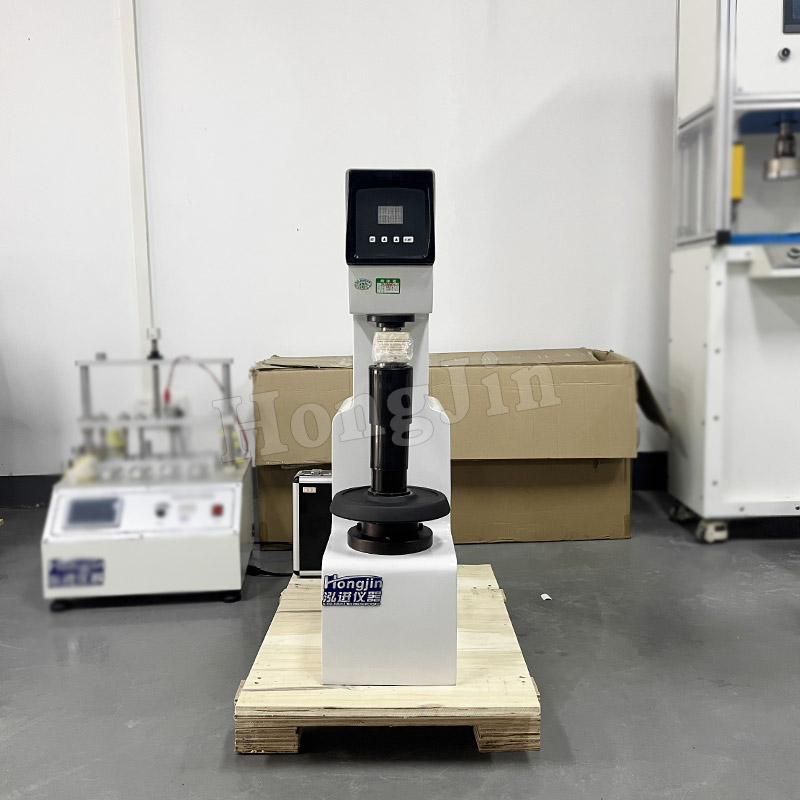

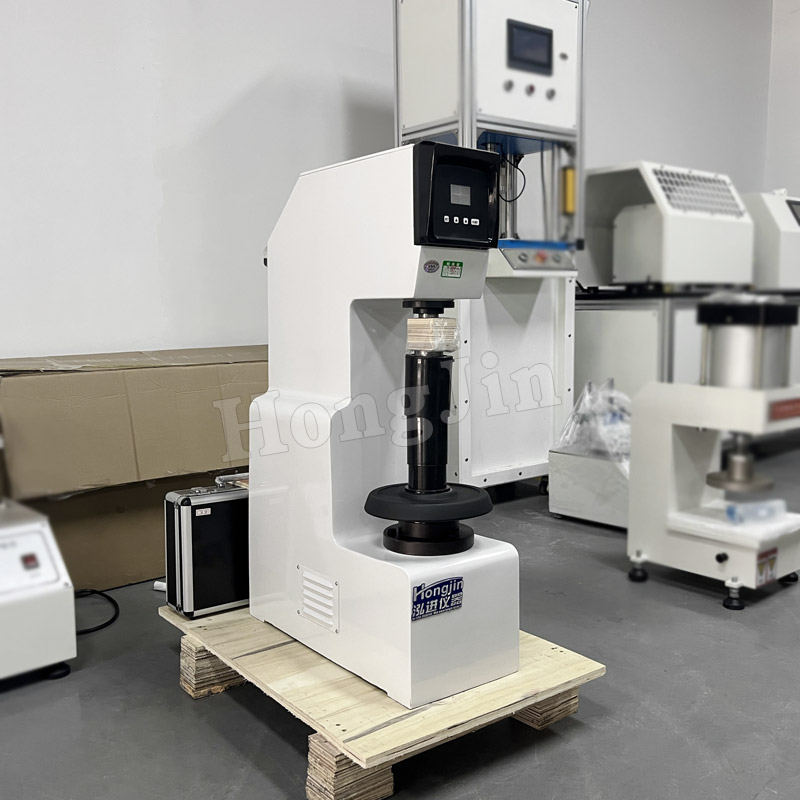

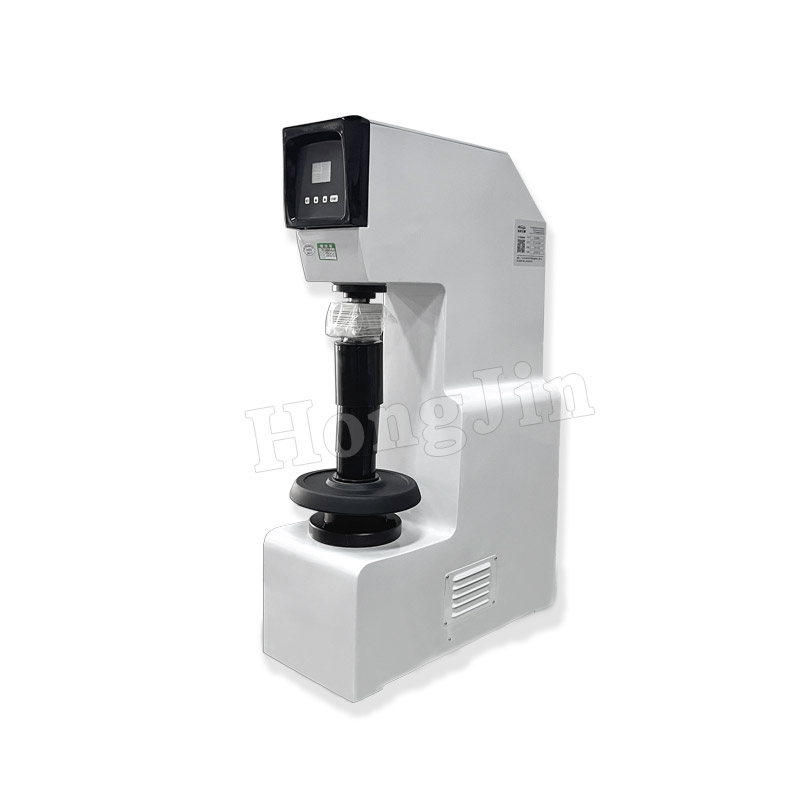

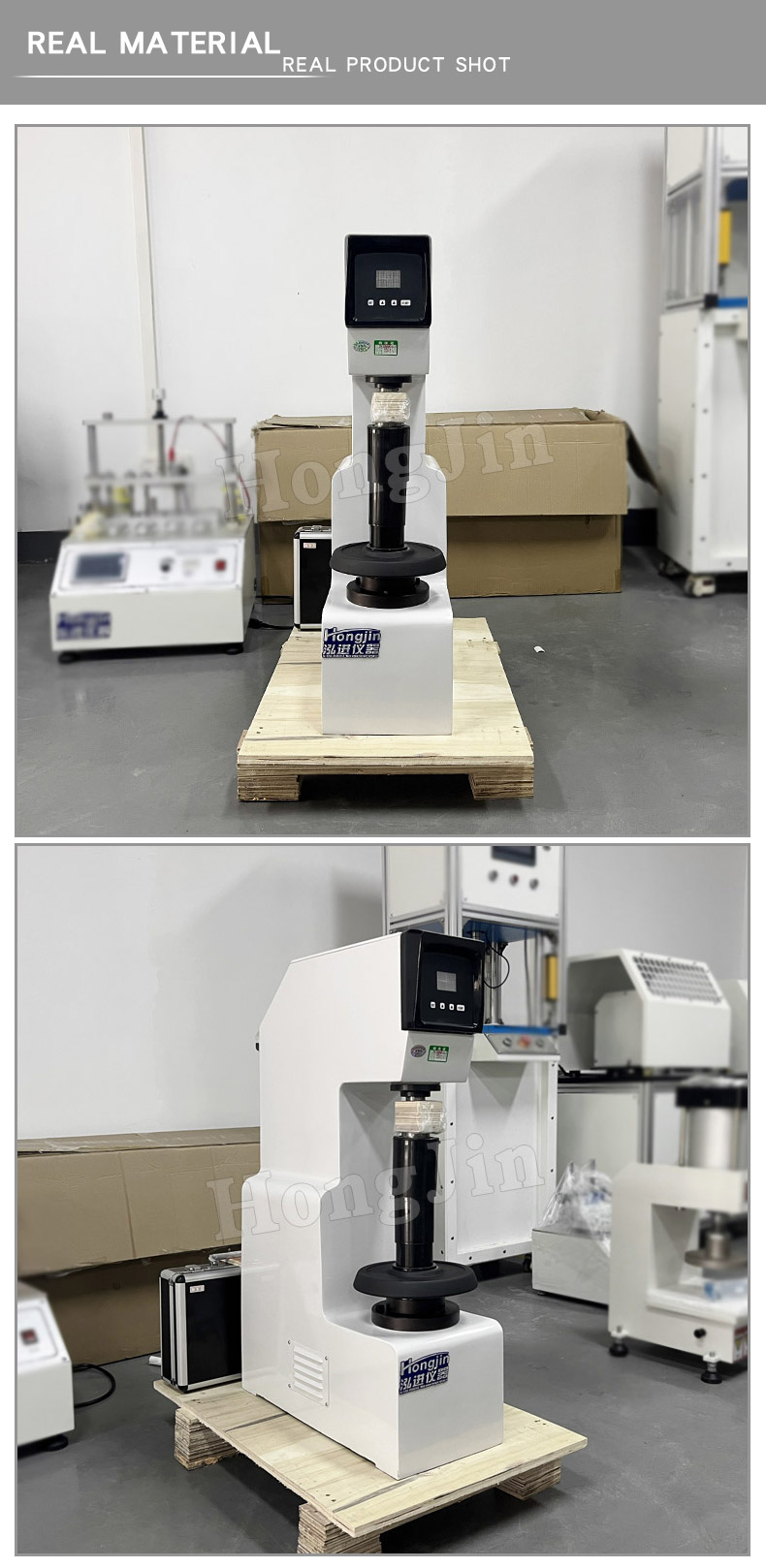

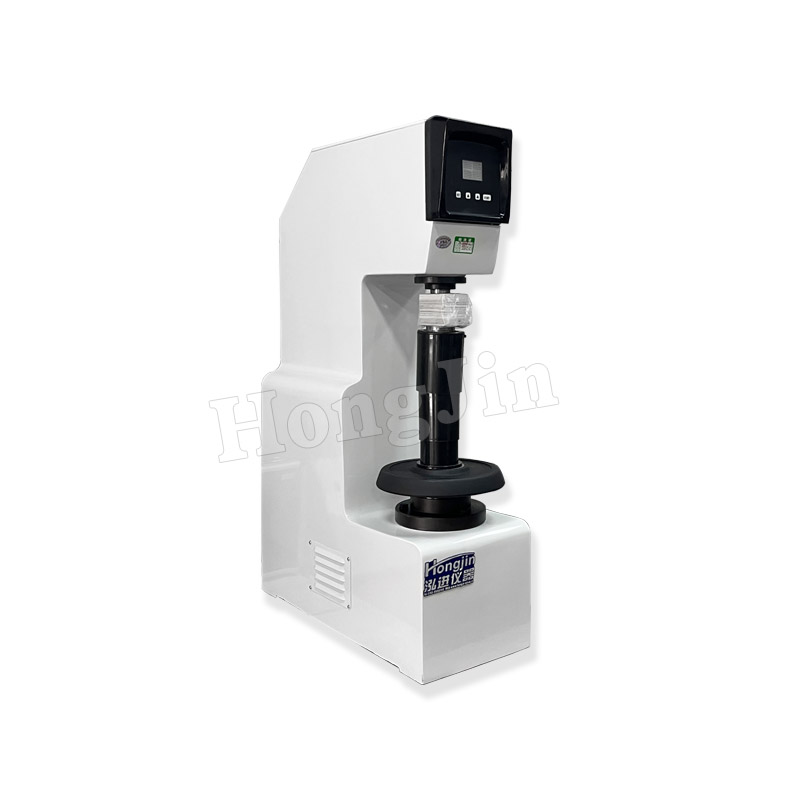

Brinell Hardness Tester Benchtop Microhardness Tester High-Precision Metal Hardness Measurement Equipment

Hardness is a key indicator of a material's mechanical properties, and hardness testing is a crucial tool for assessing the quality of metal materials or parts. Hardness refers to a material's ability to withstand the pressure of another object under certain conditions without causing residual deformation. The greater the resistance, the higher the hardness, and vice versa.
The Brinell hardness test is primarily used to measure the hardness of materials such as cast iron, steel, nonferrous metals, and soft alloys. It can also be used to measure the hardness of certain non-metallic materials, such as hard plastics and Bakelite. It is suitable for factories, workshops, laboratories, universities, colleges, and research institutions.

Availability:

Quantity:



Inquire Add to Basket

Brand:
hongjin

Product Description

Product Advantages

1. Utilizes a fully automatic electronic closed-loop pressure sensor control system, enabling easy automation of loading, holding, and unloading operations.

2. The product body is crafted from precision casting, ensuring stable performance and a stylish appearance.

3. Dual lenses with optional 20× and 40× optical configurations.

4. High-definition LCD display with a simple interface and easy operation.

5. Precise control system with automatic unit conversion for all hardness scales.

6. Software-defined hardness correction function allows for direct correction of hardness values within a specified range.

7. Test data is automatically grouped and saved, with the database storing 10 data points per group, for a total of over 1,000 data points.

8. Configurable upper and lower hardness limits trigger an automatic alarm when the test value exceeds the set range.

9. Supports 12 languages, which can be switched between.

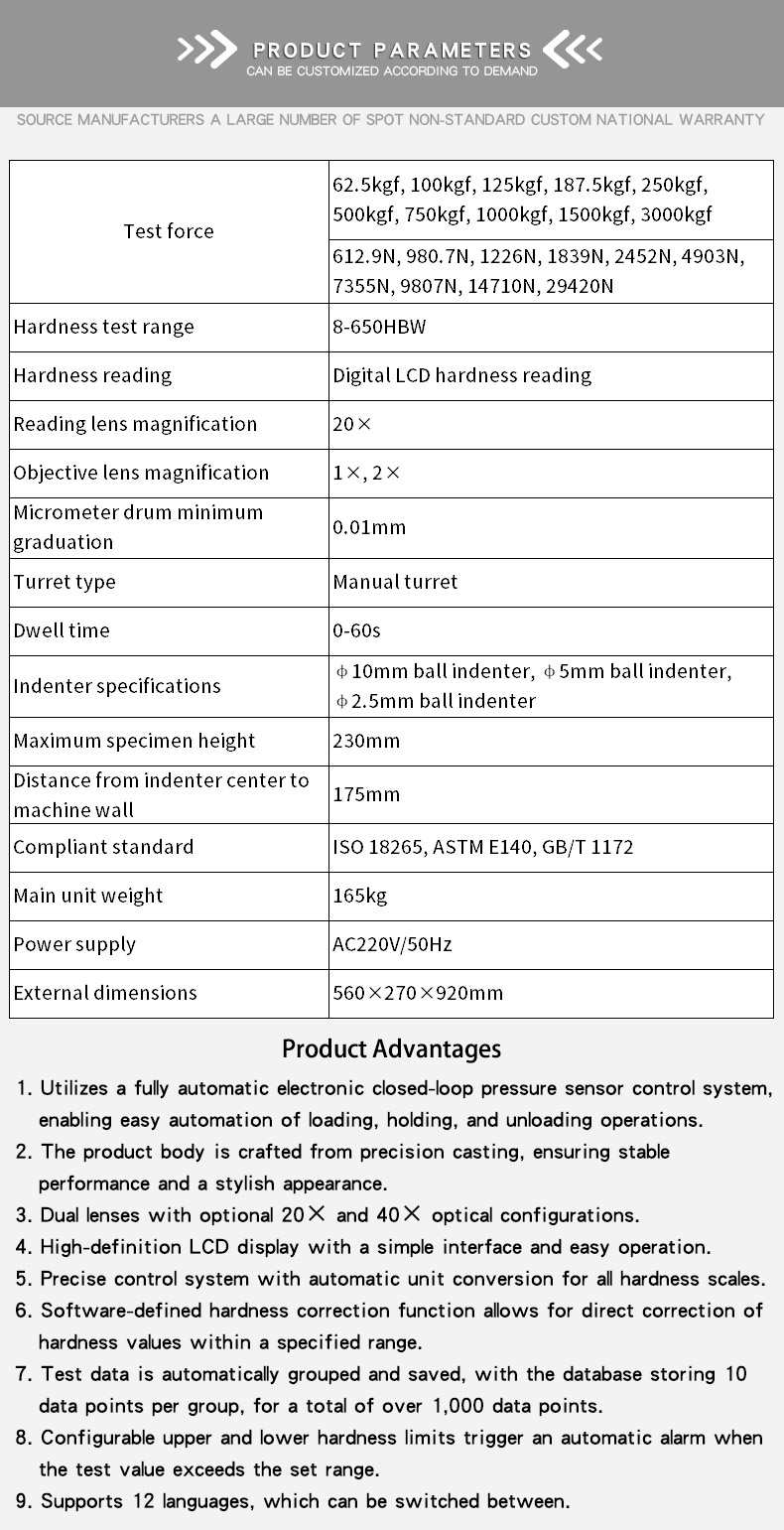

Test force	62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf
Test force	612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N
Hardness test range	8-650HBW
Hardness reading	Digital LCD hardness reading
Reading lens magnification	20×
Objective lens magnification	1×, 2×
Micrometer drum minimum graduation	0.01mm
Turret type	Manual turret
Dwell time	0-60s

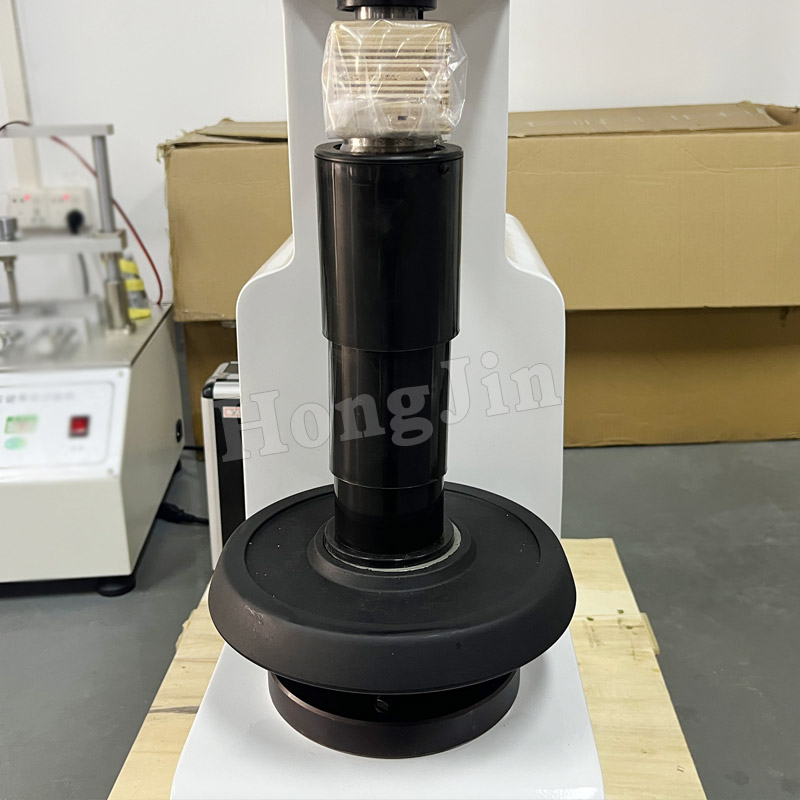

Indenter specifications	φ10mm ball indenter, φ5mm ball indenter, φ2.5mm ball indenter
Maximum specimen height	230mm
Distance from indenter center to machine wall	175mm
Compliant standard	ISO 18265, ASTM E140, GB/T 1172
Main unit weight	165kg
Power supply	AC220V/50Hz
External dimensions	560×270×920mm
