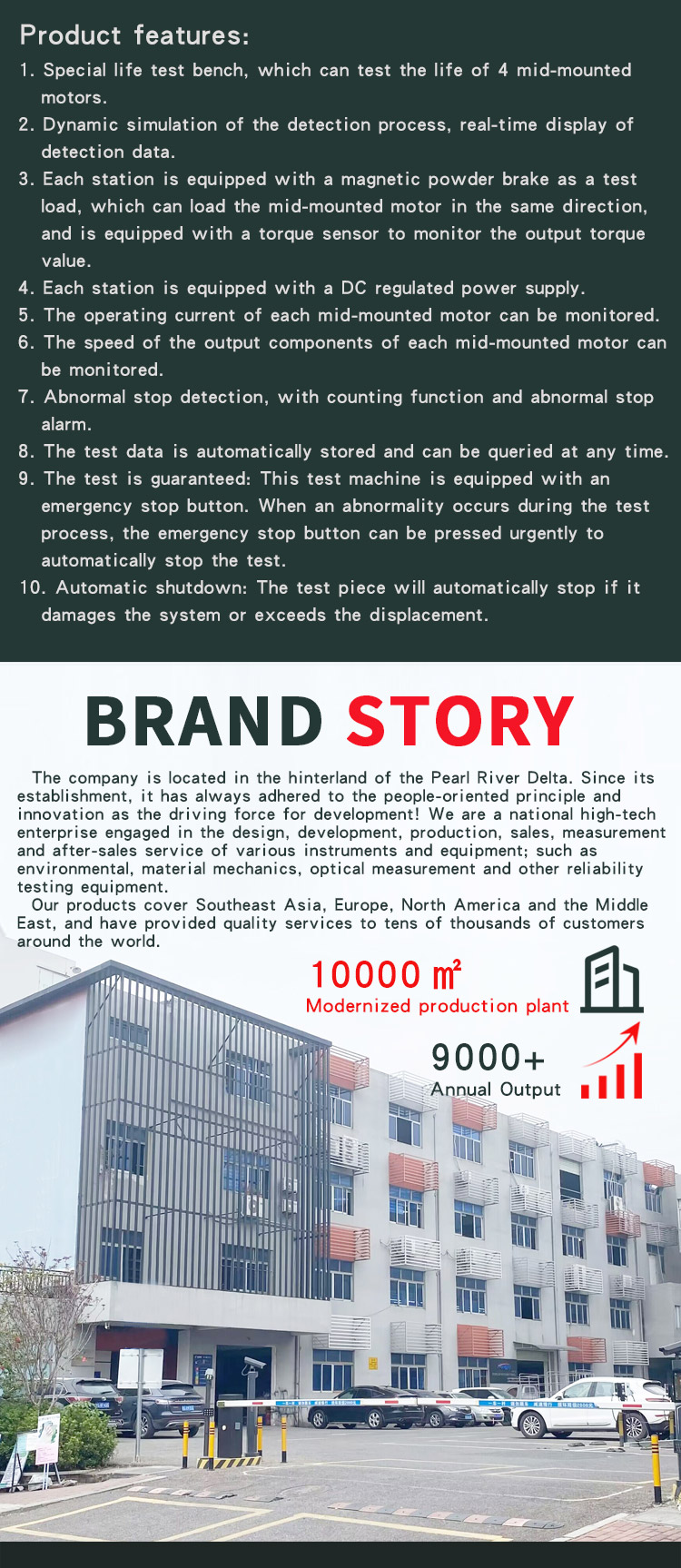

Product features:

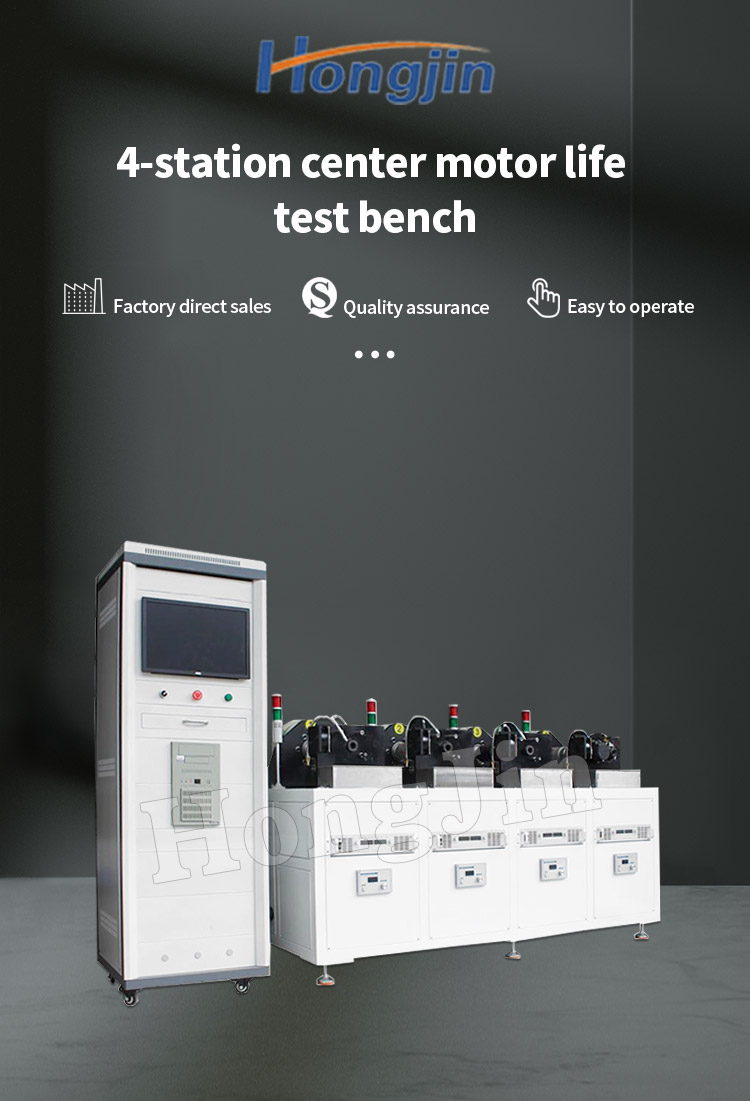

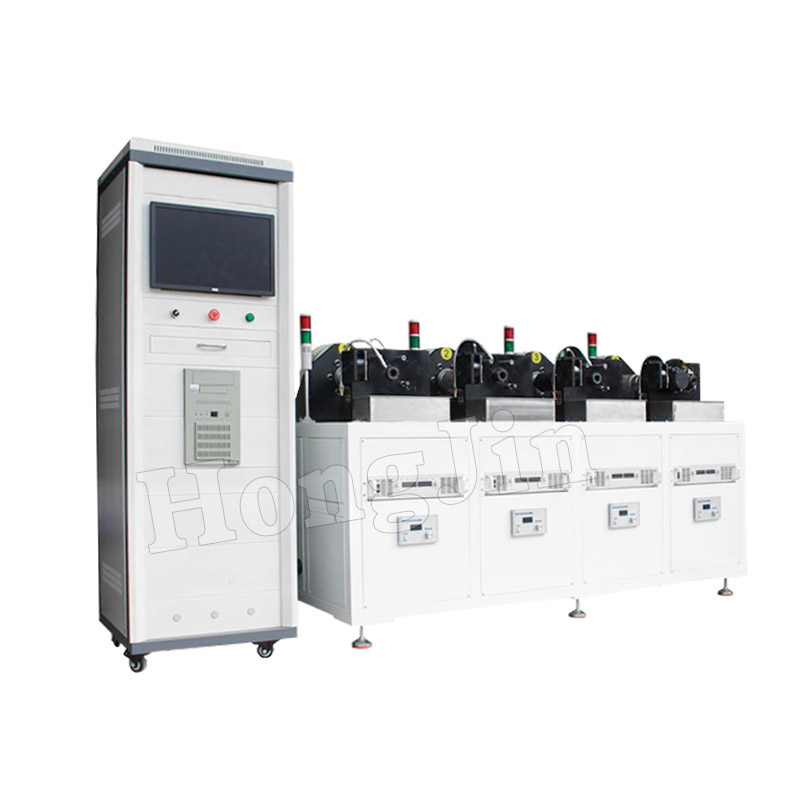

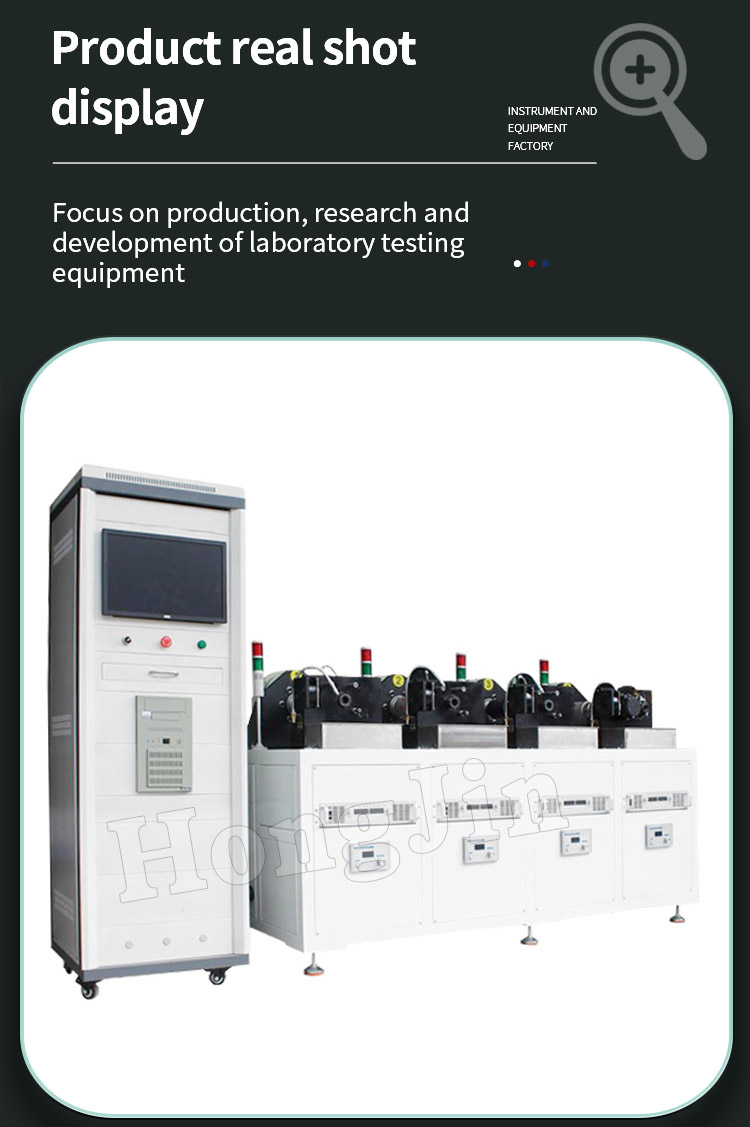

1. Special life test bench, which can test the life of 4 mid-mounted motors.
2. Dynamic simulation of the detection process, real-time display of detection data.
3. Each station is equipped with a magnetic powder brake as a test load, which can load the mid-mounted motor in the same direction, and is equipped with a torque sensor to monitor the output torque value.
4. Each station is equipped with a DC regulated power supply.
5. The operating current of each mid-mounted motor can be monitored.
6. The speed of the output components of each mid-mounted motor can be monitored.
7. Abnormal stop detection, with counting function and abnormal stop alarm.
8. The test data is automatically stored and can be queried at any time.
9. The test is guaranteed: This test machine is equipped with an emergency stop button. When an abnormality occurs during the test process, the emergency stop button can be pressed urgently to automatically stop the test.
10. Automatic shutdown: The test piece will automatically stop if it damages the system or exceeds the displacement.

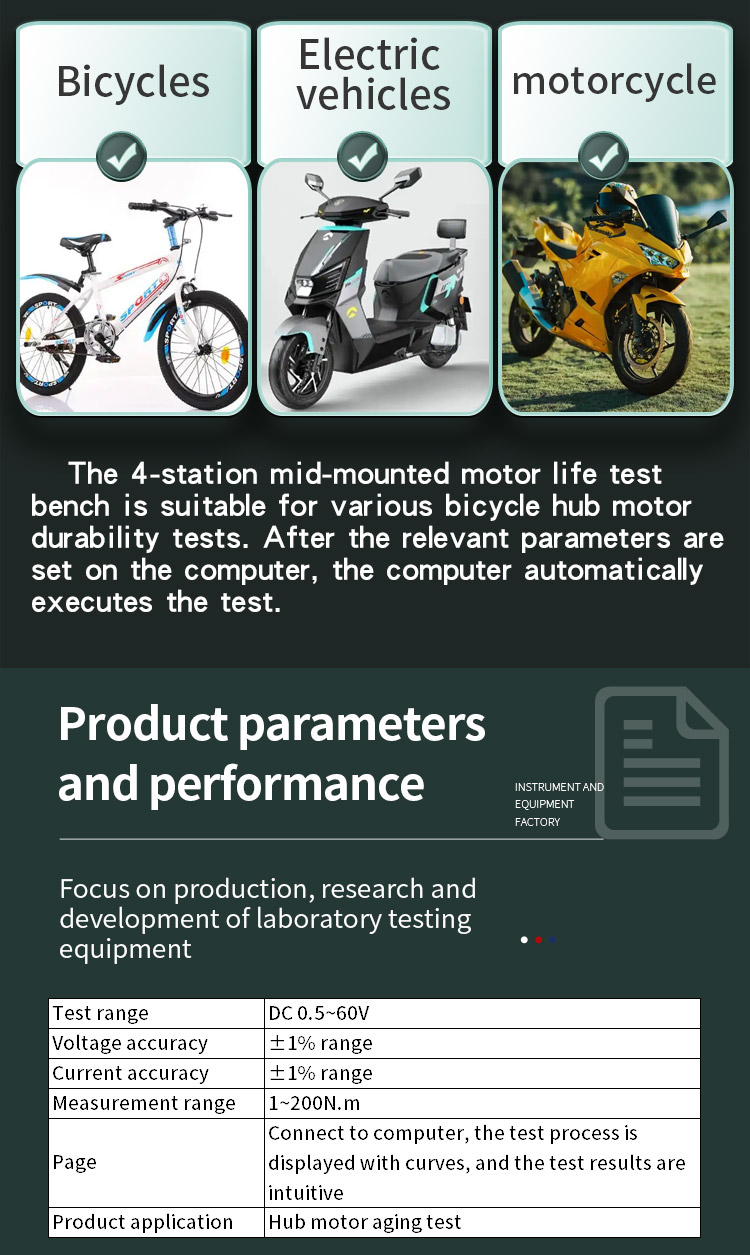

| Test range | DC 0.5~60V |
| Voltage accuracy | ±1% range |
| Current accuracy | ±1% range |
| Measurement range | 1~200N.m |
| Page | Connect to computer, the test process is displayed with curves, and the test results are intuitive |
| Product application | Hub motor aging test |
Product features:
1. Special life test bench, which can test the life of 4 mid-mounted motors.
2. Dynamic simulation of the detection process, real-time display of detection data.
3. Each station is equipped with a magnetic powder brake as a test load, which can load the mid-mounted motor in the same direction, and is equipped with a torque sensor to monitor the output torque value.
4. Each station is equipped with a DC regulated power supply.
5. The operating current of each mid-mounted motor can be monitored.
6. The speed of the output components of each mid-mounted motor can be monitored.
7. Abnormal stop detection, with counting function and abnormal stop alarm.
8. The test data is automatically stored and can be queried at any time.
9. The test is guaranteed: This test machine is equipped with an emergency stop button. When an abnormality occurs during the test process, the emergency stop button can be pressed urgently to automatically stop the test.
10. Automatic shutdown: The test piece will automatically stop if it damages the system or exceeds the displacement.
| Test range | DC 0.5~60V |
| Voltage accuracy | ±1% range |
| Current accuracy | ±1% range |
| Measurement range | 1~200N.m |
| Page | Connect to computer, the test process is displayed with curves, and the test results are intuitive |
| Product application | Hub motor aging test |
