product description

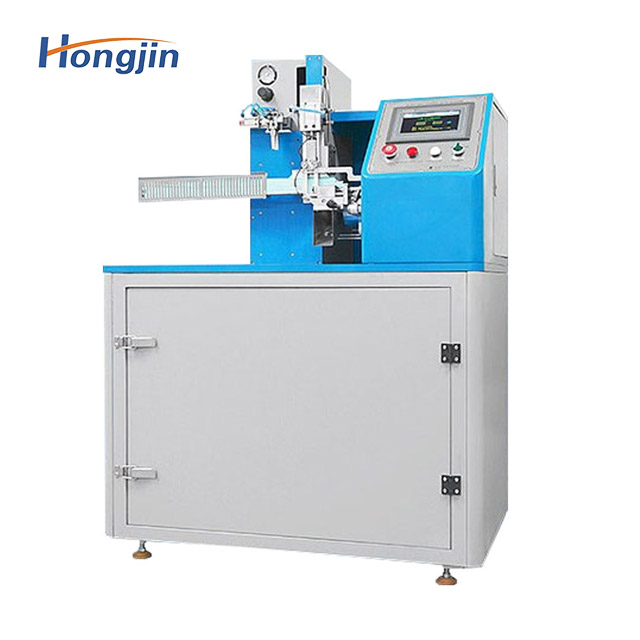

Knife sharpness tester is a high-end special testing equipment for testing the sharpness of knives. It can carry out two standard tests: the standard "ISO 8442-5:2004 Knife Sharpness and Edge Retention Test", the Chinese standard "QBT 2141.2-1995 Test method for sharpness of daily-use knives". The machine is composed of an intelligent controller, a high-power drive mechanism, a precision distance measuring mechanism, a large-screen LCD display, a printer, etc., and realizes simulated cutting and impact cutting of three-axis motion. The screen is displayed in full Chinese, and the keyboard is used to control the cursor for options, operations and settings. The operation is simple and convenient, and it has the functions of sample constant pressure, automatic positioning, automatic tool reset and cutting, etc. This type of product is the testing and testing equipment for hardware tool enterprises, inspection institutions, scientific research institutions and colleges and universities.
Features
The blade is fixed vertically facing upwards, and the specific test paper is placed on top of the blade. The fixture for fixing the sample cuts the test paper back and forth under the drive of the servo motor, and the test depth is used to judge the sharpness of the knife. The test objects are knives, fruit knives, table knives, etc.
Product parameter table
Cutting stroke | 20-60MM (adjustable) | Maximum cutting edge width | 110MM |
speed | 50mm per second (adjustable) | Strip stacking height | No more than 50MM |
Cutting position | 3MM away from the edge of the paper clip main 0.2MM | ||
The force of the clamp on the strip | 130 士2.5N | ||
Class "A" blade test weeks: 60 | Class "B" blade test weeks: 200 | ||
Fixture clamping blade reciprocating movement (ball screw and servo motor driven movement) | |||
The load weight applied to the blade is 50N, which is made up of sliders, jigs, paper cards and weights and all other relevant accessories |
