Scope of application:

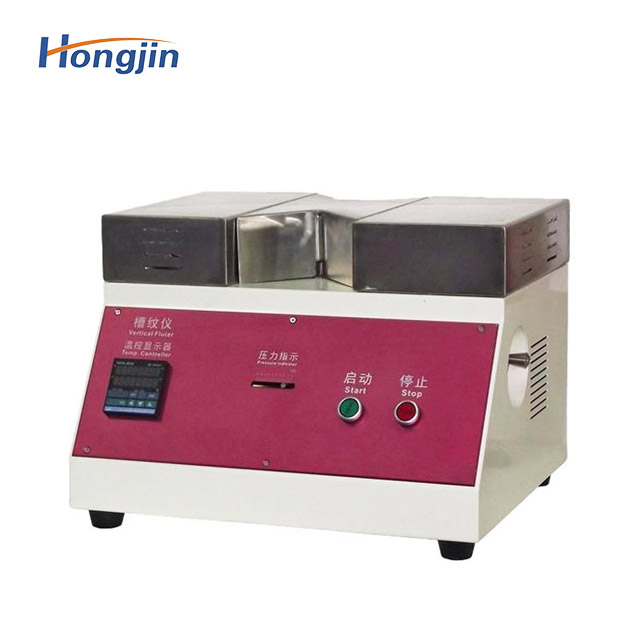

Corrugated groove instrument is specially used for pressing standard corrugated waveform (namely corrugated core base paper laboratory) when testing the flat compressive strength of corrugated core base paper. After corrugating, it can be used to measure the flat compressive strength of corrugated core base paper with computer compression tester. It conforms to QB1061, GB/T2679.6 and 1S07263 and other standards and regulations Want to test the device.
Product parameter table
| Working speed | 4.5r/min, the error should not exceed +0.5r/min |
| Temperature display resolution | 1 ℃ |
| Accuracy of temperature measurement | Level 0.5 ±1 word |
| Operating temperature adjustable range | Room temperature ~200℃ |
| Adjustable range of working pressure | (49-180)N, the error should not exceed 10% soil. |
| Standard operating temperature | 175 ℃; The actual error should not exceed 8℃ at 177℃ |
| Temperature safety | After the working time exceeds 2 hours, the shell temperature does not exceed 50℃. |
| Heating mechanism | The thermal insulation resistance value of the electric heating plate should be greater than 5 M |
| Spring tension | 100N |
| Ambient temperature | The ambient temperature is 20+10 ° C. There is no vibration, flammable or corrosive gas |
| Standard tooth type | a-tooth |
| Outside diameter of grooved wheel | 228.5±0.5mm |
| Groove wheel thickness | 16± 1mm |
| Tooth number | 84 |
| Radius of the tooth apex | R1.5±0.1mm |
| Radius of tooth circle | R2.0±0.1mm |
| Full tooth height | 475±0.05mm |
| Power supply | AC220V, 50Hz |
| Overall size/weight | 520×450×380mm/55kg |
