product introduction

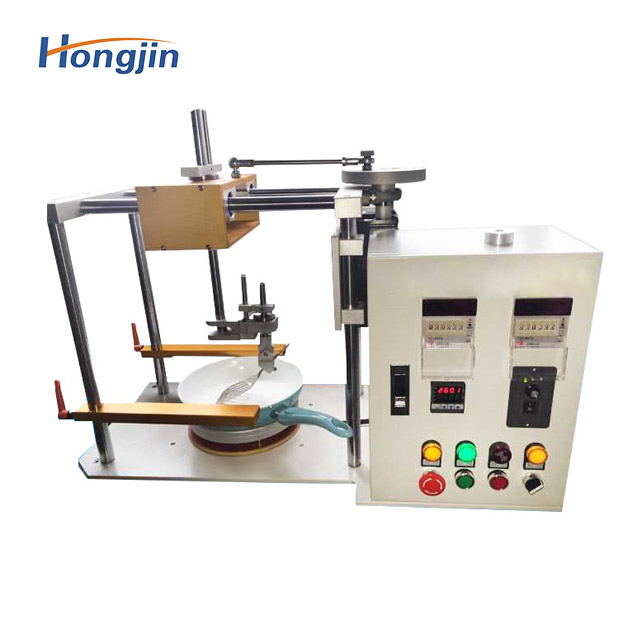

Non-stick pan scratching testing machine is a kind of equipment testing machine for testing coating. It installs a spatula on the instrument equipment to simulate the real scratch test of the spatula on the non-stick pan, to test the quality of the coating of the non-stick pan. Assist production department to determine the formulation of non - stick coating.
product description:
1. Designed according to the national standard and relevant industry testing standards, mainly used in the laboratory test products of RENZHENG institutions and cooking utensil companies.
2. Use 220V voltage, 50HZ, use adjustable speed electric motor.
3. Used for wear resistance test of non-stick pan coating.
4. How to use Lock the pot with a clamp. The bottom surface of the pot should be in full contact with the surface of the electric stove (optional). test solution (according to each standard).
5. The workbench drives the pot and the scouring pad to rub back and forth at a certain distance (according to each standard) to achieve the purpose of testing the wear resistance of the non-stick pot coating.
6, The test cycle is 0-99999 times.
7. The whole machine has anti-rust treatment, stable operation and reliable test data.
8. The anti-slip design of the scouring pad does not need to be fixed.
9. The test stroke and speed can be adjusted according to the standard or test product size requirements, and the standard test stroke is selected for conventional products.
10. Automatic alarm stops when the test is over.
11. The memory function of the power off in the middle of the experiment, and the cumulative record when the power is resumed.
12. Segmented test, preset scouring pad replacement frequency, automatic stop reminder to replace consumables, preset test times, replacement of consumables in the middle will not be affected, and the cumulative counting will be completed until the entire test process is completed.
13. Accurate speed control, stepless speed regulation, real-time speed is intuitive and visible.
Product parameter table
| Product name | Stainless steel scratch tester |
| Test cycle | 0-99999999 times |
| Reciprocating direct rubbing | 100±5mm adjustable |
| speed | ≤2°C |
| Additional weight | 15N or custom |
| configuration | Main engine, check weight |
| weight | 50kg |
| Product power | 450W |
| Product power supply | 220v |
