Product Description：

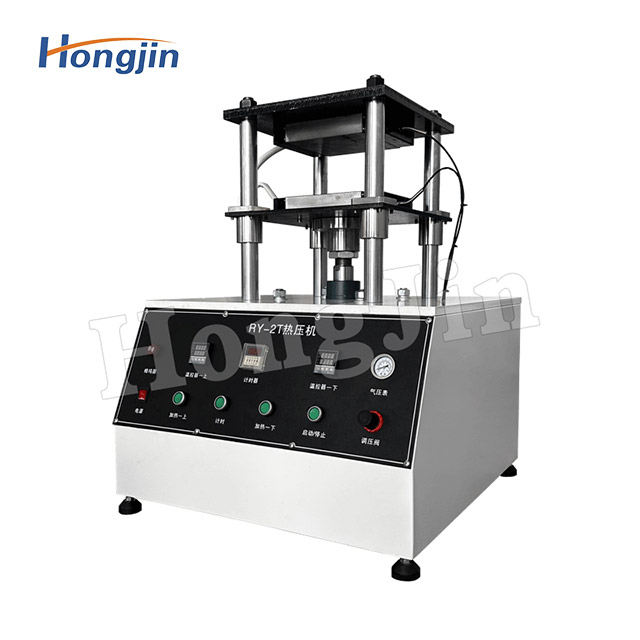

Hong Jin Desktop High-Precision Manual Heat Press Four-Column Heating Press Hot press, mainly used for wood-based panels, decorative panels, aluminum honeycomb, glass, stone heat transfer, yoga mat, steel and wood doors, mattress packaging, polyurethane foam, thermal insulation cotton, wood parquet, can be customized according to the actual needs of customers.
Product Paramenters：
| Pressure capacity | 2T/20KN |
| manometer | Manual pressure adjustable, pressure gauge adjustment accuracy 5% [pressure = pressure/pattern area] |
| Platen Size (mm metric) | 200*200/250*250/300*300/350*350 [mm] |
| Hot press plate material | High temperature resistant imported steel plate, surface carbonization quenching, special treatment of fast heat conduction, pressure parallel type, wear-resistant |
| Platen hardness | 50～60HRC |
| Flatness of the platen | ≤0.03 mm |
| Platen parallelism | ≤0.16 mm |
| Temperature range | Room temperature -250℃ [can be customized maximum temperature of 500 degrees] [select a price list shall prevail] |
| Temperature uniformity | 1.5℃ [The larger the plate, the higher the temperature, the worse the temperature uniformity] |
| Temperature controller | Precision module, with Omron digital display numerical display. |
| Temperature control mode | PID precise control, self-tuning with high-precision sensor, temperature control accuracy: ±1.0℃. |
| timepiece | LED digital Settings display, time range 0.1S ~99min~9.9hr |
| heater | Heating mold built-in cylinder [According to the platen area configuration of different power packaging platen temperature uniformity, not the same power] |
| Warming time | It takes about 15min from room temperature to 160℃ |
| Two hot plates | Each hot plate can be set to control the temperature |
| Heating method | Electric heating |
| Cooling mode | Natural air cooling |
| Barometric system | Air pressure control system, air driven high-precision cylinder without resistance of the piston to perform lifting smoothly; Manual pressure, pressure retention, pressure relief. |
| Cylinder stroke | Max. 120mm |
| Cylinder speed | 11mm/s |
| manometer | 0~100kg/sq.cm【 Suitable range for actual pressure 】 |
| Mold opening mode | Manual ascent and descent |
| Main engine volume | (WXDXH)500×560×650 mm |
| Supply voltage | 3∮, AC220V |
| Air source | 0.5 ~ 0.7 mpа |
| Machine weight | ≈160kg |
| Foot cup | four |
