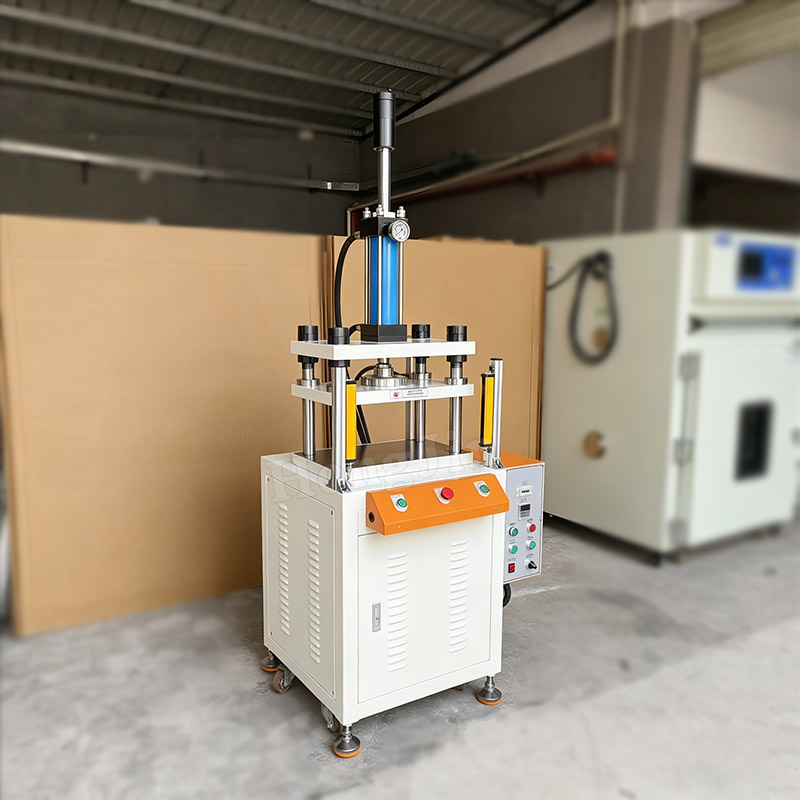

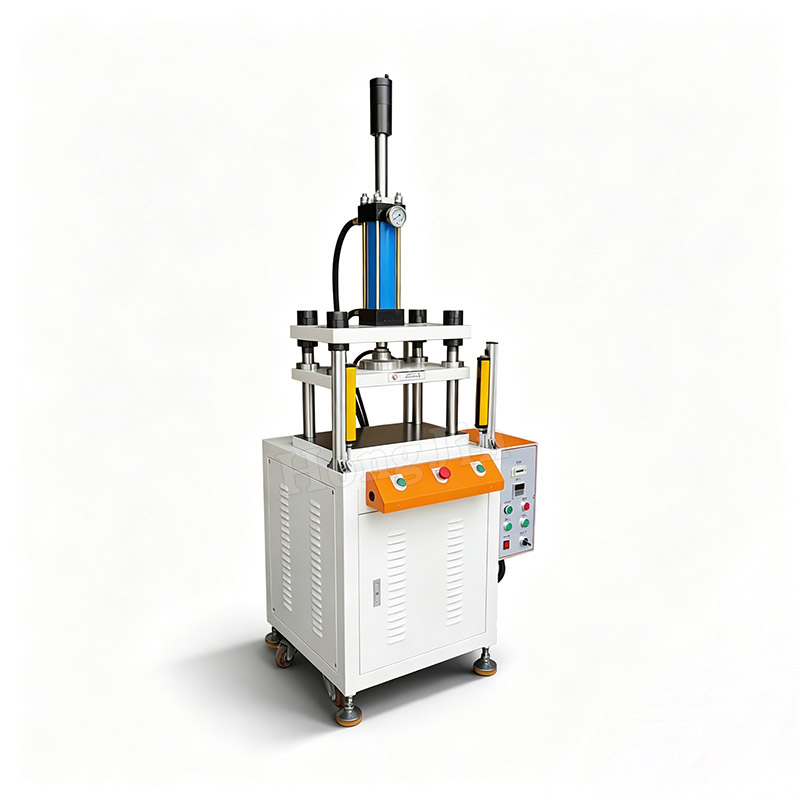

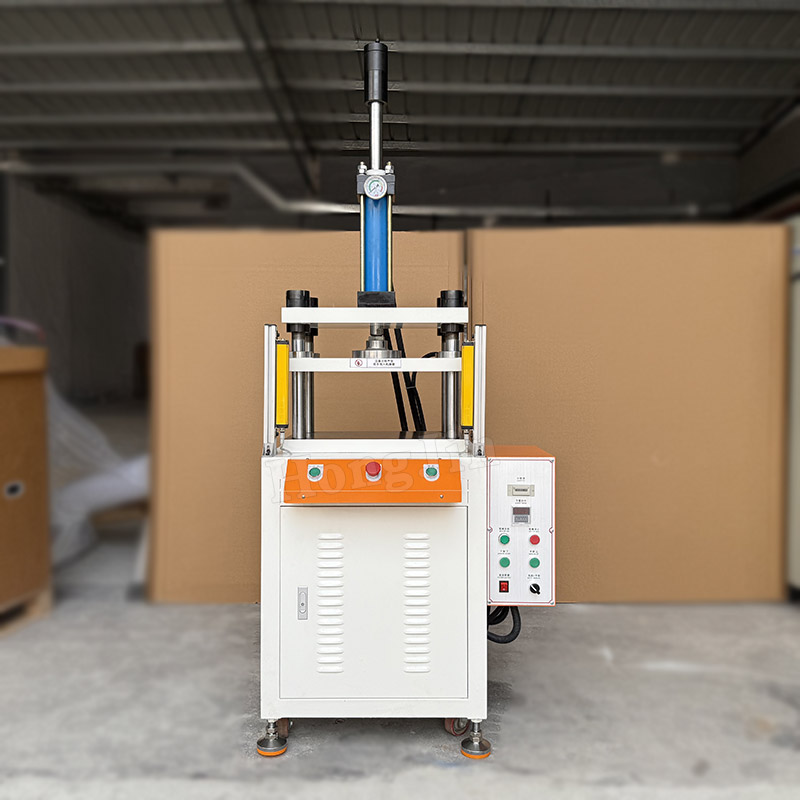

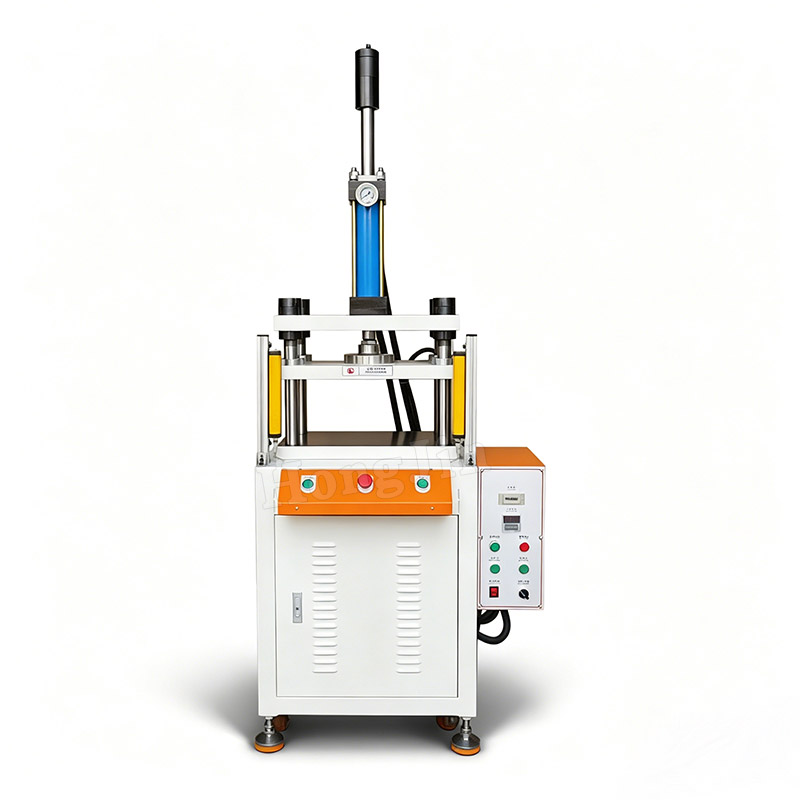

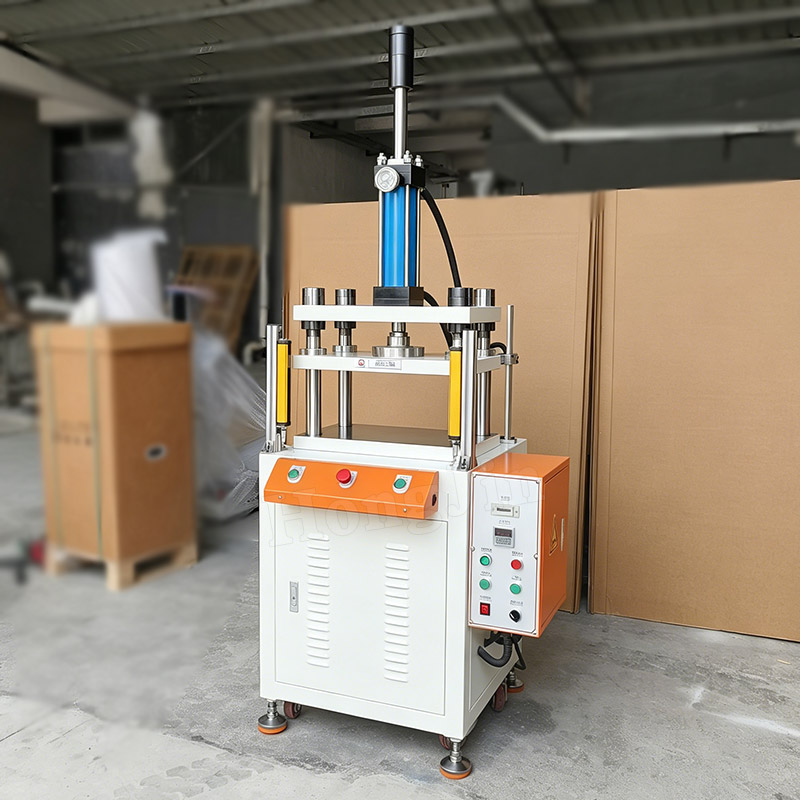

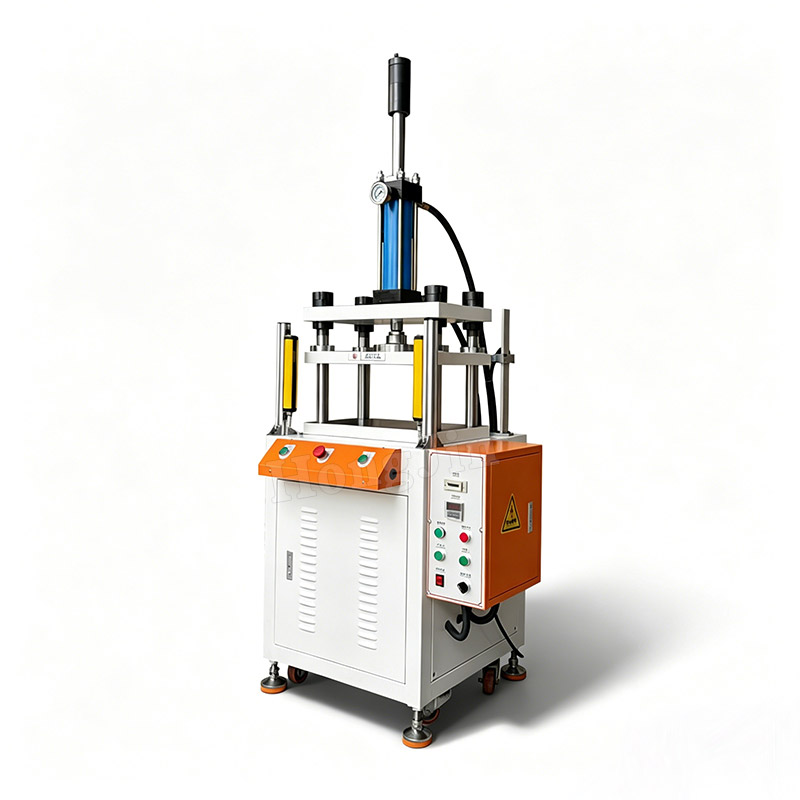

Four Columns Hydraulic Press Machine

Scope of Application:
The four-column three-plate hydraulic press/000 is widely used for cutting protective films for various mobile phones, digital cameras, and laptop LCD screens; cutting PET films, various self-adhesive labels, and double-sided tapes in half; punching silicone and plastic buttons for various mobile phones or remote controls; and slitting and cutting plastic products. It is suitable for using simple, non-guided cutting molds and is a necessary piece of equipment for the mobile phone, computer, and camera industries.

Availability:

Quantity:



Inquire Add to Basket

Product Description

The nominal force	5T
Stroke	150mm
Open height	250mm
Press stroke	400mm
Cylinder Descending Speed	90mm/s
Feed Speed	20mm/s
Cylinder Ascending Speed	90mm/s
Worktable Dimensions	400*300mm
Oil Tank Capacity	80L
Motor Power	2.2Kw

Features：

1.The system adopts a four-column, three-plate structure. The vertical accuracy of the movable plate is controlled by four precision guide sleeves, achieving a parallelism accuracy of less than 0.08mm between any point on the lower and upper working surfaces.

2.It uses an adjustable positioning cylinder, ensuring high bottom dead center positioning accuracy and a repeatability of less than 0.01mm. Cutting depth pressure, cutting stroke, pressing time, and closing height can all be adjusted by the customer.
