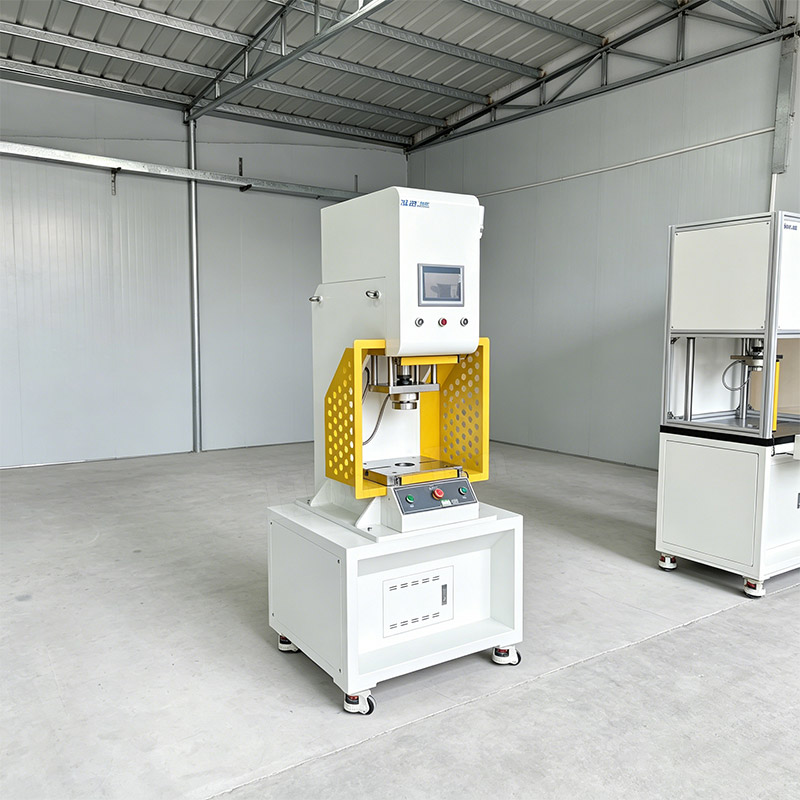

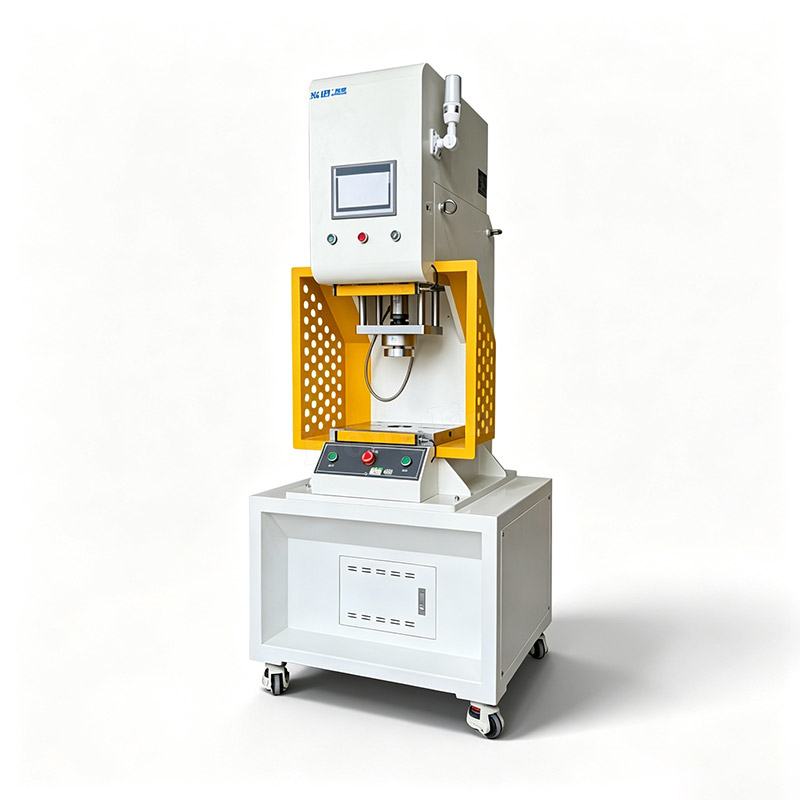

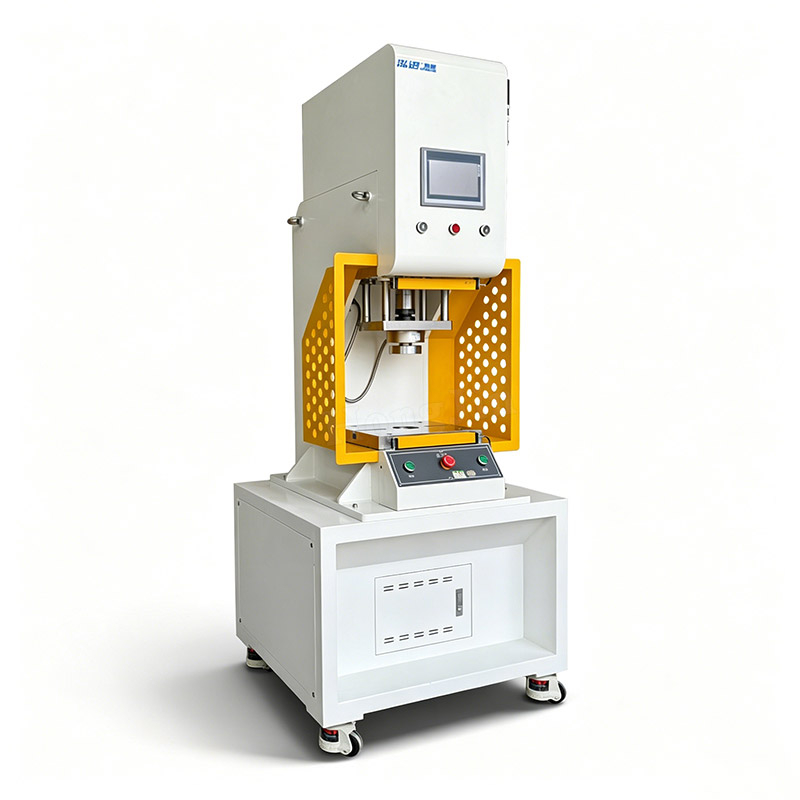

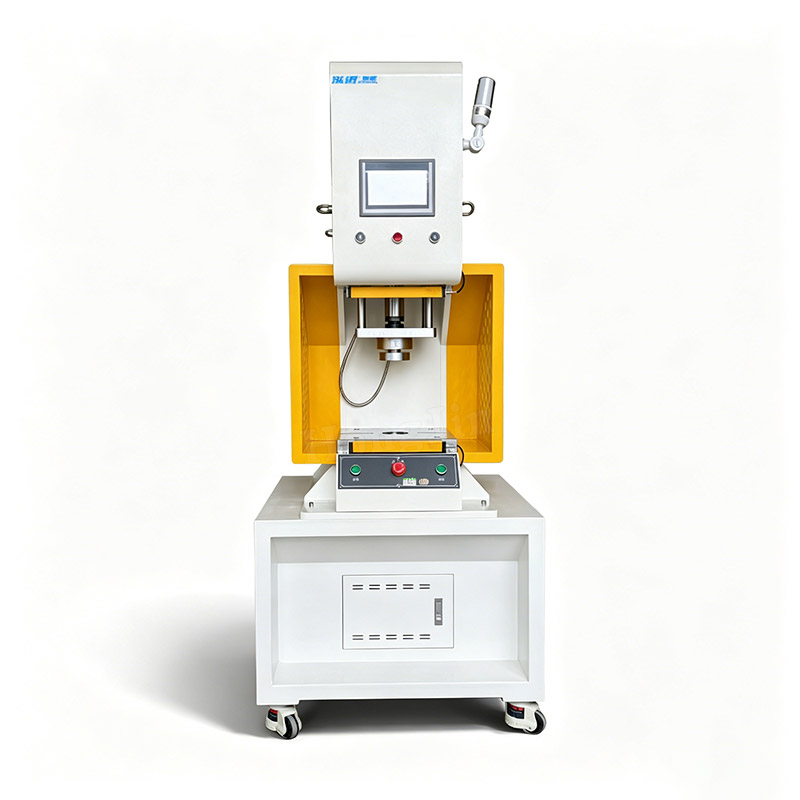

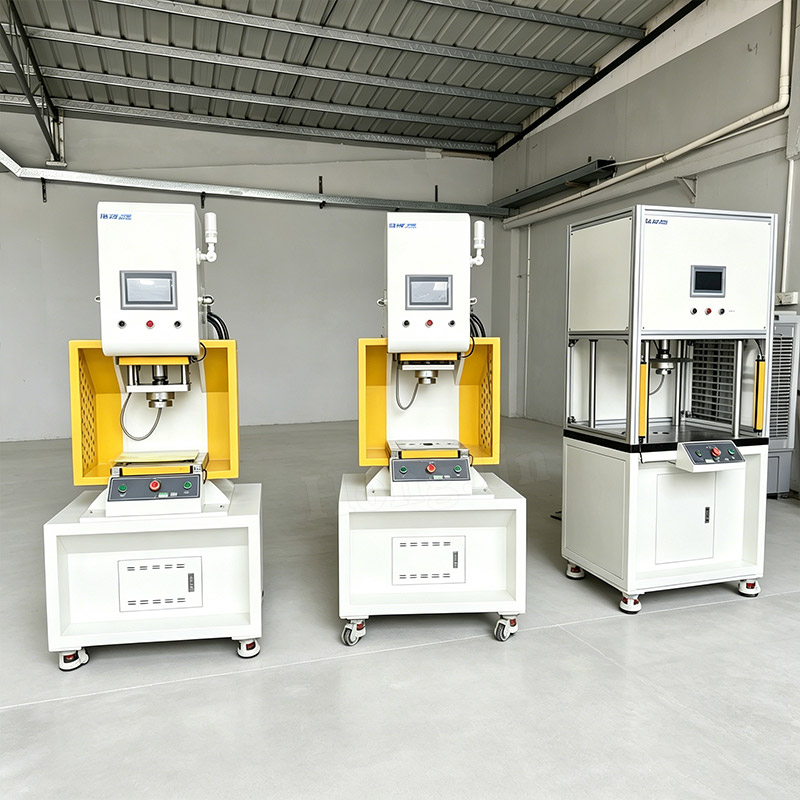

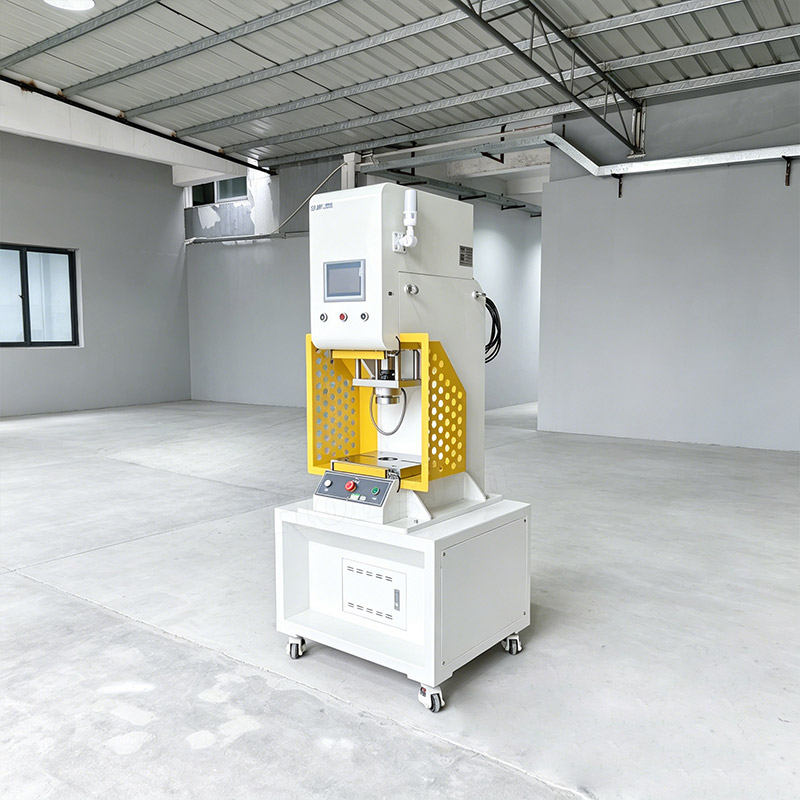

C-type Servo Press

Applications:
Servo presses generally refer to presses driven and controlled by servo motors. They are used for precision press-fitting, stamping or forming of small parts, assembly (including riveting), and inspection. This category encompasses servo presses for metal forging as well as specialized models for industries such as refractory materials; key features include high precision, ease of loading and unloading, programmability, and data traceability. Due to the numerical control capabilities inherent in servo motors, these machines are also frequently referred to as CNC presses.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Parameter Name	Parameter Value
Servo Pressing Stroke	Max. 200mm
Distance from Press Head to Worktable	300mm
Worktable Size	Left-Right 350*Front-Back 290mm
No-load Displacement Accuracy	±0.01mm
Pressure Accuracy	0.5% F.S
Maximum Pressure	Max. 1000Kgf (1T)
Allowable Pressure Range	10－1000Kgf
Display Screen Size	7-inch Chinese Color Touch Screen
No-load Speed	10~50mm/s
Detection Speed	0.1-30mm/s
Pressing Speed	0.1~5mm/s
Holding Time	Adjustable within 0-1800 seconds
Pressing Program Storage	15 groups
Power Supply	220V/50Hz

Features:

Servo presses utilize a servo motor to drive an eccentric gear mechanism, thereby controlling the movement of the slide. Through sophisticated electronic control systems, parameters such as slide stroke, speed, and force can be programmed arbitrarily; notably, the press can achieve its rated tonnage even during low-speed operation.
