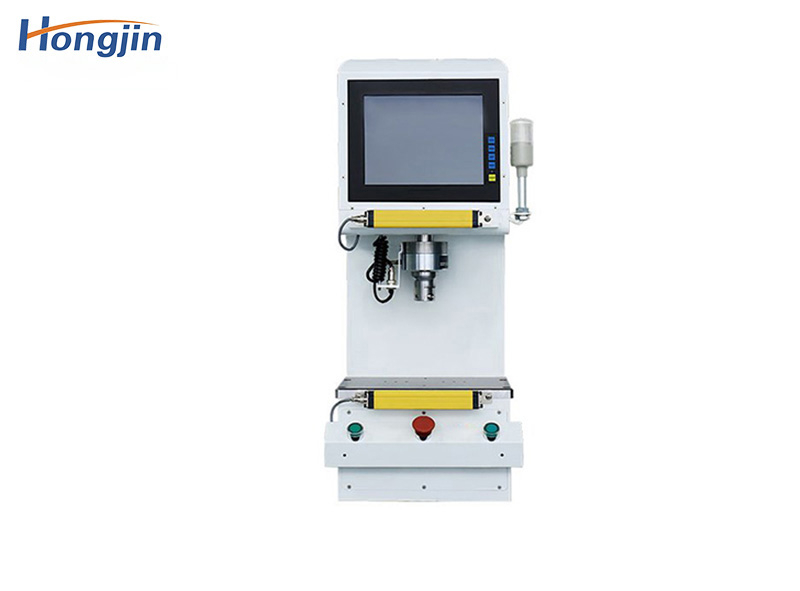

Desktop servo electronic press

The working principle is that the ball screw is driven by the servo motor to carry out the pressure assembly operation, which can realize the whole-process closed-loop control of the pressing force and the pressing depth in the pressure assembly operation, so as to realize the pressing of the online quality management.
Availability:
Quantity:

The working principle is that the ball screw is driven by the servo motor to carry out the pressure assembly operation, which can realize the whole-process closed-loop control of the pressing force and the pressing depth in the pressure assembly operation, so as to realize the pressing of the online quality management.


Features:

1. The characteristics of realizing full closed-loop control of pressure and displacement are unmatched by other types of presses;

2. Compared with traditional pneumatic and hydraulic presses, the energy saving effect is more than 80%, and it is more environmentally friendly and safe, and can meet the requirements of equipment use in dust-free workshops;

3. The whole process curve of pressing force and displacement can be displayed on the LCD touch screen; the whole process control can automatically determine whether the product is qualified or not at any stage of the operation, and remove defective products in real time, thereby realizing online quality management;

4. The pressing force, pressing depth, pressing speed, holding time, etc. can all be numerically input on the operation panel, with friendly interface and simple operation;

5. 100 sets of press-fitting programs can be customized, stored, and called, and three press-fitting modes are available to meet your different process needs;

6. Through the USB interface, the pressing data can be stored in the flash disk to ensure the traceability of the product processing data and facilitate the production quality control management;

7. Due to the pressure and displacement control functions of the machine itself, there is no need to add a hard limit to the tooling. When processing products of different specifications, you only need to call different pressing programs, so you can easily realize a multi-purpose machine and flexible assembly. Wire.

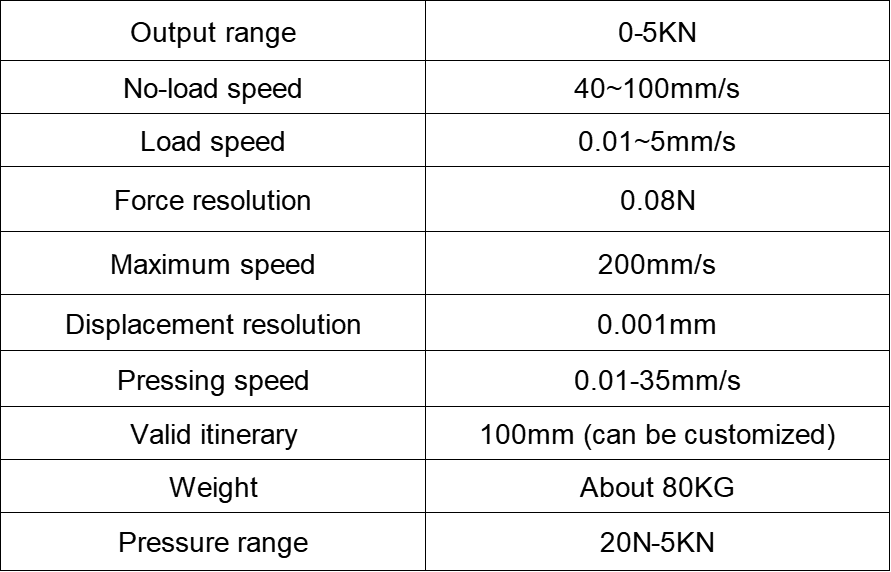

Technical parameter:

f414287e6c5ff2db125c0281cd229781

gugetongyongtu_01gugetongyongtu_02gugetongyongtu_03
