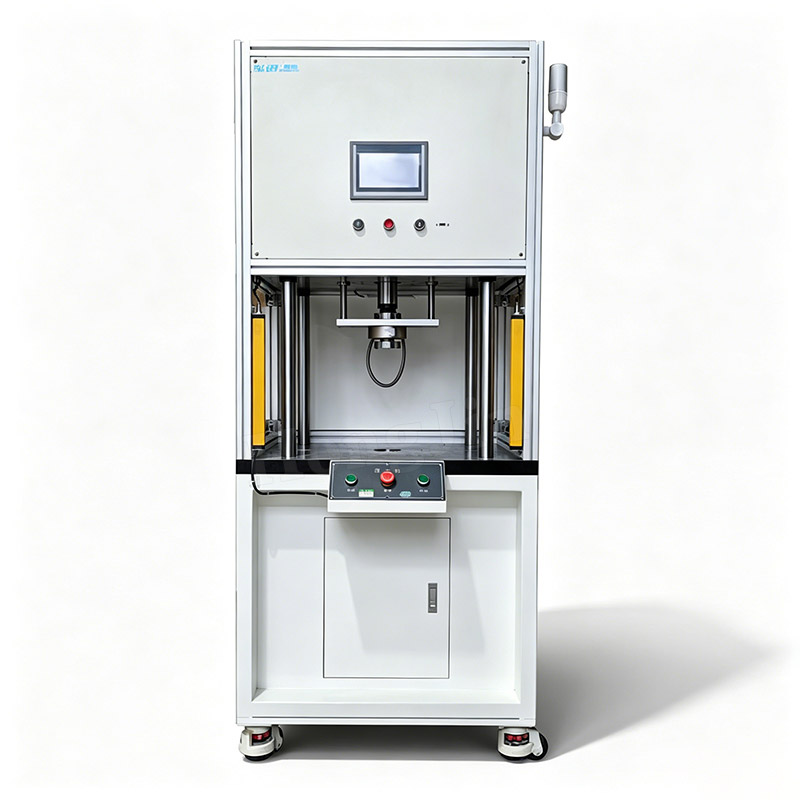

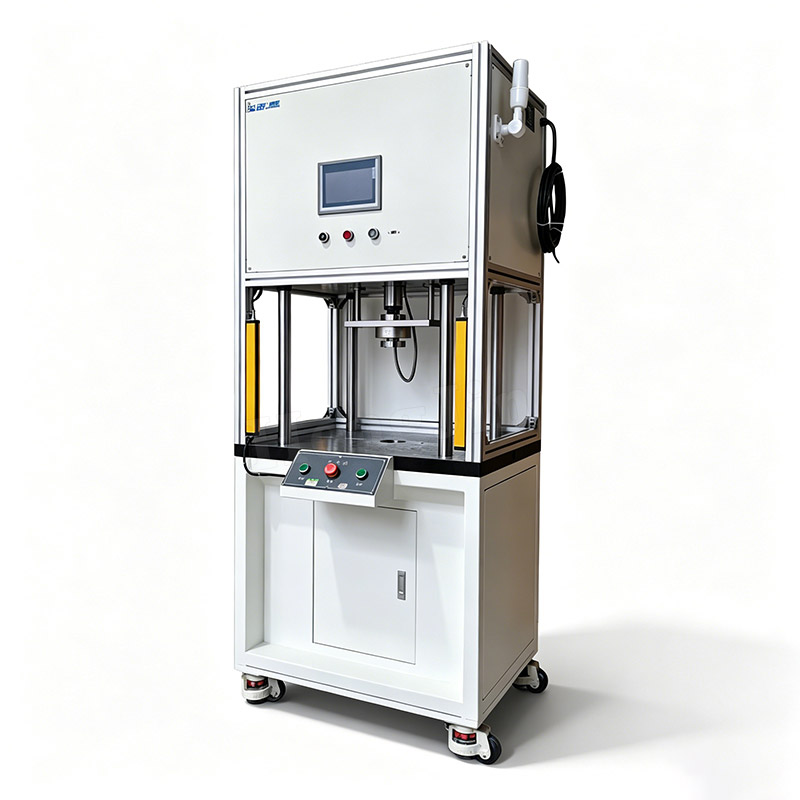

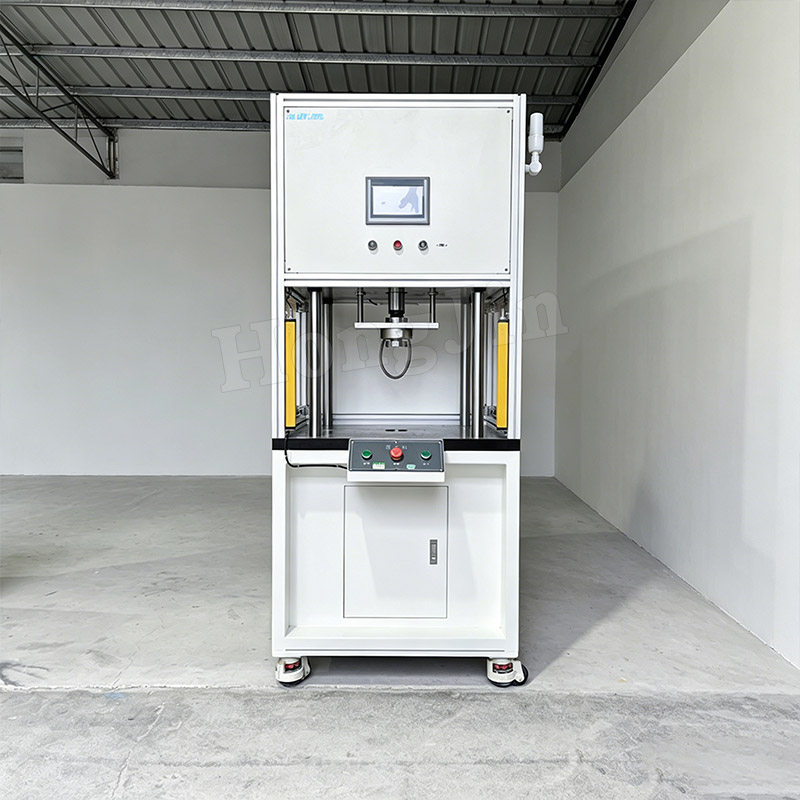

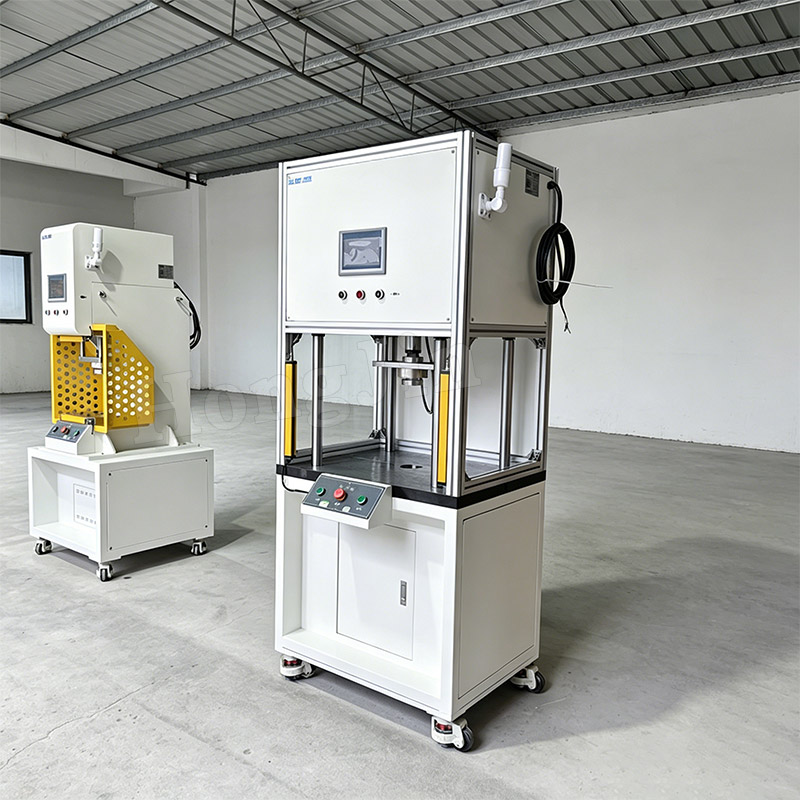

Four-column Servo Pressure Testing Machine

Product Introduction:

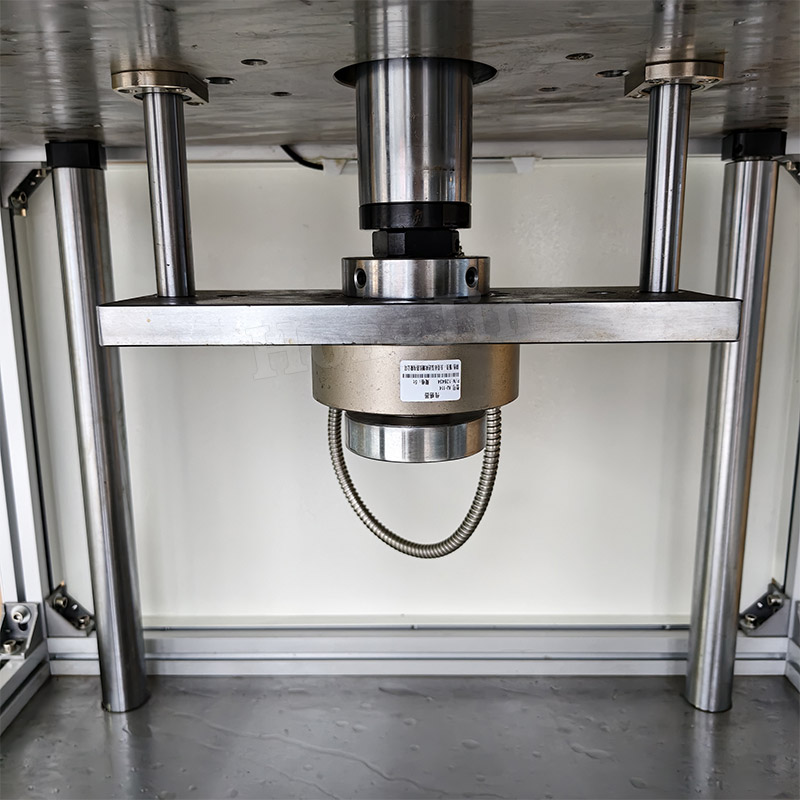

The four-column servo pressure testing machine consists of a main frame, sheet metal, precision servo electric cylinder, servo system, and control system. This specialized machine boasts high working efficiency, stable operation with low noise, high pressure accuracy, and easy control. The machine body is welded from steel plates and undergoes appropriate tempering and artificial failure treatment. The cover plate is made of sheet metal, resulting in a beautiful and elegant appearance. The equipment is PLC controlled, and its structure is shown in the attached diagram. The structure adopts an open C-type installation method, combined with the sophisticated design of the precision servo electric cylinder and servo system. The machine dimensions are designed according to customer requirements, combining the provided products and drawings. It features high working efficiency, a touchscreen display showing fault causes and various operating functions, stable performance, and reliable testing.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Parameter Name	Parameter Value
Servo Pressing Stroke	Max. 200mm
Distance from Press Head to Worktable	240mm
Worktable Size	Left-Right 550×Front-Back 500mm
No-load Displacement Repeatability Accuracy	±0.01mm
Pressure Repeatability Accuracy	0.5% F.S
Maximum Pressure	Max. 1000Kgf (1T)
Allowable Pressure Range	10－1000Kgf
Display Screen Size	7-inch Chinese Color Touch Screen
No-load Speed	10－50mm/s
Detection Speed	0.1-30mm/s
Pressing Speed	0.1－5mm/s
Holding Time	Adjustable within 0-999.9 seconds
Pressing Program Storage	8 groups
Single-stroke 6-speed Precision Pressing	Fast Forward → Detection → Pressing → Buffering → Holding → Return
Power Supply	220V/50Hz
