Features:
1. Using a high-speed microcontroller as the main control chip, the whole machine responds quickly and has comprehensive functions.
2. Using a special signal amplifier, a high-precision and high-stability voltage reference, and a high-precision digital-to-analog converter to ensure that the instrument has extremely high resolution and repeatability.
3. Using LCD screen as the display device, the interface and parameters are prompted with Chinese characters, and the displayed information is intuitive and comprehensive.
4. It has a unique automatic operation mode that can measure multiple points, effectively improving work efficiency.
5. The whole machine has a compact structure, optimized circuit design, and high anti-interference ability.
Standards compliant:
JB/T9370-1999 "Technical Requirements for Torsion Testing Machines"; GB2611-92 "General Technical Requirements for Testing Machines";
JJG269-81 "Calibration Regulations for Torsion Testing Machines";
Standards for material testing can be provided; material testing can be carried out according to the standards of "GB10128-88 Metal Room Temperature Torsion Test Method" and corresponding data processing can be performed;
Can meet the standards and requirements provided by users.

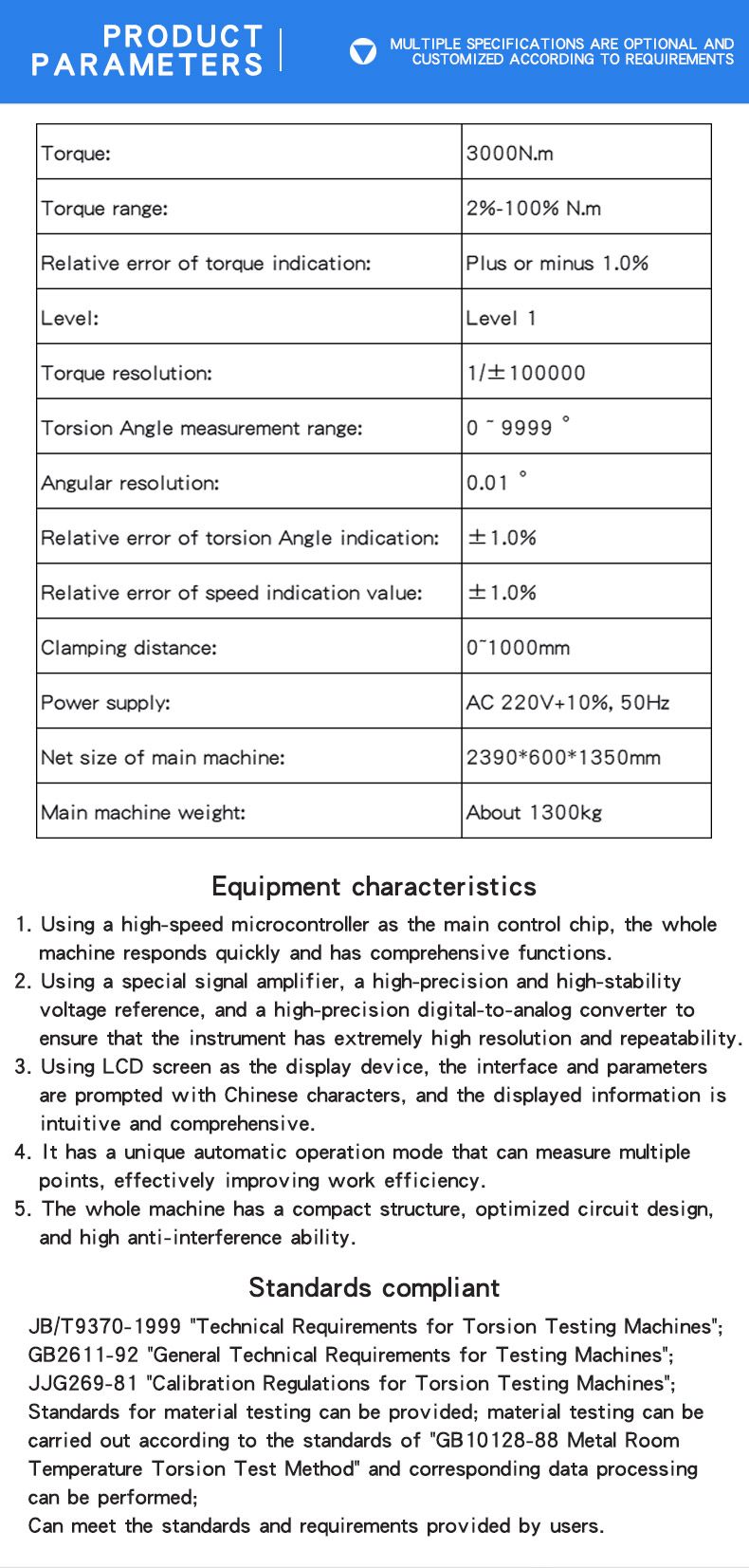

| Torque: | 3000N.m |
| Torque range: | 2%-100% N.m |
| Relative error of torque indication: | Plus or minus 1.0% |
| Level: | Level 1 |
| Torque resolution: | 1/±100000 |
| Torsion Angle measurement range: | 0 ~ 9999 ° |
| Angular resolution: | 0.01 ° |
| Relative error of torsion Angle indication: | ±1.0% |
| Relative error of speed indication value: | ±1.0% |
| Clamping distance: | 0~1000mm |
| Power supply: | AC 220V+10%, 50Hz |
| Net size of main machine: | 2390*600*1350mm |
| Main machine weight: | About 1300kg |
