| Quantity: | |
|---|---|
Item | Specification |
Test Station | Dual stations, can test two products simultaneously (customizable) |
Test Sample Size | Customizable on demand |
Test Speed | 10–400 cycles/min, adjustable setting |
Test Angle | 0–360°, number of rotations freely editable |
Test Counting | 8-digit counting from 0 to 99999999, value customizable |
Test Function | Forward and reverse rotation operation programs freely editable |
Angle Accuracy | ±1° |
Standard Weights | 100g, 200g, 300g, 500g, 1 piece per set for each |
Self-weight of Test Rod | 100g |
Test Modes | Two sets of programmable programs: custom number of forward rotations only, custom number of both forward and reverse rotations |
Working Platform | 0–50mm manual lifting adjustment |

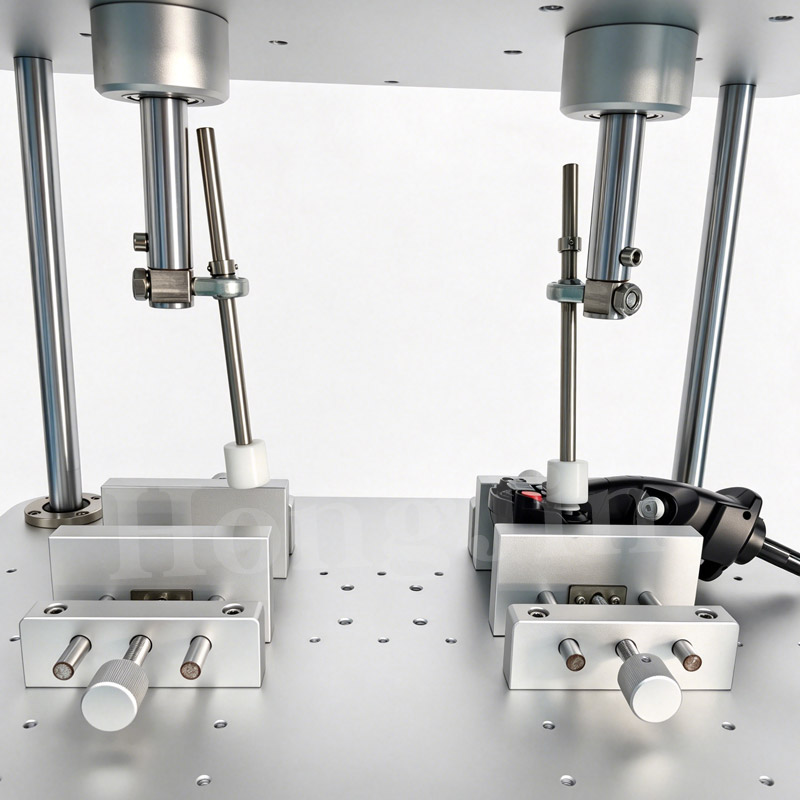

Fixture | Non-standard customization based on customer's product |
Transmission Mode | AC servo motor, rotary drive |
Control Mode | PLC programmable control |
Operation Mode | 7-inch color touch screen |
Overall Dimension (L × W × H) | Approx. 600×430×1170mm |
Body Material | A3 steel with electrostatic powder coating + aluminum alloy anodizing treatment |
Power Supply | 220V/50HZ |
Features:
This machine integrates an AC servo motor, PLC software, touchscreen control, and various imported components and corresponding transmission principles, making it a worthwhile testing machine to choose.
