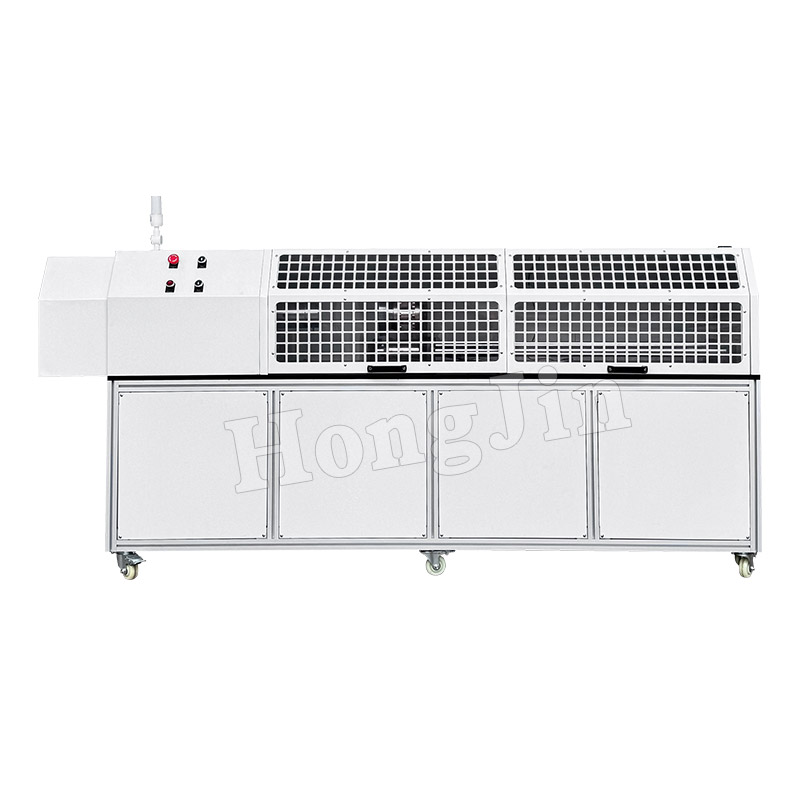

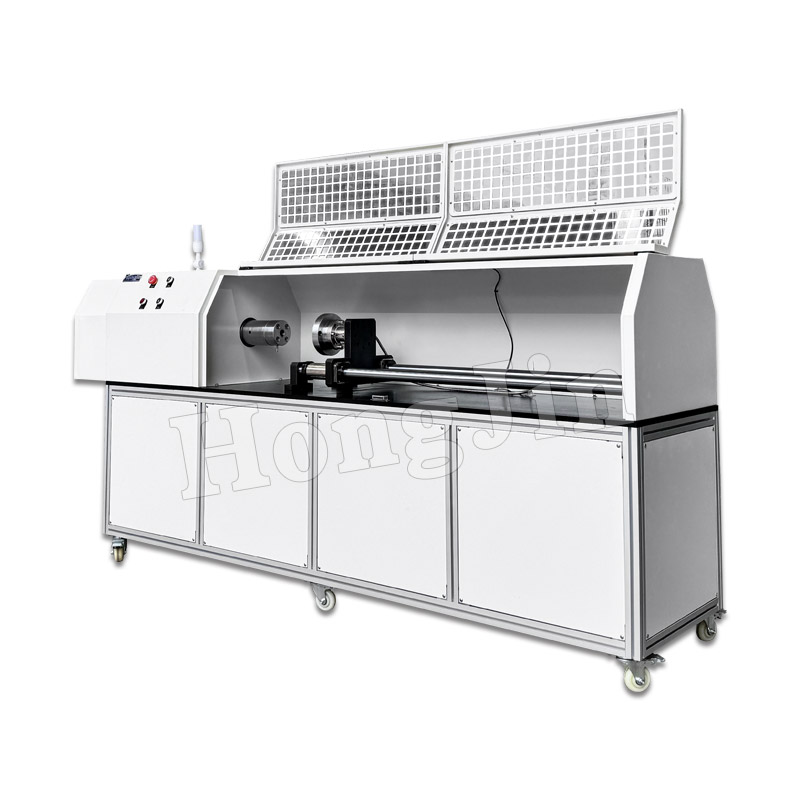

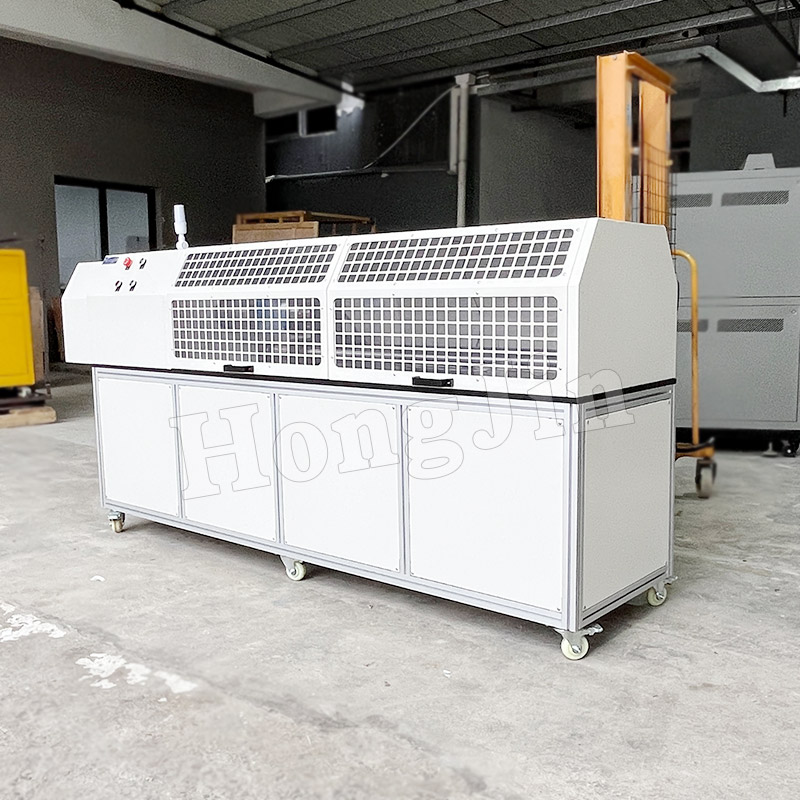

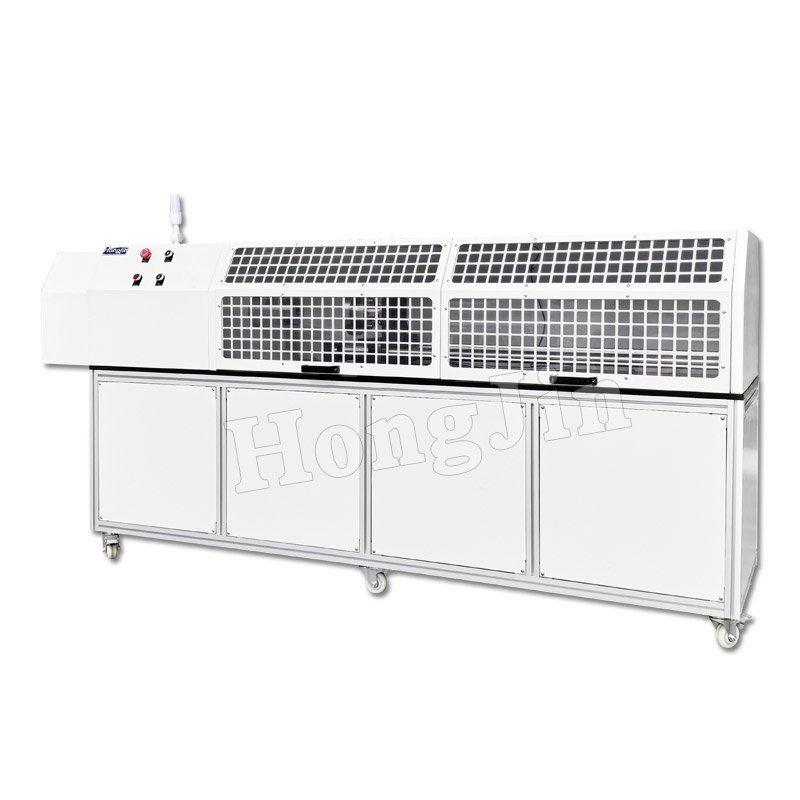

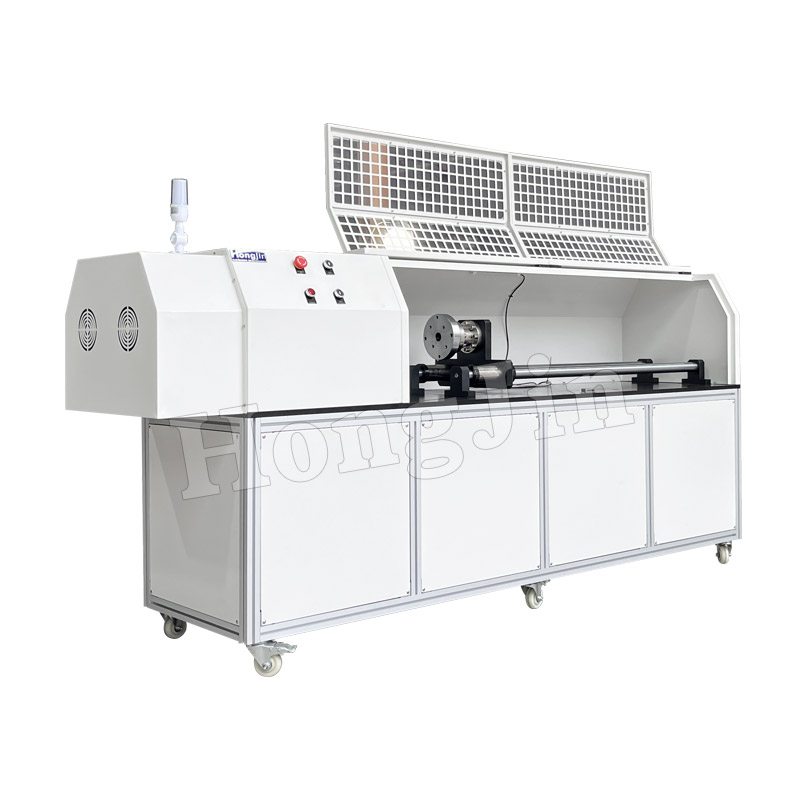

Product features:

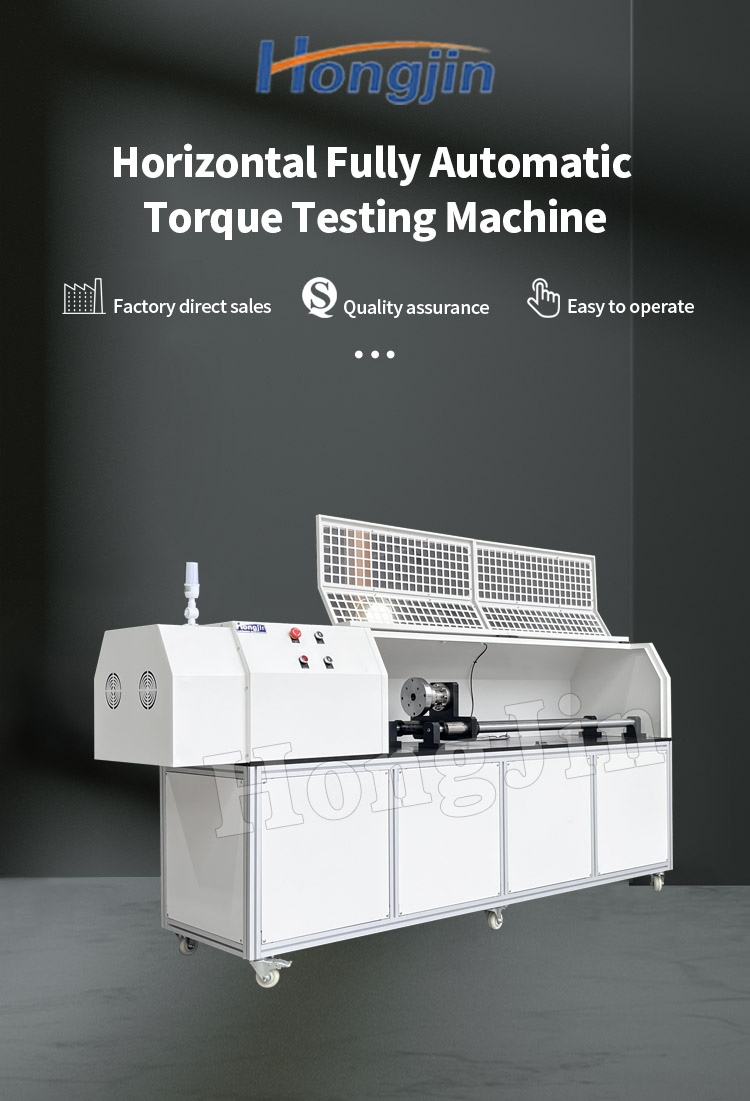

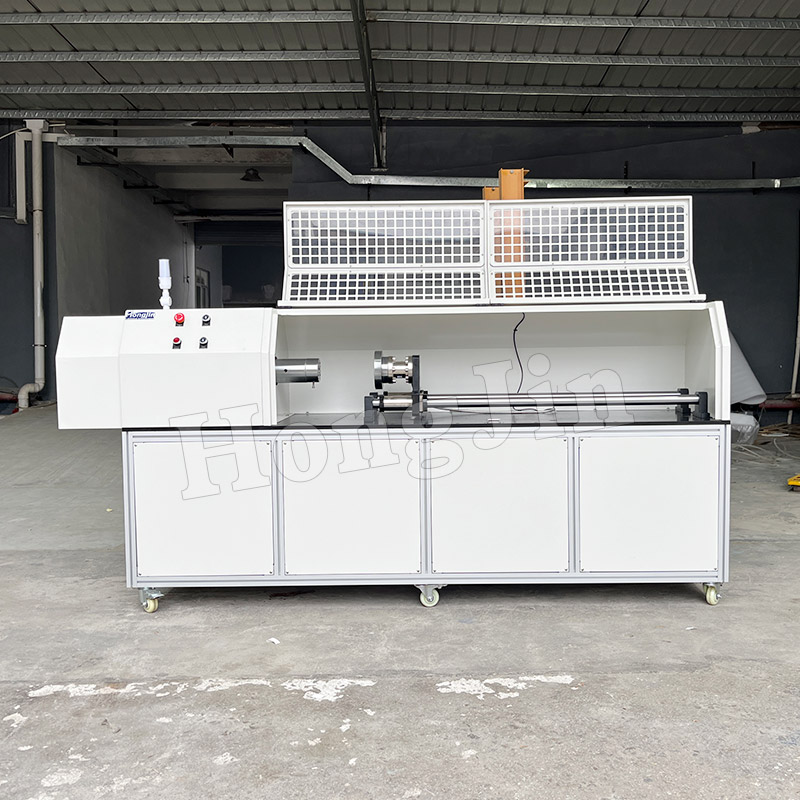

1. The machine is driven by a servo motor to provide high-precision torque testing.
2. The test conditions are all set by the computer screen and can be stored.
3. The torque value change at each angle can be directly tested (torque-angle curve change diagram).
4. The torque-angle curve diagram and the torque attenuation life curve diagram are displayed at the same time.
5. The graphics (torque-angle curve diagram and torque attenuation life curve diagram, inspection report) can be stored and printed.
6. The inspection report is automatically printed and can be converted and output or directly output through the network.
7. The upper and lower limits of the test can be entered, and the machine will automatically stop if the specifications are exceeded.
8. The torque value can be set: positive torque, reverse torque, positive torque + reverse torque.
9. Test travel direction: forward outward, forward outward + return. Reverse outward, reverse outward + return. Forward outward + reverse outward + forward return.
| Model | HJ-150 |
| max test torque | 150N.m (optional) |
| min display angle | 0.1 degree |
| test speed range | 720 degree/min |
| machine weight | 120kg |
| effective stroke | 200mm |
| min display torque | 1gf·cm, 10gf·cm |
| max test angle | Unlimited |
| drive motor | Servo motor |
| power supply | AC 220V 50HZ |
