Product Features:

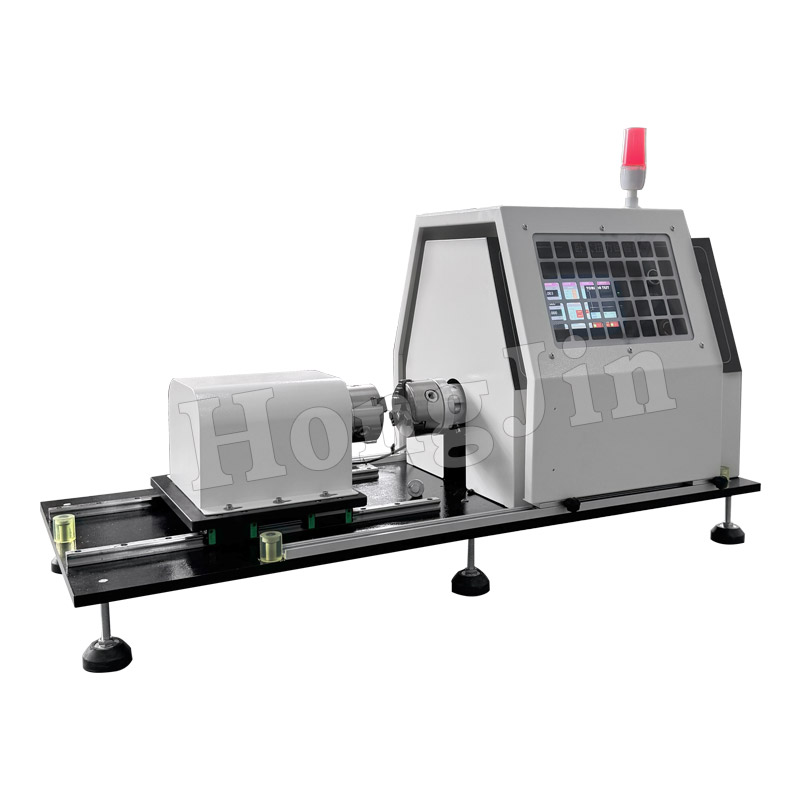

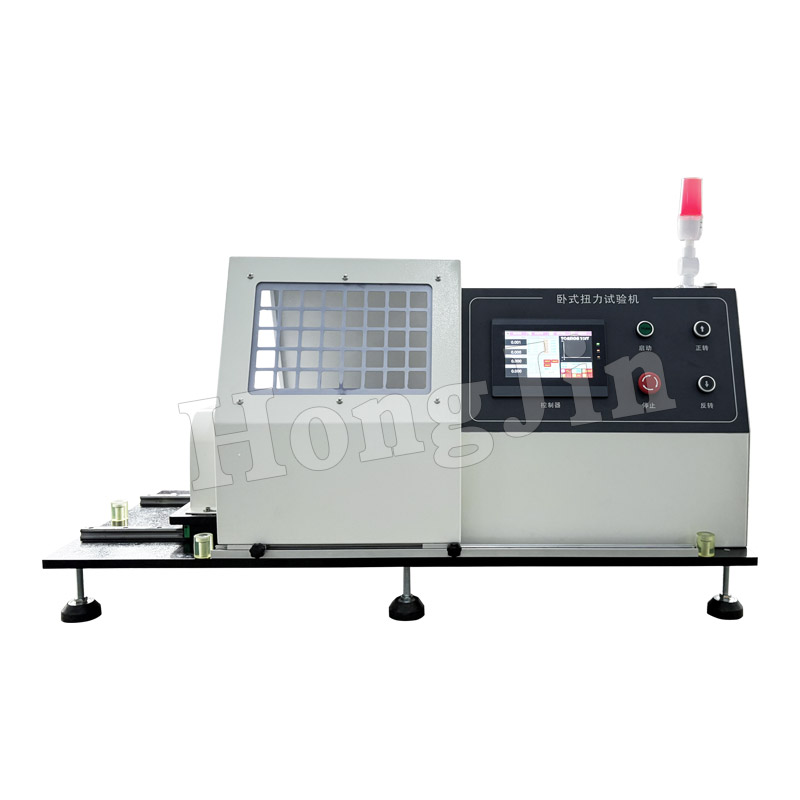

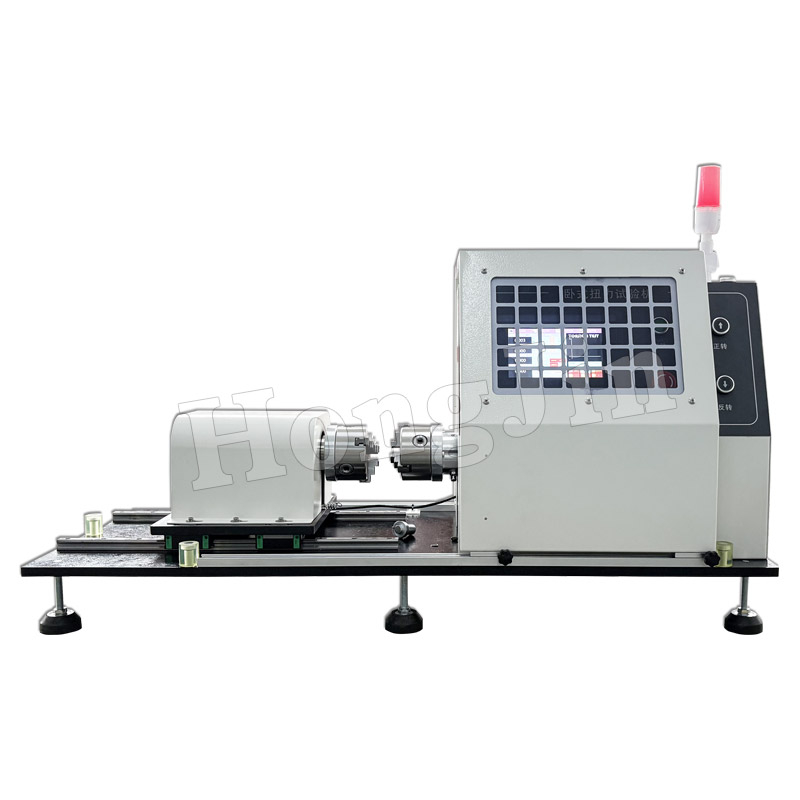

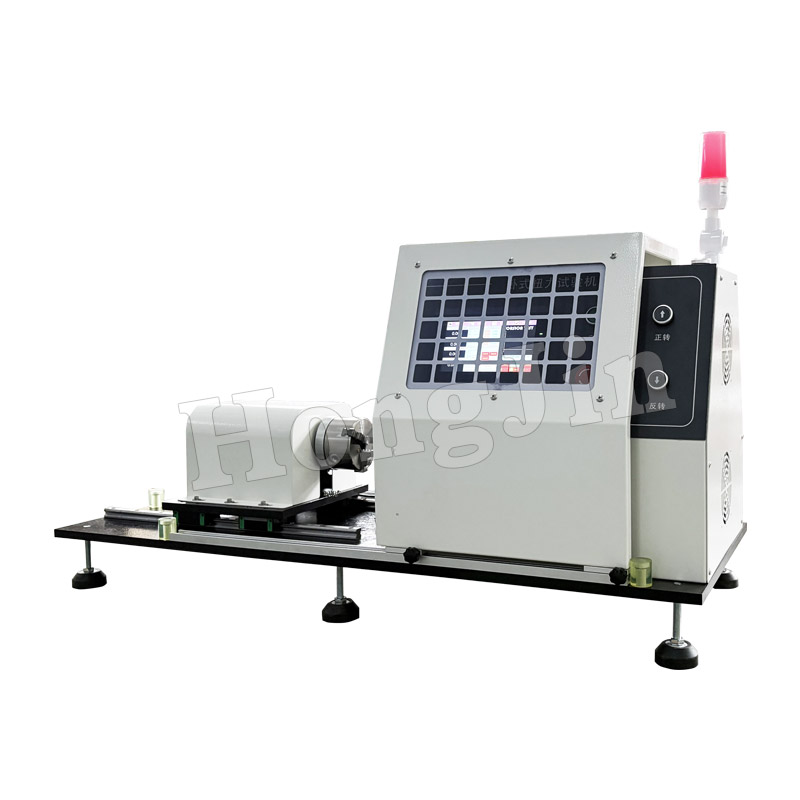

(1) The machine is driven by a servo motor to provide high-precision torque testing.
(2) The test conditions are all set on the computer screen and can be stored.
(3) The torque value change at each angle can be directly tested (torque-angle curve change diagram).
(4) The torque-angle curve diagram and the torque attenuation life curve diagram are displayed simultaneously.
(5) The graphics (torque-angle curve diagram and torque attenuation life curve diagram, inspection report) can be stored and printed.
(6) The inspection report is automatically printed and can be converted and output or directly output through the network.
(7) The upper and lower limits of the test can be entered. If the specification is exceeded, the machine will automatically stop.
(8) The torque value can be set: positive torque, reverse torque, positive torque + reverse torque.
(9) Test travel direction: forward travel, forward travel + return travel. Reverse travel, reverse travel + return travel. Forward travel + reverse travel + forward return travel.

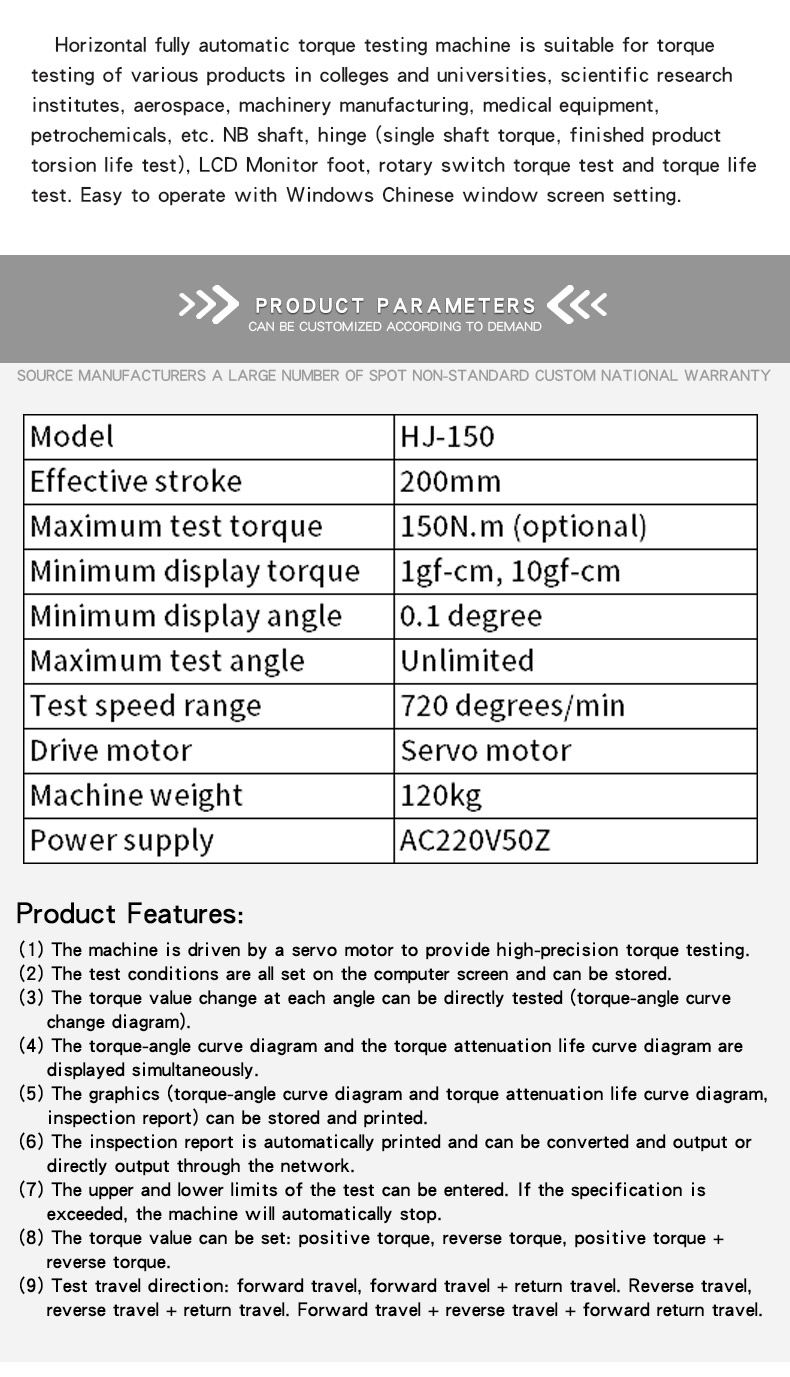

| Model | HJ-150 |
| Effective stroke | 200mm |
| Maximum test torque | 150N.m (optional) |
| Minimum display torque | 1gf-cm, 10gf-cm |
| Minimum display angle | 0.1 degree |
| Maximum test angle | Unlimited |
| Test speed range | 720 degrees/min |
| Drive motor | Servo motor |
| Machine weight | 120kg |
| Power supply | AC220V50Z |
