Lens Torque Tester Lens Impact Tester Telescope Torsional Yield Stiffness Test Machine Camera Lens Push-Pull Torsional Failure

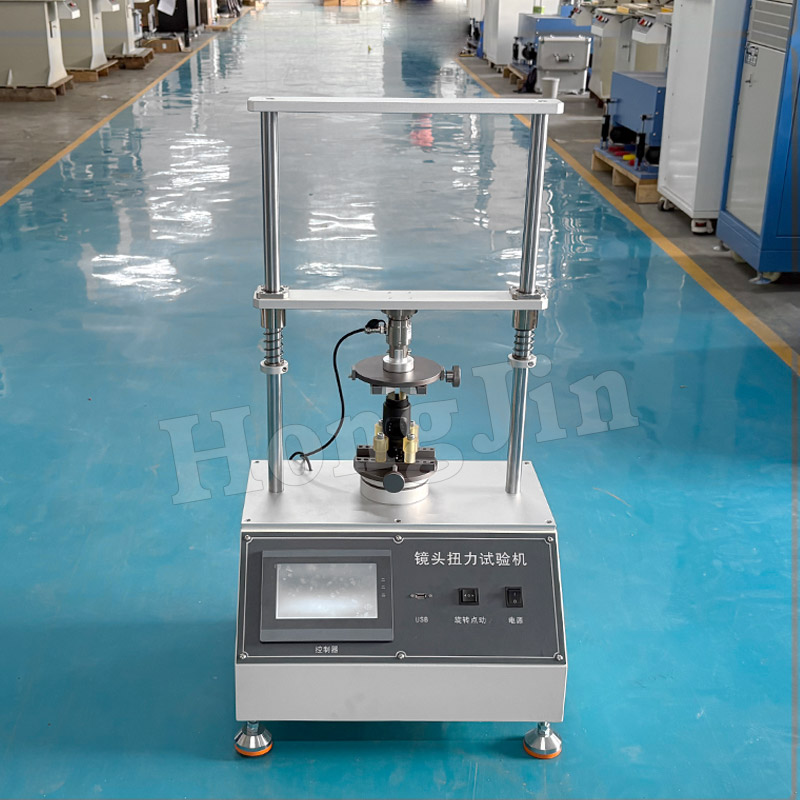

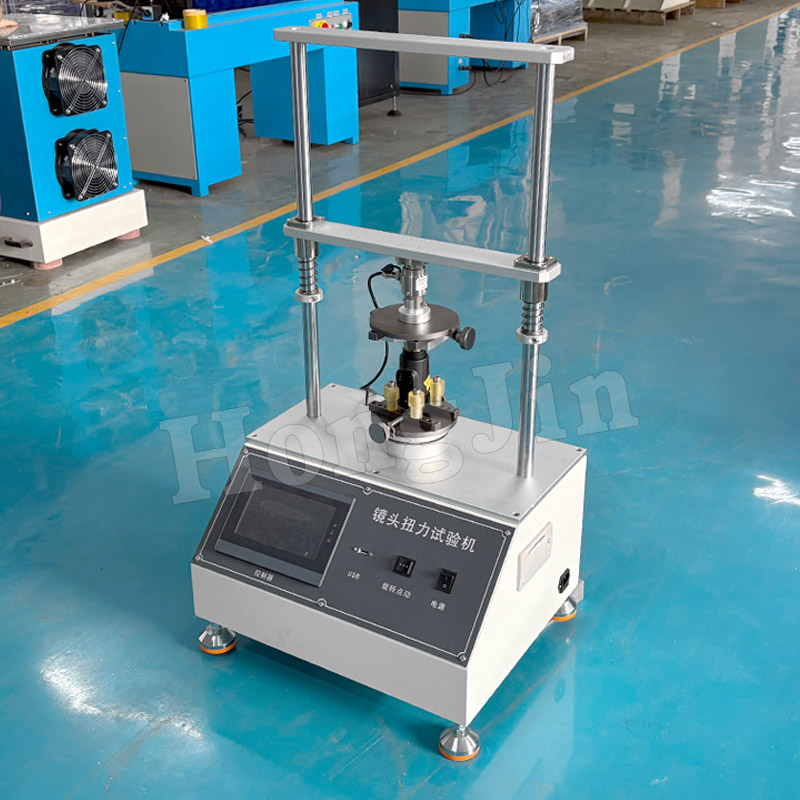

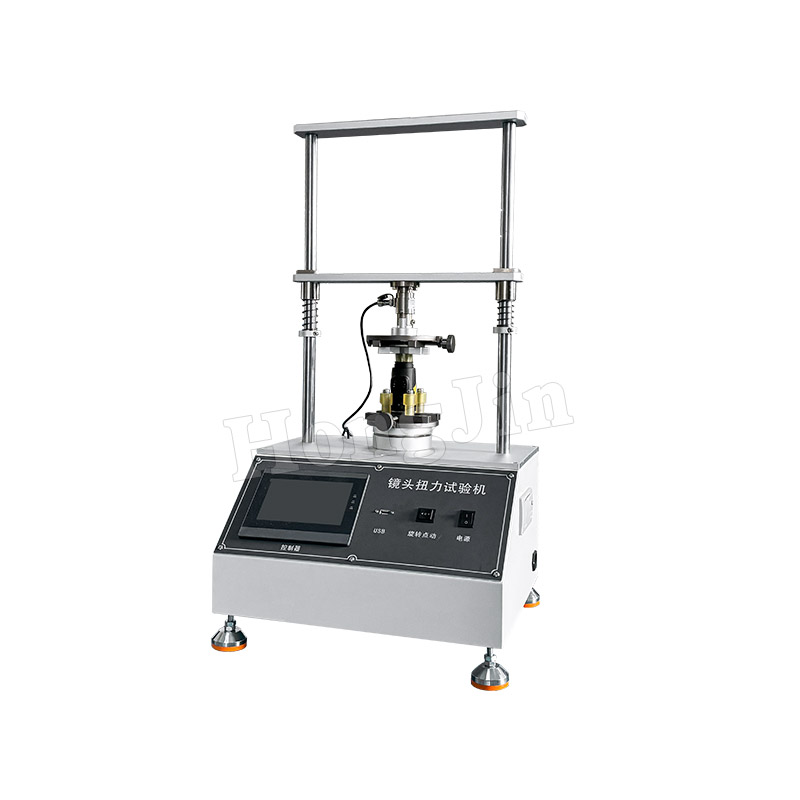

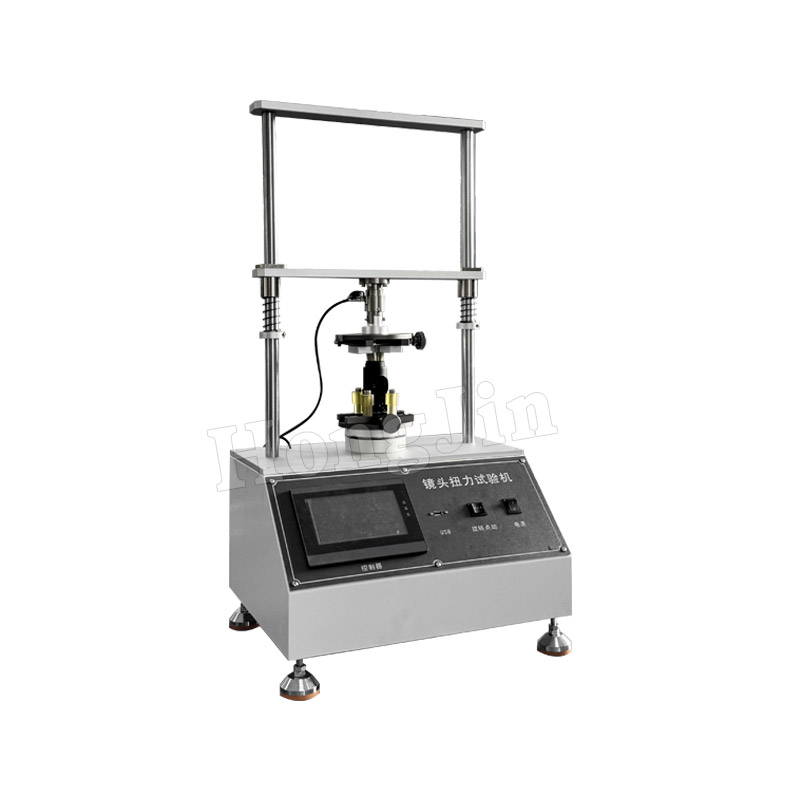

The lens torsion tester is a high-precision, highly flexible testing device used to evaluate the torque performance and torque life of camera lenses and related components. By simulating the rotational motion encountered in actual use and applying varying levels of torque, the tester accurately measures and records relevant data, providing strong support for product design and manufacturing. It is widely used for torque testing and torque life testing of products such as camera modules, mobile phones, LCD monitor mounts, and rotary switches, ensuring that products meet torque performance requirements during the design and manufacturing process.

Availability:

Quantity:



Inquire Add to Basket

Brand:
hongjin

Product Description

Product Overview:

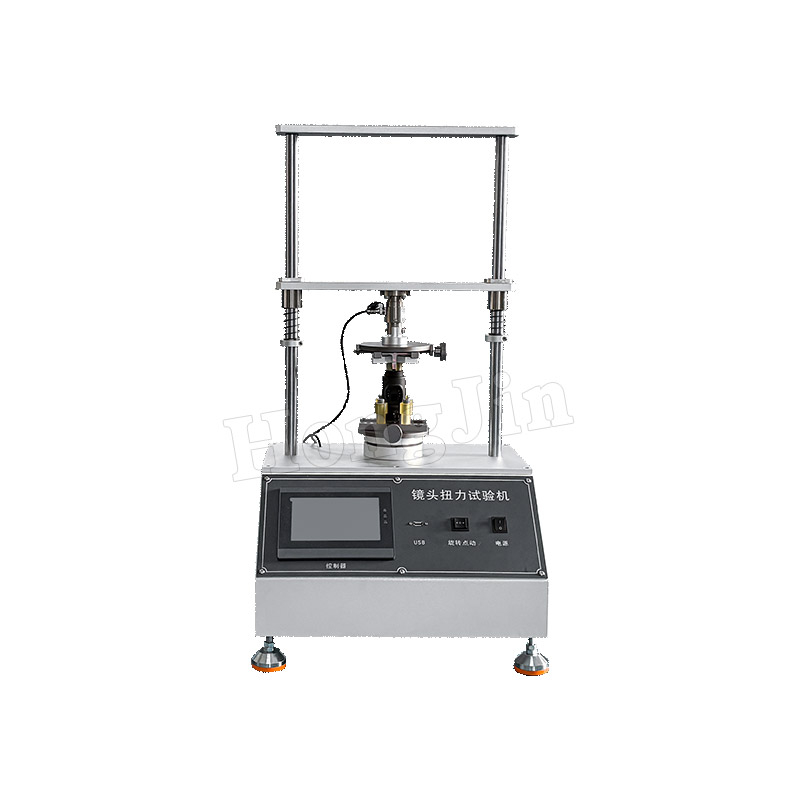

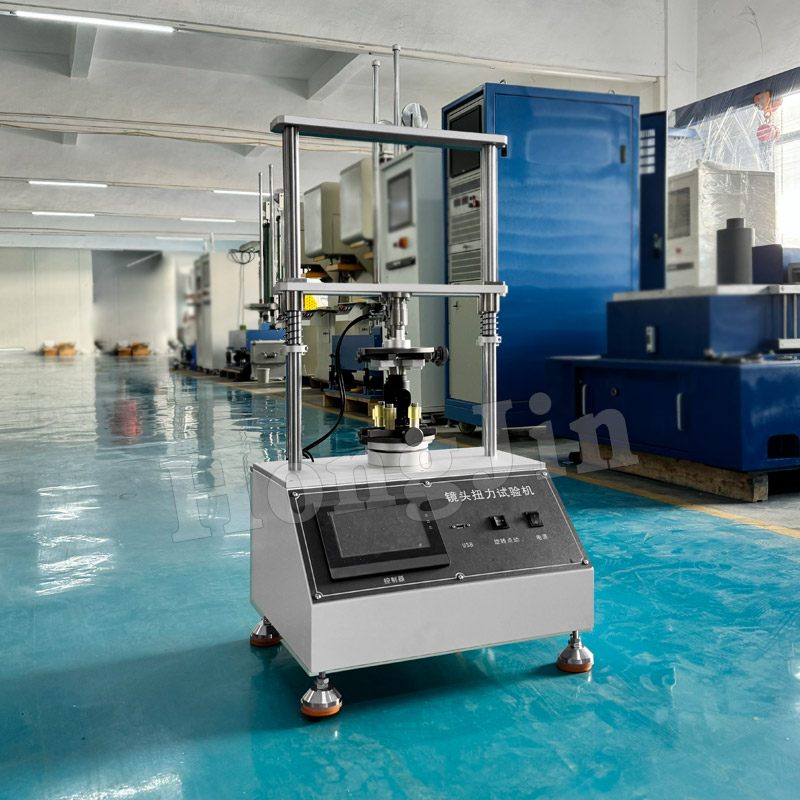

This torsion testing machine is used to test the torsional durability of various product styles. After securing the lens to the fixture, it is primarily used to rotate the product. It can measure torque values during unidirectional and bidirectional life tests.

Test Principle:

This test simulates the twisting motion of a product during user use. One end of the product is fixed in a twisting fixture, while the other end floats in a fixed fixture. The tester is turned on, and the angle is set. The motor rotates the twisting fixture clockwise and counterclockwise, and the touchscreen displays the torque values in real time.

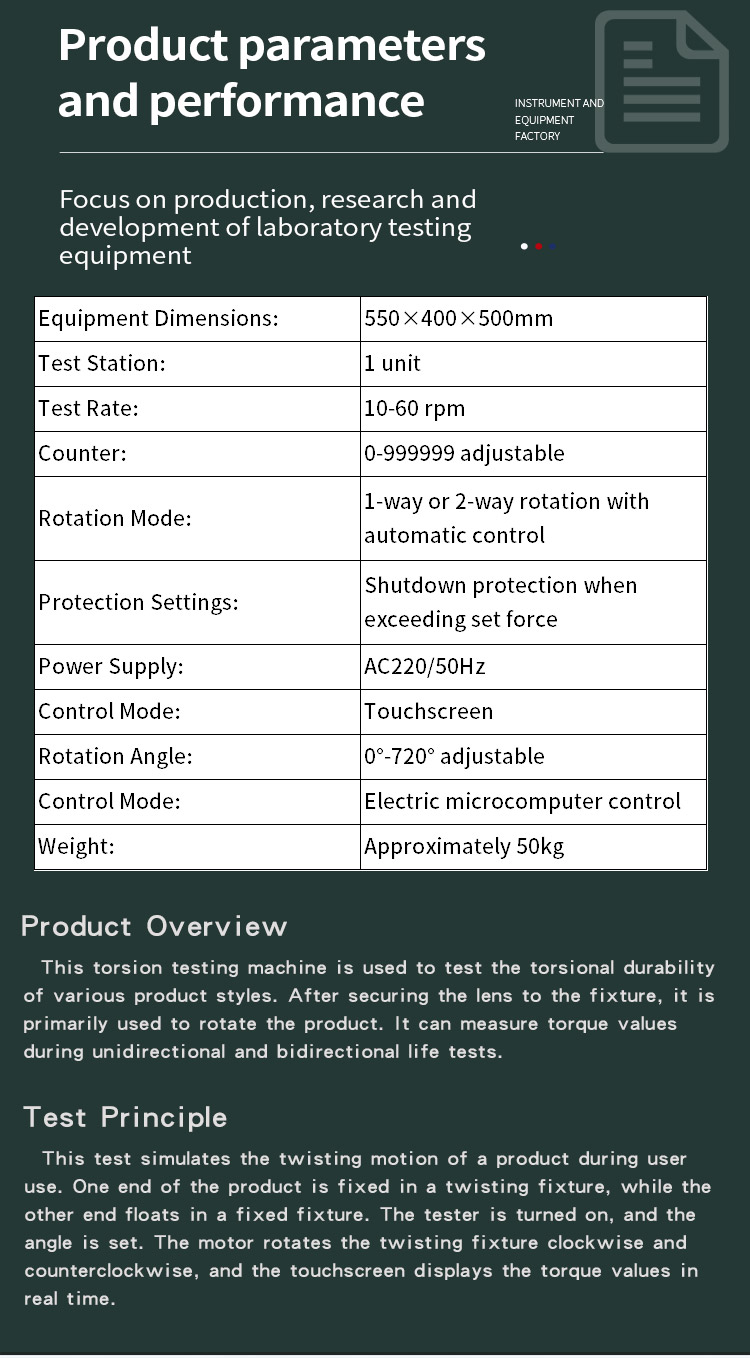

Equipment Dimensions:	550×400×500mm
Test Station:	1 unit
Test Rate:	10-60 rpm
Counter:	0-999999 adjustable
Rotation Mode:	1-way or 2-way rotation with automatic control
Protection Settings:	Shutdown protection when exceeding set force
Power Supply:	AC220/50Hz
Control Mode:	Touchscreen
Rotation Angle:	0°-720° adjustable
Control Mode:	Electric microcomputer control
Weight:	Approximately 50kg
