Product Description:

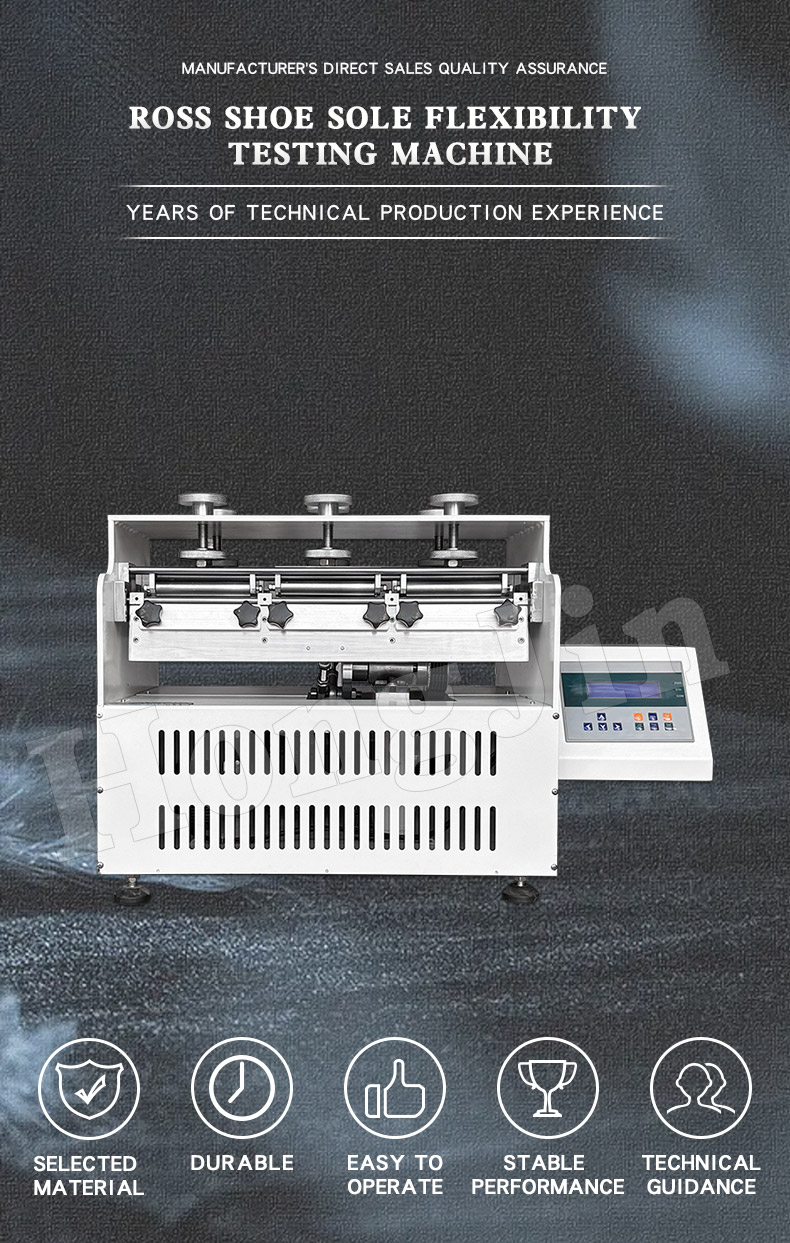

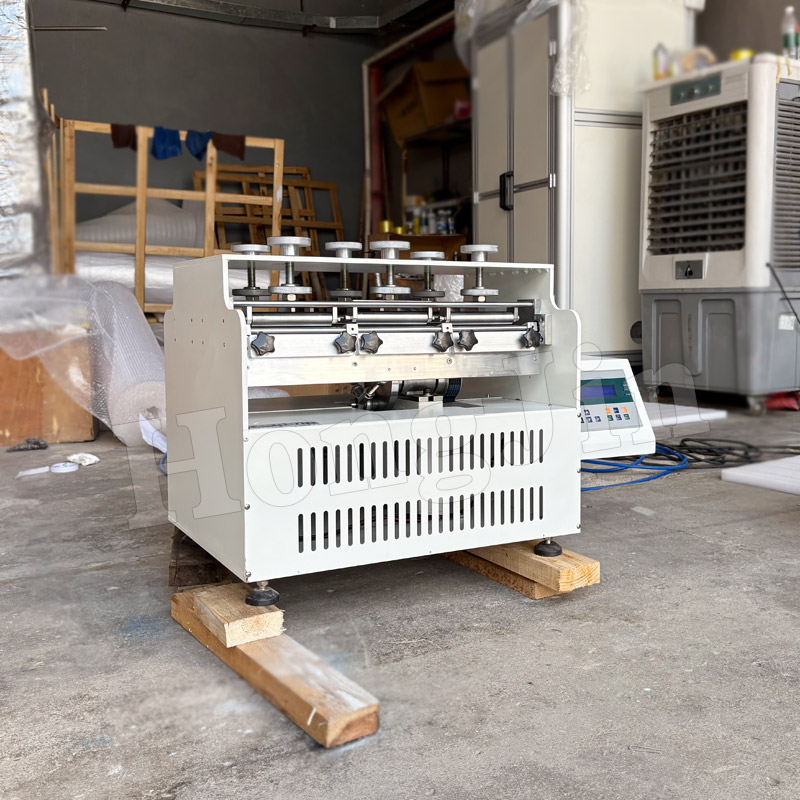

The sole strip test piece is mounted on the ROSS flexure tester, with the cut positioned directly above the center of the ROSS flexure tester's axis. The ROSS flexure tester then drives the test piece to flex freely at 90° on the axis. After a certain number of tests, the length of the cut on the test piece is measured. The flexure resistance of the sole is evaluated by the rate of increase in the cut length.
Reference Standards:
Complies with standards such as GB/T20991-2007, ASTM D1052, ISO 5423, SATRA TM60, etc.

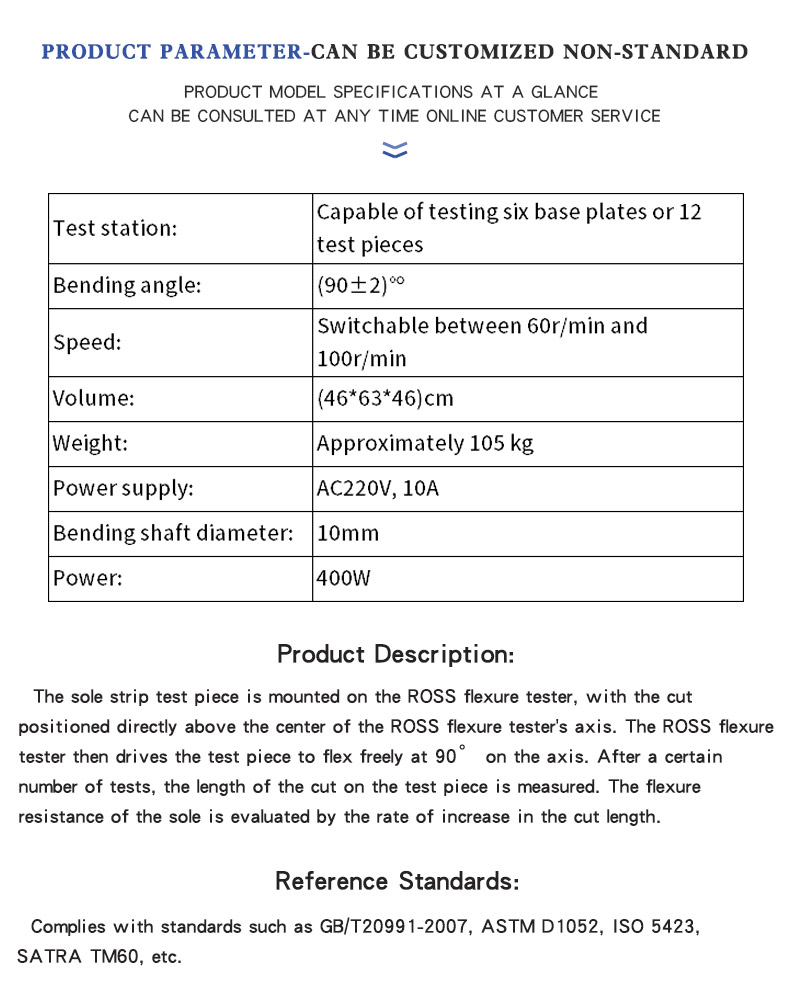

| Test station: | Capable of testing six base plates or 12 test pieces |
| Bending angle: | (90±2)°º |
| Speed: | Switchable between 60r/min and 100r/min |
| Volume: | (46*63*46)cm |
| Weight: | Approximately 105 kg |
| Power supply: | AC220V, 10A |
| Bending shaft diameter: | 10mm |
| Power: | 400W |
Product Description:
The sole strip test piece is mounted on the ROSS flexure tester, with the cut positioned directly above the center of the ROSS flexure tester's axis. The ROSS flexure tester then drives the test piece to flex freely at 90° on the axis. After a certain number of tests, the length of the cut on the test piece is measured. The flexure resistance of the sole is evaluated by the rate of increase in the cut length.
Reference Standards:
Complies with standards such as GB/T20991-2007, ASTM D1052, ISO 5423, SATRA TM60, etc.
| Test station: | Capable of testing six base plates or 12 test pieces |
| Bending angle: | (90±2)°º |
| Speed: | Switchable between 60r/min and 100r/min |
| Volume: | (46*63*46)cm |
| Weight: | Approximately 105 kg |
| Power supply: | AC220V, 10A |
| Bending shaft diameter: | 10mm |
| Power: | 400W |
