product description

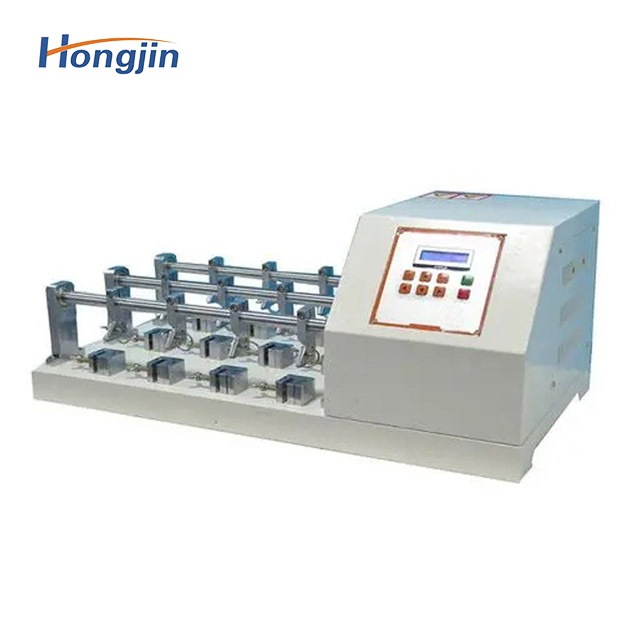

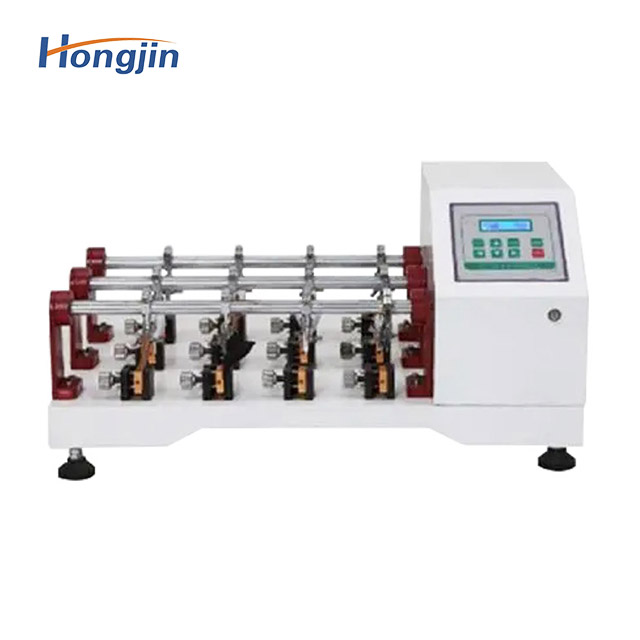

Leather flexibility testing machine is mainly used to test the flexibility of upper leather, lining, clothing or bag materials at room temperature. One end surface of the test piece is used as the inside, the other end surface is used as the outside and reciprocating bending, to record the bending times when the test piece is damaged; Or set the number of bending, and then take out to observe the damage degree.Leather flexibility testing machine is mainly used to test the flexibility of upper leather, lining, clothing or bag materials at room temperature. One end surface of the test piece is used as the inside, the other end surface is used as the outside and reciprocating bending, to record the bending times when the test piece is damaged; Or set the number of bending, and then take out to observe the damage degree.
Product parameter table
| Fixture selection: | 12 groups |
| Test film: | (70±1) mm× (45±1)mm |
| Bending Angle: | (22.5±0.5)° |
| Bending speed: | 100±5cpm /min |
| Dry state test times: | 500, 1,000, 5,000, 10,000... 250,000 (optional) |
| Counter: | LCD,0~999,999 automatic stop |
| Machine size: | (LXWXH) 500×580×300mm |
| Weight: | 69kg |
| Power supply: | 1, AC220V, 20A |
product description
Leather flexibility testing machine is mainly used to test the flexibility of upper leather, lining, clothing or bag materials at room temperature. One end surface of the test piece is used as the inside, the other end surface is used as the outside and reciprocating bending, to record the bending times when the test piece is damaged; Or set the number of bending, and then take out to observe the damage degree.Leather flexibility testing machine is mainly used to test the flexibility of upper leather, lining, clothing or bag materials at room temperature. One end surface of the test piece is used as the inside, the other end surface is used as the outside and reciprocating bending, to record the bending times when the test piece is damaged; Or set the number of bending, and then take out to observe the damage degree.
Product parameter table
| Fixture selection: | 12 groups |
| Test film: | (70±1) mm× (45±1)mm |
| Bending Angle: | (22.5±0.5)° |
| Bending speed: | 100±5cpm /min |
| Dry state test times: | 500, 1,000, 5,000, 10,000... 250,000 (optional) |
| Counter: | LCD,0~999,999 automatic stop |
| Machine size: | (LXWXH) 500×580×300mm |
| Weight: | 69kg |
| Power supply: | 1, AC220V, 20A |
