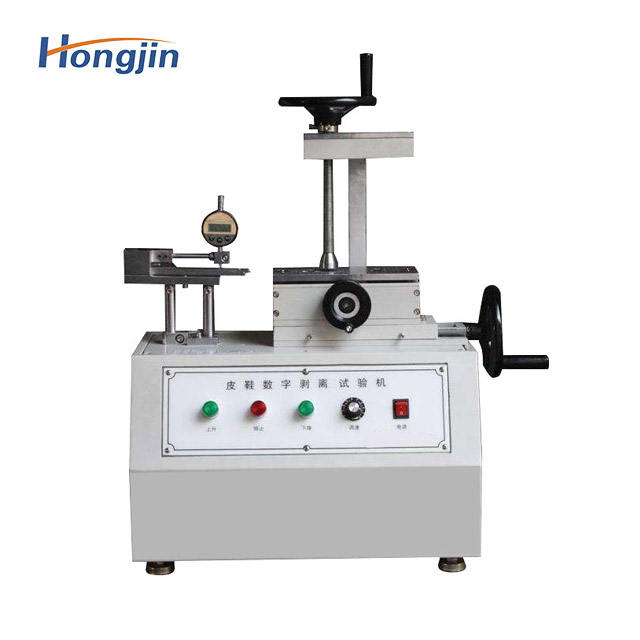

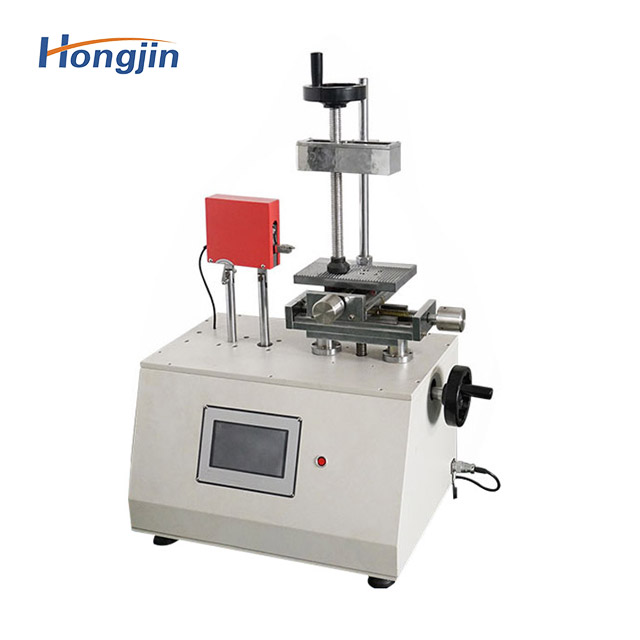

Leather Shoe Peel Tester

The shoes will be mounted on the shoe last clipped on the stripping test machine, with the stripping knife will be sole and upper joint stripping, measured when stripping the required force value for stripping force, according to the stripping force and the width of the knife edge calculation of stripping strength.
Availability:
Quantity:

Test principle:

The shoes will be mounted on the shoe last clipped on the stripping test machine, with the stripping knife will be sole and upper joint stripping, measured when stripping the required force value for stripping force, according to the stripping force and the width of the knife edge calculation of stripping strength.


Product parameter table

Width of knife edge: 20±0.2mm and 10±0.2mm
Knife edge descending speed: 20±2mm/min, rise and fall speed adjustable
Spacing between positioning rod and tie rod: 50~70mm adjustable
Micrometer: 0.001~10mm
Average rise and fall range: 40mm
The volume is about: 560*320*750mm
Approximate weight: 45kg
Power supply: $1 AC220V, 50HZ(depending on country or designation)
