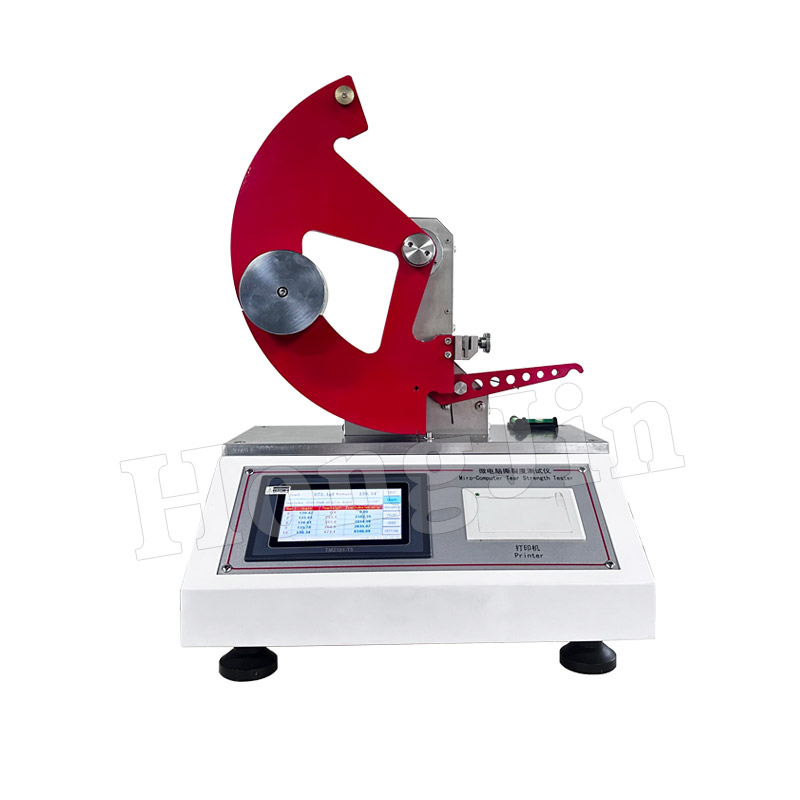

Microcomputer Paper Tear Tester Film Packaging Tester Material Tear Strength Tester Digital Fabric Tear Tester

The microcomputer tear strength tester is a professional device used to measure the tear resistance of materials, with a wide range of applications. According to relevant standards and equipment design, this type of instrument is mainly suitable for testing the tear strength of materials such as paper, cardboard, film, textiles, and non-woven fabrics. Specifically, it can be used to determine the tear strength of various types of paper, and can also be used to test lower-strength cardboard, making it an ideal experimental device for industries and departments such as papermaking, packaging, scientific research, and product quality supervision and inspection. Besides paper and cardboard, it can also be applied to the tear resistance testing of plastic films (such as polyolefins, polyesters, etc.), composite films, polymer materials, waterproof rolls, woven materials, and rubber latex products. Some models of the tester can also be extended to test heavy-duty packaging bags, stretch wrap films, paper subway tickets, and other products.

Availability:

Quantity:



Inquire Add to Basket

Brand:
hongjin

Product Description

Product Overview:

The microcomputer tear strength tester is a specialized instrument for determining the tear strength of paper (board). This mechatronics product is designed using ergonomic principles and microprocessor technology. It is suitable for tear strength testing of various types of paper and can also be used for tear strength testing of lower-strength cardboard. It features functions such as testing, displaying, memorizing, statistically analyzing, and printing various parameters, providing scientific analytical data specifically for paper tear strength testing.

Product Features:

1. High testing accuracy and good stability;

2. Automatic pendulum release for high testing efficiency;

3. Chinese menu interface with multiple operation prompts for intuitive and convenient use;

4. Ability to easily query and delete inappropriate test records;

5. Mini printer for high-speed and clear printing;

6. Real-time display of angle changes during testing;

7. Automatic calculation, statistics, and printing of test results.

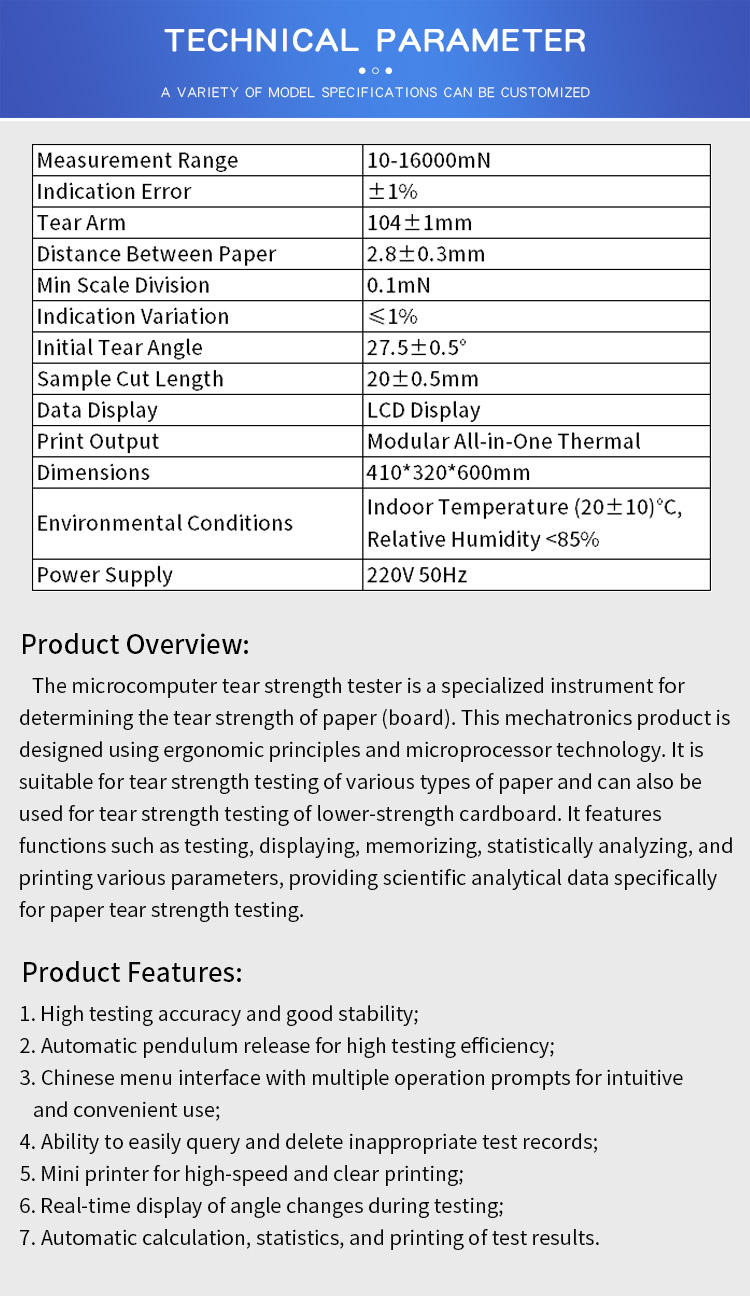

Measurement Range	10-16000mN
Indication Error	±1%
Tear Arm	104±1mm
Distance Between Paper Grippers	2.8±0.3mm
Min Scale Division	0.1mN
Indication Variation	≤1%
Initial Tear Angle	27.5±0.5°
Sample Cut Length	20±0.5mm
Data Display	LCD Display
Print Output	Modular All-in-One Thermal Printer
Dimensions	410320600mm
Environmental Conditions	Indoor Temperature (20±10)°C, Relative Humidity <85%
Power Supply	220V 50Hz
