Test principle:

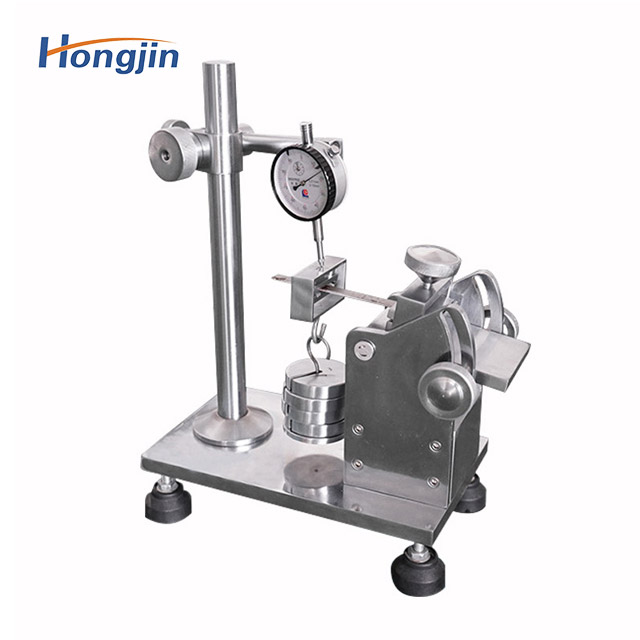

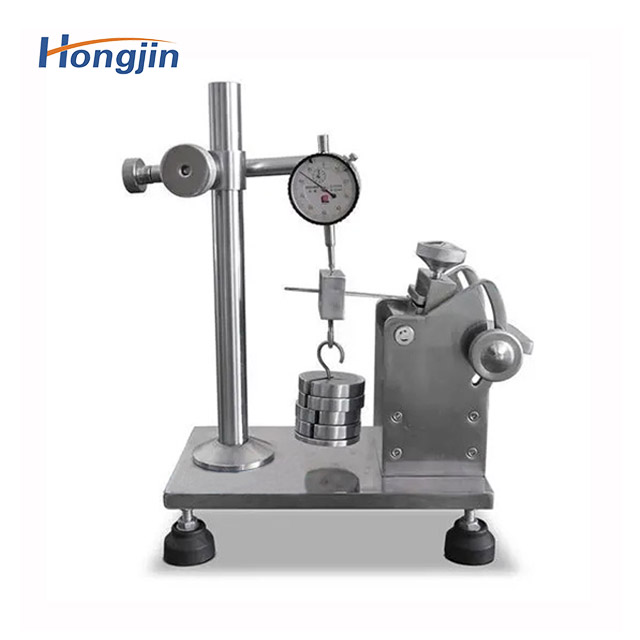

This product is suitable for measuring the longitudinal bending stiffness of the leather shoe hook. The principle is to fix the heel end of the hook, load the front end, make it bend and deform, and then measure the bending deflection of the hook to calculate the bending stiffness of the hook. The instrument is light and durable, easy to operate and maintain, and the accurate stiffness of the hook can be measured quickly.
Product parameter table
| Rear clamp adjustable Angle: | ≤30° |
| Rear clamp claw length: | 32mm |
| Angle of the front rib of the jaw under the rear clip: | 10° |
| Special quantity card length: | 60±0.02mm |
| Thickness of front splint: | 12mm |
| Deflection meter: | 0~10mm (minimum scale 0.01mm) |
| Weight: | 200±1g×4 |
| Weight: | 11.9kg |
| Volume: | 33×16× 30cm |
Test principle:
This product is suitable for measuring the longitudinal bending stiffness of the leather shoe hook. The principle is to fix the heel end of the hook, load the front end, make it bend and deform, and then measure the bending deflection of the hook to calculate the bending stiffness of the hook. The instrument is light and durable, easy to operate and maintain, and the accurate stiffness of the hook can be measured quickly.
Product parameter table
| Rear clamp adjustable Angle: | ≤30° |
| Rear clamp claw length: | 32mm |
| Angle of the front rib of the jaw under the rear clip: | 10° |
| Special quantity card length: | 60±0.02mm |
| Thickness of front splint: | 12mm |
| Deflection meter: | 0~10mm (minimum scale 0.01mm) |
| Weight: | 200±1g×4 |
| Weight: | 11.9kg |
| Volume: | 33×16× 30cm |
