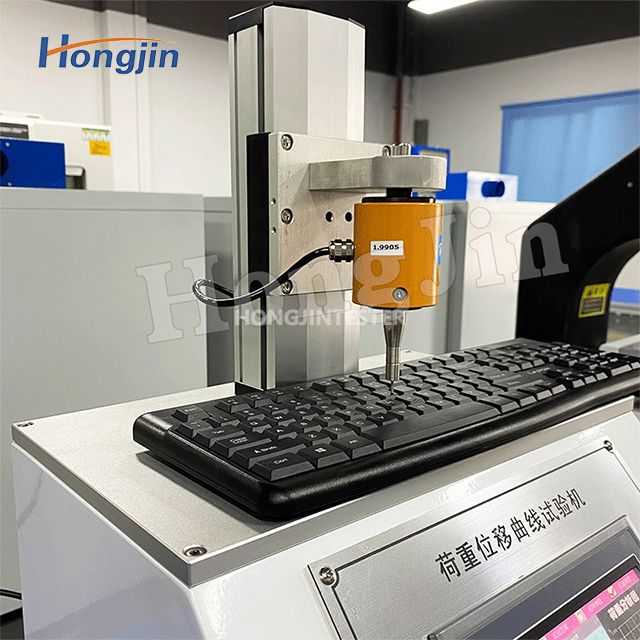

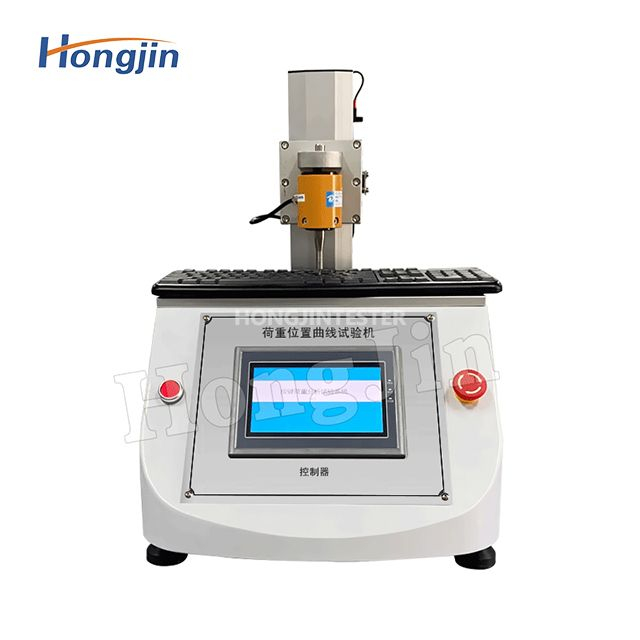

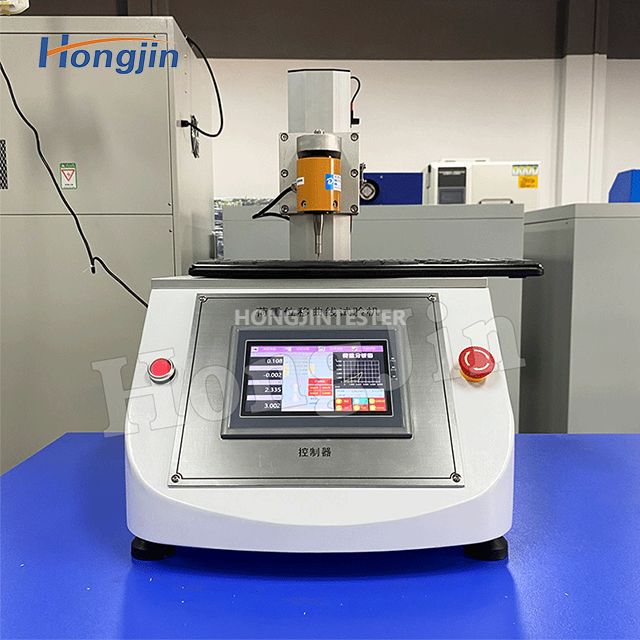

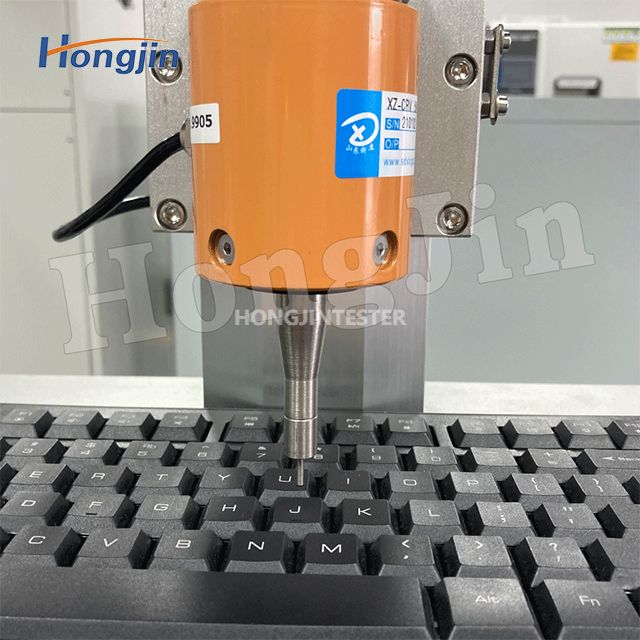

Button Load Meter Curve Testing Machine (touch Type)

Scope of application:

Three-axis key load meter, suitable for key switch, computer keyboard, conductive rubber key, metal shrapnel key (commonly known as pot) or the same type of key impact life aging test, the use of advanced programming to control the whole process of key life test and suitable for silicone rubber keys for fatigue test; With adjustable speed, any setting of the number of times and simultaneous testing of several products (each product can be multi-point testing), the number of arrivals or power outage to maintain data. In addition, each button can set different pressure and different height. Using advanced PLC touch screen control, can clearly display the number of strikes and strike force, each strike head separate control, the design is more user-friendly, can meet the different test needs of customers.

Product features:

1. can input any X, Y, z three axis coordinates, the machine automatically moving position test;

2. can input large test stroke and load, computer automatic control and testing;

3. can set the load, when the load value reaches, the machine can be paused;

4. can set the travel, when the travel value arrives, the machine can be paused;

5. can directly test and draw each stroke point (0.01mm) and load graphics;

6. each measurement figure can be traced by the cross vernier track, distinguish the corresponding load and stroke value, a small analysis of 0.01mm;

7. the test item can enter the upper and lower limit specifications, the test result can be automatically determined OK or NG;

8. a formula can test 8 different specifications of load, high and low keys can be used;

9. known stroke can test the corresponding load or resistance, or known load test corresponding stroke or resistance 10, can print and store graphics (load-stroke curve, life curve, inspection report);

11. test data storage and hard disk (each data can be stored, unlimited times);

12. the test conditions are set by the computer (including test load, travel, speed, times, pause time, etc.);

13. the contents of the header of the inspection report can be modified at any time (both Chinese and English);

14. the inspection report can be transferred to Excel, Word, PDF for editing or directly output through the Internet;

15. AutoCAD drawing file can automatically import product coordinate function, greatly improve work efficiency;

16. in the test load and stroke at the same time, you can test the resistance function.

Product parameters：
