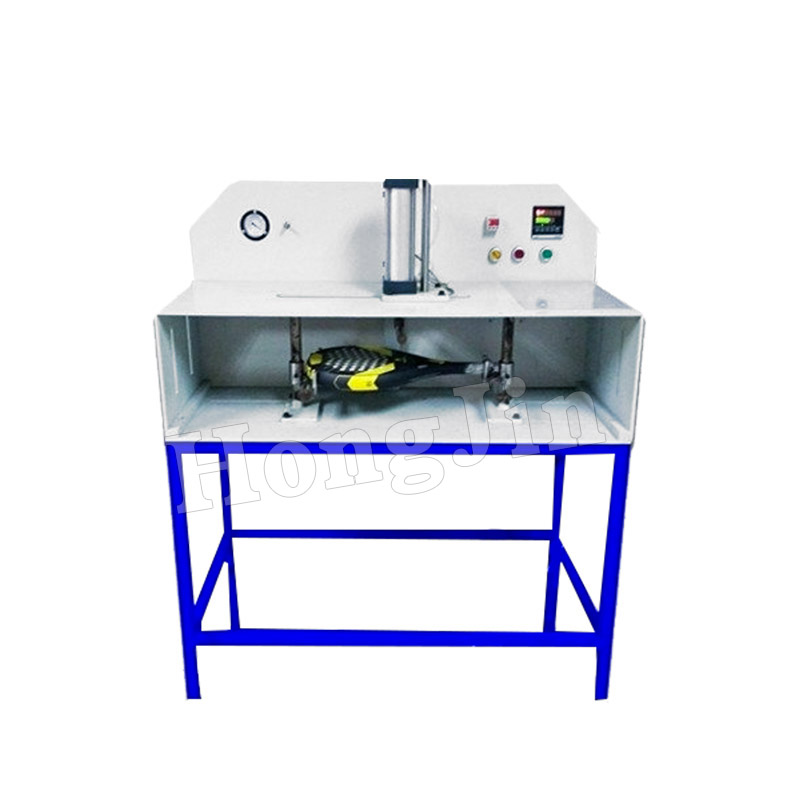

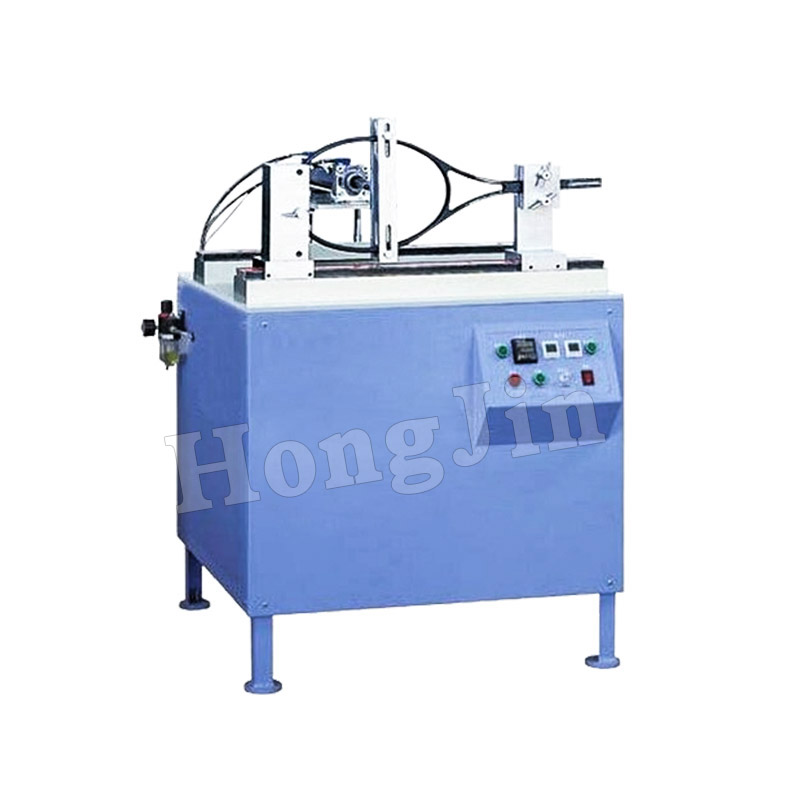

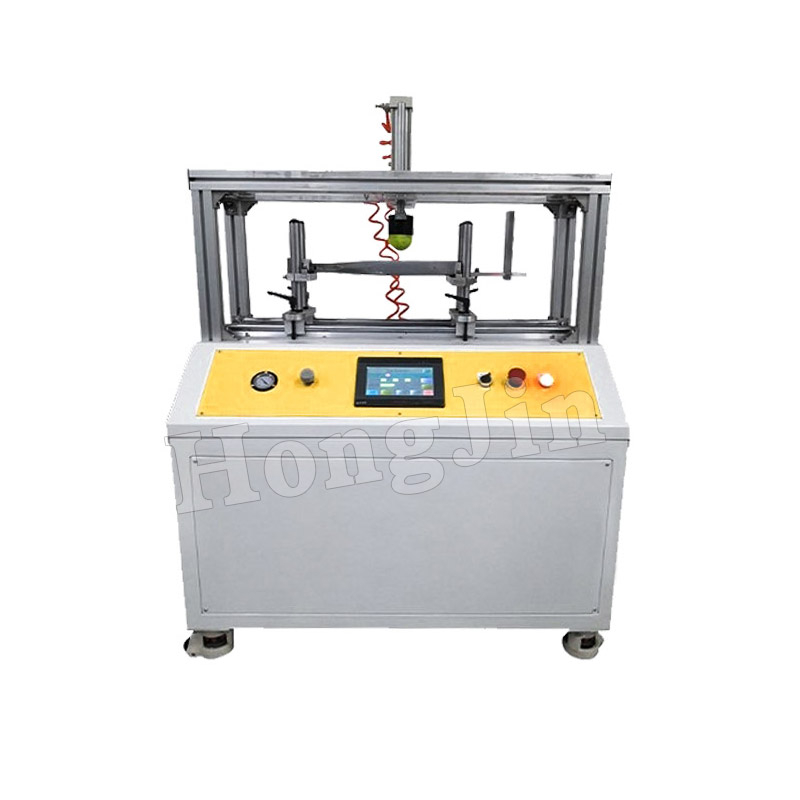

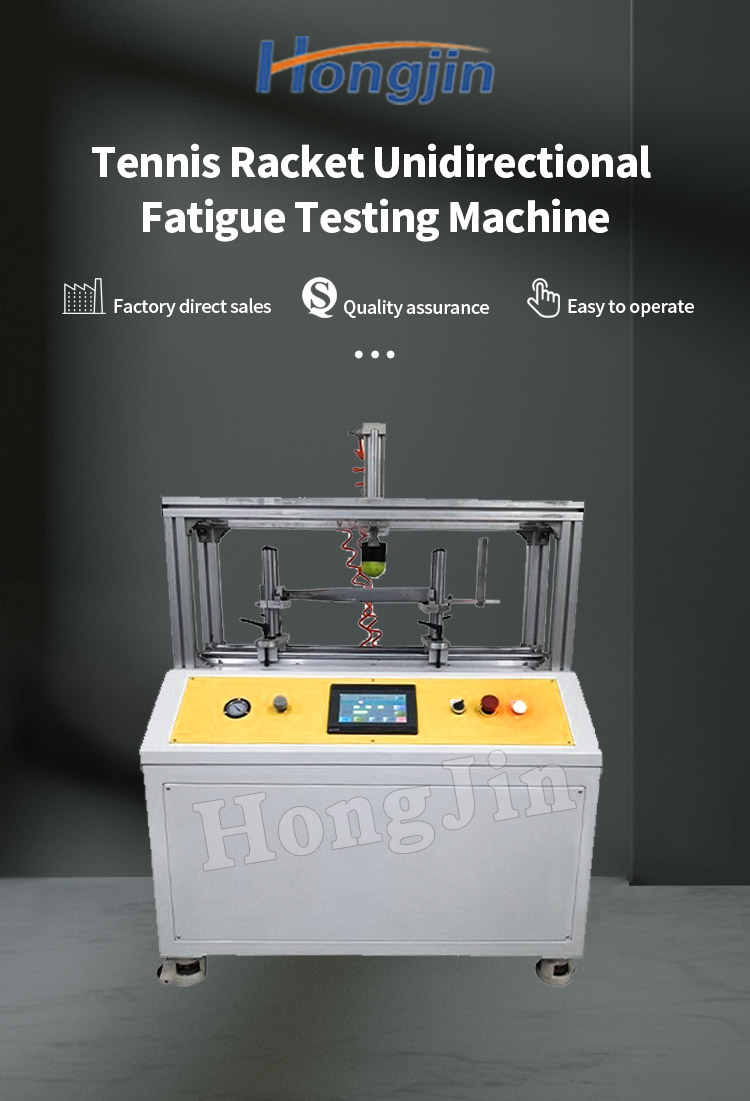

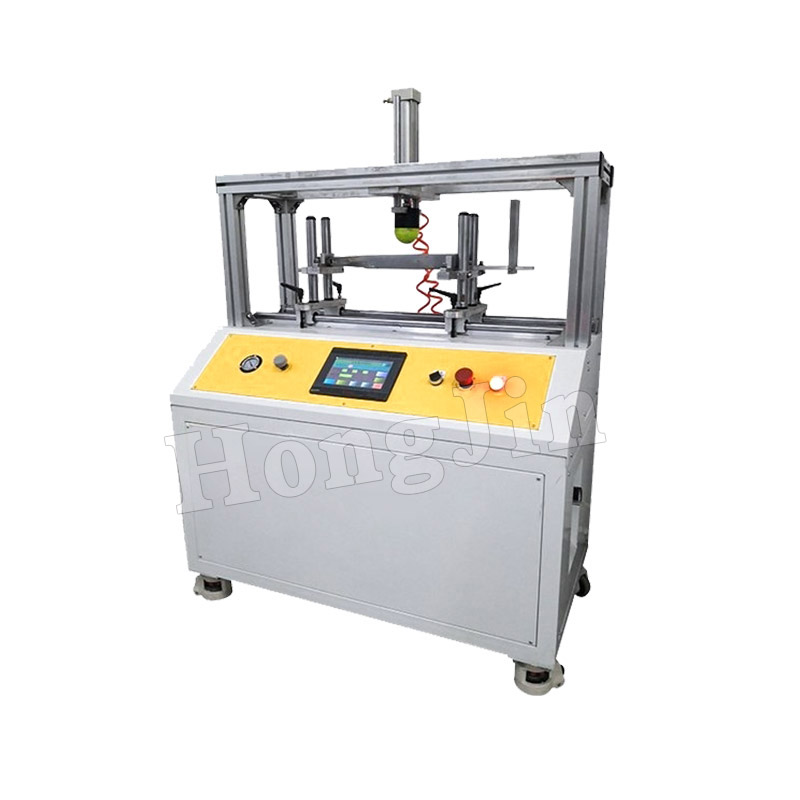

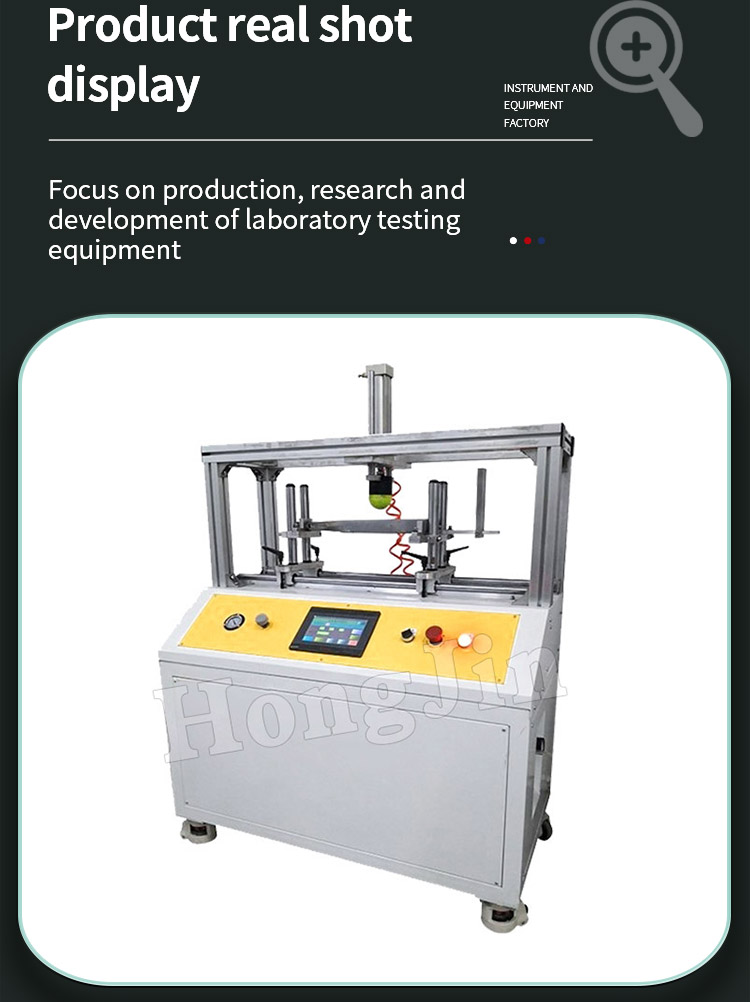

Tennis Racket Unidirectional Fatigue Testing Machine

The tennis racket unidirectional fatigue testing machine is mainly used to test the unidirectional fatigue limit of tennis rackets. It is suitable for the production, inspection, development and research of tennis rackets. The equipment applies a certain pressure to the tennis racket through a pneumatic cylinder, and then immediately relaxes it, performing continuous reciprocating movements until the sample is fatigued and fractured, and its fatigue resistance times are recorded.
Availability:
Quantity:
  • hongjin

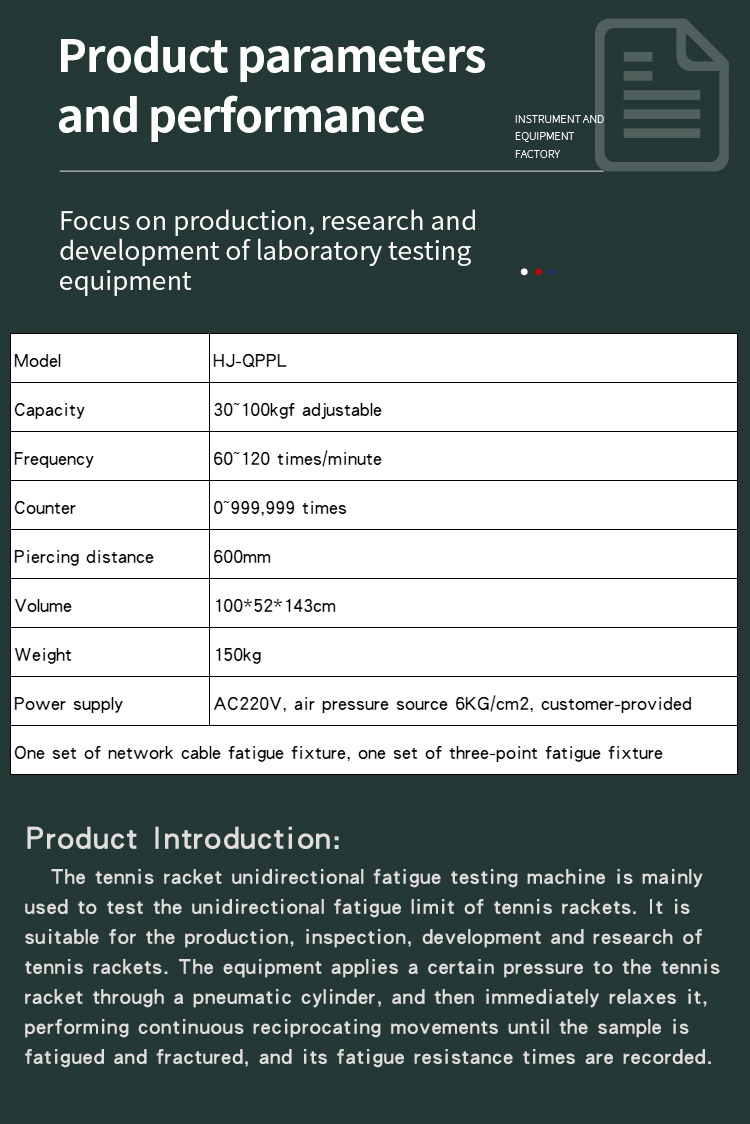

Model HJ-QPPL
Capacity 30~100kgf adjustable
Frequency 60~120 times/minute
Counter 0~999,999 times
Piercing distance 600mm
Volume 100*52*143cm
Weight 150kg
Power supply AC220V, air pressure source 6KG/cm2, customer-provided
One set of network cable fatigue fixture, one set of three-point fatigue fixture


网球拍单向疲劳试验机_01网球拍单向疲劳试验机_02网球拍单向疲劳试验机_03网球拍单向疲劳试验机_04网球拍单向疲劳试验机_05新模板_01新模板_02123
