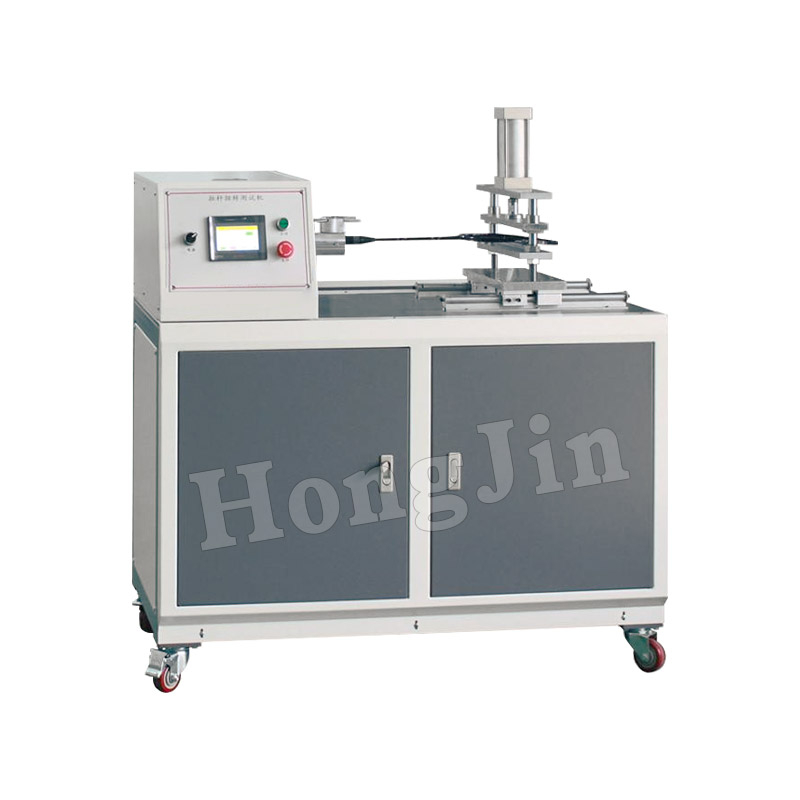

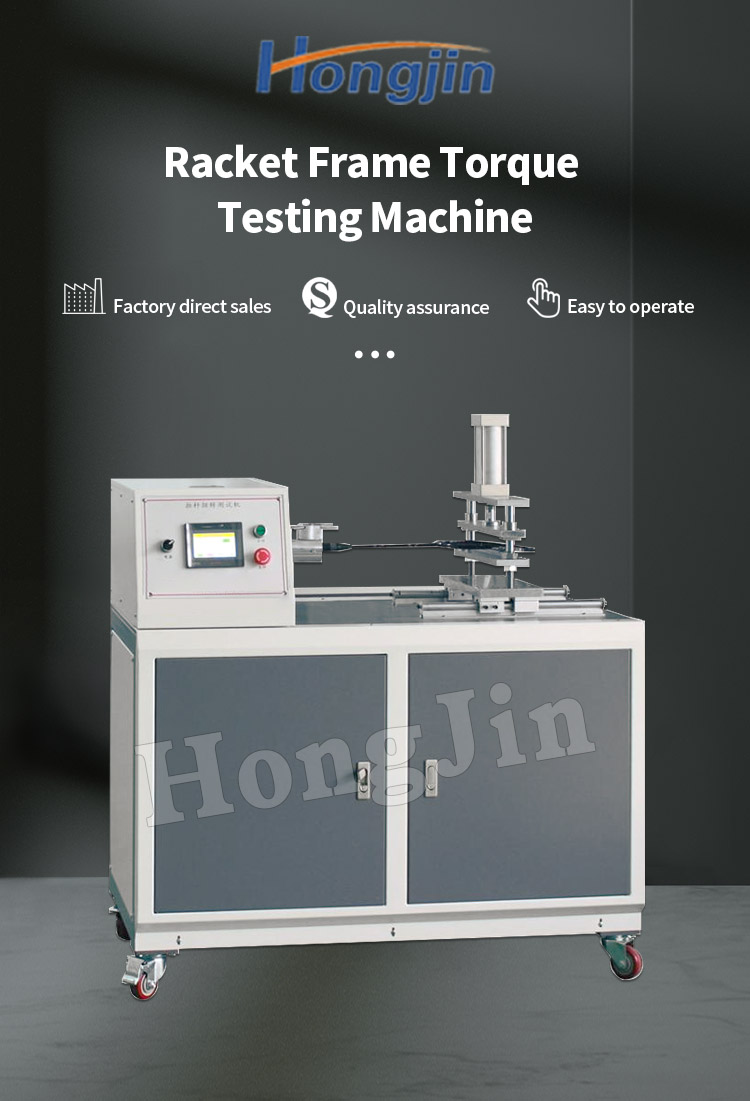

Racket Frame Torque Testing Machine

The racket frame torque tester is used to test the corresponding angle of the racket frame under a certain torque.
Availability:
Quantity:
  • hongjin

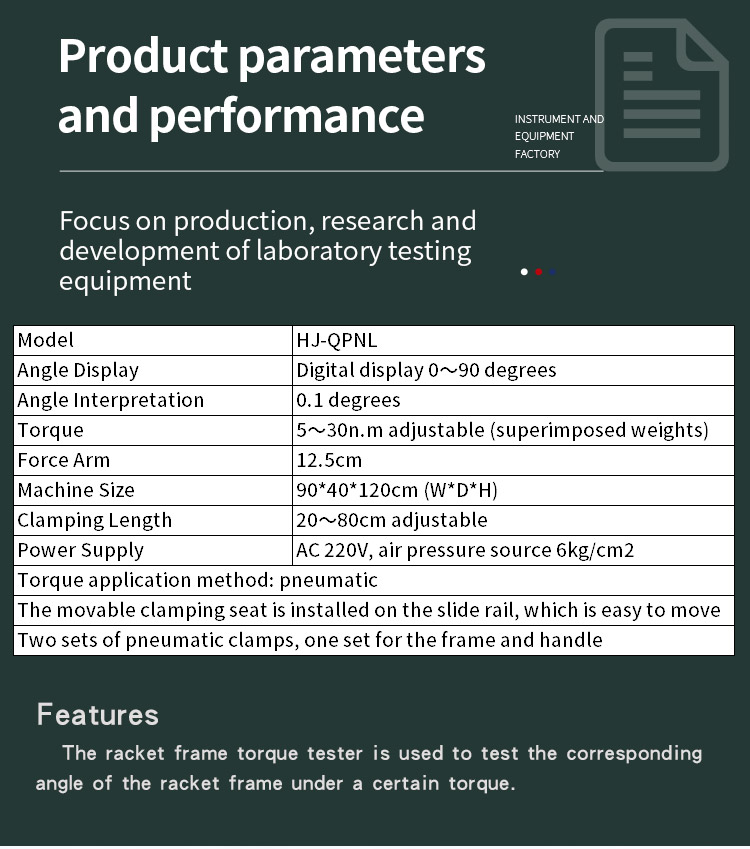

Model HJ-QPNL
Angle Display Digital display 0~90 degrees
Angle Interpretation 0.1 degrees
Torque 5~30n.m adjustable (superimposed weights)
Force Arm 12.5cm
Machine Size 90*40*120cm (W*D*H)
Clamping Length 20~80cm adjustable
Power Supply AC 220V, air pressure source 6kg/cm2
Torque application method: pneumatic
The movable clamping seat is installed on the slide rail, which is easy to move
Two sets of pneumatic clamps, one set for the frame and handle


球拍拍框扭力试验机_01球拍拍框扭力试验机_02球拍拍框扭力试验机_03球拍拍框扭力试验机_04球拍拍框扭力试验机_05

新模板_01新模板_02123
