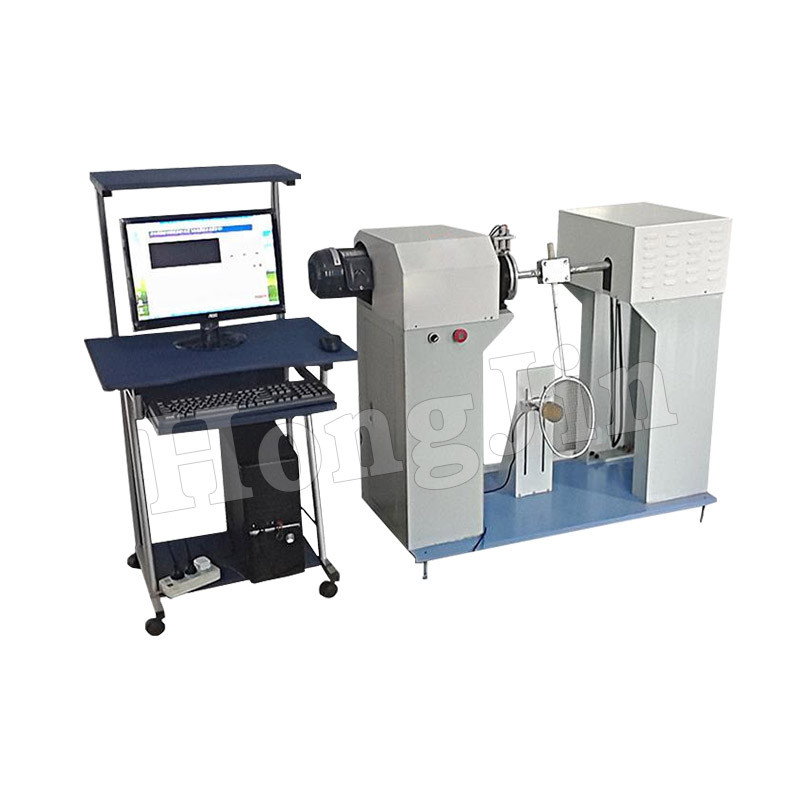

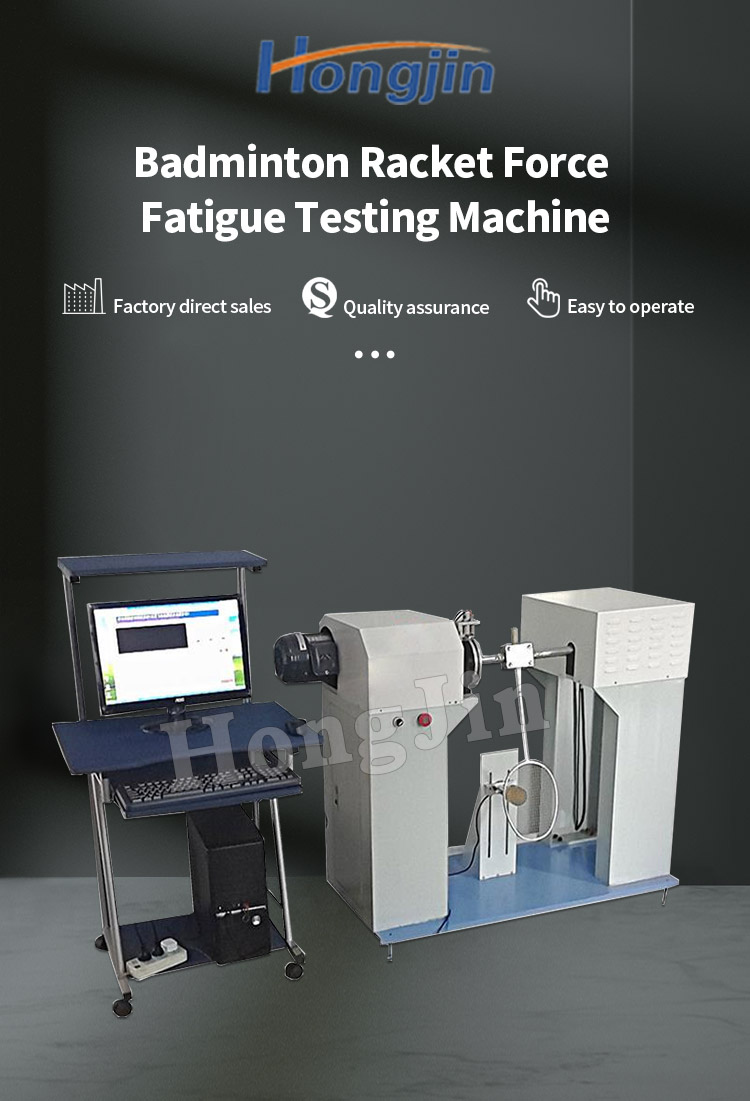

Badminton Racket Force Fatigue Testing Machine

Badminton racket force fatigue testing machine is used to simulate the situation of a badminton racket hitting the ball head for testing. Through repeated hitting, it is used to detect the durability of the racket. The machine is controlled by a computer system. The hitting force applied is sensed by the load cell and quickly sensed and accurately controlled by the computer system. The test results are accurate and highly stable.
Availability:
Quantity:
  • hongjin

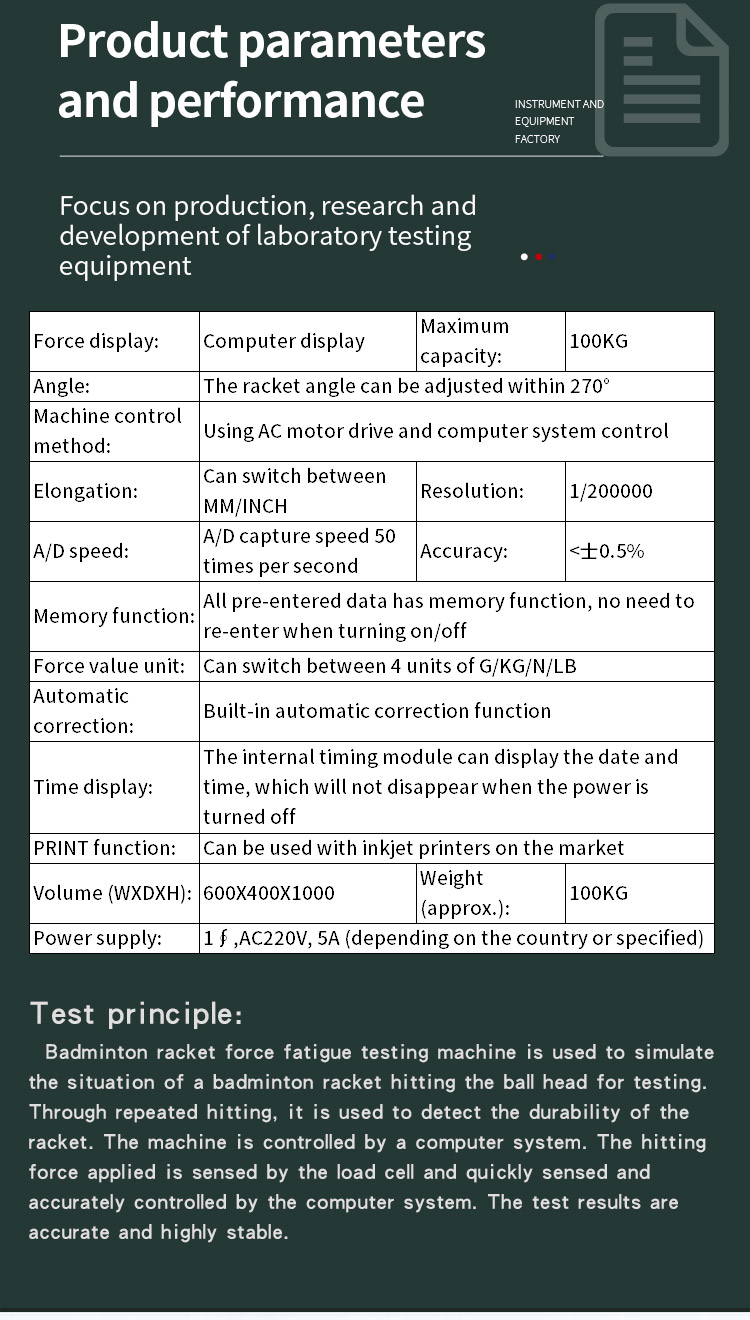

Force display: Computer display Maximum capacity: 100KG
Angle: The racket angle can be adjusted within 270°
Machine control method: Using AC motor drive and computer system control
Elongation: Can switch between MM/INCH Resolution: 1/200000
A/D speed: A/D capture speed 50 times per second Accuracy: <士0.5%
Memory function: All pre-entered data has memory function, no need to re-enter when turning on/off
Force value unit: Can switch between 4 units of G/KG/N/LB
Automatic correction: Built-in automatic correction function
Time display: The internal timing module can display the date and time, which will not disappear when the power is turned off
PRINT function: Can be used with inkjet printers on the market
Volume (WXDXH): 600X400X1000 Weight (approx.): 100KG
Power supply: 1∮,AC220V, 5A (depending on the country or specified)

羽毛球拍拍力疲劳试验机_01羽毛球拍拍力疲劳试验机_02羽毛球拍拍力疲劳试验机_03羽毛球拍拍力疲劳试验机_04羽毛球拍拍力疲劳试验机_05新模板_01新模板_02123
