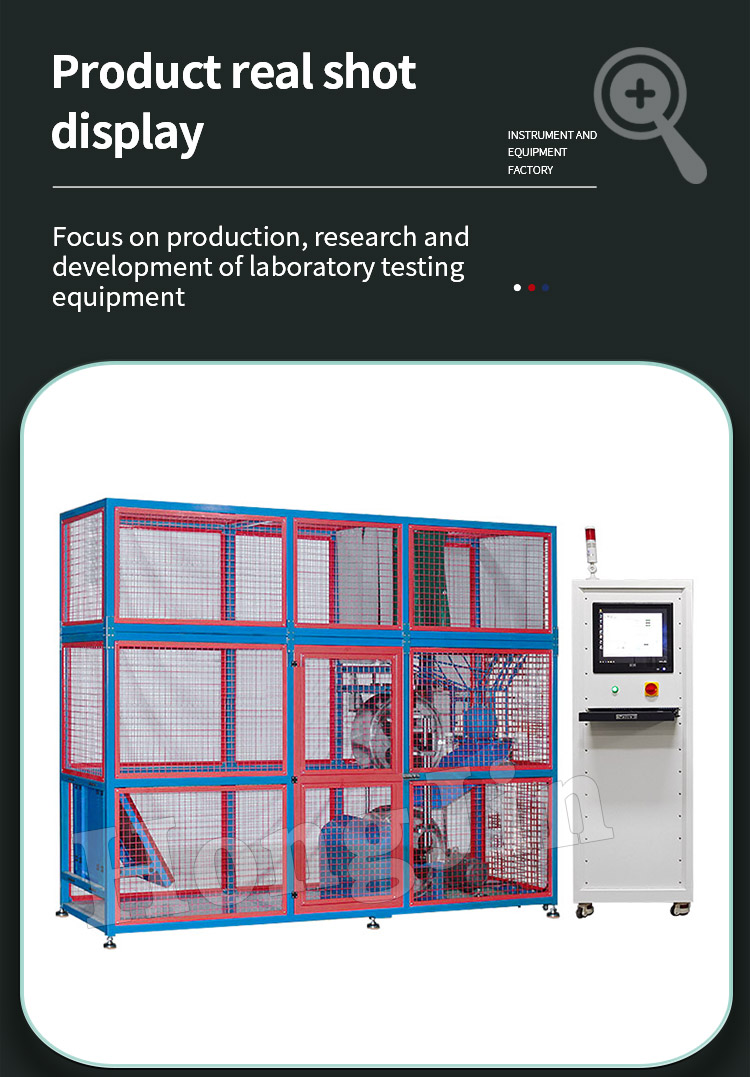

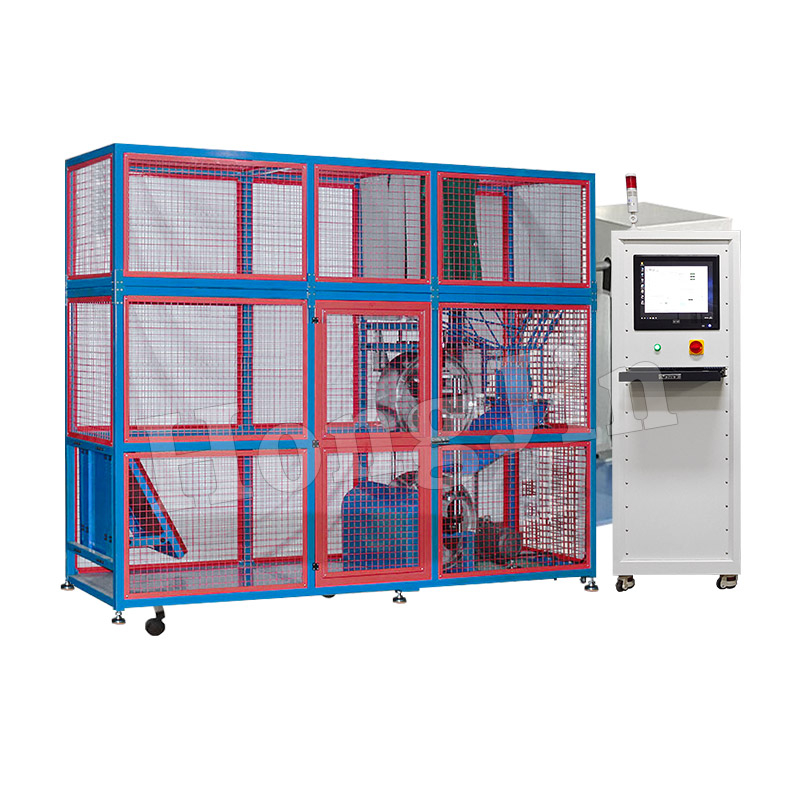

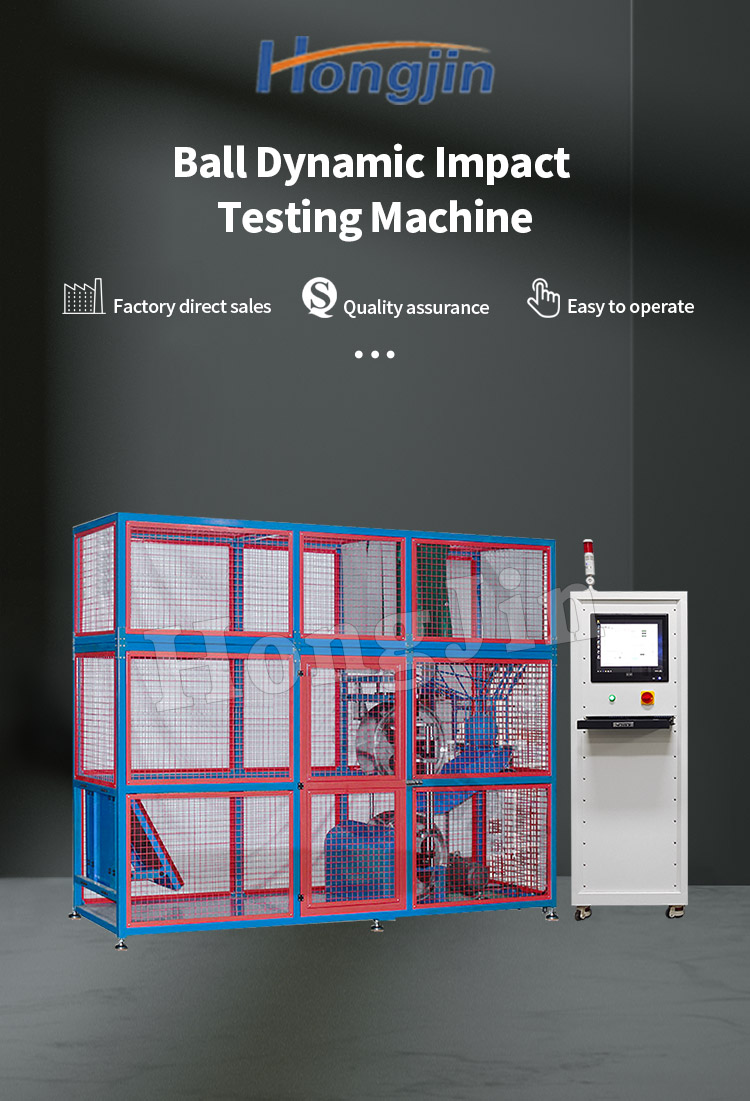

Ball Dynamic Impact Testing Machine

Ball dynamic impact testing machine is suitable for testing the dynamic impact resistance of basketball, football, volleyball and handball. It uses two high-speed rotating drums that are opposite to each other to throw the test piece at high speed to the impact rebound plate under the action of friction and extrusion. The rebound plate rebounds the test piece into the ball receiving funnel, and transmits it to the throwing drum under the action of gravity, and throws the test piece again. After the set number of tests, check the pressure changes in the sample and whether there are cracks, implosions, peeling, degumming, wire breakage, deformation, etc.
Availability:
Quantity:
  • hongjin

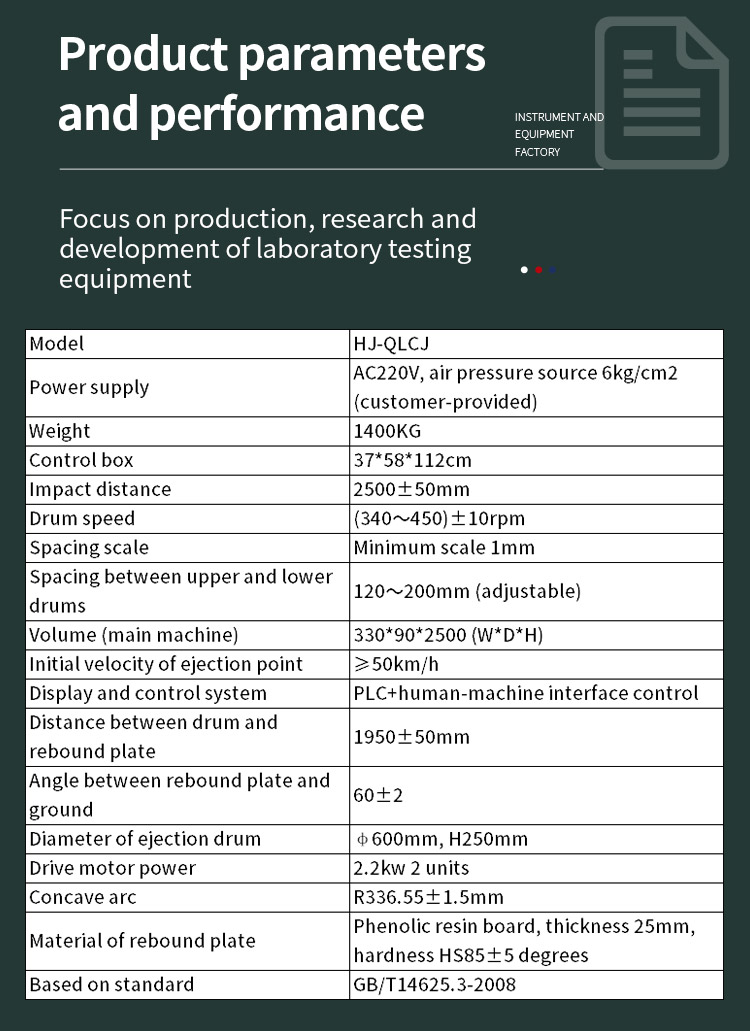

Model HJ-QLCJ
Power supply AC220V, air pressure source 6kg/cm2 (customer-provided)
Weight 1400KG
Control box 37*58*112cm
Impact distance 2500±50mm
Drum speed (340~450)±10rpm
Spacing scale Minimum scale 1mm
Spacing between upper and lower drums 120~200mm (adjustable)
Volume (main machine) 330*90*2500 (W*D*H)
Initial velocity of ejection point ≥50km/h
Display and control system PLC+human-machine interface control
Distance between drum and rebound plate 1950±50mm
Angle between rebound plate and ground 60±2
Diameter of ejection drum φ600mm, H250mm
Drive motor power 2.2kw 2 units
Concave arc R336.55±1.5mm
Material of rebound plate Phenolic resin board, thickness 25mm, hardness HS85±5 degrees
Based on standard GB/T14625.3-2008


球类动态冲击试验机_01球类动态冲击试验机_03球类动态冲击试验机_02球类动态冲击试验机_04球类动态冲击试验机_05球类动态冲击试验机_06新模板_01新模板_02123
