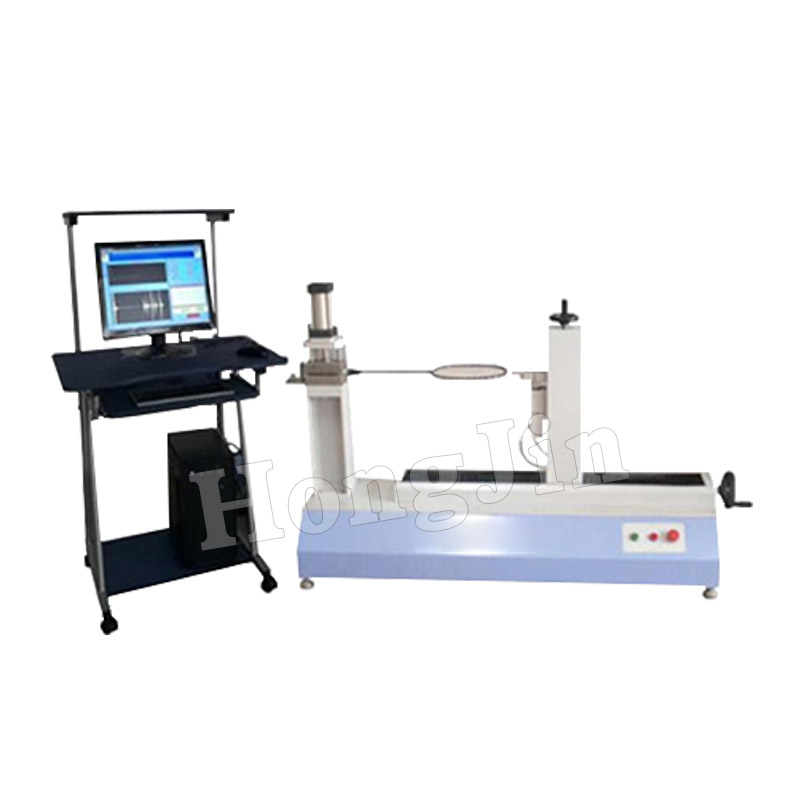

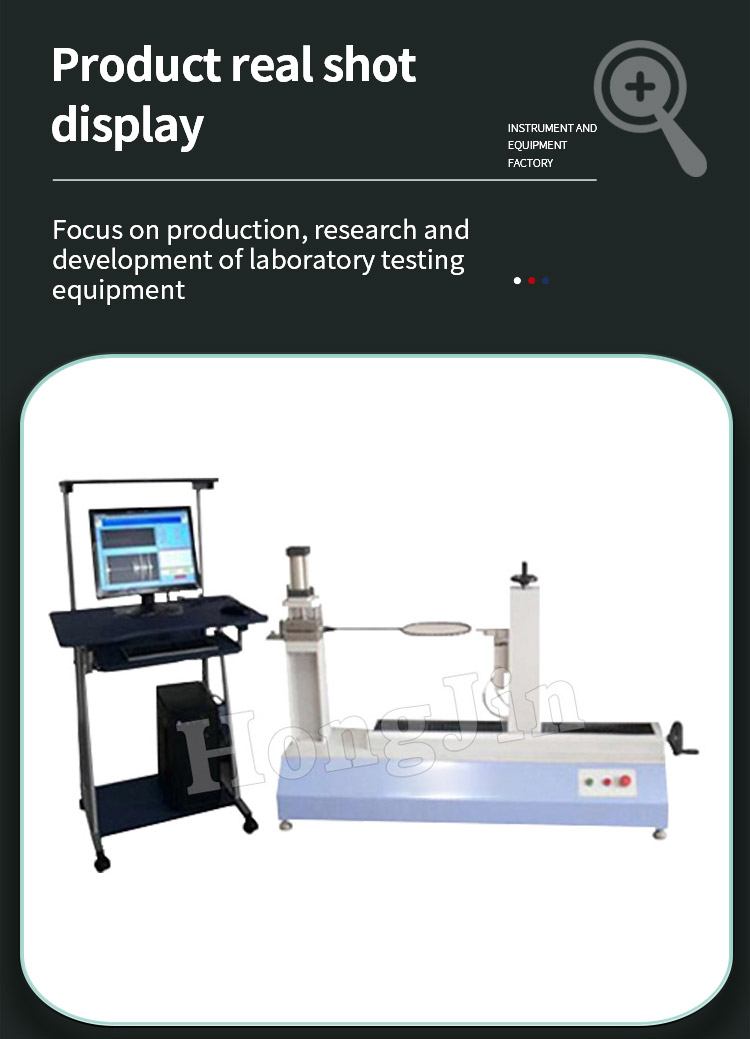

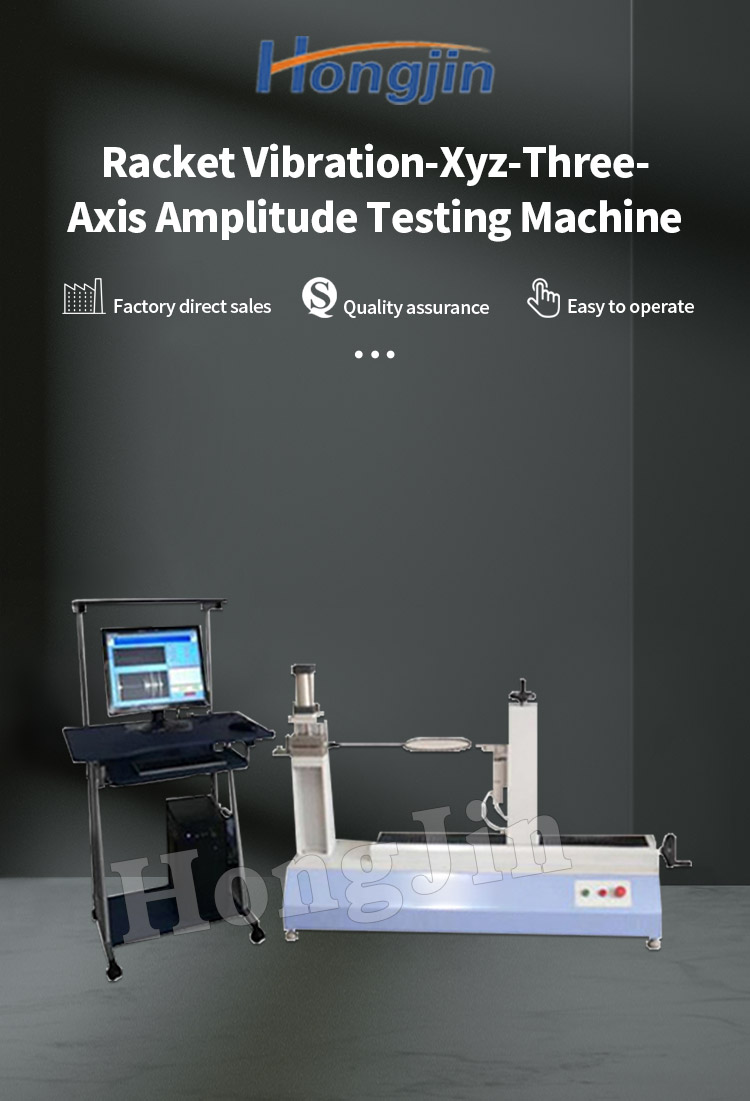

Racket Vibration-XYZ-three-axis Amplitude Testing Machine

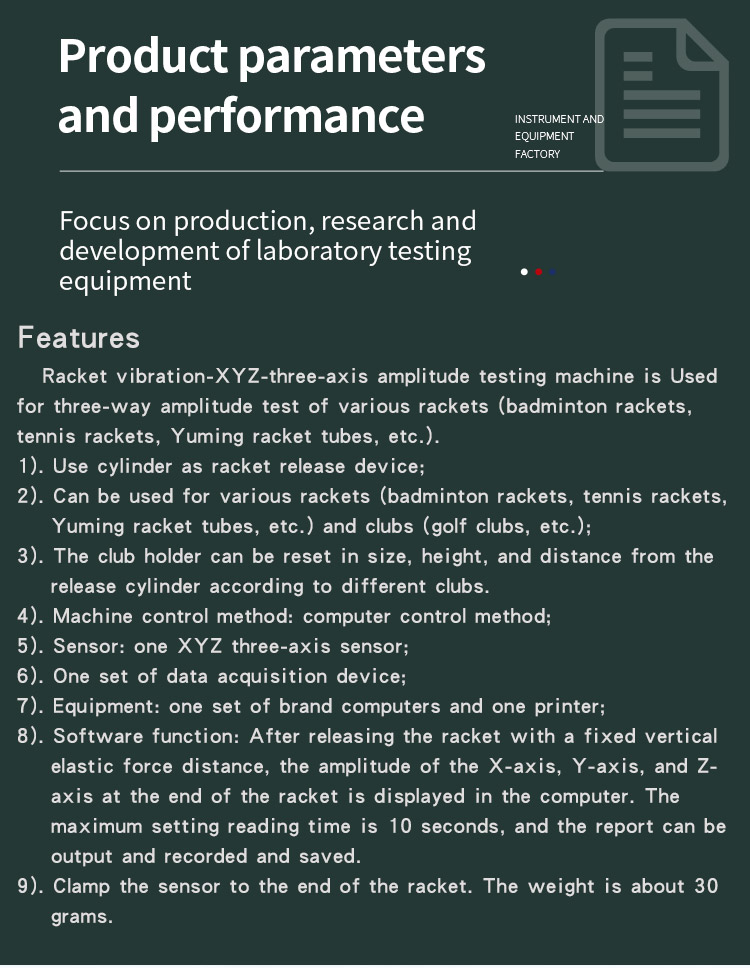

Racket vibration-XYZ-three-axis amplitude testing machine is Used for three-way amplitude test of various rackets (badminton rackets, tennis rackets, Yuming racket tubes, etc.).
1). Use cylinder as racket release device;
2). Can be used for various rackets (badminton rackets, tennis rackets, Yuming racket tubes, etc.) and clubs (golf clubs, etc.);
3). The club holder can be reset in size, height, and distance from the release cylinder according to different clubs.
4). Machine control method: computer control method;
5). Sensor: one XYZ three-axis sensor;
6). One set of data acquisition device;
7). Equipment: one set of brand computers and one printer;
8). Software function: After releasing the racket with a fixed vertical elastic force distance, the amplitude of the X-axis, Y-axis, and Z-axis at the end of the racket is displayed in the computer. The maximum setting reading time is 10 seconds, and the report can be output and recorded and saved.
9). Clamp the sensor to the end of the racket. The weight is about 30 grams.
