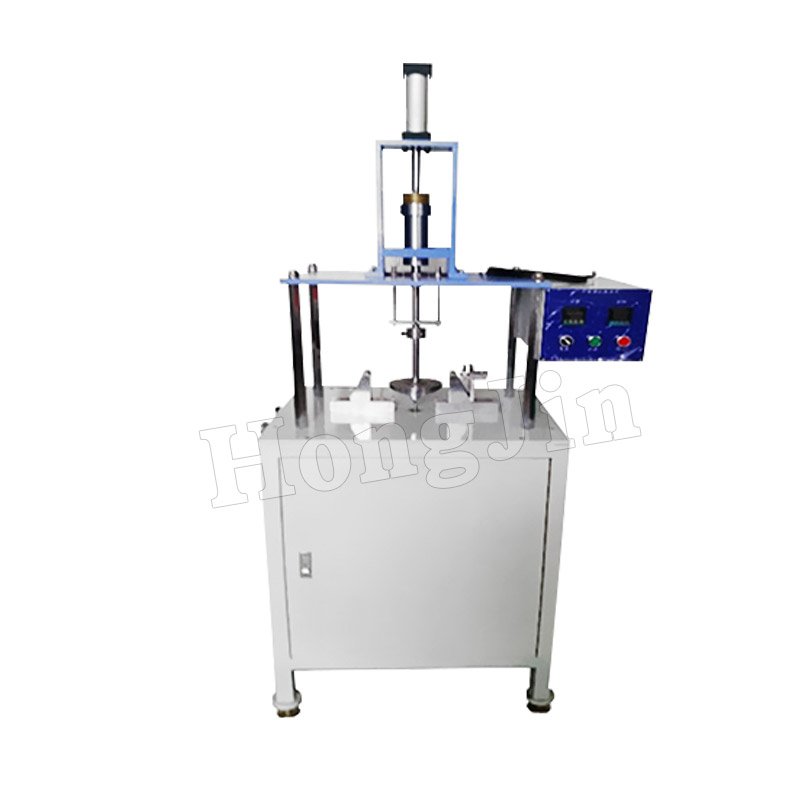

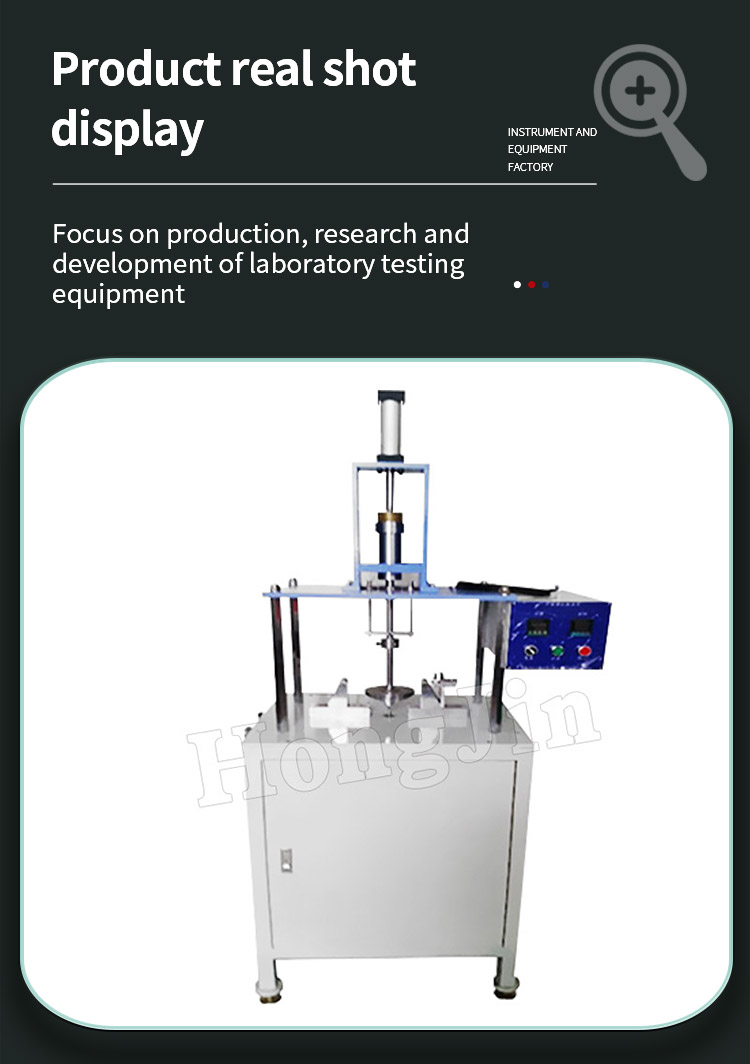

Medium Pipe Bending Testing Machine

This machine uses static weights as compression knives, which are applied to the carbon fiber middle tube at two fulcrums. The display shows the deformation of the fixed load. The machine's anti-bending knives are lifted and lowered, and are controlled by a cylinder and a foot switch. It can be used for full inspection of the middle tube.
Availability:
Quantity:
  • hongjin

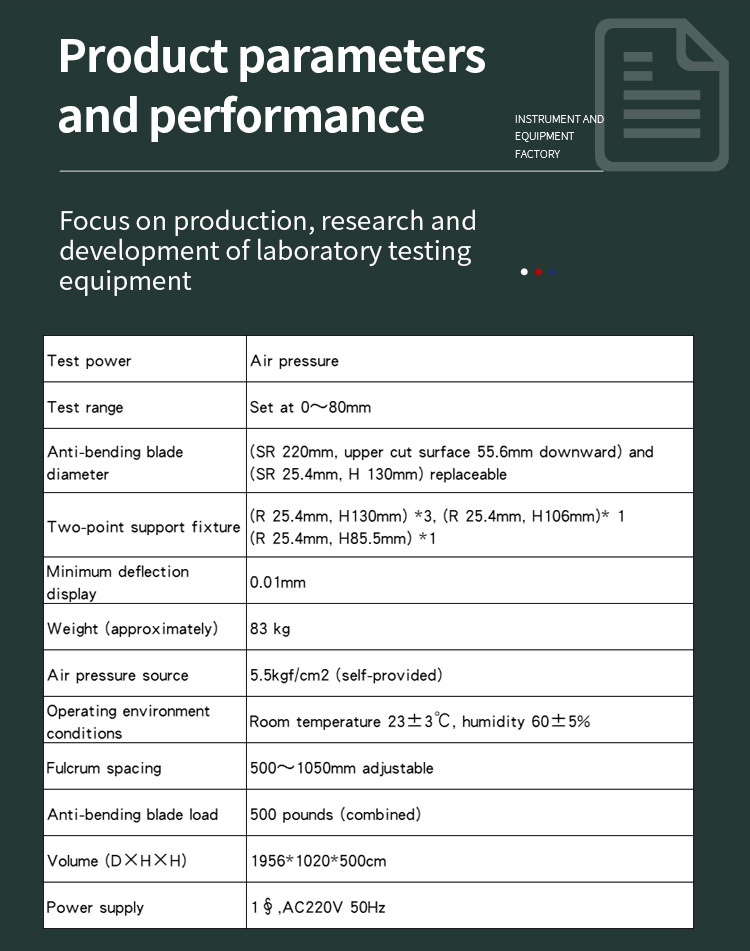

Test power Air pressure
Test range Set at 0~80mm
Anti-bending blade diameter (SR 220mm, upper cut surface 55.6mm downward) and
(SR 25.4mm, H 130mm) replaceable
Two-point support fixture (R 25.4mm, H130mm) *3, (R 25.4mm, H106mm)* 1
(R 25.4mm, H85.5mm) *1
Minimum deflection display 0.01mm
Weight (approximately) 83 kg
Air pressure source 5.5kgf/cm2 (self-provided)
Operating environment conditions Room temperature 23±3℃, humidity 60±5%
Fulcrum spacing 500~1050mm adjustable
Anti-bending blade load 500 pounds (combined)
Volume (D×H×H) 1956*1020*500cm


中管弯曲试验机_01中管弯曲试验机_02中管弯曲试验机_03中管弯曲试验机_04中管弯曲试验机_05新模板_01新模板_02123
