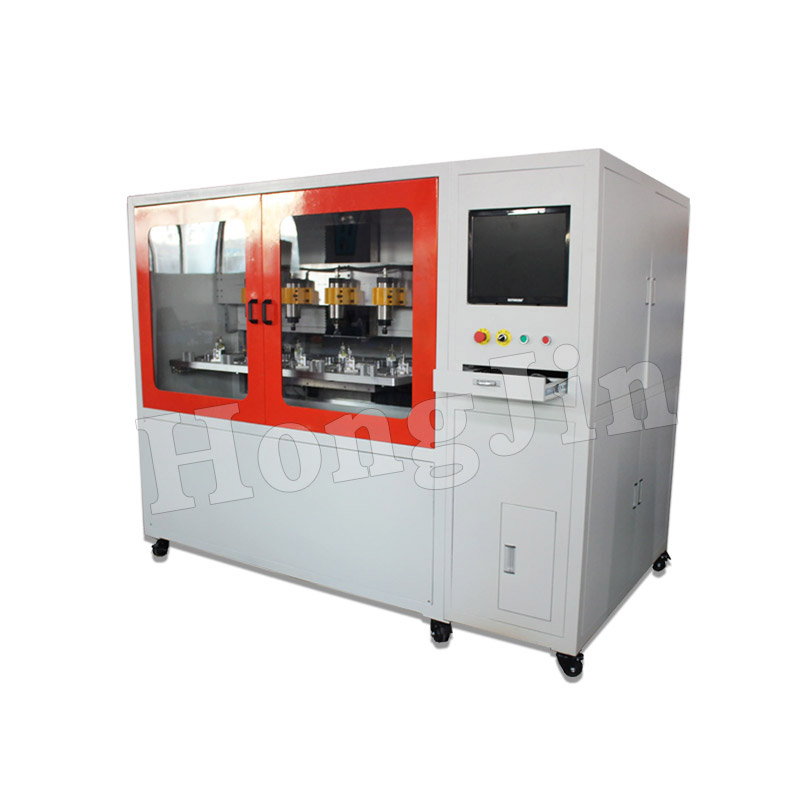

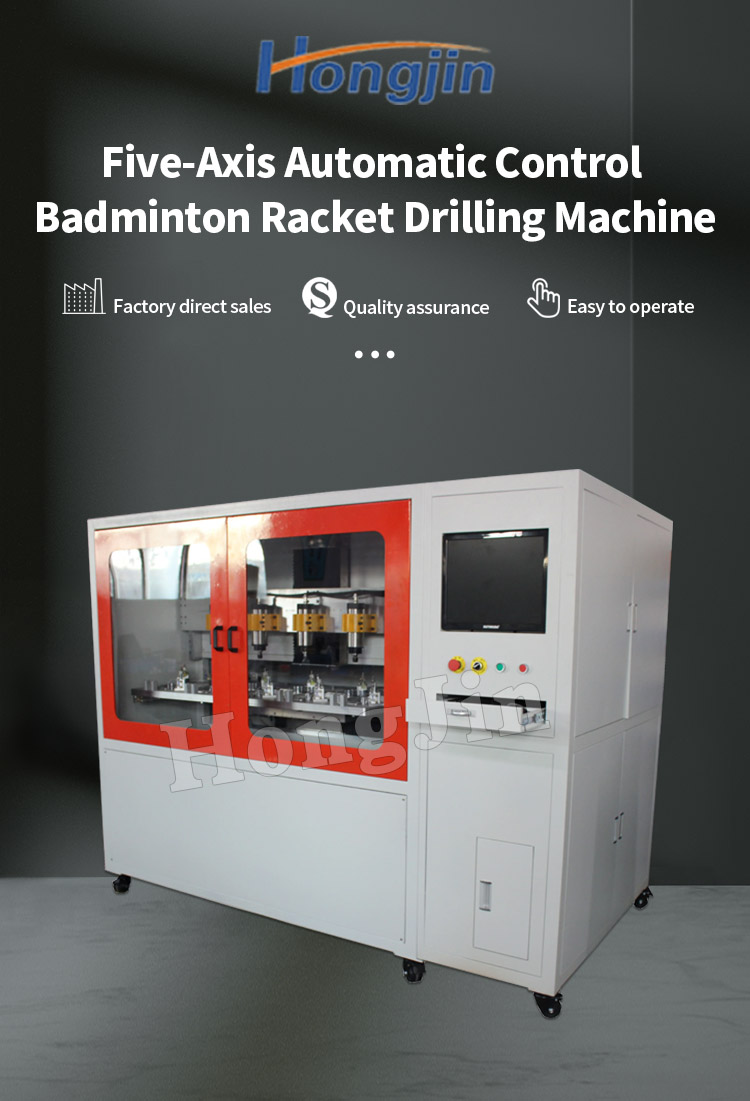

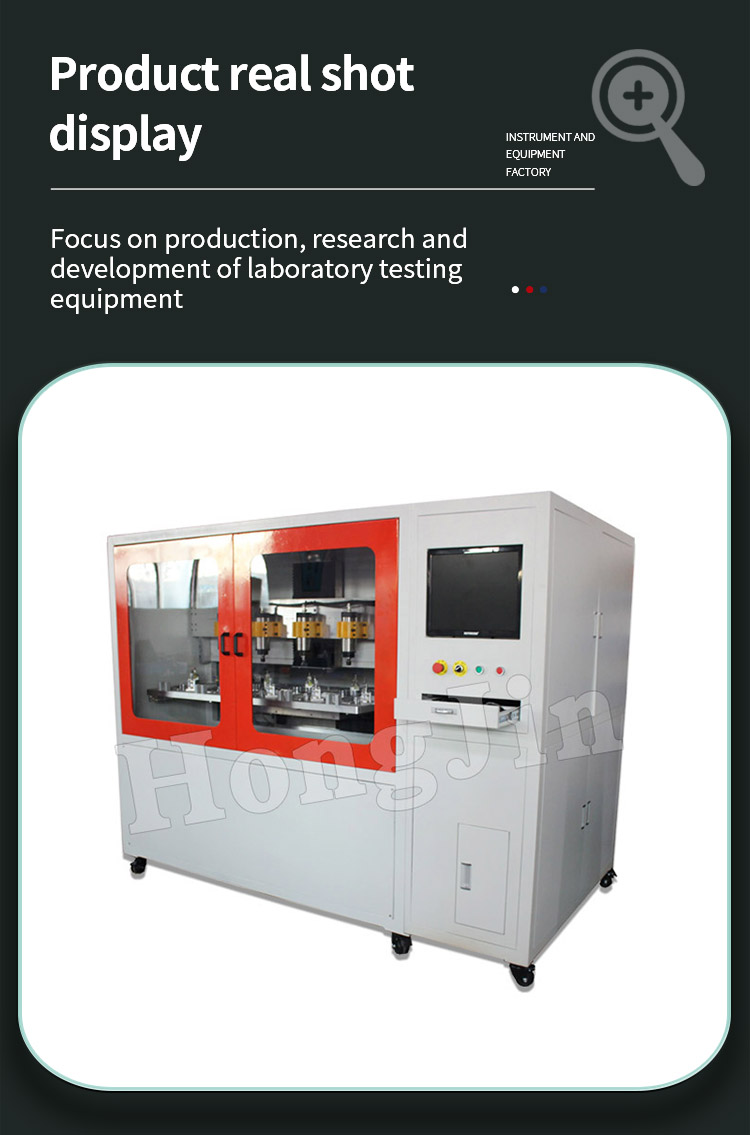

Five-axis Automatic Control Badminton Racket Drilling Machine


The five-axis automatic control badminton racket drilling machine is suitable for drilling and milling of various fiber badminton rackets, tennis rackets, squash rackets, etc.

Availability:
Quantity:
  • hongjin

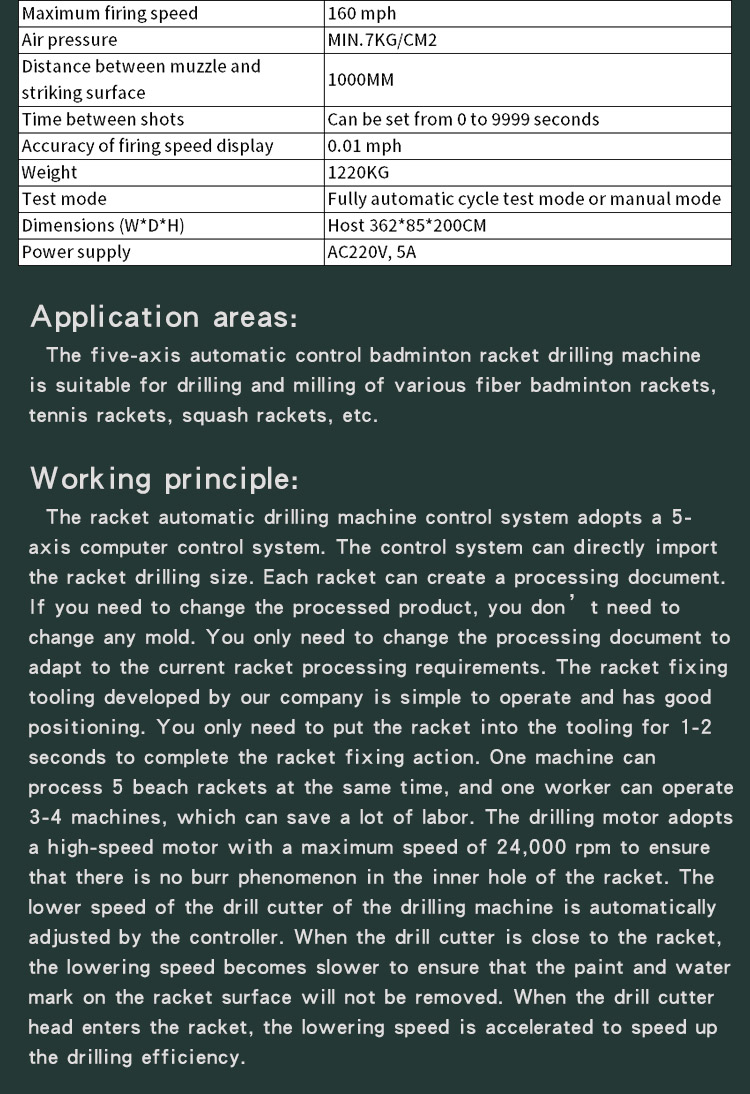

Working principle:

The racket automatic drilling machine control system adopts a 5-axis computer control system. The control system can directly import the racket drilling size. Each racket can create a processing document. If you need to change the processed product, you don’t need to change any mold. You only need to change the processing document to adapt to the current racket processing requirements. The racket fixing tooling developed by our company is simple to operate and has good positioning. You only need to put the racket into the tooling for 1-2 seconds to complete the racket fixing action. One machine can process 5 beach rackets at the same time, and one worker can operate 3-4 machines, which can save a lot of labor. The drilling motor adopts a high-speed motor with a maximum speed of 24,000 rpm to ensure that there is no burr phenomenon in the inner hole of the racket. The lower speed of the drill cutter of the drilling machine is automatically adjusted by the controller. When the drill cutter is close to the racket, the lowering speed becomes slower to ensure that the paint and water mark on the racket surface will not be removed. When the drill cutter head enters the racket, the lowering speed is accelerated to speed up the drilling efficiency.

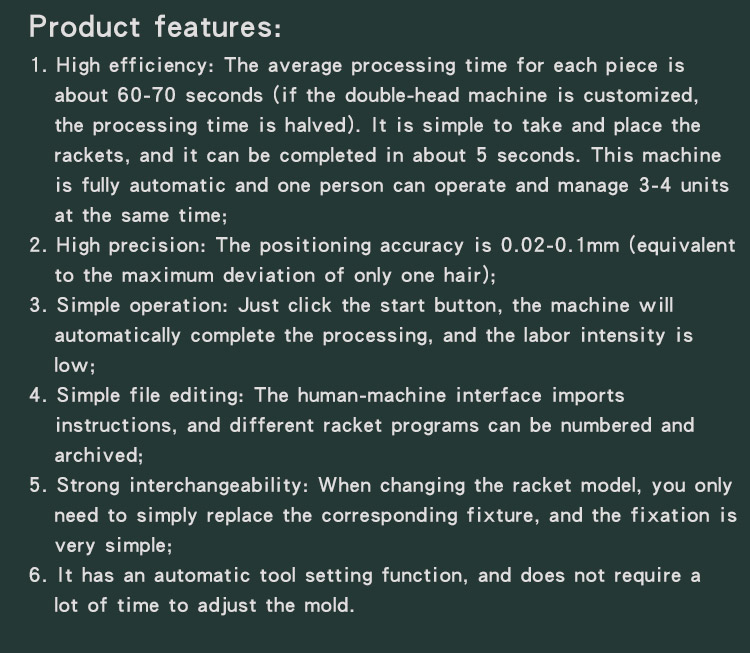

Product features:

1. High efficiency: The average processing time for each piece is about 60-70 seconds (if the double-head machine is customized, the processing time is halved). It is simple to take and place the rackets, and it can be completed in about 5 seconds. This machine is fully automatic and one person can operate and manage 3-4 units at the same time;

2. High precision: The positioning accuracy is 0.02-0.1mm (equivalent to the maximum deviation of only one hair);

3. Simple operation: Just click the start button, the machine will automatically complete the processing, and the labor intensity is low;

4. Simple file editing: The human-machine interface imports instructions, and different racket programs can be numbered and archived;

5. Strong interchangeability: When changing the racket model, you only need to simply replace the corresponding fixture, and the fixation is very simple;

6. It has an automatic tool setting function, and does not require a lot of time to adjust the mold.


Axis number Five-axis
Screw 20*5MM
Rail 15MM
Number of drill bits 1~5
Motor Stepper or servo (customer's choice)
Positioning accuracy 0.05-0.1MM
Spindle motor 2.2KW
Travel X/YIZ 300*300*300MM 750*300*300MM
Layout Vertical
Dimensions 2400*1350*1850MM (approx.)
Power supply 220V
