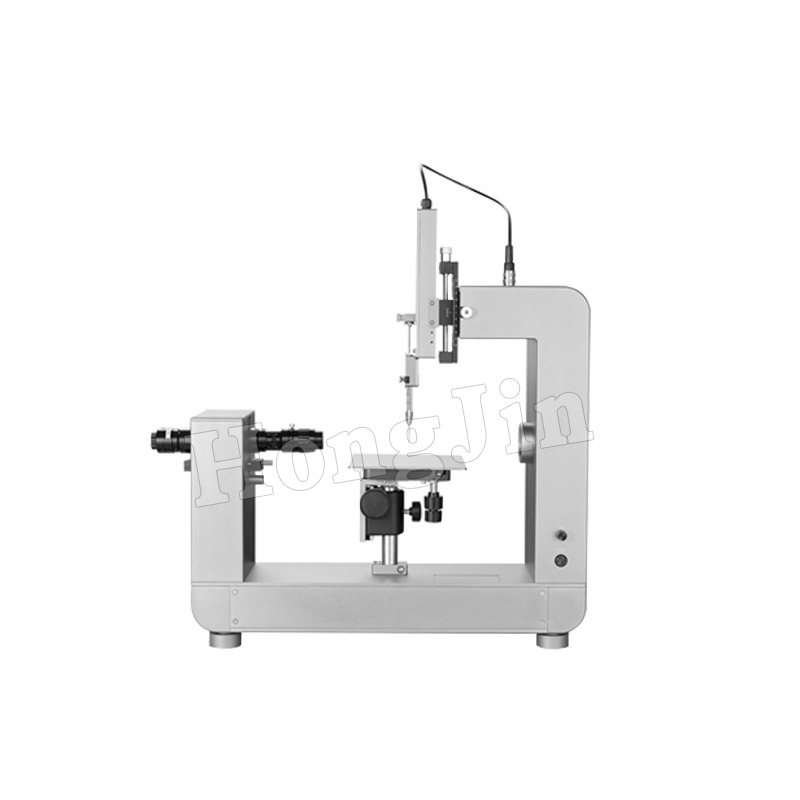

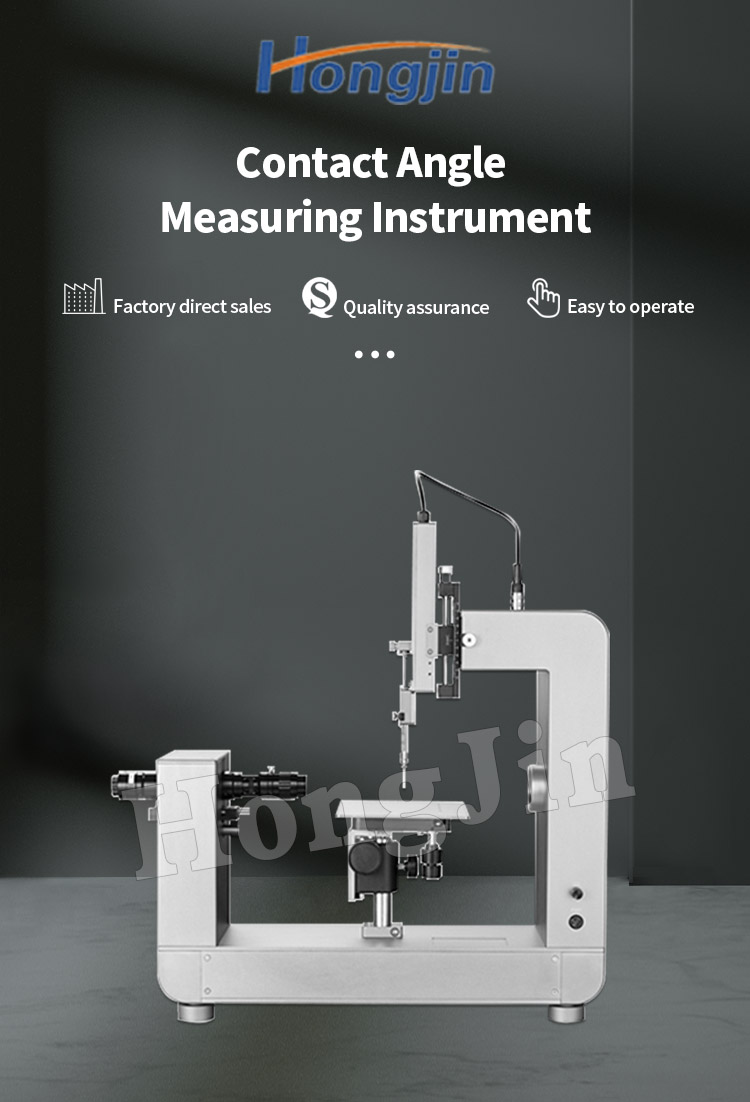

Contact Angle Measuring Instrument Principle Introduction:
The contact angle refers to the angle between the tangent line drawn at the gas-liquid interface at the junction of the gas, liquid, and solid phases, on the liquid side, and the solid-liquid interface line. Symbol: θ. The contact angle measuring instrument is the primary instrument for testing the contact angle of material surface properties.
The contact angle measuring instrument utilizes the principle of optical imaging. The equipment employs image and video contour analysis to measure the contact angle, wetting properties, interfacial tension, receding angle, surface energy, and other properties of the sample surface. It can meet various routine measurement needs and is currently widely used in numerous universities, research institutes, and enterprises.
Contact Angle Meter Software Introduction:
The contact angle meter software includes static contact angle, dynamic contact angle, roll-off contact angle, surface energy, surface tension, and adhesion work. The software features image clarity discrimination and automatically finds a baseline and fits a contour during contact angle measurement. For curved baselines formed by special shapes or structures on material surfaces, manual mode can be used for measurement. This general-purpose multi-functional video optical contact angle meter utilizes droplet shape analysis technology to analyze the wetting properties of thousands of material surfaces. The fully automatic tilting stage and video system are software-controlled, automatically recording the droplet shape changes, tilt angle, and position movement during tilting, and automatically measuring relevant parameters such as roll-off angle, advance angle, and retreat angle.

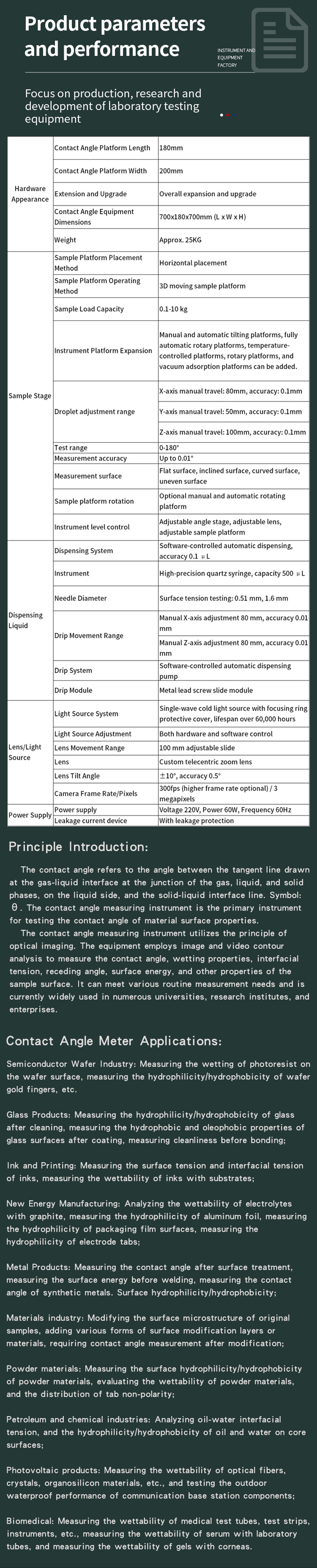

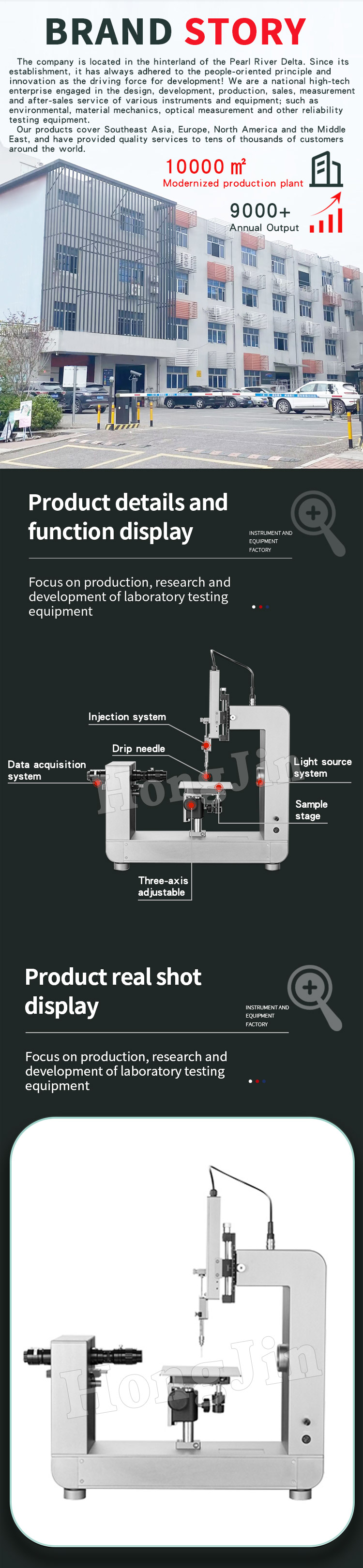

| Hardware Appearance | Contact Angle Platform Length | 180mm |
| Contact Angle Platform Width | 200mm | |
| Extension and Upgrade | Overall expansion and upgrade | |
| Contact Angle Equipment Dimensions | 700x180x700mm (L x W x H) | |
| Weight | Approx. 25KG | |
| Sample Stage | Sample Platform Placement Method | Horizontal placement |
| Sample Platform Operating Method | 3D moving sample platform | |
| Sample Load Capacity | 0.1-10 kg | |
| Instrument Platform Expansion | Manual and automatic tilting platforms, fully automatic rotary platforms, temperature-controlled platforms, rotary platforms, and vacuum adsorption platforms can be added. | |
| Droplet adjustment range | X-axis manual travel: 80mm, accuracy: 0.1mm | |
| Y-axis manual travel: 50mm, accuracy: 0.1mm | ||
| Z-axis manual travel: 100mm, accuracy: 0.1mm | ||
| Test range | 0-180° | |
| Measurement accuracy | Up to 0.01° | |
| Measurement surface | Flat surface, inclined surface, curved surface, uneven surface | |
| Sample platform rotation | Optional manual and automatic rotating platform | |
| Instrument level control | Adjustable angle stage, adjustable lens, adjustable sample platform | |
| Dispensing Liquid | Dispensing System | Software-controlled automatic dispensing, accuracy 0.1 μL |
| Instrument | High-precision quartz syringe, capacity 500 μL | |
| Needle Diameter | Surface tension testing: 0.51 mm, 1.6 mm | |
| Drip Movement Range | Manual X-axis adjustment 80 mm, accuracy 0.01 mm | |
| Manual Z-axis adjustment 80 mm, accuracy 0.01 mm | ||
| Drip System | Software-controlled automatic dispensing pump | |
| Drip Module | Metal lead screw slide module | |
| Lens/Light Source | Light Source System | Single-wave cold light source with focusing ring protective cover, lifespan over 60,000 hours |
| Light Source Adjustment | Both hardware and software control | |
| Lens Movement Range | 100 mm adjustable slide | |
| Lens | Custom telecentric zoom lens | |
| Lens Tilt Angle | ±10°, accuracy 0.5° | |
| Camera Frame Rate/Pixels | 300fps (higher frame rate optional) / 3 megapixels | |
| Power Supply | Power supply | Voltage 220V, Power 60W, Frequency 60Hz |
| Leakage current device | With leakage protection | |
| Software Components | Software algorithm | Resolution fitting method, arc surface method, θ/2 method, tangent method, angle measurement method, width and height method, L-Y method, circle method, ellipse method, oblique ellipse method |
| Measurement method | Fully automatic, semi-automatic, manual | |
| Fitting method | Resolution pixel fitting, perfectly matching the actual imaging pixels. | |
| Image capture | It supports multiple shooting modes, including single shot, continuous shooting, video recording, and one-click measurement. | |
| Left and right contact angle differentiation | support | |
| Analysis method | The methods include: seated drop method, fiber method, dynamic wetting method, hanging drop method, inverted hanging drop method, attached drop method, needle method, 3D morphology method, and bubble trapping method. | |
| Analysis mode | Wettability analysis, static analysis, real-time dynamic analysis, photo analysis, video analysis, forward and backward angle analysis | |
| Save mode | Word, Excel, spectral graphs, photos, videos |
Contact Angle Measuring Instrument Principle Introduction:
The contact angle refers to the angle between the tangent line drawn at the gas-liquid interface at the junction of the gas, liquid, and solid phases, on the liquid side, and the solid-liquid interface line. Symbol: θ. The contact angle measuring instrument is the primary instrument for testing the contact angle of material surface properties.
The contact angle measuring instrument utilizes the principle of optical imaging. The equipment employs image and video contour analysis to measure the contact angle, wetting properties, interfacial tension, receding angle, surface energy, and other properties of the sample surface. It can meet various routine measurement needs and is currently widely used in numerous universities, research institutes, and enterprises.
Contact Angle Meter Software Introduction:
The contact angle meter software includes static contact angle, dynamic contact angle, roll-off contact angle, surface energy, surface tension, and adhesion work. The software features image clarity discrimination and automatically finds a baseline and fits a contour during contact angle measurement. For curved baselines formed by special shapes or structures on material surfaces, manual mode can be used for measurement. This general-purpose multi-functional video optical contact angle meter utilizes droplet shape analysis technology to analyze the wetting properties of thousands of material surfaces. The fully automatic tilting stage and video system are software-controlled, automatically recording the droplet shape changes, tilt angle, and position movement during tilting, and automatically measuring relevant parameters such as roll-off angle, advance angle, and retreat angle.
| Hardware Appearance | Contact Angle Platform Length | 180mm |
| Contact Angle Platform Width | 200mm | |
| Extension and Upgrade | Overall expansion and upgrade | |
| Contact Angle Equipment Dimensions | 700x180x700mm (L x W x H) | |
| Weight | Approx. 25KG | |
| Sample Stage | Sample Platform Placement Method | Horizontal placement |
| Sample Platform Operating Method | 3D moving sample platform | |
| Sample Load Capacity | 0.1-10 kg | |
| Instrument Platform Expansion | Manual and automatic tilting platforms, fully automatic rotary platforms, temperature-controlled platforms, rotary platforms, and vacuum adsorption platforms can be added. | |
| Droplet adjustment range | X-axis manual travel: 80mm, accuracy: 0.1mm | |
| Y-axis manual travel: 50mm, accuracy: 0.1mm | ||
| Z-axis manual travel: 100mm, accuracy: 0.1mm | ||
| Test range | 0-180° | |
| Measurement accuracy | Up to 0.01° | |
| Measurement surface | Flat surface, inclined surface, curved surface, uneven surface | |
| Sample platform rotation | Optional manual and automatic rotating platform | |
| Instrument level control | Adjustable angle stage, adjustable lens, adjustable sample platform | |
| Dispensing Liquid | Dispensing System | Software-controlled automatic dispensing, accuracy 0.1 μL |
| Instrument | High-precision quartz syringe, capacity 500 μL | |
| Needle Diameter | Surface tension testing: 0.51 mm, 1.6 mm | |
| Drip Movement Range | Manual X-axis adjustment 80 mm, accuracy 0.01 mm | |
| Manual Z-axis adjustment 80 mm, accuracy 0.01 mm | ||
| Drip System | Software-controlled automatic dispensing pump | |
| Drip Module | Metal lead screw slide module | |
| Lens/Light Source | Light Source System | Single-wave cold light source with focusing ring protective cover, lifespan over 60,000 hours |
| Light Source Adjustment | Both hardware and software control | |
| Lens Movement Range | 100 mm adjustable slide | |
| Lens | Custom telecentric zoom lens | |
| Lens Tilt Angle | ±10°, accuracy 0.5° | |
| Camera Frame Rate/Pixels | 300fps (higher frame rate optional) / 3 megapixels | |
| Power Supply | Power supply | Voltage 220V, Power 60W, Frequency 60Hz |
| Leakage current device | With leakage protection | |
| Software Components | Software algorithm | Resolution fitting method, arc surface method, θ/2 method, tangent method, angle measurement method, width and height method, L-Y method, circle method, ellipse method, oblique ellipse method |
| Measurement method | Fully automatic, semi-automatic, manual | |
| Fitting method | Resolution pixel fitting, perfectly matching the actual imaging pixels. | |
| Image capture | It supports multiple shooting modes, including single shot, continuous shooting, video recording, and one-click measurement. | |
| Left and right contact angle differentiation | support | |
| Analysis method | The methods include: seated drop method, fiber method, dynamic wetting method, hanging drop method, inverted hanging drop method, attached drop method, needle method, 3D morphology method, and bubble trapping method. | |
| Analysis mode | Wettability analysis, static analysis, real-time dynamic analysis, photo analysis, video analysis, forward and backward angle analysis | |
| Save mode | Word, Excel, spectral graphs, photos, videos |
