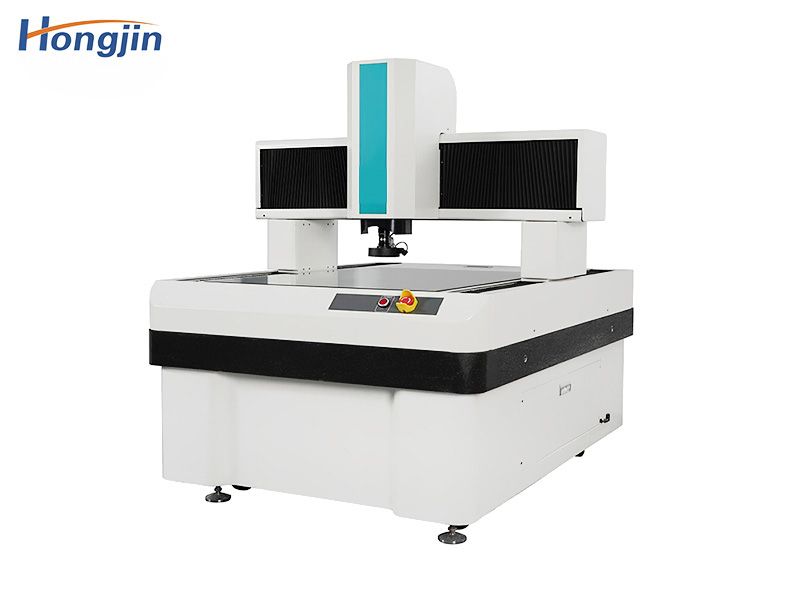

Automatic three-coordinate image measuring instrument ACM series, with excellent self-learning function, makes complex workpiece measurement easy to learn, three-axis use high-performance synchronous belt drive, unique guide rail design, reliable Z-axis anti-rotation Non-linear spring, automatic three-coordinate image measuring instrument has higher environmental temperature adaptability, and is widely used in hardware machinery, metallurgical molds, automotive aviation, electronic textiles, scientific research institutions and other industries.
Features:
1. Move the gantry structure, and the measurement workpiece is fixed;
2. Using high-precision Jinan blue granite "00" grade workbench and column, its notable features are high precision, corrosion resistance, high strength, no stress deformation, to ensure high stability of the machine;
3. The automatic zoom electronic card position lens is used to easily switch the magnification without re-calibration;
4. X.Y.Z three-axis CNC automatic precision control and accurate positioning, transmission adopts precision linear guide, grinding-grade ball screw, to ensure that the motion system is accurate;
5. Program-controlled 5-ring 8-zone LED surface light source and parallel LED contour light source system, intelligently realize 256-level brightness adjustment;
6. Self-developed measurement software, with fast focusing, automatic edge finding and diversified output reports, realizes online SPC data processing and analysis, and can set automatic measurement tasks to efficiently complete batch inspection;
Product parameters:
