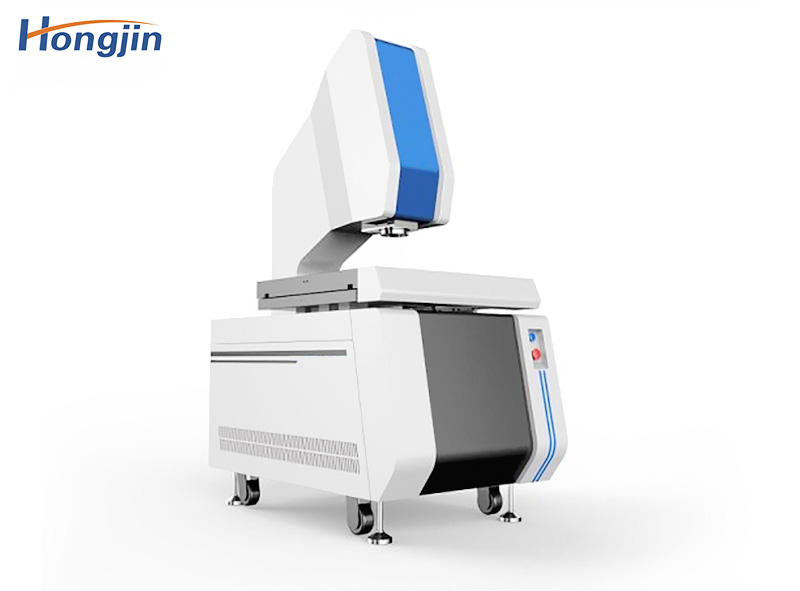

CNC type (Computer numerical control) image measuring instrument can be controlled and operated by computer, reducing manual operation. It is a new generation of measuring instrument that improves work efficiency and reduces the production cost of users (enterprises). This series of large stroke automatic image measuring instruments are mainly used in PCB circuit boards, copper clad laminates, flat glass, liquid crystal modules, knife molds, insulating materials and other industries.
Features:
1. Using double closed-loop motion control, the motor has precise positioning and stability during high-speed motion;
2. The embedded module is used to control the motor, which improves the response speed of the motor and simplifies the interface between the instrument and the PC. The PC and the instrument are connected through the USB cable and the S terminal cable;
3. Using granite platform, the appearance is simple and elegant;
4. The surface light consists of forty-eight groups of independent light sources, each of which is driven by a constant current source and is continuously adjustable;
5. Equipped with automatic measurement software QuickMeasuring measuring instrument measurement software, which greatly improves the measurement efficiency.
Product parameters:
