Product Applications
1. Measurement of liquid contact angle on solid surfaces (wetting angle/droplet angle);
2. Measurement and analysis of free energy/surface tension of solid surfaces;
3. Wettability characterization, including measurement and analysis of dynamic processes such as liquid spreading/penetration on solid surfaces;
4. Measurement and analysis of printability, adhesion/binder properties of liquids on solid surfaces;
5. Measurement and evaluation of the cleanliness of solid surfaces (after cleaning processes) or the effects of surface treatments (such as plasma treatment);
6. Hydrophobicity of solid surfaces (droplet angle test after solid coating + monitoring in conjunction with abrasion resistance);
7. Advance and retreat angle tests (continuous expansion and contraction of the liquid);
8. Roll-off angle test (tilting the platform to analyze the energy when the solid and liquid are not on a horizontal plane).
Measurement Methods:
1. Sessile Drop Method (Contact Angle/Wetting Angle Test)
2. Pendant Drop Method (Surface/Interfacial Tension Test)
3. Captive Bubble Method (Contact Angle Analysis of Petroleum)
4. Wetted Fiber Method (Testing of Single Fibers)
5. Sessle Fiber Drop Method (Testing of Sheet Fibers)

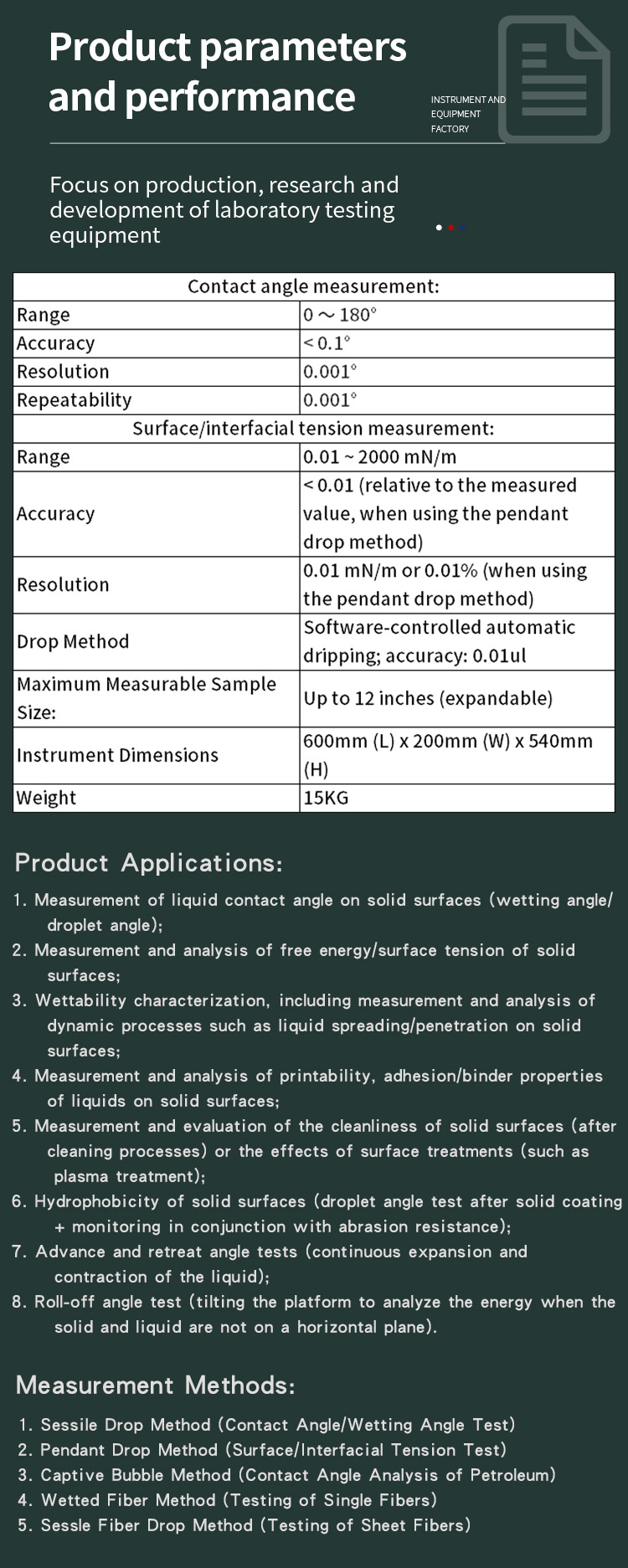

| Contact angle measurement: | |
| Range | 0 ～ 180° |
| Accuracy | < 0.1° |
| Resolution | 0.001° |
| Repeatability | 0.001° |
| Surface/interfacial tension measurement: | |
| Range | 0.01 ~ 2000 mN/m |
| Accuracy | < 0.01 (relative to the measured value, when using the pendant drop method) |
| Resolution | 0.01 mN/m or 0.01% (when using the pendant drop method) |
| Drop Method | Software-controlled automatic dripping; accuracy: 0.01ul |
| Maximum Measurable Sample Size: | Up to 12 inches (expandable) |
| Instrument Dimensions | 600mm (L) x 200mm (W) x 540mm (H) |
| Weight | 15KG |
