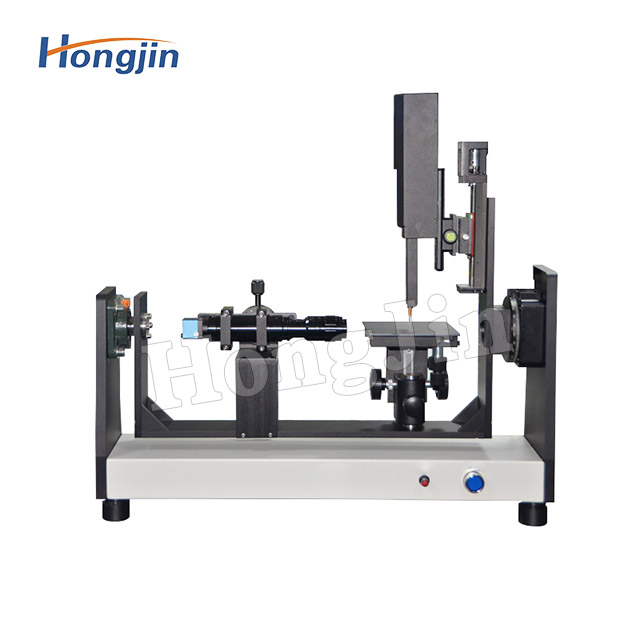

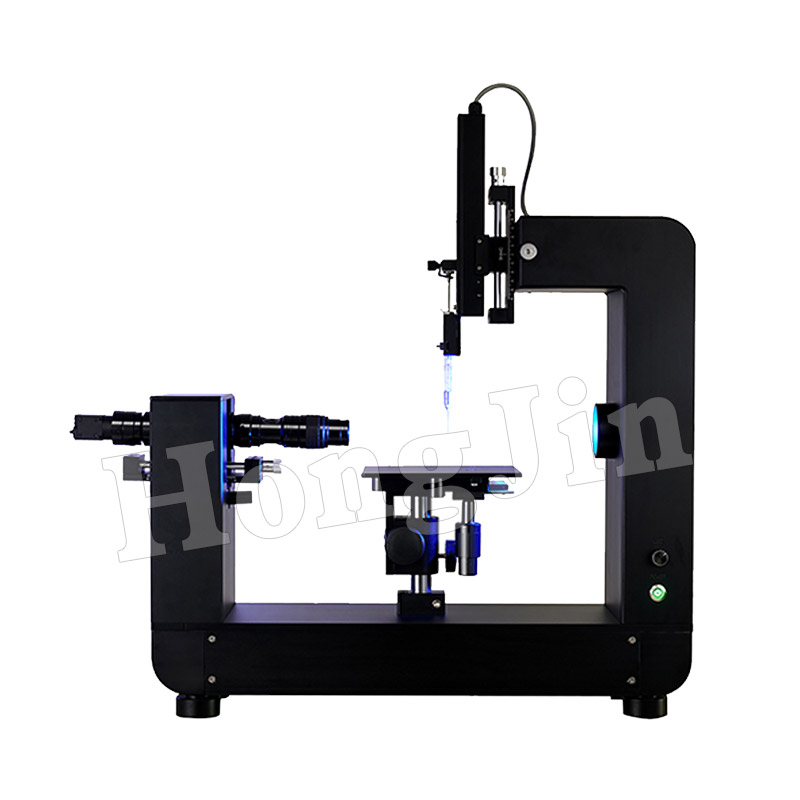

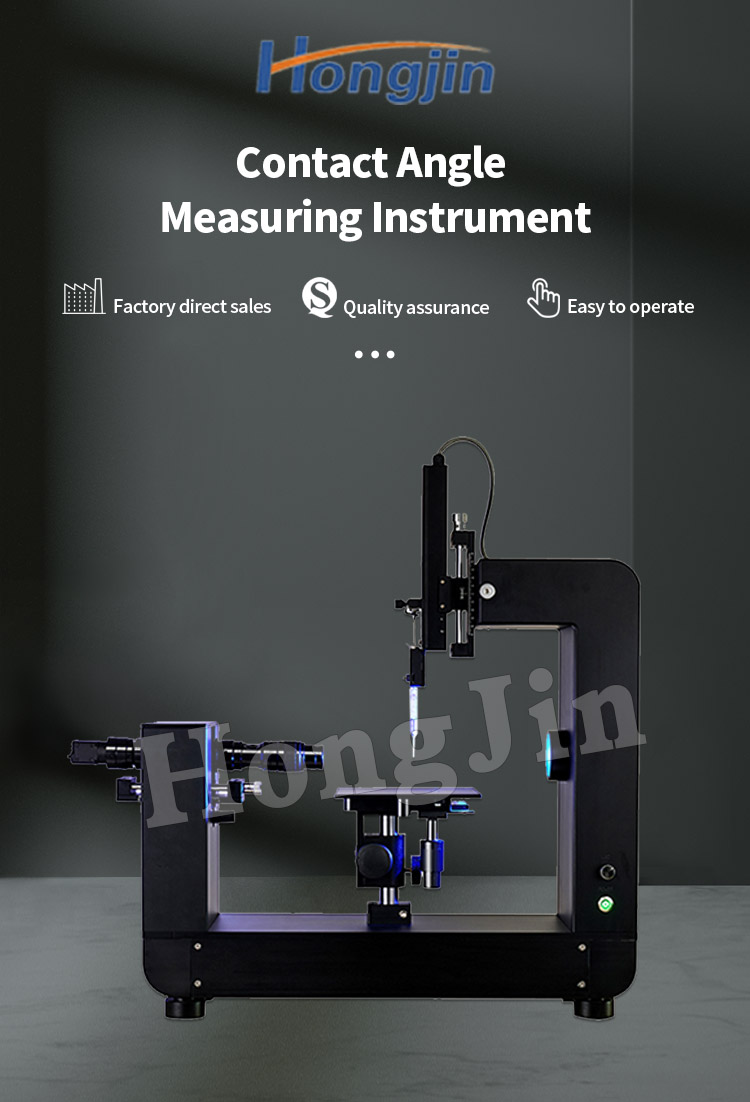

Integral Tilt Automatic Contact Angle Meter

The integral inclined contact angle measuring instrument adopts the principle of optical imaging to measure the surface contact angle, wetting performance, surface interfacial tension, surface energy, rolling (slip angle), forward and backward angle and hysteresis of the sample through image profile analysis. . In the fields of mobile phone manufacturing, glass manufacturing, surface treatment, material research, chemical engineering, semiconductor manufacturing, coating ink, electronic circuit, textile fiber, medical biology, etc., contact angle measurement has become an important instrument for evaluating surface properties.
Availability:
Quantity:

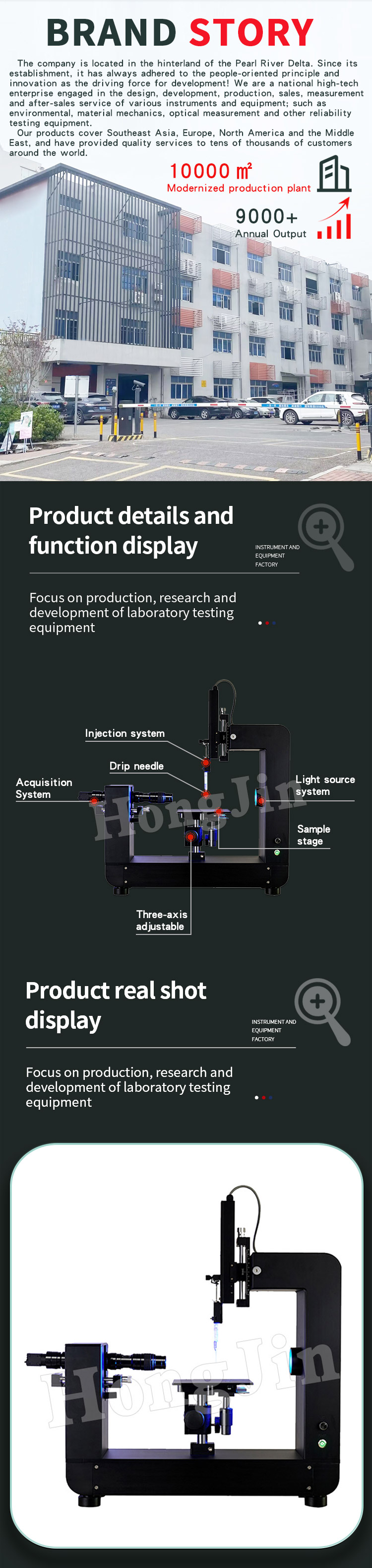

product description

The integral inclined contact angle measuring instrument adopts the principle of optical imaging to measure the surface contact angle, wetting performance, surface interfacial tension, surface energy, rolling (slip angle), forward and backward angle and hysteresis of the sample through image profile analysis. . In the fields of mobile phone manufacturing, glass manufacturing, surface treatment, material research, chemical engineering, semiconductor manufacturing, coating ink, electronic circuit, textile fiber, medical biology, etc., contact angle measurement has become an important instrument for evaluating surface properties.

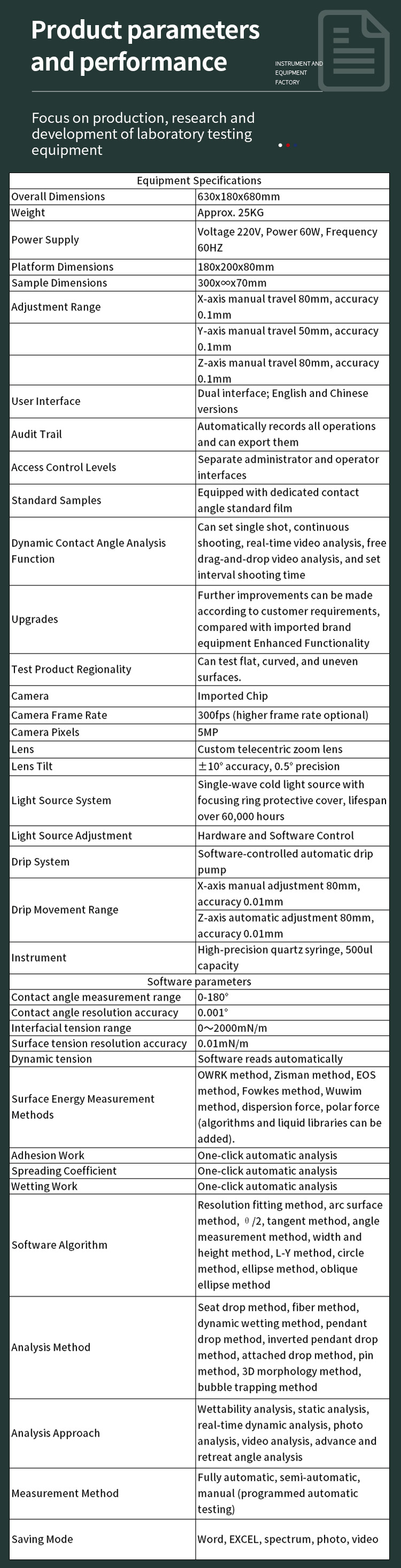

Product parameter table

Contact Angle host
Overall dimension 750mm (L *408mm (W) * 695mm (H)
weight 30.5K
Power supply G220V/ 60HZ
Light source system
Light source Intensive LED adjustable blue tone industrial grade cold light source
Life span Service life of more than twenty-five thousand hours
Injection unit
syringe Special supporting high precision quartz syringe with 500μL capacity
drip Software control automatic feeding, accuracy up to 0.01μL
Injection unit movement Upper and lower 50mm; About 50mm
Acquisition system
CCD SONY originally imported high-speed industrial-grade chip, 25 frames /s, 130w pixels (can upgrade camera frame rate)
lens 0.7x - 4.5x HD industrial grade continuous magnification microscope
Acquisition system regulation Front and rear 100mm (3mm fine tuning), Angle of view adjustable (horizontal view, top view, 360" rotation and other multi-angle observation)
Sample table installation
Surface size 20mm*150mm
Maximum sample size 6 inch
Sample table movement Moving manual, stroke 60mm, accuracy 0.1mm moving manual, stroke 35mm, accuracy 0.1mm moving manual, stroke 80mm, accuracy 0.1mm
Integral tilting platform
Contact Angle measurement range Incline range is 90°, incline accuracy is ±0.01°, incline rate is adjustable
Contact Angle measurement accuracy 0-180 °
Table interfacial tension measurement range ±0.1°
Table interfacial tension measurement accuracy 0-2000mN/m
Surface free capacity 0.01 mN/m
Dynamic contact Angle fitting Zisman, OWRK, WU, WU 2, Fowkes, Antonow, Berthelot, EOS, adhesion work, wetting work, spreading coefficient
Table/interfacial tension test Batch screenshot fitting, video continuous automatic fitting, automatic online real-time fitting
Test the droplet status Pendant Drop method (can be real-time automatic dynamic surface tension test), Pendant Drop method (Sessile drop) (2/3 state), bubble method, seat drop method, seat needle method

白底图白底图2123
