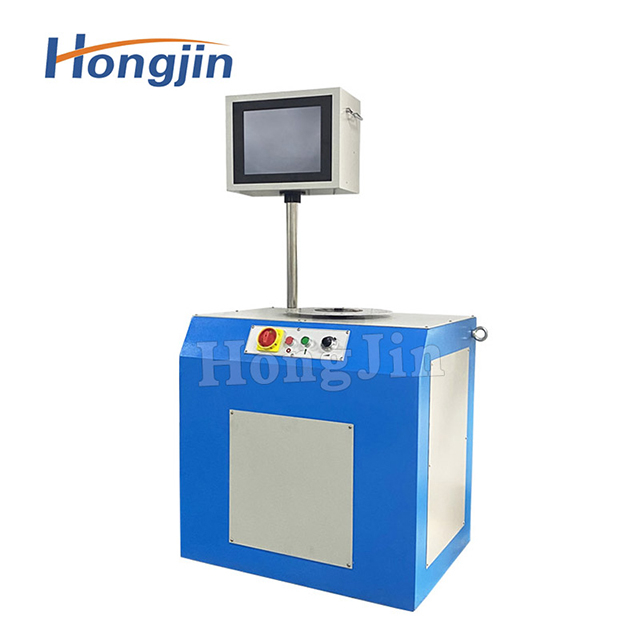

Single Side Vertical Balancing Machine

Single-sided vertical balancing machine, mainly suitable for flywheel, large impeller, chuck, large clutch, pulley, wind blade and other disk-like parts for balance correction; The measuring system adopts industrial computer (single chip microcomputer) and international digital and analog integrated circuit. The speed, quantity value and phase are all displayed digitally, and the unbalance is directly displayed by (g).
Availability:
Quantity:

Scope of application:

Single-sided vertical balancing machine, mainly suitable for flywheel, large impeller, chuck, large clutch, pulley, wind blade and other disk-like parts for balance correction; The measuring system adopts industrial computer (single chip microcomputer) and international digital and analog integrated circuit. The speed, quantity value and phase are all displayed digitally, and the unbalance is directly displayed by (g).


Product features:

1, in the form of menu operation, can achieve human-machine dialogue;

2, complete industrial computer design, safe use, suitable for harsh production site environment normal use, good stability;

3, amplification, filtering, calculation and other circuits have been modular, easy maintenance;

4, the complete digital circuit operation mode has high precision, and the use of program control brings feasible space for the future upgrade of equipment;

5, the unbalance is directly displayed as "g" or "mg";

6, the electromechanical transducer adopts piezoelectric ceramic sensor, which is characterized by small volume, large output, high sensitivity and reliable performance.


Product function description:

1, LCD industrial computer display speed, quantity value, phase, fixture compensation, plus/minus adjustment switching mode, precision level;

2, the system has self-test function, accurate fault self-test;

3, can store the size parameters of 20 kinds of specifications of the workpiece, convenient specifications of variable workpiece conversion, to avoid complicated input work;

4, calibration, fixture eccentric compensation function to support users random inspection and adjustment accuracy;

5, the user can choose to increase the weight removal method according to needs;

6, the production of electrical standard rotor, more convenient for users to inspect and adjust the equipment.


Product parameters:

Workpiece Max mass 5Kg Maximum workpiece diameter ≤500mm
Equilibrium speed 900-1200r/min Workpiece height 350mm
Min can reach the remaining unbalance emar ≤5g.mm/kg Unbalance reduction rate URR ≤90%
Complete machine load ≤1KVA Power supply 380V 50Hz
